Kamoer DIP-KK300 Intelligent High Flow Peristaltic Pump
- Hign-concerned Chemical: None
- Application: Metering
- Theory: Rotary Pump
- Structure: Gear Pump
- Model Number: DIP-KK300 V2
- Power: Electric
- Standard or Nonstandard: Standard
- Pressure: Low Pressure
- Brand Name: kamoer
- Usage: Water
- Fuel: Electric
- Origin: CHINA
- Certification: CE,RoHS
- Voltage: DC24V; 2A
- Power: Less than 50W
- Flow range: ≤300ml/min;400RPM
- Pump tube: Siiicone/BPT
- Weight: 1.25kg
- Control method: Rotary encoder, foot switch, external analog (4-20mA and 0-5V, 0-10V), 485 communication control
- Operating mode: Speed Mode and Flow Mode
- Way of working: Fully automatic cycle, semi-automatic cycle, manual
- Support function: Start and stop, reversing, speed regulation, calibration, suck back, parameter memory, etc.
- Advantage: peristaltic pump high precision
DIP-KK300 4 Rotors 0-300ml/min High Flow/ Peristaltic Pump 24V Stepper Motor/ Intelligent Adjustable Speed Lab Dosing Pump
Selection Guide
1. Know what liquid do you want to transfer?
(Imported BPT Tubing Chemical stable; Silicone tubing is suitable for Neutral liquid.)
2. What’s your bottle volume and how many bottles you want to fill 1 minute?
3. Select the tubing size based on the following chart.
All the data in the chart is tested on the water.
Basic Parameters
Basic Parameters |
DIPump-KK300 with Stepper motor |
|
Power supply |
DC24V 2A |
|
Flow ml/min |
≤300ml/min |
|
Power(Max) |
＜50W |
|
Weight |
About 1.25KG |
|
Noise |
≤65dB(Less than 35dB measured at a distance of 50cm) |
|
Speed range |
0.1-400 rpm |
|
Speed adjustment resolution |
0.1 rpm |
|
Display mode |
LED 4-digit digital tube |
|
Control method |
Rotary encoder, foot switch, external analog (4-20mA and 0-5V,0-10V), 485 communication control |
|
Operating mode |
Speed Mode and Flow Mode |
|
Way of working |
Fully automatic cycle, semi-automatic cycle, manual |
|
Support function |
Start and stop, reversing, speed regulation, calibration, suck back, parameter memory, etc. |
|

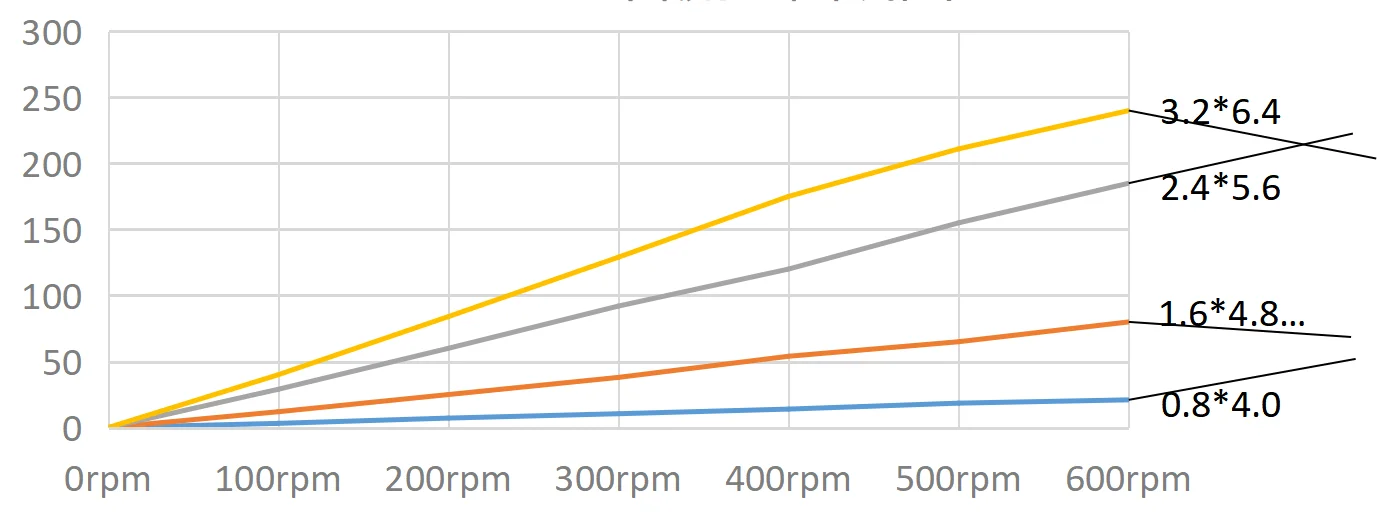

Reference flow rate (unit: ml/min) |
||||||
|
Tube code |
S13 |
S14 |
S19 |
S16 |
S40 |
S25 |
|
Inner diameter(mm) X Outer diameter(mm) |
0.8×4.0 |
1.6×4.8 |
2.4×5.6 |
3.2×6.4 |
4.0×7.2 |
4.8×8.0 |
|
Max Flow rate |
14 |
46 |
104 |
177 |
262 |
313 |
|
Tube code |
B13 |
B14 |
B19 |
B16 |
/ |
/ |
|
Inner diameter(mm) X Outer diameter(mm) |
0.8×4.0 |
1.6×4.8 |
2.4×5.6 |
3.2×6.4 |
/ |
/ |
|
Max Flow rate |
14 |
57 |
117 |
198 |
/ |
/ |

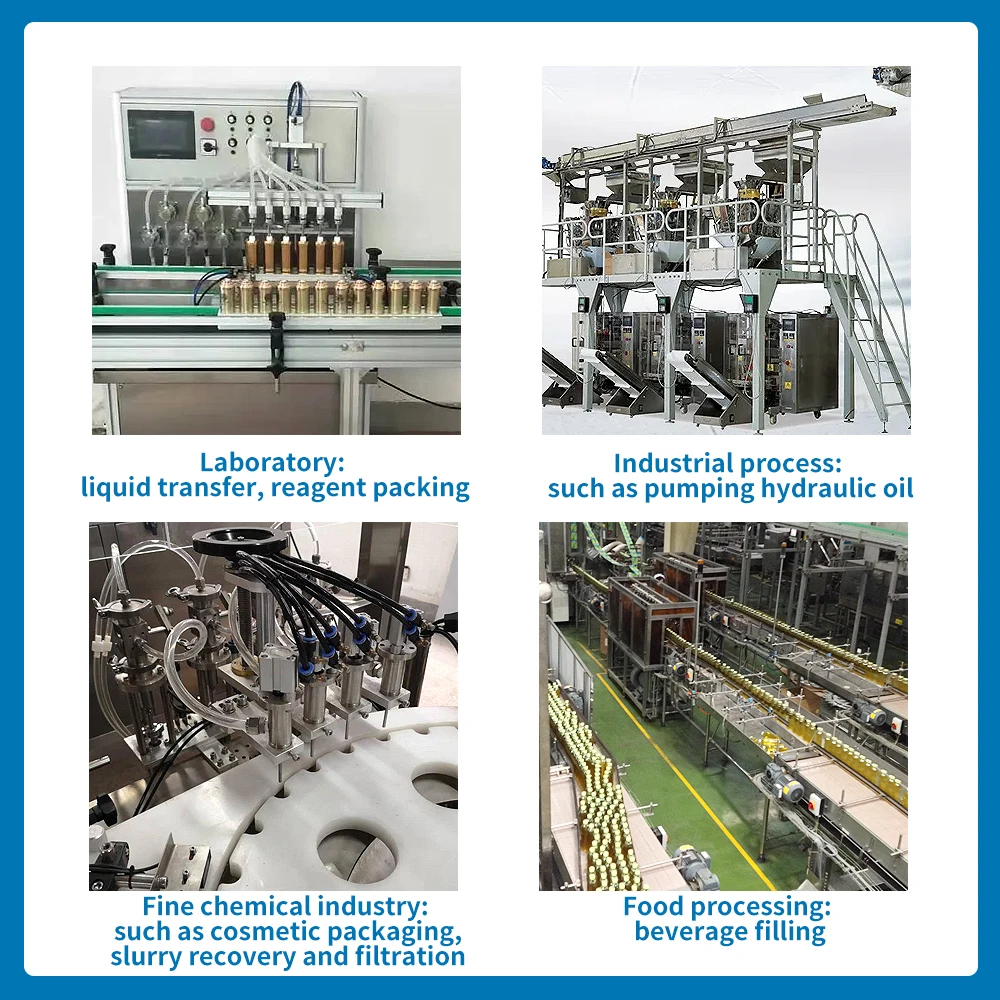

Various Applications
# Canned liquid
# Laboratory
# Food industry
# Medical equipment

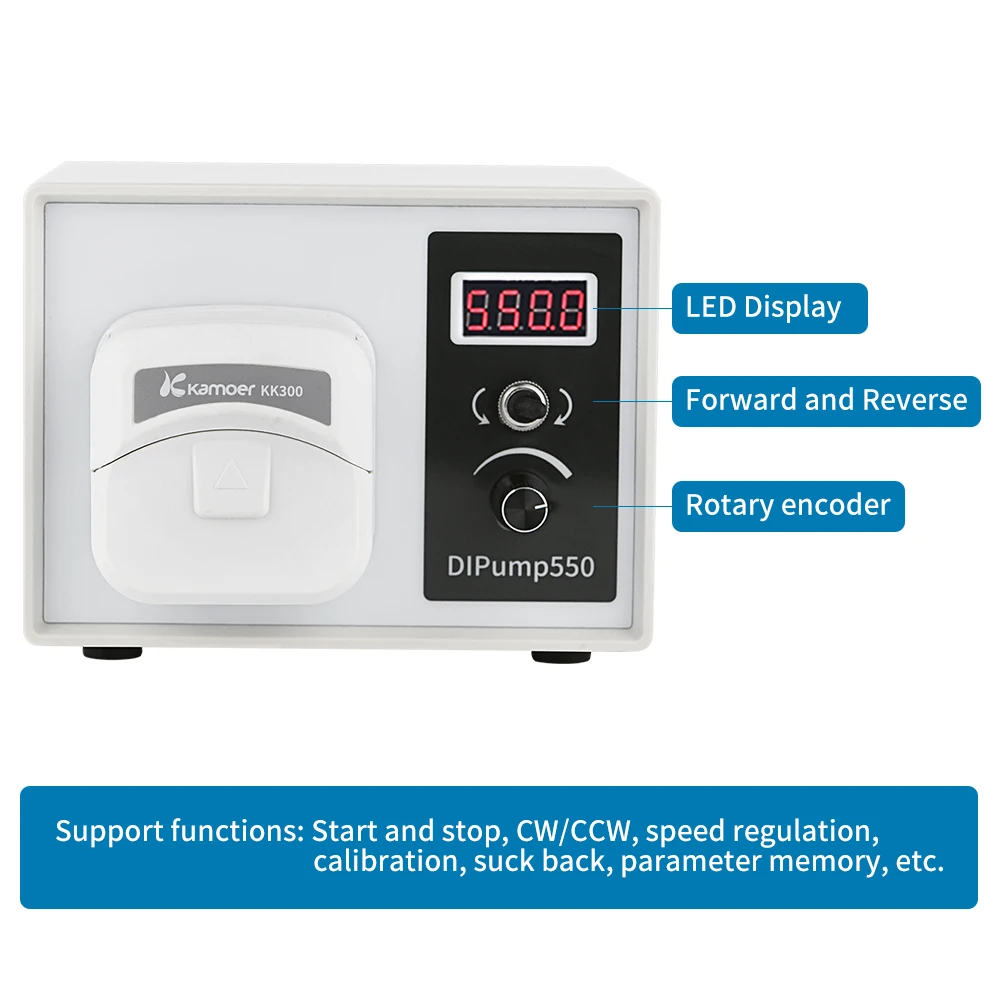

LED Display: Rotating speed(real time)
Forward and Reverse: CW/CCW
Rotary encoder: Adjust the speed and setting the parameters

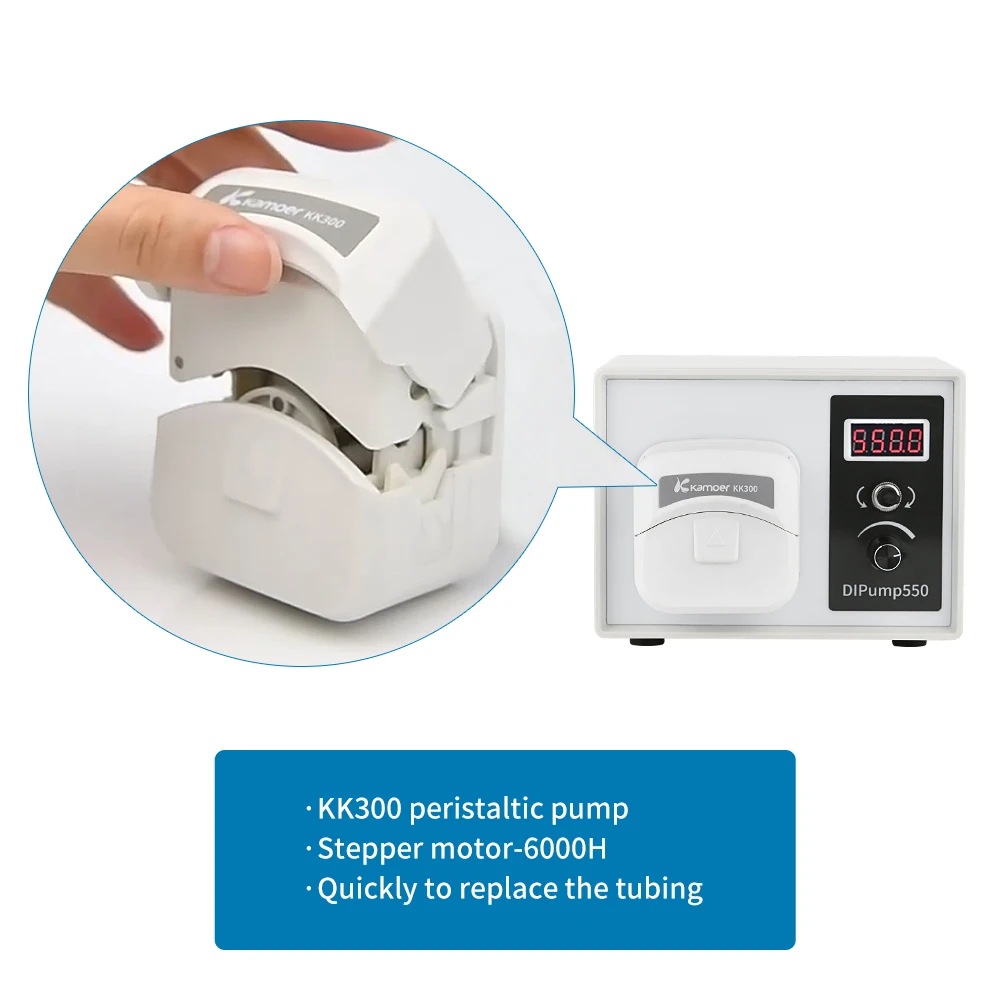

KK300: Quickly to replace the tubingWith stepper motor-6000H lifetime
Waterproof power interface
Foot switch with GX16-9 Aviation plug
The foot switch is used to replace the start/stop button. In a suitable interface, step on the foot switch to control the start and stop of the pump.
The foot switch is a standard accessory, and the line length is 2 meters.
Size Drawing
150x160x116.2(LxWxH)
Combined control port
Foot 1: leave blank
Foot 2: 485 B
Foot 3: 485 A
Foot 4: foot switch +
Foot 5: Foot switch –
Pin 6: Analog signal 5V-/10V-
Pin 7: Analog signal 5V+/10V+
Pin 8: Analog signal mA-
Pin 9: Analog signal mA+
Foot switch supports active input (PLC signal)
The foot switch is used to replace the start/stop button. In a suitable interface, step on the foot switch to control the start and stop of the pump.
The foot switch is a standard accessory, and the line length is 2 meters.
