5000W ZVS Induction Heater Module Set

when the parcel arrived to your customs, please pay the tax and pick up

the parcel, we are not responsible for any customs duty or import tax

if your place is remote, then need to pay 38 usd

Specification

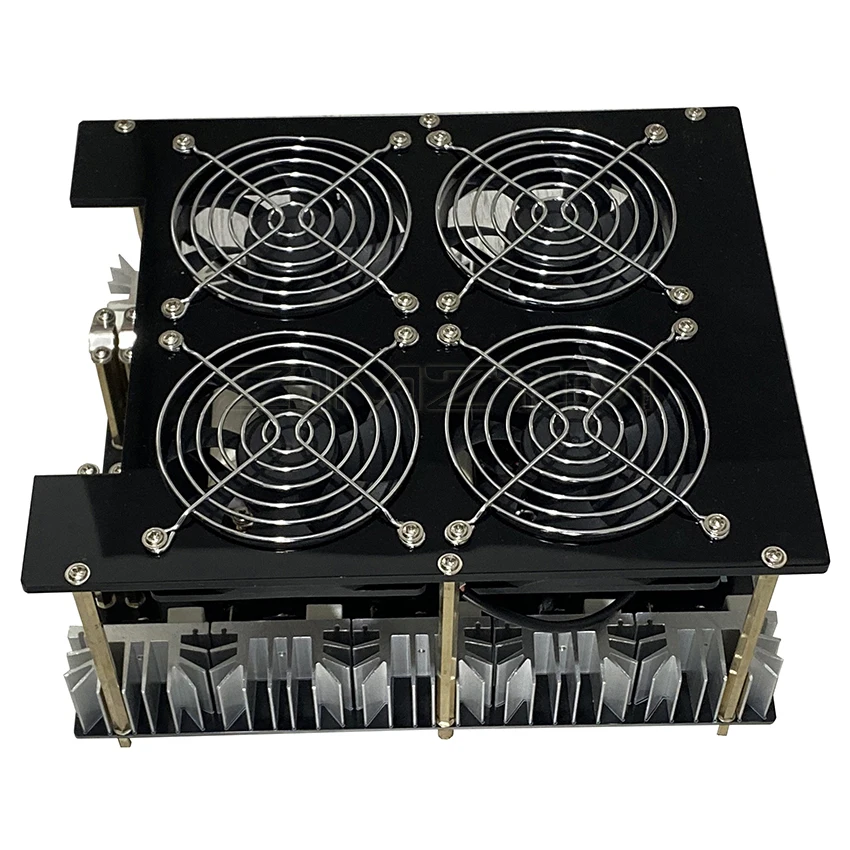

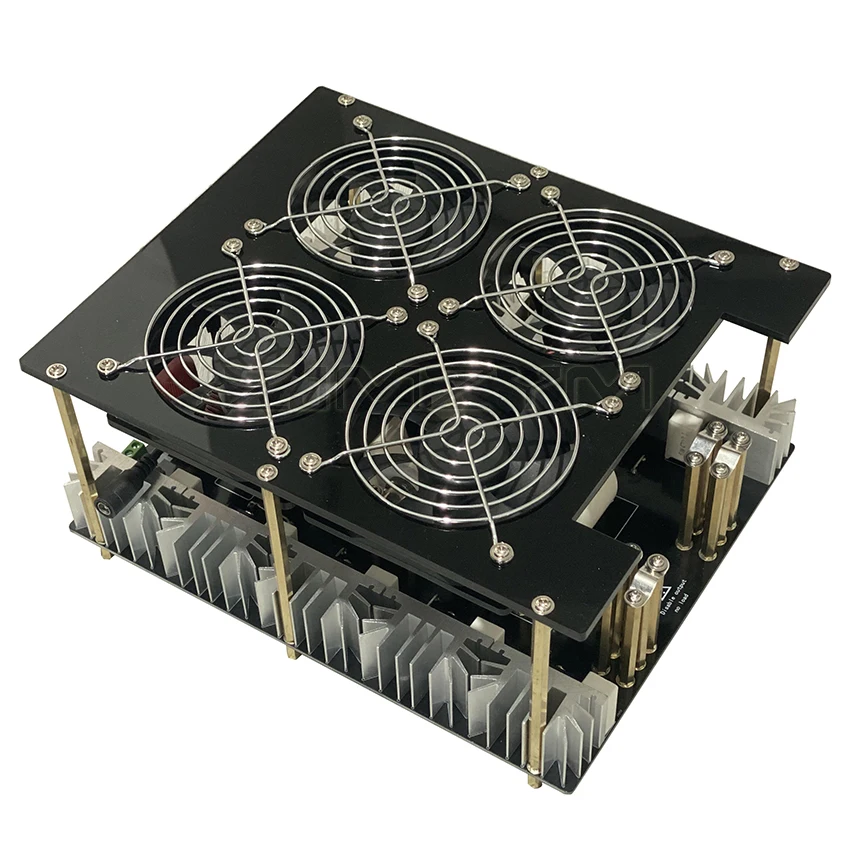

• Name: 5000W ZVS Induction Heater Module Set
• Input voltage: DC48V
• Maximum power: 5000W
• Maximum DC working current: 100A
• Maximum temperature of using crucible: 1600℃

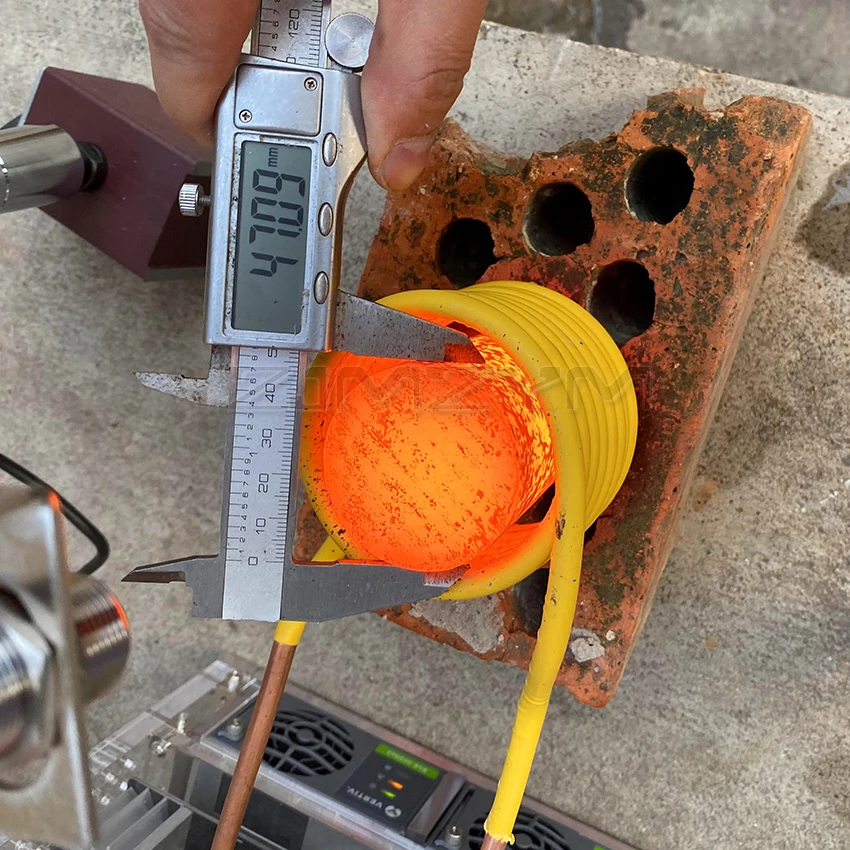

• Maximum temperature of direct heating of metal iron: more than 1000℃

• Heating coil size: 60*70*73mm or 70*80*73mm (inner diameter*outer diameter*high)
• Heating module size: 2560*210*115mm

Buy-this-product-on-Aliexpress

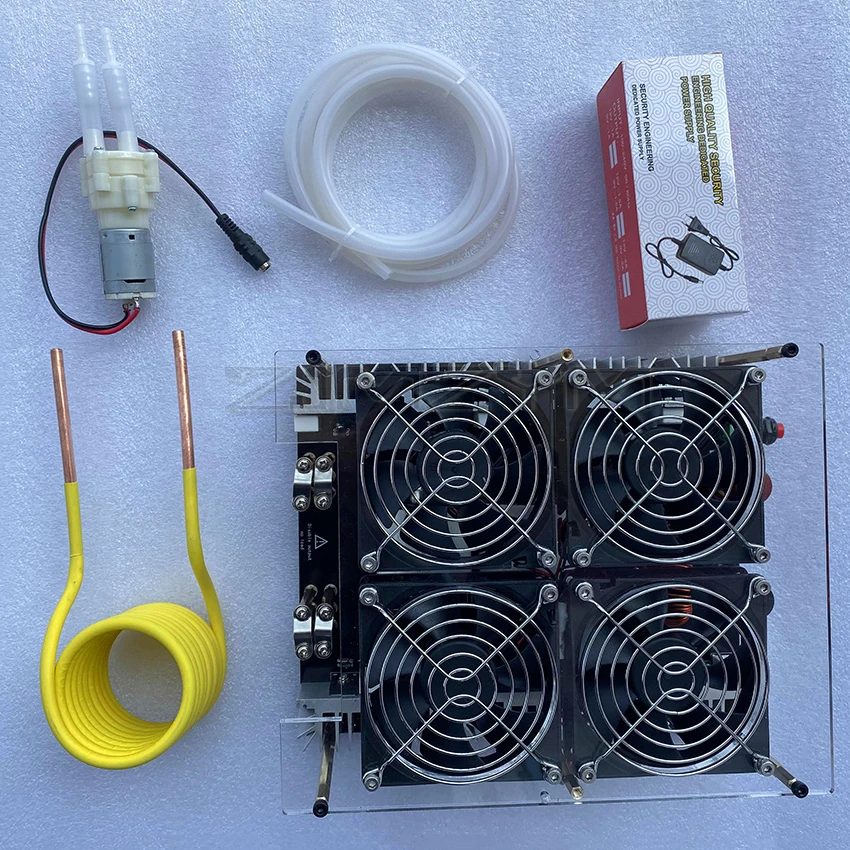

Package Included:

• 5000W Induction Heater Module*1pc
• Heating Coil*1pc
• Small Pump*1pc
• Water Pipe*1pc
• DC12V 2A Power Adapter*2pcs
• Crucible*1pc (Optional)

Versions:

A1: 5b00W Heating module + heating coil + water pump + DC 12V 2A power adapter

A2: 5000W Heating module + heating coil + water pump + DC 12V 2A power adapter + 70ml crucible

A3: 5000W Heating module + heating coil + water pump + DC 12V 2A power adapter + 150ml crucible

Please note:

1. When using your own power supply must ensure that the output current can be stabilized above 100A, generally use two 50A communication power supply in parallel;

2. The power on sequence should first supply power to the power supply, wait for a few seconds for the power supply to stabilize its output, then turn on the power supply between the power supply and the motherboard (it is recommended to use a 100A air switch), and finally press the switch button next to the green connector. When shutting down the power supply, you should first turn off the switch button, then turn off the air switch between the motherboard and the power supply, and finally turn off the power switch;

3. Water cooling and air cooling must work at the same time when working;

4. Always pay attention to the changes of each parameter of the display, especially the voltage and current and the temperature of the motherboard, and disconnect the power supply as soon as abnormalities are found;

5. When using graphite crucible, you must use non-circulating water-cooling method, i.e. cold water entering hot water discharging into sewer, to prevent long time water temperature from affecting the service life (long time high power operation should also be taken in this water-cooling method), and you should not disconnect the 12V auxiliary power supply when the crucible is not taken out from the heating circle at the end of heating, otherwise the water pump stops workingand will lead to the heating circle burnt out by the temperature of crucible; and you should disconnect power supply immediately if any abnormality is found

Picture showing
