AE500S-H Homogenizer Mixer High Shear Mixing

AE500S-H Homogenizer Mixer High Shear Mixing

Model Number: AE500S-H
Origin: Mainland China
Classification: Laboratory Thermostatic Devices
Max. Loading Volume (L): 20L / 40L / 60L
Barrel Volume (L): 20L / 40L / 60L
Mixer Type: Homogenizer
Range of Spindle Speed(r.p.m): 1000 – 14000 r.p.m
Max. Loading Capacity: 20
Weight (KG): 12 KG

Mô tả
Đánh giá (0)

AE500S-H Homogenizer Mixer High Shear Mixing

Model Number: AE500S-H
Origin: Mainland China
Classification: Laboratory Thermostatic Devices
Max. Loading Volume (L): 20L / 40L / 60L
Barrel Volume (L): 20L / 40L / 60L
Mixer Type: Homogenizer
Range of Spindle Speed(r.p.m): 1000 – 14000 r.p.m
Max. Loading Capacity: 20
Weight (KG): 12 KG
Voltage: 220V
Dimension(L*W*H): 215 * 310 * 720mm
Power (kW): 0.5 kW
Applicable Industries: Food & Beverage Factory, Home Use, Food & Beverage Shops, lab
Keyword: emulsifier machine
keyword1: high shear emulsifier
keyword2: food emulsifier price
Operating control mode: combined control knob
Rotor maximum linear velocity: 16m/s
Work head material: SS316L(stainless steel)
Work head diameter: 50 mm
Stirring capacity: 500-20000ml
Stirring processing viscosity: 8000mPa.S

Introductions
1. AE Series laboratory shear emulsifying machine adopts structure compact series-excited type miniature high speed motor drive for the 2. Low to medium and High viscosity liquid mixing, crushing particle materials in liquid medium shear emulsification.

3. Various of agitators are designed for different processing capacity and difference experiment requirement And easy to operate, to clean, and to maintenance .

4. Variable Rating Speed Control provide with a high effect.

5. Speed controller adopts IC constant speed control, can instantly to compensate for speed change of the load changes and power supply voltage fluctuation.

Features:
1. 50G, 70G, 90G working head for 20L, 40L, 60L.

2. LED screen digital display, it shows real-time speed and left setting time.

3. Stainless steel refining operating head and speed controller.

4. More powerful motor driver, also suitable for high viscosity material.

5. Stepless variable speed control

6. It can alarm if driver overloads or failure to protect the equipment.

7. Speed controller applies IC speed detection -the constant power speed regulation technology, which offers effective compensation for the speed variation due to Variation of load and power supply voltage fluctuation

8. Different size of stators for choice.

All functions are setted by one knob, easy to operate.
Digital High Speed Homogenizer Emulsifier AE500S-H(800ml~60,000ml, Updated!)

Application:
Laboratory shear emulsifying machine is suitable for the area of biotechnology-Organizations dispersed, Sample preparation for the pharmaceutical field, Enzymatic treatment of food industry and the pharmaceutical industry, cosmetics industry, The paint industry and petrochemical liquid and the liquid phase, such as experiments of liquid and solid phase.

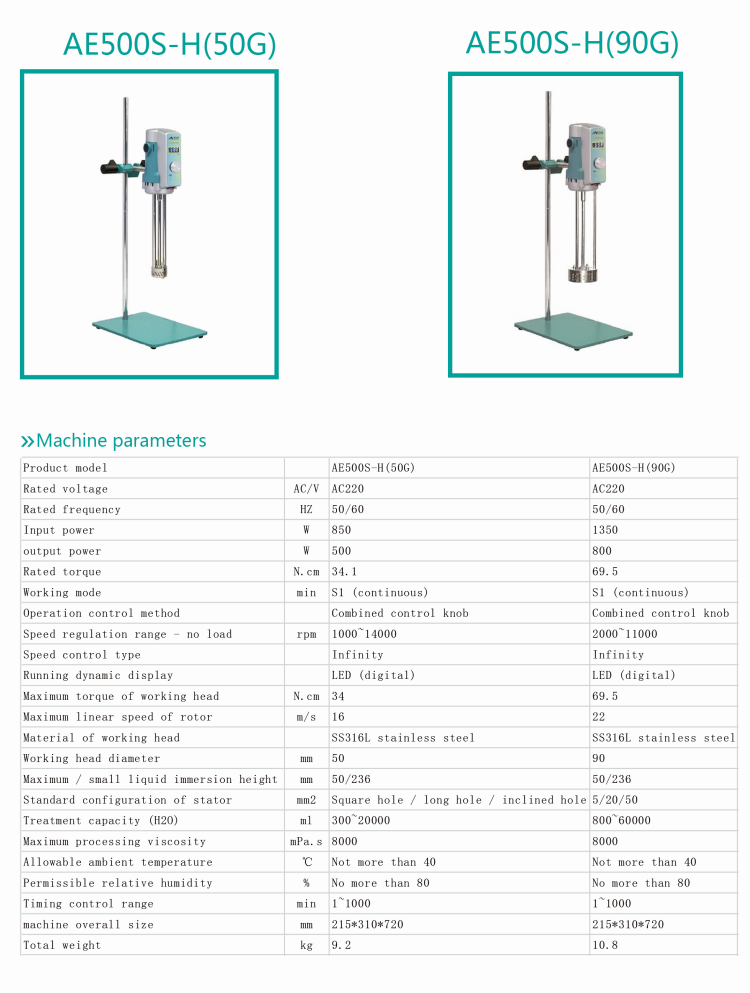

Product Model	AE500S-H 50G	AE500S-H 70G	AE500S-H 90G
Voltage	AC220V 50/60Hz	AC220V 50/60Hz	AC220V 50/60Hz
Input Power	850W	850W	1350W
Output Power	500W	500W	800W
Rated Torque	34.1N.cm	34.1N.cm	69.5N.cm
Working System	S1(Continuity)	S1(Continuity)	S1(Continuity)
Operation Control Method	Combined control knob	Combined control knob	Combined control knob
Speed Adjustment Range (no load)	1000-14000rpm	2000-14000rpm	2000-11000rpm
Speed Control Type	Infinity	Infinity	Infinity
Digital Revolution Indicator	LED(Digital)	LED(Digital)	LED(Digital)
Max. Torque of Working Head	34N.cm	34N.cm	69.5N.cm
Max. Linear speed of Rotor	16m/s	20.5m/s	22m/s
Working Head Material	SS 316L Stainless Steel	SS 316L Stainless Steel	SS 316L Stainless Steel
Working Head Diameter	50mm	70mm	90mm
Min./Max. Immersion Height	50/236mm	50/236mm	50/236mm
Stator Standard Configuration	Square hole/long hole/inclined hole	5mm²/20mm²/50mm²	5mm²/20mm²/50mm²
Processing Capacity (H2O)	300-20000ml	500 ~ 40000ml	800-60000ml
Max. Processing Viscosity	8000mPa.s	8000mPa.s	8000mPa.s
Allowable Ambient Temperature	less than 40 ℃	less than 40 ℃	less than 40 ℃
Allowable Relative Humidity	less than 80%	less than 80%	less than 80%
Timing Control Range	1-1000min	1-1000min	1-1000min
Machine Size	215310720mm	215310720mm	215310720mm
Machine Weight	9.2kg	9.2kg	10.8kg
