AN-08A Portable Wireless Motorcycle TPMS with QC3.0

AN-08A Portable Wireless Motorcycle TPMS with QC3.0

Motorcycle Tire Pressure Monitor Portable Motorcycle Wireless Tire Pressure Monitor TPMS Tire Pressure Monitor with QC3.0 Output

Feature:

【Real-time Monitoring Data】After installing TPMS, this system can monitor the tire pressure and temperature in real time. If any abnormal tire pressure and temperature are detected, the system will send a warning sound and a bright flashing icon to inform you in real time.

【Waterproof & Dustproof Wireless Display Design】IP65 waterproof, allowing you to accurately monitor tire pressure throughout the journey while driving in the rain. Easily deal with all kinds of complicated roads and weather conditions

【5 Abnormal Alarms】TPMS provides 5 alarm modes. ① High pressure alarm ② Low pressure alarm ③ High temperature alarm ④ Leakage alarm ⑤ Sensor low battery alarm

【Easy to Install】This tire pressure monitor is very easy to install. No tire removal required. Mounted with a bracket installation method, convenient and quick, start and stop at any time

【Multi-purpose use】With a QC 3.0 fast charging USB output, it can charge mobile phones, tablets and power banks. Support battery voltage detection and display, and low-voltage alarm function

Specification:

• Model: AN-08A
• Tire pressure setting range: 0.1~3.5Bar
• Temperature setting range: 60℃~100℃
• Working temperature: -20℃~+80℃
• Storage temperature: -30℃~+85℃
• Power voltage: DC 12V
• Output voltage: DC 12V, 9V, 5V
• Frequency: 433.92MHz±20.00MHz

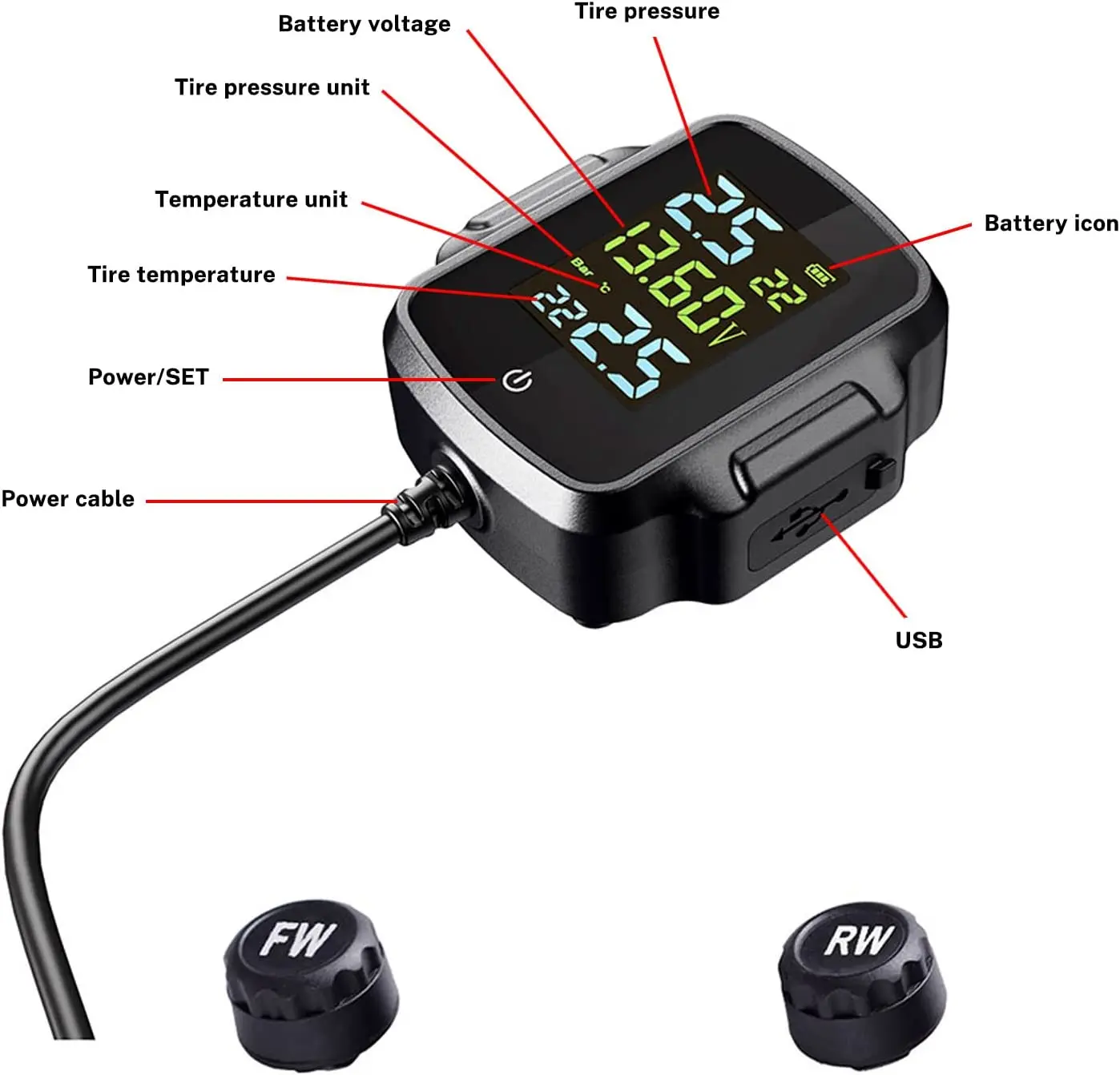

Receiver:

• Working temperature –20℃~80℃
• Storage temperature: -30℃~85℃
• Power-on voltage: DC 5V
• Frequency: 433.92MHz±20.00MHz
  Sensor:

Working temperature: -20℃~80℃
Storage temperature: -30℃~85℃
Pressure range: 0~6.6Bar
Pressure accuracy: +/-0.1Bar
Temperature accuracy: +/-3℃
Transmitting power: <10dB
Frequency: 433.92MHz±20.00MHz

Bracket installation instructions

1. Unscrew the 2 screws, put on the motorcycle/electric bike/bicycle and tighten;
2. Place the mounting head of the bracket toward the position you need, and confirm that the bracket is firm;
3. Install the tire pressure receiver on the bracket, tighten it and then lock it; use the ball head to rotate the tuning knob to move the joint part to adjust the appropriate angle appropriately

Power installation instructions

1. When installing, the power cord needs to be connected behind the ignition switch, and the power can be automatically cut off after shutting down. The red connects to the 12V positive pole and the black connects to the ground.
2. Install the fixed bracket on the handlebar and lock it tightly. Install the host on the bracket and adjust the angle and lock it.
3. Install the sensor when the host is turned on. First install the tamper ring into the valve nozzle, then install the sensor on the valve according to the position and tighten it, then screw the tamper ring back and tighten it. If you find that there is no corresponding position on the host If the pressure is displayed, reinstall the sensor at the corresponding position.

Sensor battery replacement instructions:

When replacing the battery of the sensor, please disassemble one by one, install the shell, do not mix or disassemble and install at the same time; it can effectively prevent the sensor from being misplaced and installed on other tires due to the wrong shell. (Button CR1632, working temperature is -30℃~+80℃); it is available in stores.
1. Before disassembling the sensor, please prepare a nut wrench, turn the nut clockwise to separate the nut and the sensor, and then remove the sensor counterclockwise;
2. Use a wrench to unscrew the upper cover of the sensor in a counterclockwise direction;
3. Take out the old battery from the battery clip and do a good job of environmental protection classification;
4. Distinguish the positive and negative positions (positive “+” facing up); install a new button battery CR1632.
5. Screw on the upper cover of the sensor, and then tighten it clockwise with a wrench

Note:

There may be slight size deviations due to manual measurement, different measuring methods and tools.
The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.

Packing list

1 X Receiver
2 X Sensors
1 X Bracket
1 Set X Accessories
