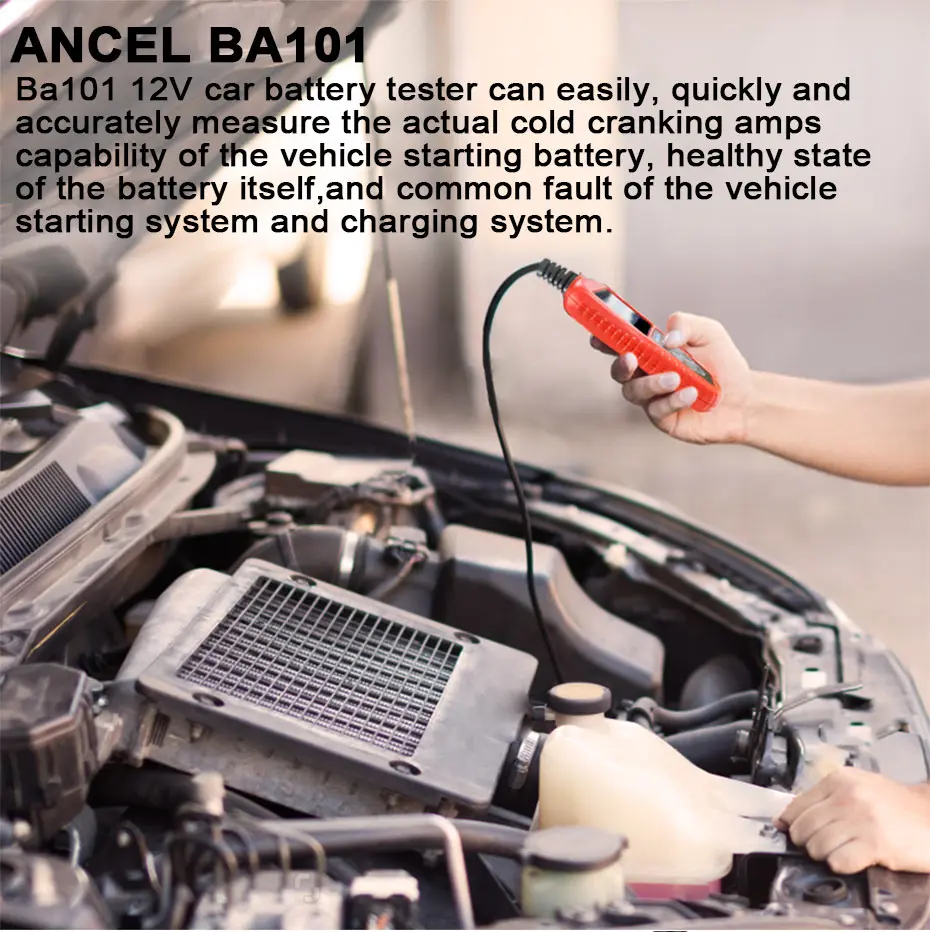

ANCEL BA101 Car Battery Tester

ANCEL BA101 12V Battery Analyzer 2000CCA 220AH Automotive Car Battery Scanner Multilingual Diagnostic Tool Car Battery Tester

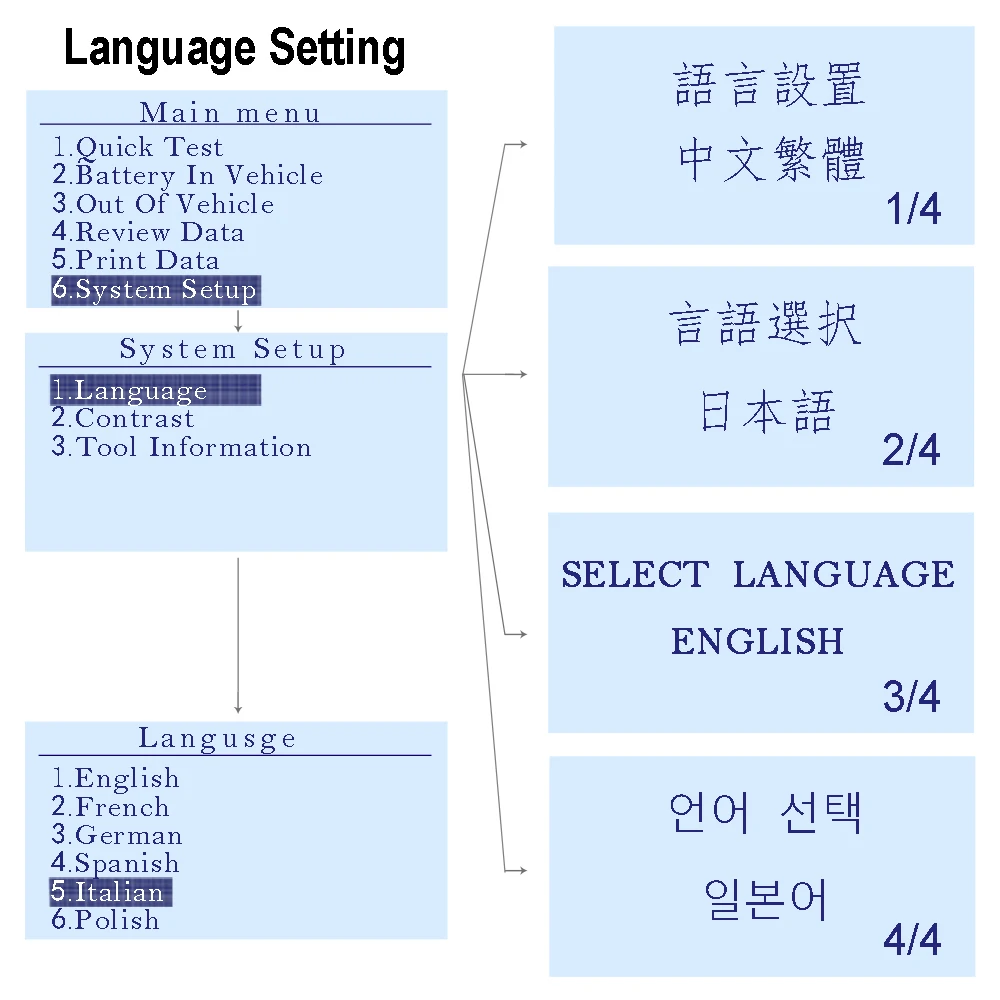

Ancel BA101 has Two Multi-Language Version

1.European Version: English, Spanish, French, German, Italian, Polish

2.Asian Version: English,Japanese, Korean, Chinese

1. Accurate tester result in miliseconds (tolerance ±15)
2. BA101 can test CCA100-2000, 30-220Ah, which is the highest CCA in the market
3. Test batterues on and off the vehicle
4. Battery life analysis, result : good or replace
5. Test result based on JIS, EN, DIN, SAE and IEC standards.
6. Easily read LCD screen display
7. Quick test – input battery volume (AH), then it can show the battery status.

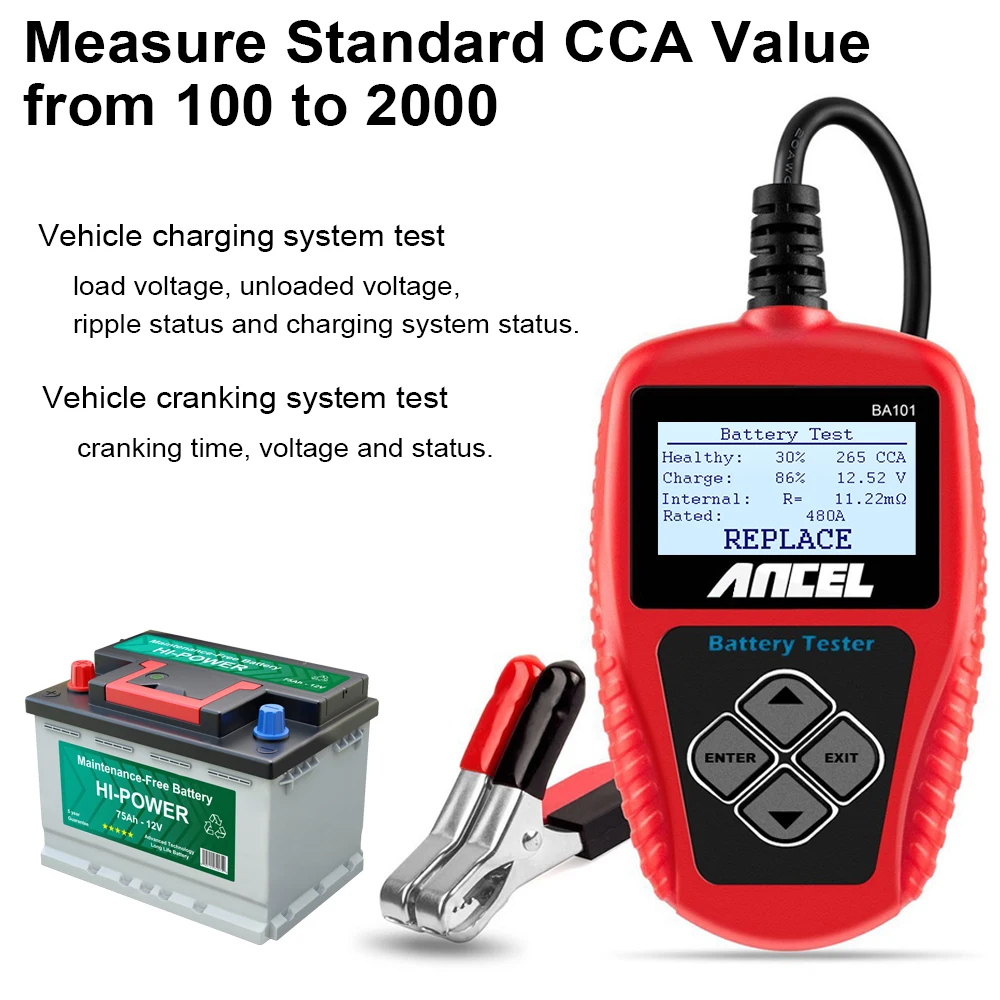

8. vehicle cranking system test – cranking time, voltage and status.
9. vehicle charging system test – load voltage, unloaded voltage, ripple status and charging system status.
10. Store the testing result, print function

Ancel BA101 Battery Test Result

1.Good or Replace
2.Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Internal reresistance value (m)
3.Life in percentage (%)
4.Cranking Test
5.Charging Test

Ancel BA101 Battery Test Steps

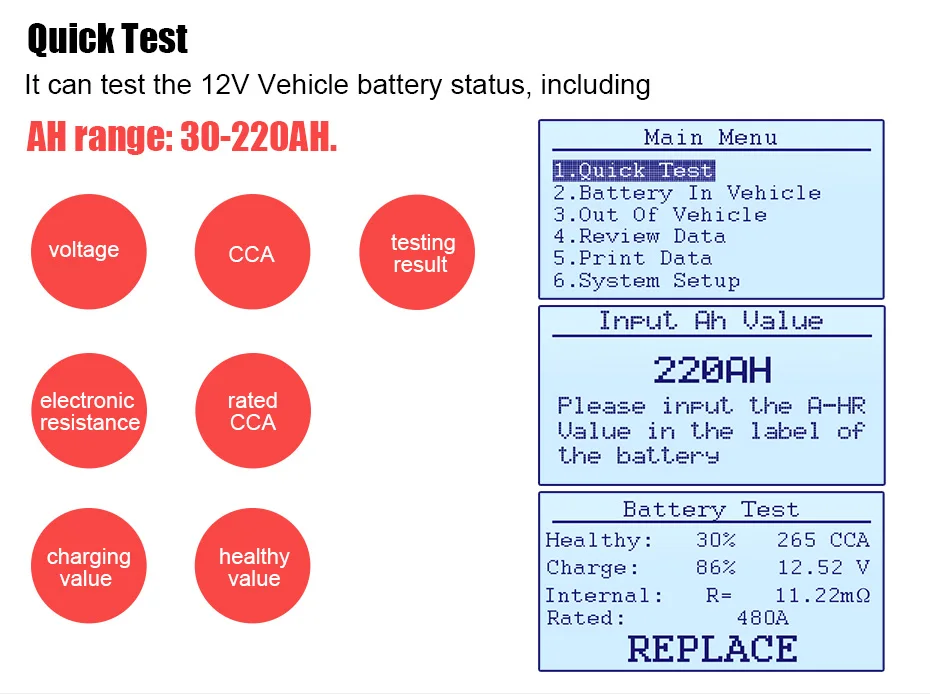

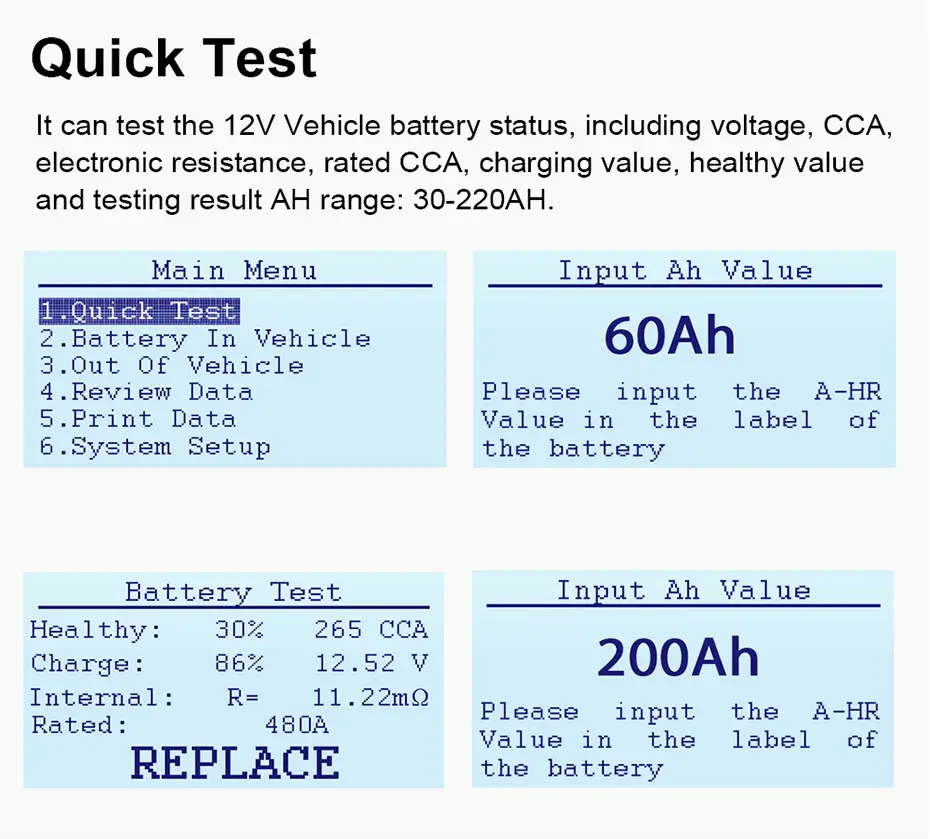

1. Quick test
It can make sure the battery status, including voltage, CCA, electronic resistance, rated CCA, charging value, healthy value and testing result in one second. Once input the AH value—battery rated capacity, which is marked in the label of the battery.

1). Press UP/DOWN key to select the Quick test, then press ENTER key to confirm.
2). Input the rated battery capacity—xx AH, in general, the battery capacity for 12V vehicle is above 30AH.

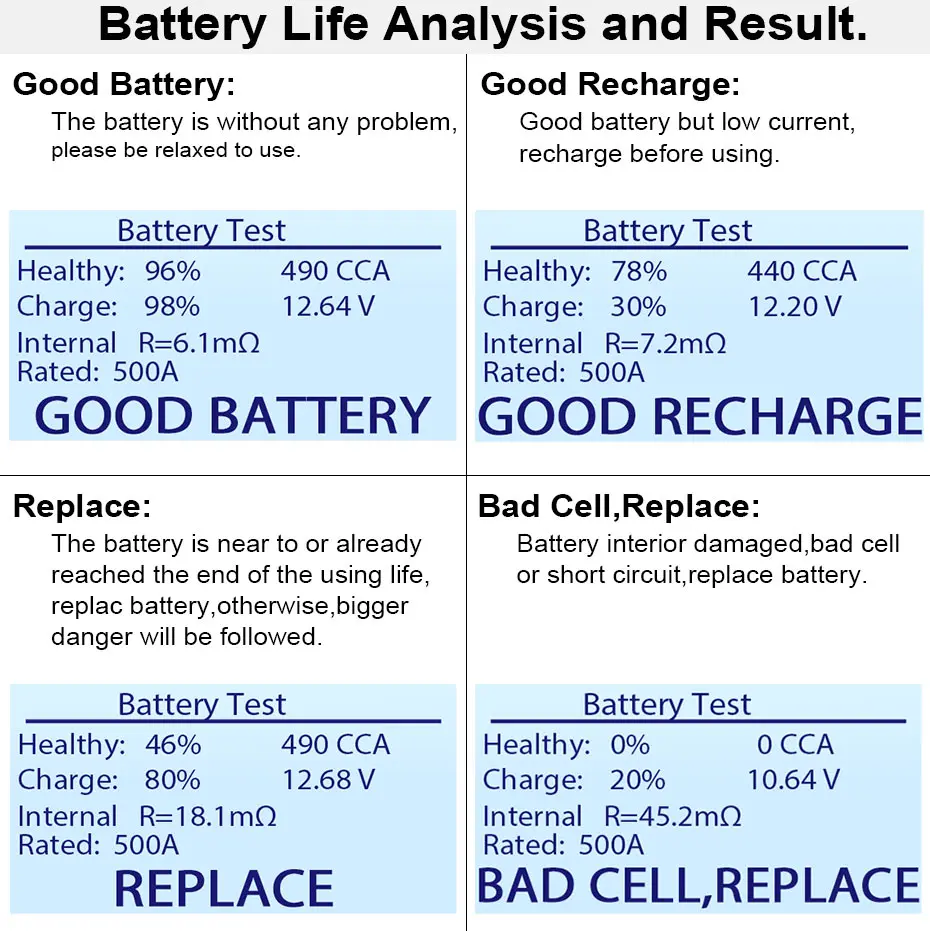

3). Then press enter key, the testing result will show one of these, as below Battery test result includes 5 types as following:

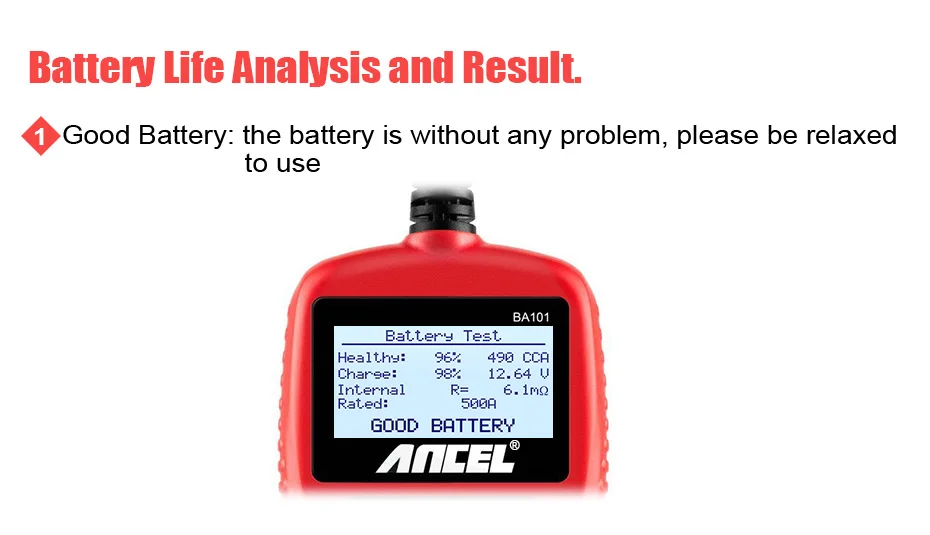

Good Battery:
The battery is without any problem, please be relaxed to use

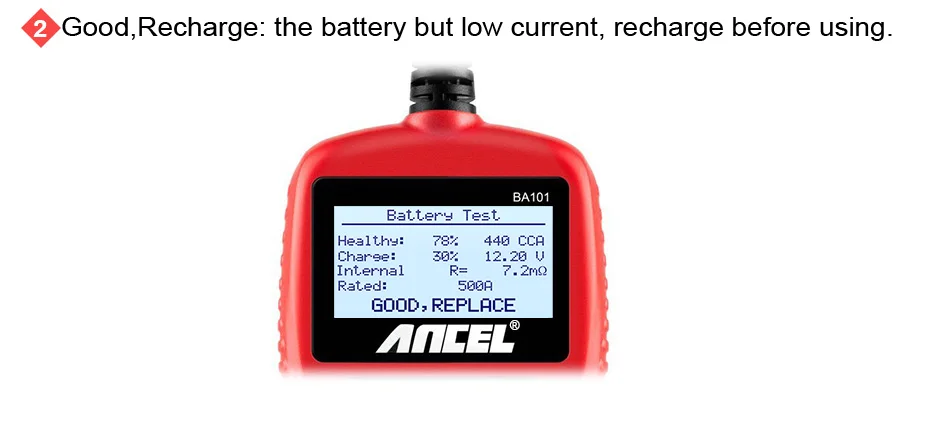

Good, Recharge: Good battery but low current, recharge before using.

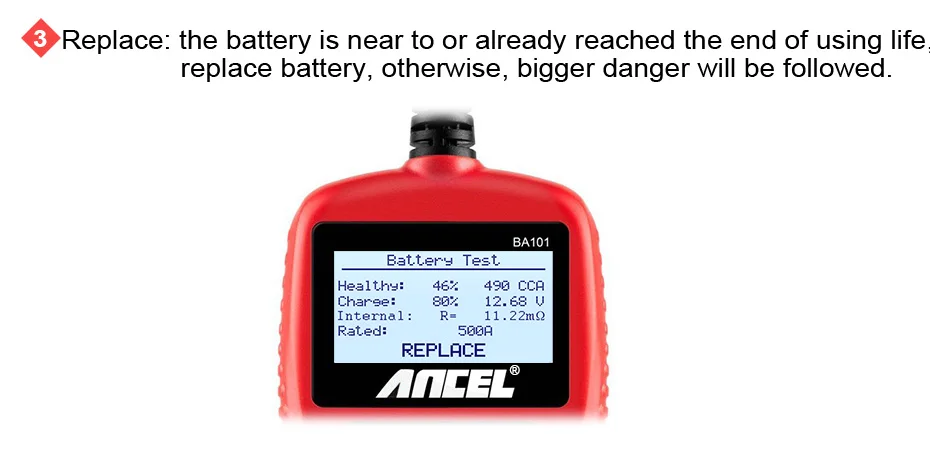

Replace: The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed.

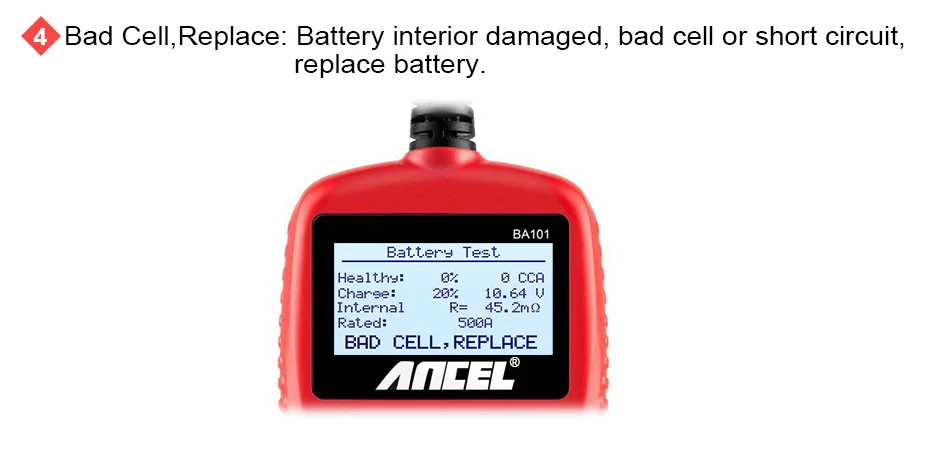

Bad Cell
Replace:Battery interior damaged, bad cell or short circuit, replace battery.

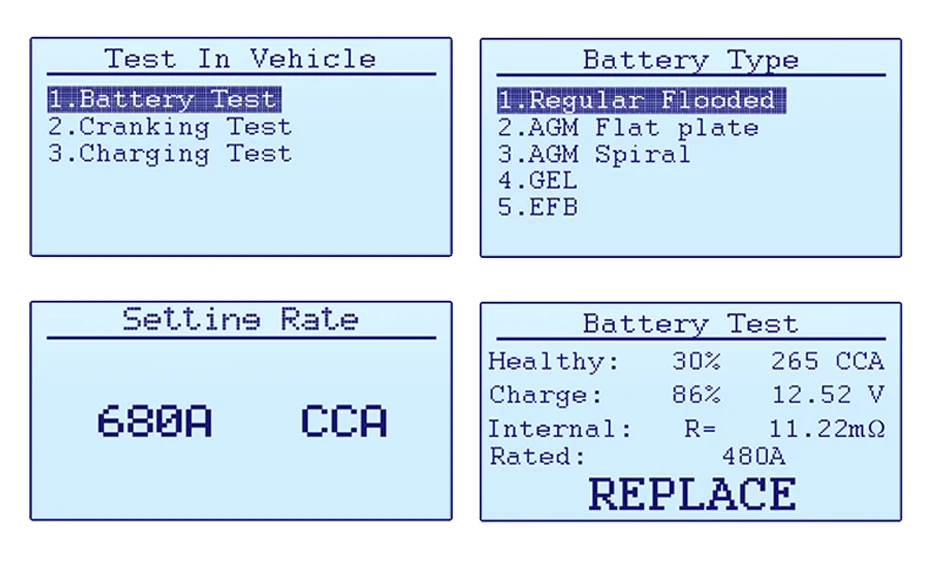

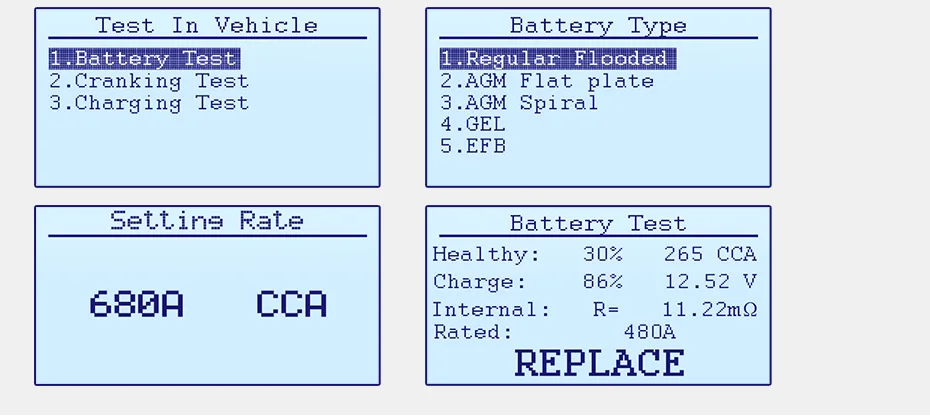

2. Battery In Vehicle Test

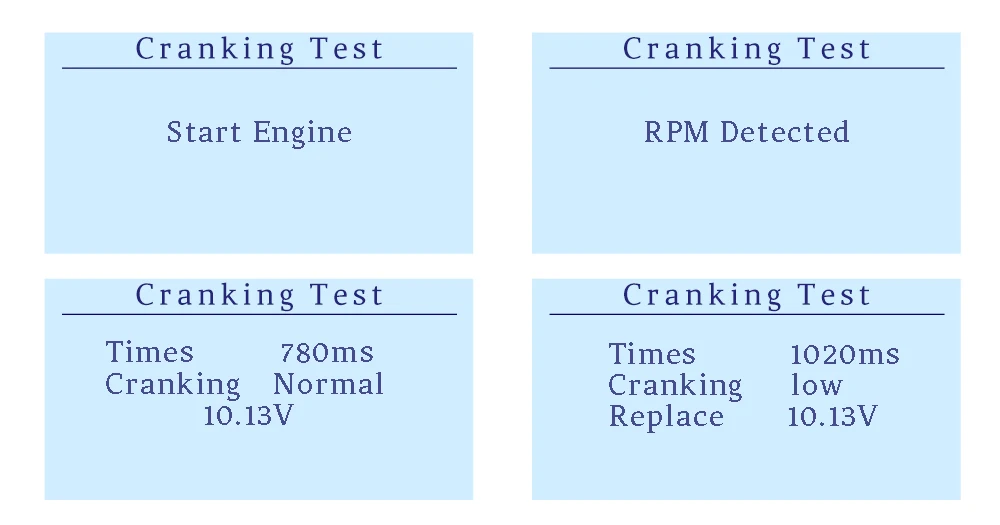

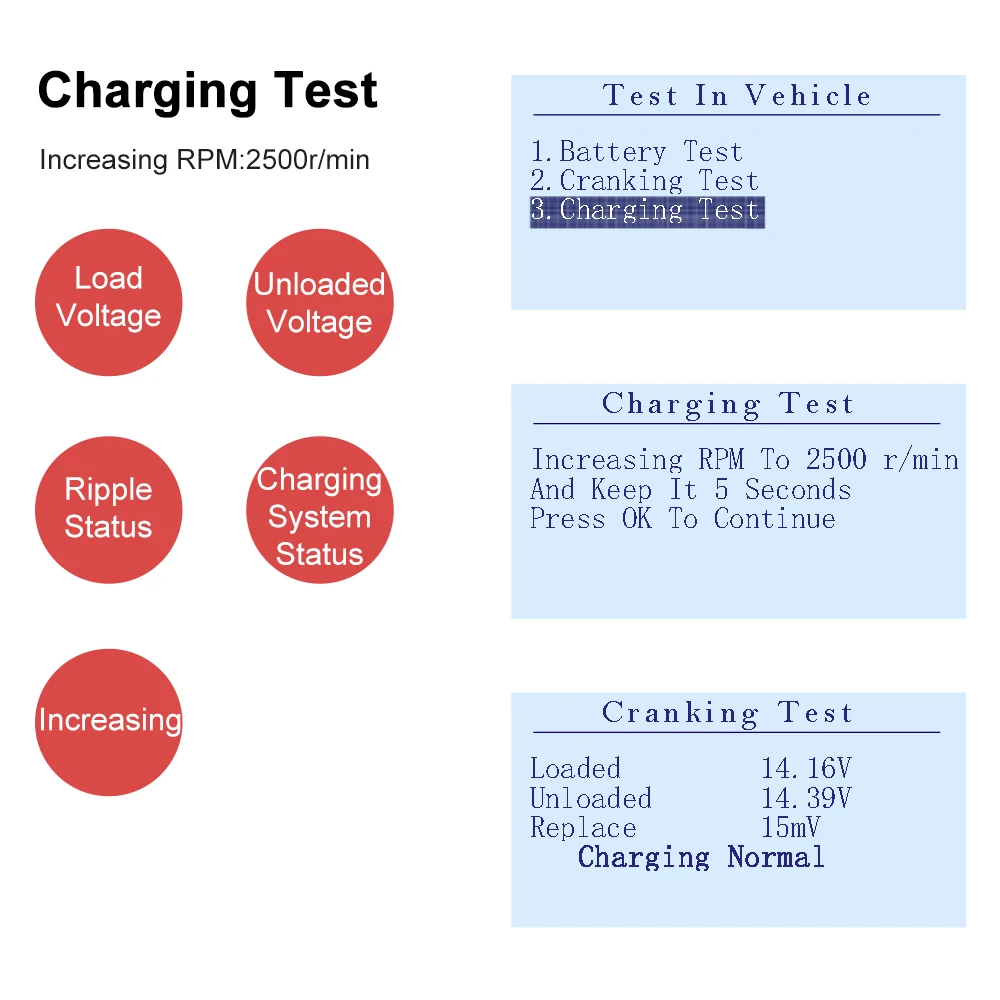

3. Cranking Test and Charging Test

Ancel BA101 Test Data Print Out for WIN7

Please leave us email address to get the print out drive and software for laptop

Or download by enter our website: https://www.anceltech.com/

Ancel BA101 Car Battery Tester Operating Parameters

1.System voltage: 12 Volts
2.Input voltage range: 9V~15V
3.Power requirements: No internal batteries required. Power on when hooked up during testing.
4.AH range: 30-220AH

Package List

1* Ancel BA101
1* User Manual
1* USB Cable
