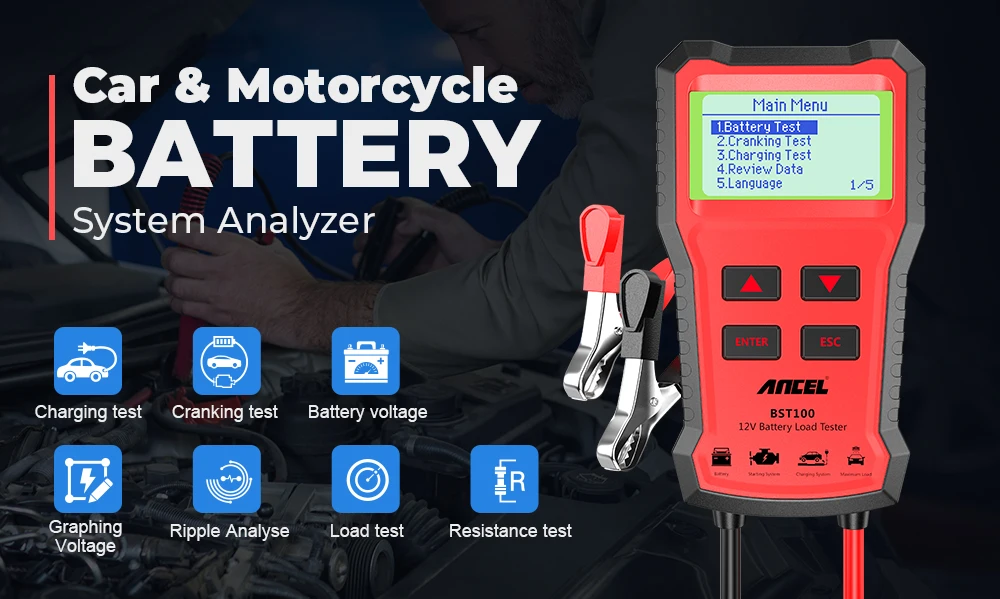

ANCEL BST100 Car Battery Tester

ANCEL BST100 12V Car Battery Tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status. It provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing.

It provides techs or DTYer with a quick, simple and cost-effective solution to know the battery’s charging status better , check the battery’s health and detect faults.

Buy-this-product-on-Aliexpress

Does your Battery need to be replaced?

There are more and more on-board electrical appliances, and the requirements for battery capacity and quality are getting higher and higher. Have you encountered the following problems？Can your battery still support it?

1. Can not start the car
2. Unsteady engine idling
3. The power system is not working properly

What are ANCEL BST100 Advantages:

1.Simple and easy to use
2.Tests batteries on and off the vehicle
3.Accurate results in milliseconds
4.Battery life analysis
5.Analysis results: Good or Replace
6.Large easy to read LCD screen
7.Test results based on
8.CCA,BCI,CA,MCA,JIS,EN,DIN,SAE,GB and IEC
Standards
9.Quick test – inputs battery volume (AH), then shows battery status

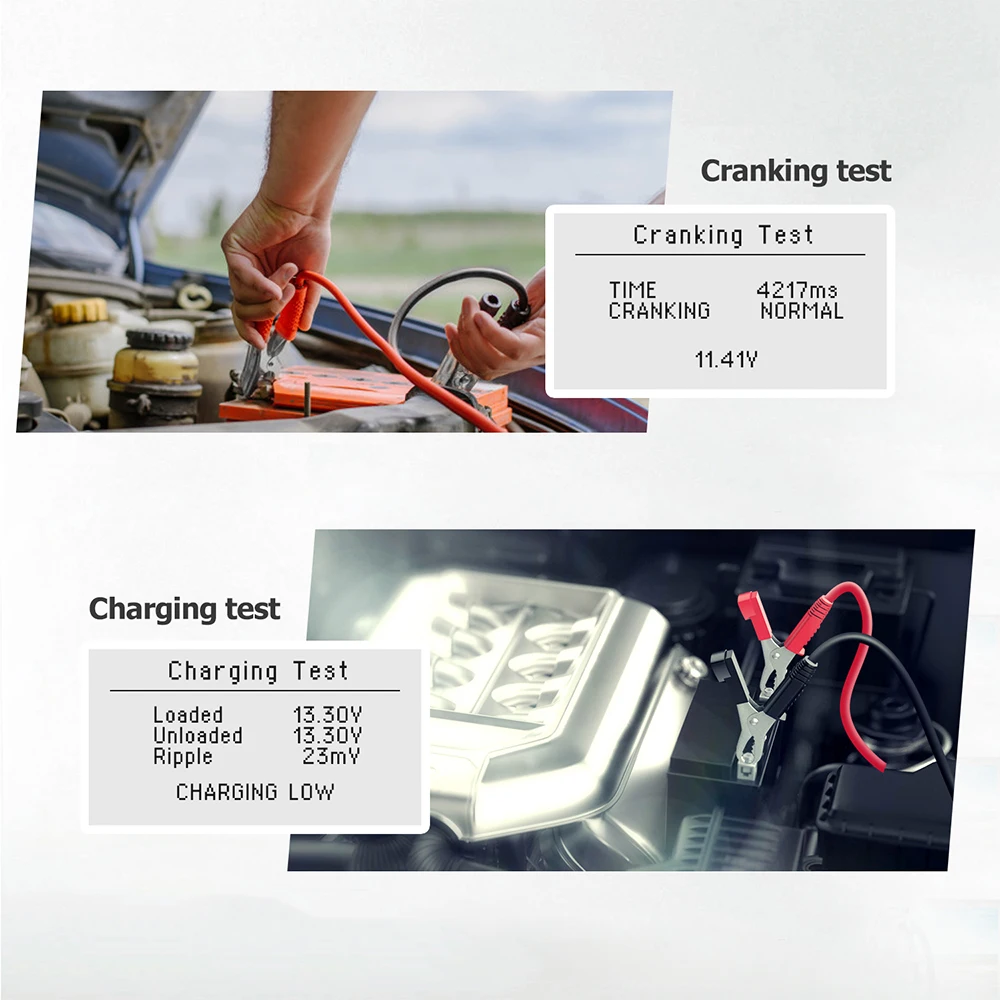

10.Vehicle cranking system test – cranking time, voltage and statu
11.Vehicle charging system test—load voltage, unloaded voltage, ripple status, and charging system status

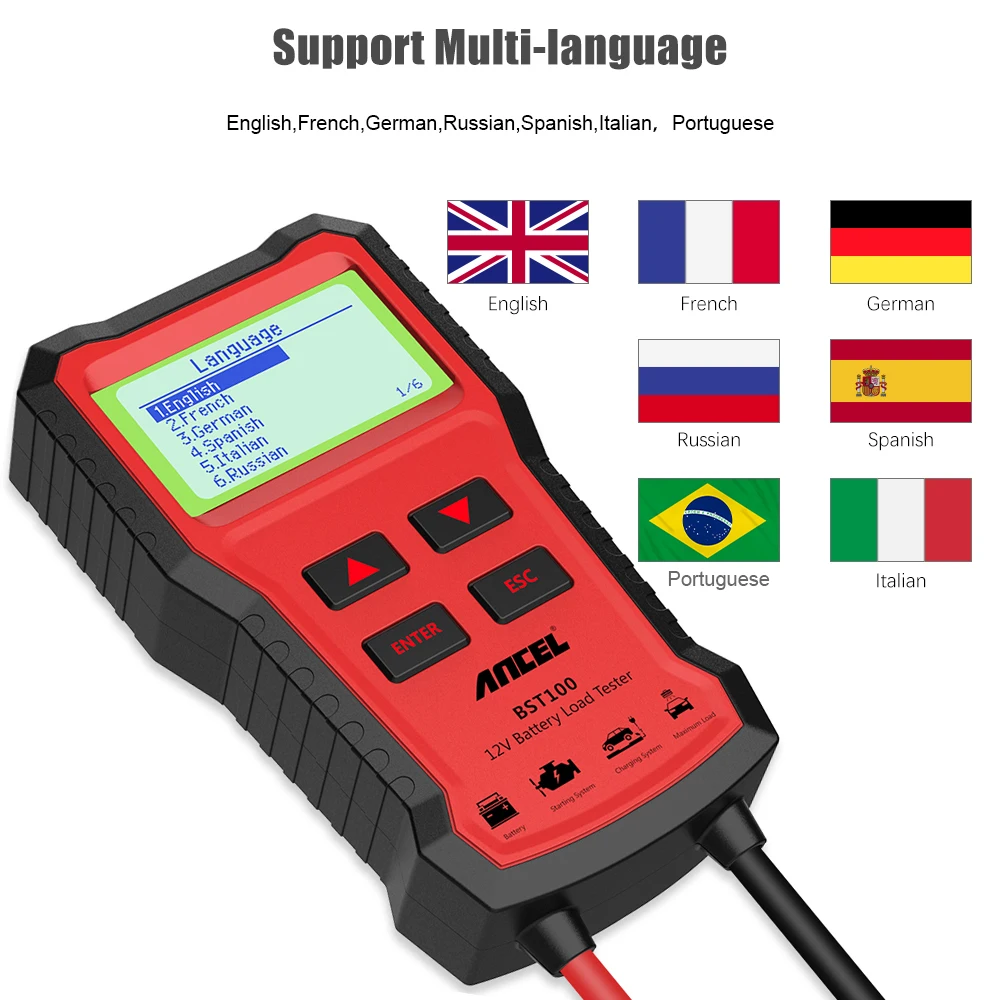

ANCEL BST100 Support Languages:

English, Portuguese,French, German, Russian, Spanish, Italian

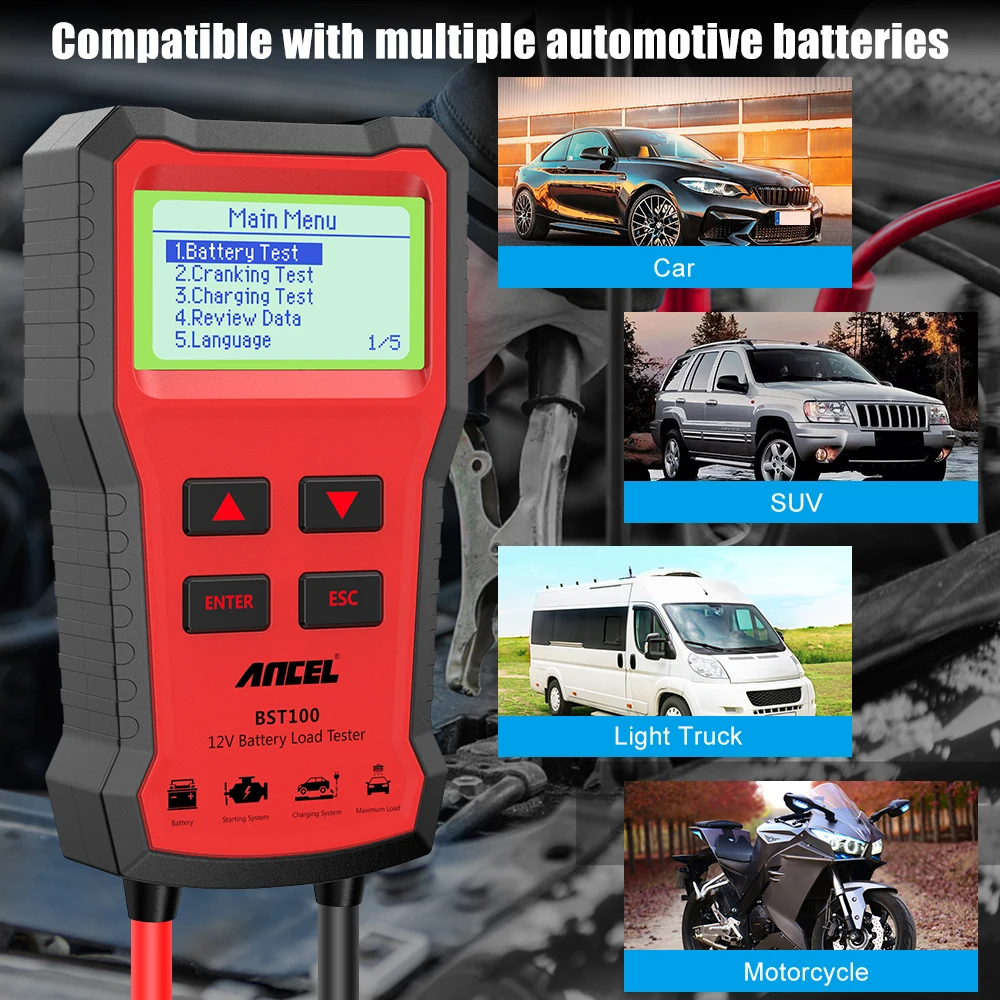

Wide Range of Application of ANCEL BST100 Battery Tester

ANCEL BST100 can test 12V batteries, suitable for a variety of common models and equipment. (For Motorcycle, Car, SUV, VaLight truck batteries)

ANCEL BST100 supports multiple battery types:

Regular Flooded Battery, AGM Flat Plate Battery, AGM Spiral Battery, GEL Battery, EFB Battery

Buy-this-product-on-Aliexpress

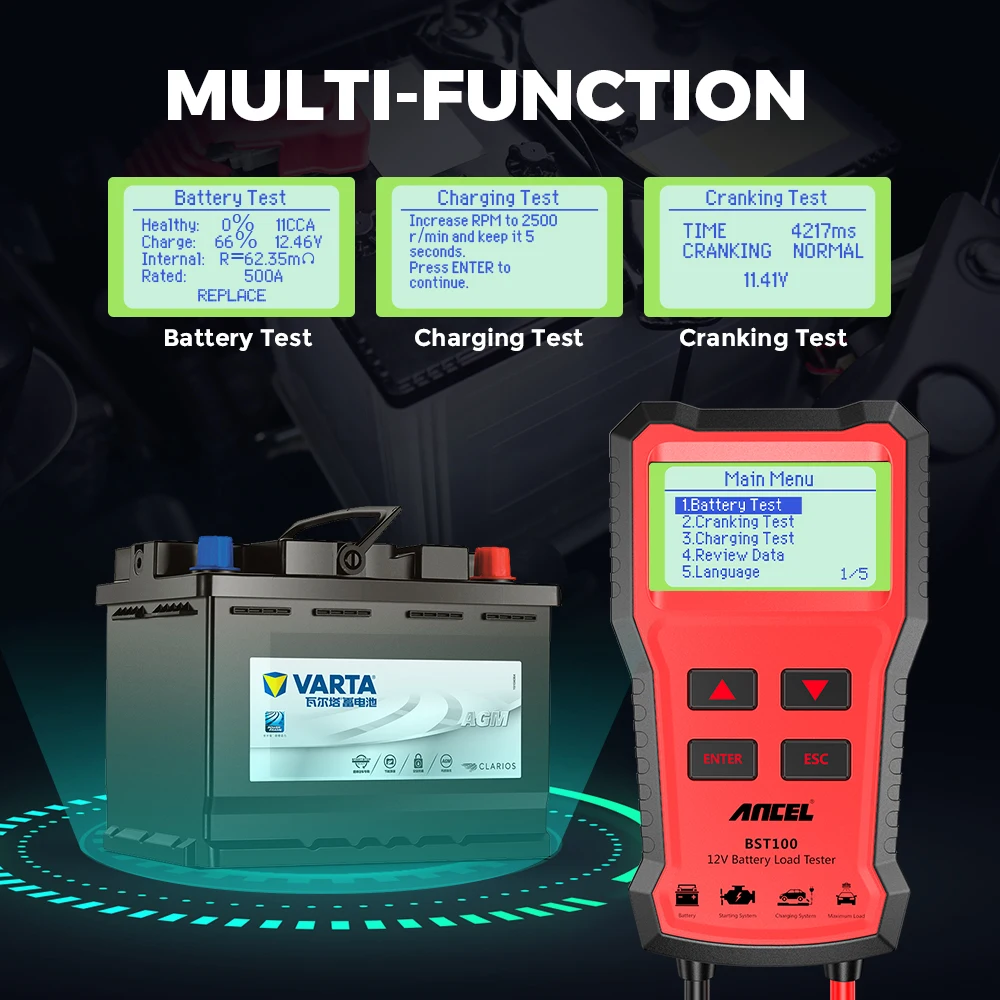

ANCEL BST100 Function

1.Identify battery status Good or Replace

2.Check Battery Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

3.Check Internal resistance value (Ohm)

4.Display battery life in percentage (%)

5.Battery Cranking Test, load test

6.Battery Charging Test, Ripple Test

7.Support battery ripple test and review test data

BST100 12V Battery Tester Features

1.Fast and smooth running speed with STM-32 chip set hardware

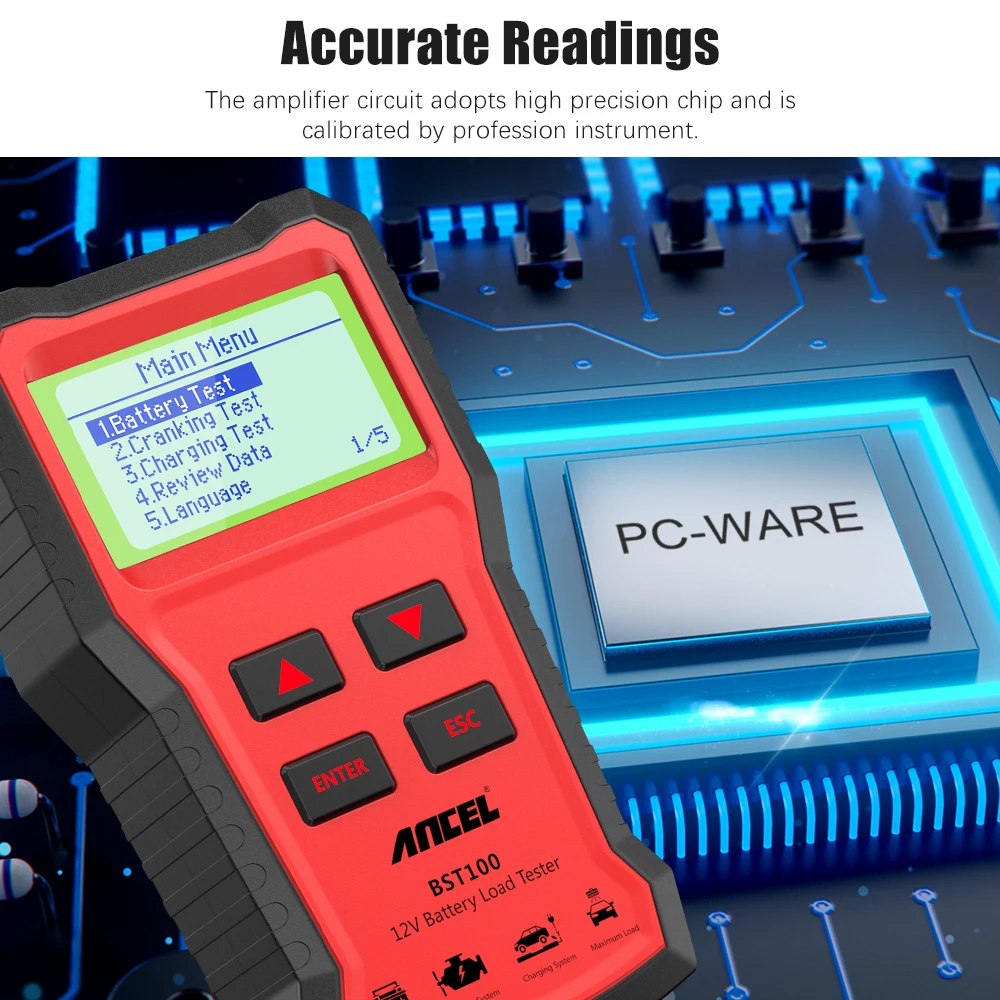

2.Accurate test results, using high precision amplifier and calibrated by professional battery testing tool, BST100 reading accuracy up to 99%.

3.Wide testing range cover from CCA 100- 2000 , 3- 220 AH, best in the market.

4.Industry initiative graphical battery voltage real time monitoring, can be analysis battery data more accurate.

5.Unique battery results display in percentage and meter mode.

6.Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.

7.Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.

8.Directly test the battery with loss of electricity, no need to full charge before testing.

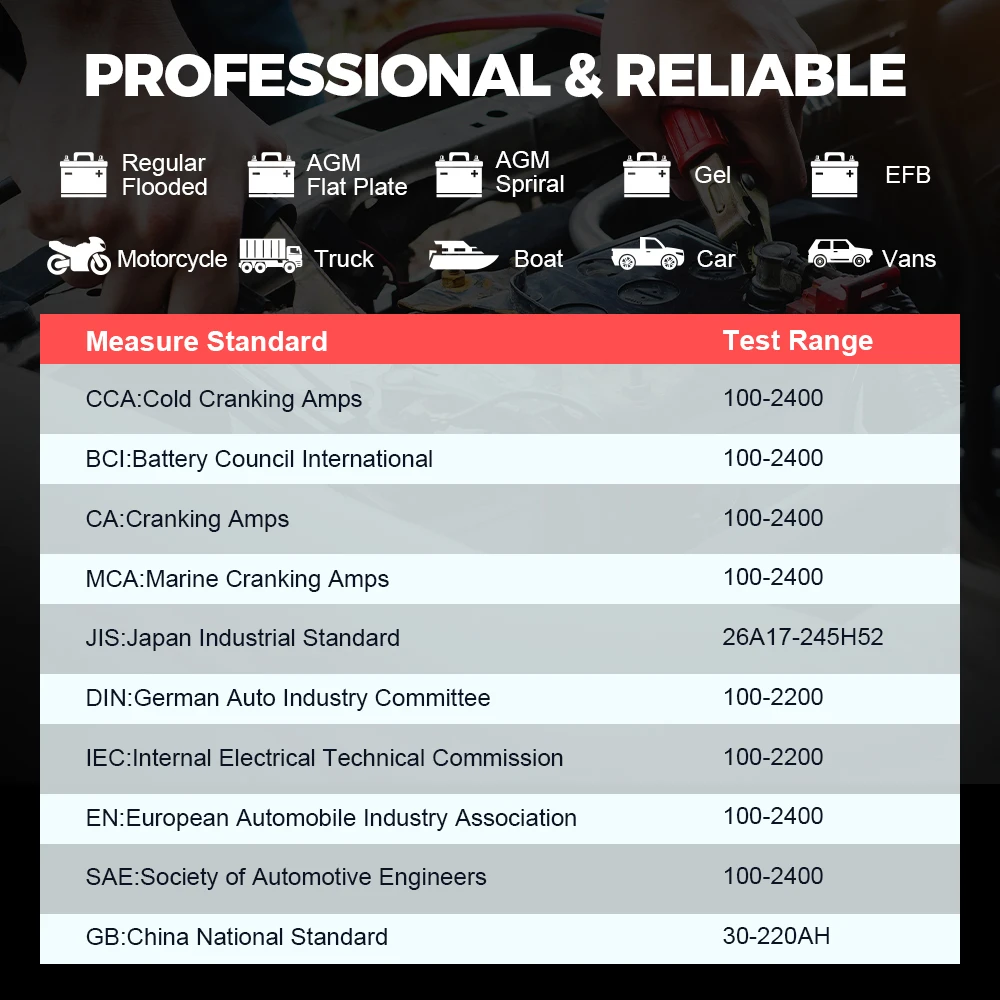

9.Testing standards include currently the world’s majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.

10.BST100 is used to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL EPB cell

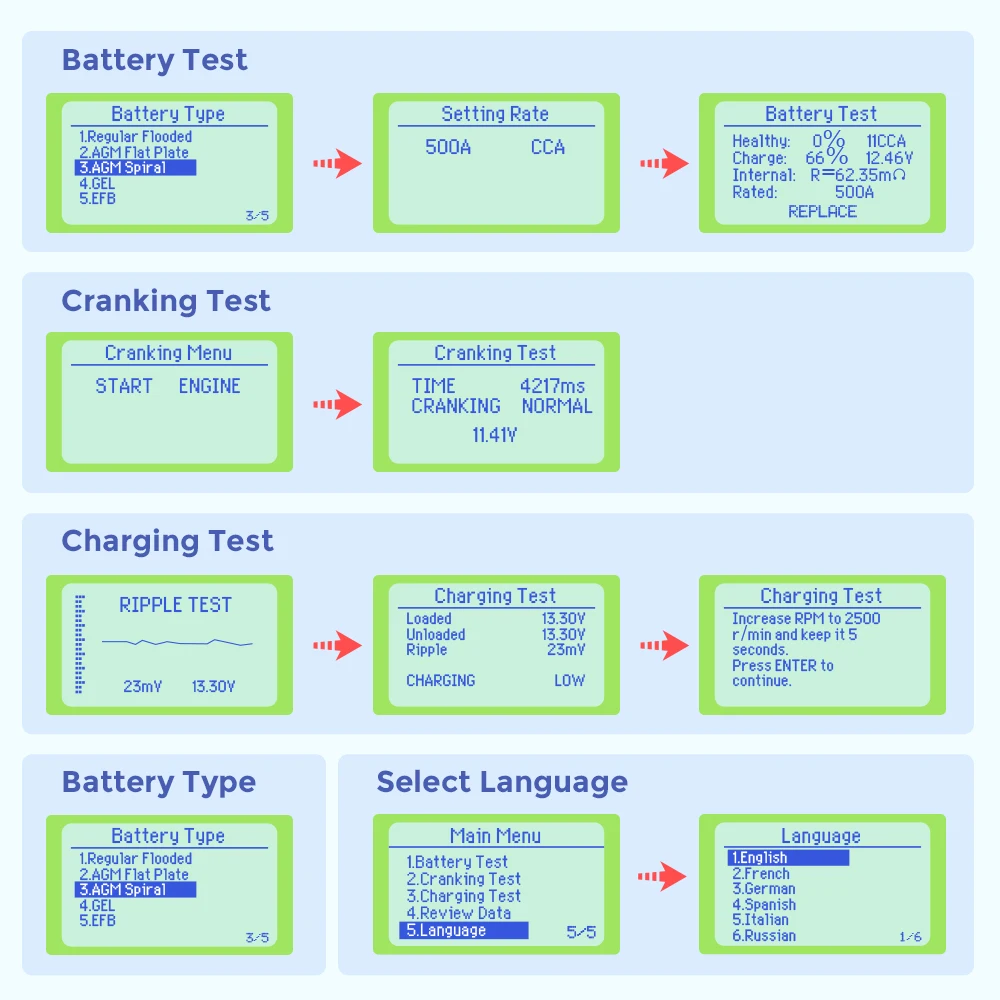

Software Display:

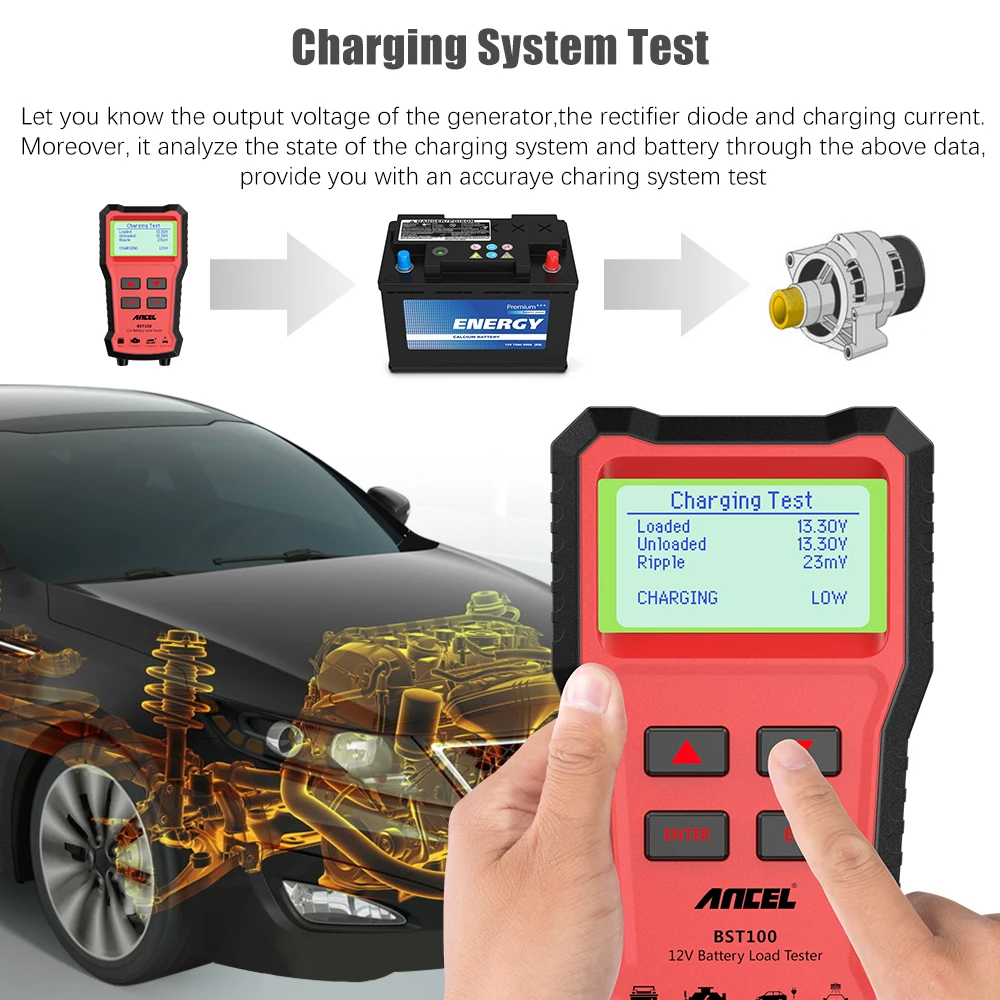

Charging System Test

In addition, it analyzes the state of the charging system and the battery through the above data, provides you with an accuracy test of the charging system.

Simple and safe connection

Internal protection device, if connected incorrectly.will not damage the tester

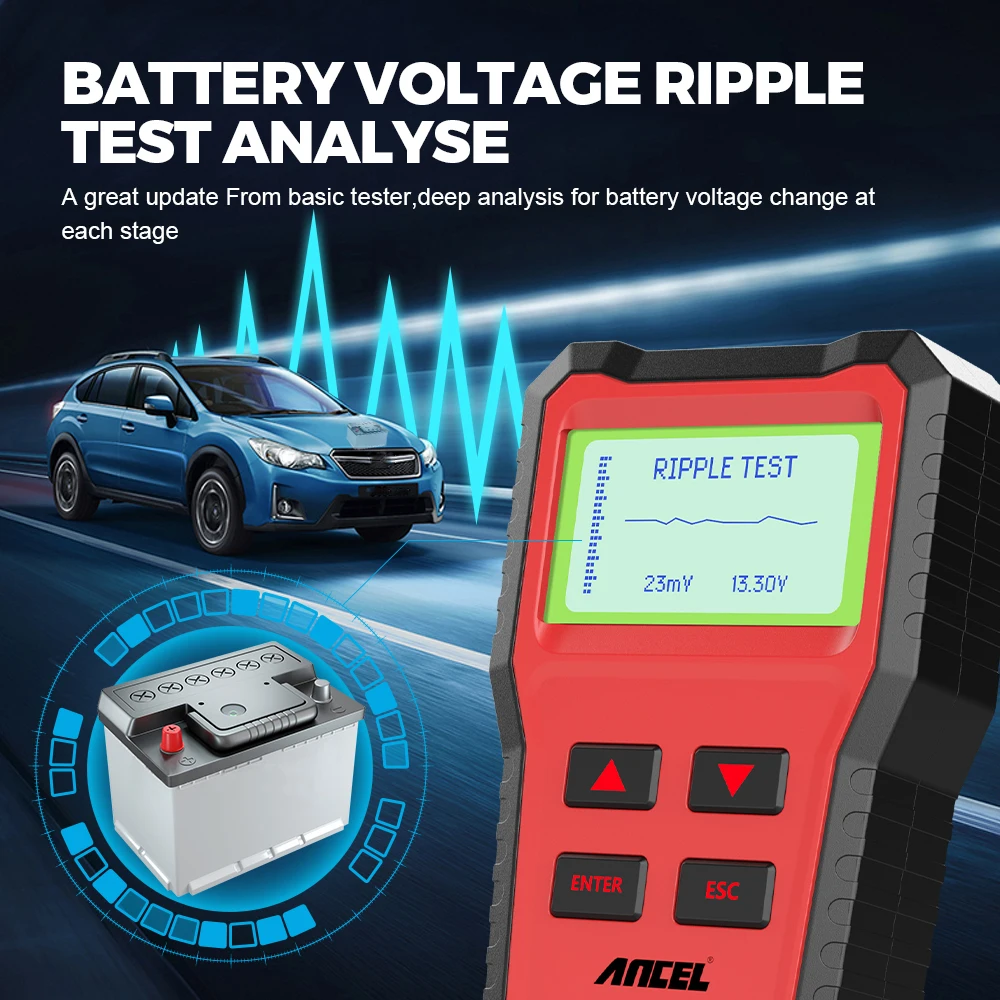

Battery Ripple Test Analysis

A major upgrade from the basic tester, in-depth analysis for battery voltage change at each stage.

Buy-this-product-on-Aliexpress

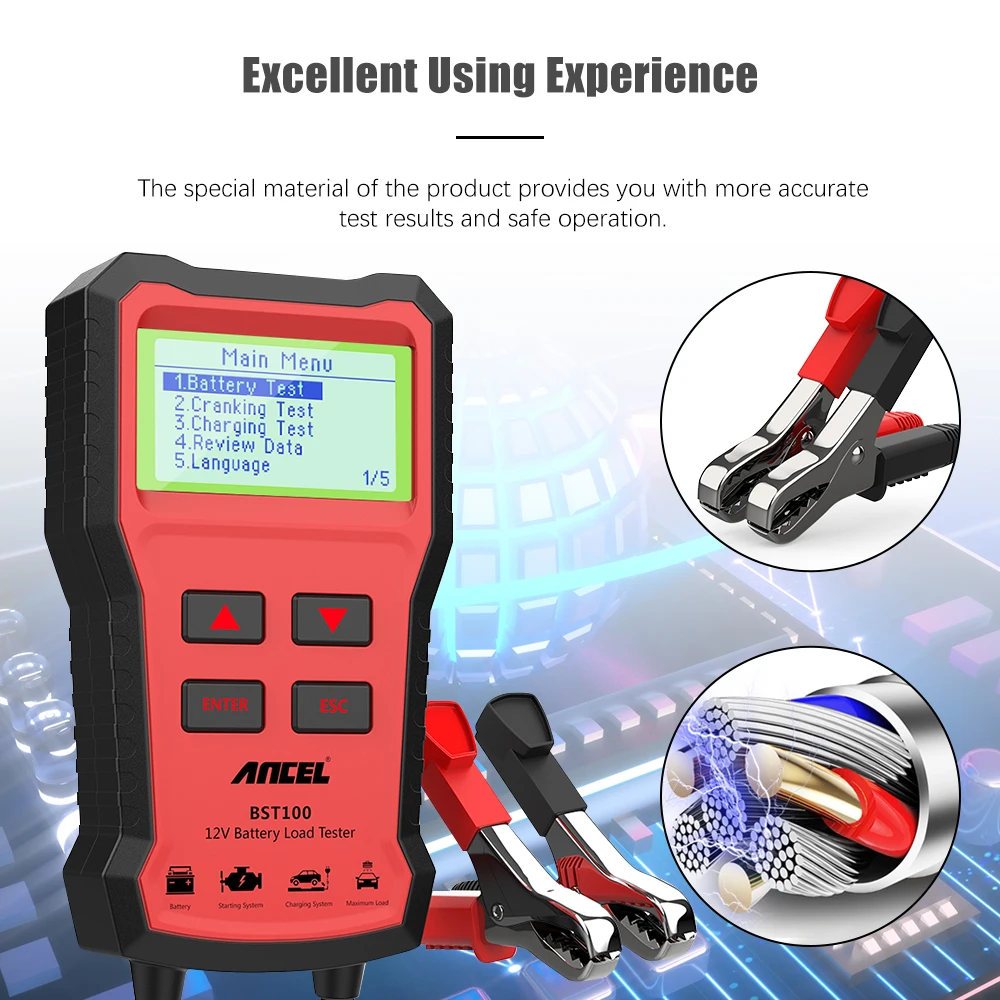

Excelllent Using Experience

The specianl material of the product provides u with more accurate test result and safe operation.

Battery Ripple Test Analysis

A great update from basic tester, deep analysis for battery voltage change at each stage

Ancel BST100 Car Battery Tester Application

Use for testing a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) from Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The main battery standards JIS, SAE, EN, DIN and IEC are supported.

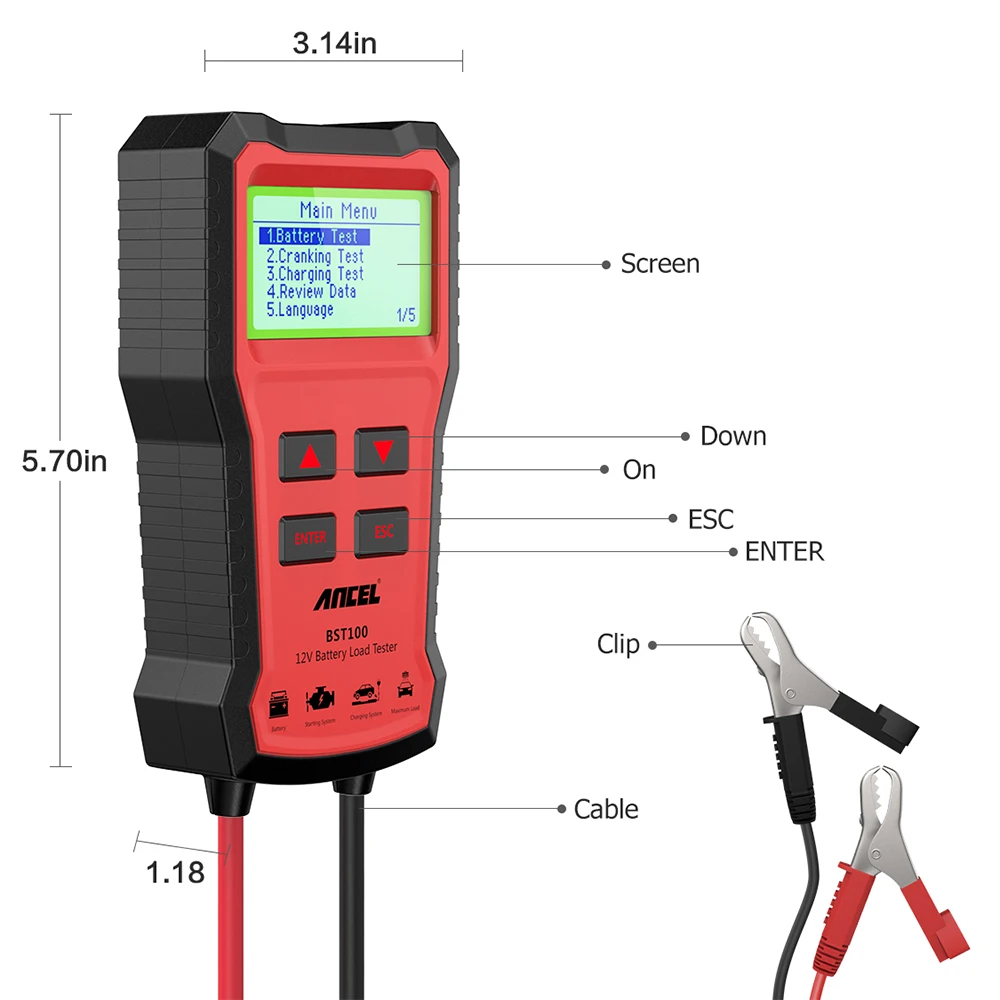

Product Details

(1) It can be used for checking almost all the batteries including low capacity battery and internal resistance of the notebook battery exclusively.

(2) It will not harm the battery by using this method.

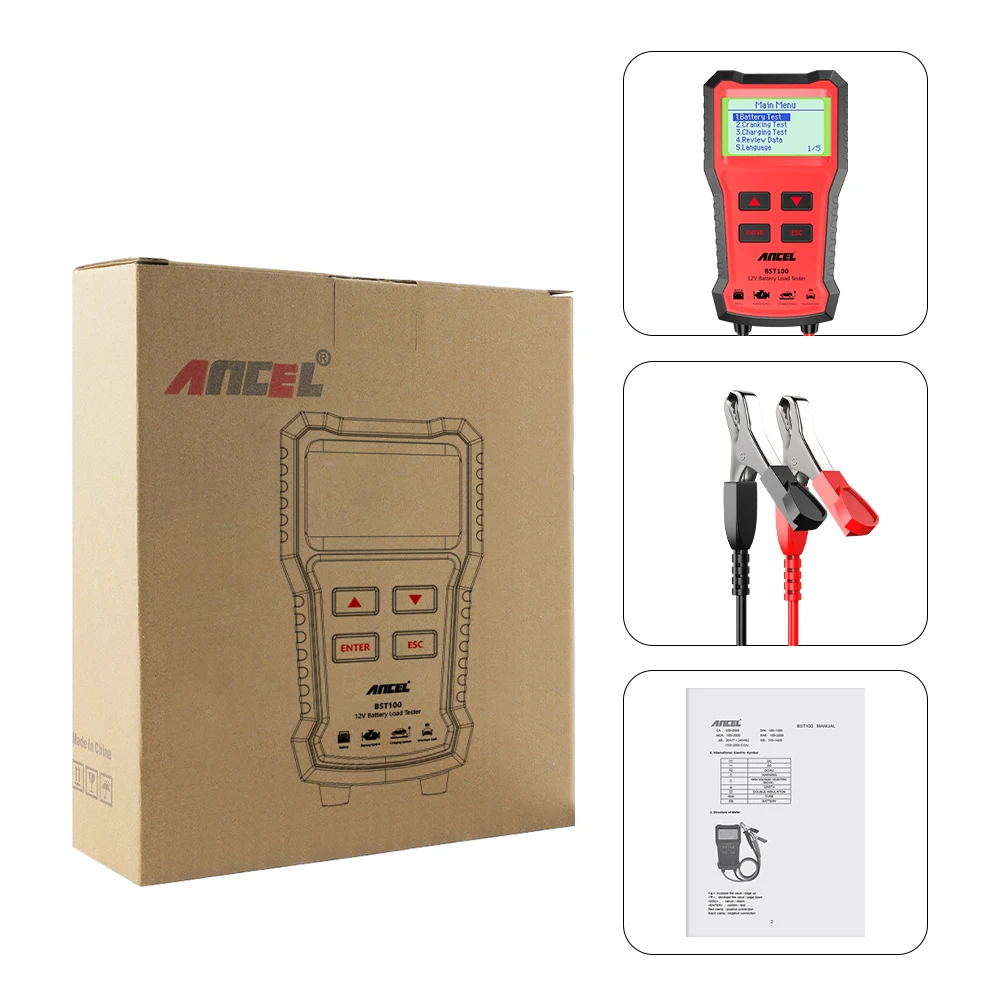

Product Package List

FQA 1. What is the measurement principle of this tester?

The battery will gradually be aged with an increase in time. The main reason is that it can no longer generate some effectively chemical reaction because of the aging of the surface of the battery plate. International Electric and Electronic Engineer Association(IEEE) formally looks the Conductivity Test as one of the standards of checking lead-acid storage batteries. It points out from IEEE standard 1118-1996 that: Conductivity Test is used to test AC current generated by putting the known frequency and amplitude AC signal to both sides of the battery. AC conductivity value is the ratio of AC current signal which keeps the same phase with AC voltage and the AC voltage. This tester is designed from this principle actually.

FQA 2. Is the result affected by the installation of negative current for the vehicle?

All the negative currency will affect the result. Therefore please remove the negative currency before checking, to achieve the accurate data.

FQA 3. Can this tester predict when the battery goes down?

The internal resistance of the sealed lead-acid battery is complicated. It is generated by ohm internal resistance, concentration polarization internal resistance, chemical reactions internal resistance and interference effect caused by double capacitance’s charging. The ingredient of internal resistance and its relative content will change with different test methods and different test moments, which can lead to different tested values of the internal resistance. And there is no strict relationship between internal resistance (or conductance) and capacitance of the sealed lead-acid battery. So it is impossible to predict the life of battery according to a single battery’s internal resistance. But it can be predicted the life of the battery will be over soon from the sudden increase of its internal resistance and decrease of its conductance.

FQA 4.Is the CCA value tested by this tester correct?

CCA is considered as a control standard with the produce of the battery. According to the accumulated records, the tested value of a new battery is 10-15% higher than the standard value, and along with consuming the battery, the value is getting close to standard, even lower afterward.

FQA 5.What is the difference between the method used by this tester and the load test method?

The load test method: According to the physical formula R=V/1, test equipment forcibly makes the high permanent DC ( presently 40-80A large current is available ) go through the battery shortly ( about 2-3 seconds). And then the tested voltage of the battery can be used to figure out the internal resistance by the formula.
