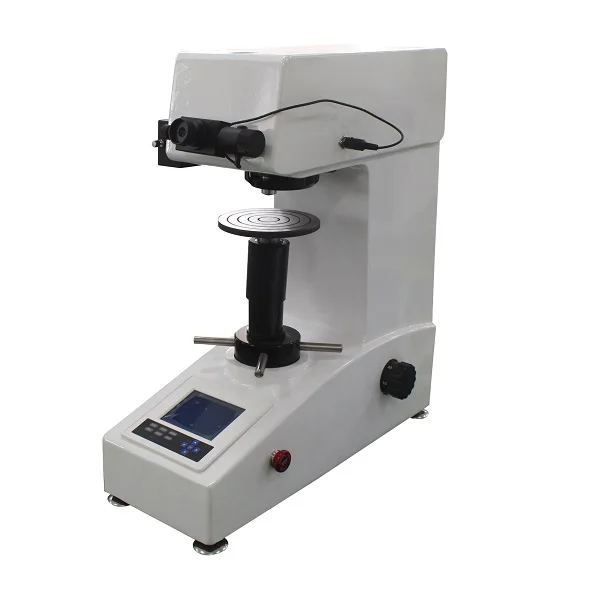

ANDRU HVS-50A Vickers Hardness Tester 50Kg loading
- Brand Name: Andru
- Origin: Mainland China
- Certification: CE
- Warranty: 1 year
- Type: Hardness tester
- Model Number: HVS-50A
- Product name: Vickers Hardness Tester
- Power supply: AC 220V 50-60HZ
- Dimensions: 585*200*630mm
- Testing Range: (5-3000)HV
- Test force: 1.5,10,20,30,50kgf
- Max. height of test piece: 175mm
- Maximum sample width: 125mm
- Net weight: 55KG
- Vickers hardness scale: HV1, HV5,HV10,HV20,HV30,HV50
- Loading control: Automatic loading, dwell,unloading
Product Paramenters ANDRU HVS-50A Vickers Hardness Tester 50Kg loading
|
Model
|
|
|
Vickers hardness scale
|
HV1,HV5,HV10,HV20,HV30,HV50
|
|
Display
|
Automatic reading menu shows 5 digit hardness value, 4 digit diagonal length (D1,D2) test force, holding time, number of tests, return
|
|
Test force
|
1.0Kgf(9.8N),5.0Kgf(49.0N),10Kgf(98.0N),20Kgf(196N),30Kgf(294N),50Kgf(490N)
|
|
Loading control
|
autoamtic (loading, dwelling, unloading)
|
|
Turret mode
|
Automatic turret
|
|
Test force holding time
|
1-99S
|
|
Optical system
|
objective lens: 10X, 20X eyepiece: 10X, total magnification: 100X, 200X measurement range: 800μm,400μm, resolution ratio:1μm, 0.5μm
|
|
Hardness testing range
|
5-3000HV
|
|
Max. height of workpiece
|
175mm
|
|
Max. wide of workpiece
|
125mm (from center indenter to wall of machine)
|
|
Data output
|
Reserved built-in micro printer interface, RS232 serial interface, optional installation
|
|
Executive standard
|
GB/T4340.2 Chinese Standard, JJG151 inspection Rule
|
|
Input voltage
|
AC 220V 50Hz
|
|
Dimension
|
585*200*630mm
|
|
Weight
|
55KG
|
