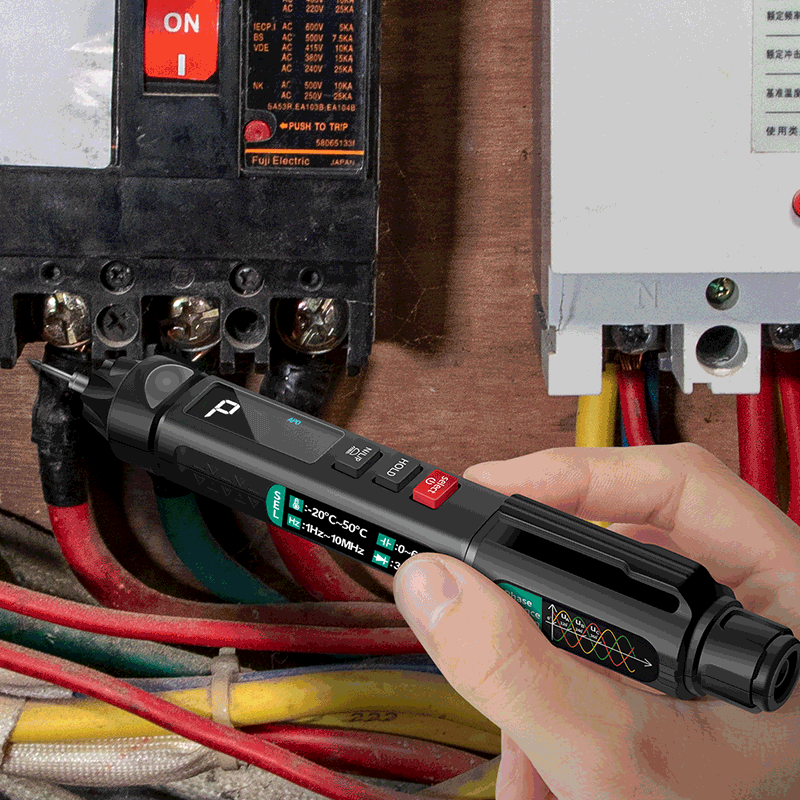

ANENG A3008 Professional Multimeter Pen
- DC Voltage: 6V/60V/600V/1000V
- AC Voltage: 6V/60V/600V/700V
- Operating Mode: auto
- Measuring Capacitance Range: 10nf-60mf
- Measuring Resistance Range: 600/6k/60k/600k/6M/60M
- Model Number: ANENG A3008 Professional Multimeter Pen
- Dimensions: 170.5*25.4*22mm
- Operating Temperature: 0 – 40 ℃
- Measuring Inductance Range: 1hz-10mhz
- Display Type: Digital display
- DIY Supplies: ELECTRICAL
- Brand Name: ANENG
- Origin: Mainland China
- Certification: CE,NONE
ANENG A3008 Digital Intelligent Professional Multimeter Sensor Pen Tester AC Voltage Meter Non-Contact Voltmeter Electric Tool
A3007 does not include phase sequence test function.
General Feature:
- 6000 counts digital mini smart multimeter phase sequence detection ncv induction detection resistance/capacitance
diode/live detection/Hz current temperature - This is the newly updated mini professional multimetre,and it can be suitable for electrical equipment testing and maintenance.
Parameter:
| Brand | ANENG | Model | A3008 |
| AC/DC voltage | YES | Resistance/diode | YES |
| continuity test/capacitance | YES | NCV | YES |
| Non-contact phase sequence | YES | Neutral/Fire Test | YES |
| Backlight manual | YES | Automatic shutdown | YES |
| True RMS | YES | Flashlight | YES |
| Temperature | YES | Hz | YES |
| range | Accuracy | |
| voltage | DC/AC6V DC/AC60V DC/AC600V | ±(0.5%+4) |
| DC1000V/AC700V | ±(0.8%+10) | |
| resistance | 600Ω | ±(0.8%+5) |
| 6kΩ/60kΩ/600kΩ/6MΩ | ±(0.8%+3) | |
| 60MΩ | ±(2.5%+3) | |
| capacitance | 10nF/100nF/1uF/10uF/100uF/1mF/10mF | ±(3.5%+20) |
| 60mF | ±(5%+3) | |
| Temperature | (-20-50 )℃,±(1.0%+5)＜50℃ (0-122 )℉,±(0.75%+5)＜122℉ |
Package include:
1*multimeter
1*outer box
