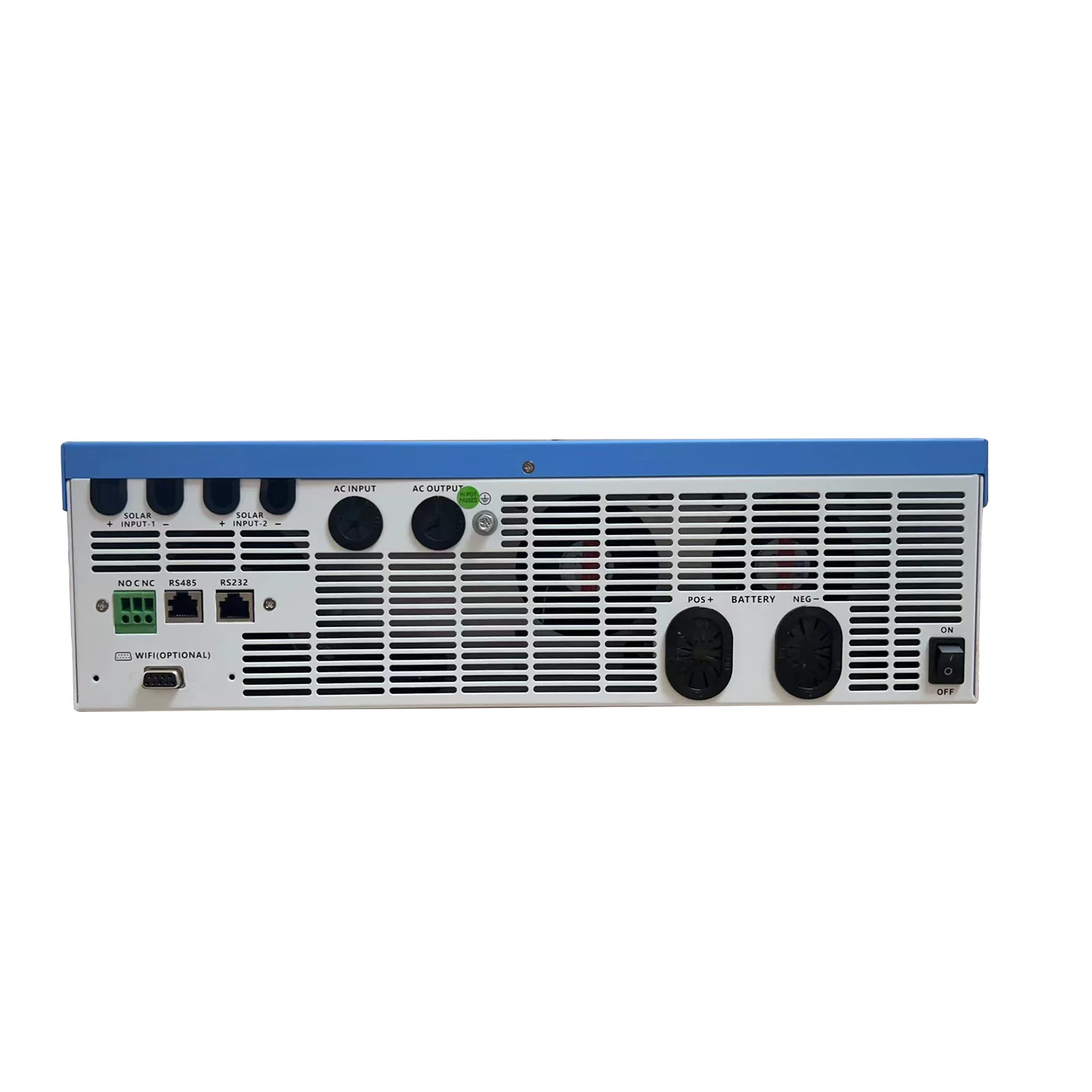

ANENJI ANJI-11KW 48V Hybrid Solar Inverter

• Hign-concerned Chemical: None
• is_customized: Yes
• Output Current: 160A
• Model Number: ANJI-11KW 48V
• Output Power: 10.2KW
• Size: 42x31x11CM
• Output Type: DUAL
• Weight: 16.2KG
• Brand Name: ANENJI
• Output Frequency: 50/60HZ Auto sensing
• Is Smart Device: YES
• Origin: Mainland China
• Certification: CE
• Rated Power: 11000W
• Input Voltage: 230VAC
• Acceptable Voltage Range: 170-280VAC(For personal Computer);90-280VAC(For Home Appliances),90-280VAC(for home Appliances)
• Frequency Range: 50/60HZ Auto sensing
• Output AC Voltage Regulation(Batt.Model): 195.5-253VAC
• Surge Power: 22000VA
• Transfer Time: 10ms (For Personal Computers),20ms(For Home Appliances)
• Wave Form: Pure sine wave
• Battery Voltage: 48V
• Floating Charge Voltage: 54V
• Overcharge Protection: 63V
• Maximum charge current: 160A
• Maximum PV Array Power: 10200W
• MPPT Range operation Voltage: 60V-500VDC
• Maximum PV Array Open Circuit Voltage: 500VDC
• Maximum Solar Charge Current: 160A
• Maximum Efficiency: 94%
• communication interface: RS232(Standard)RS485/WIFI Optional
• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operation Temperature: -10℃-55℃
• Storage Temprature: -15℃-60℃
• Dimension,D*W*H: 54×41.5×12.2CM
• Solar Charge type: 2 MPPT
• Net Weight: 14.5KG

Buy-this-product-on-Aliexpress

Tips:

Mainly Advantage：Two PV Input，Superb Performance Meet Your Multiple Requirements.

1.Pure Sine Wave Max 11000W Output

2.Max 160A MPPT Solar Charger

3.Max 500VDC PV Input

4.High PV input voltage range(60~500VDC)

5.Output power factor 1.0

6.Real Hybrid Grid Solar inverter for 48V system

7.Wifi Module for easily connection

8.Efficiency work with or without battery

9.Bundled monitoring& setting software

10.Supports 50hz or 60hz (program adjustable)

11.Able to use ac grid or generator power

12.Timer setting for AC charging & output now available

13.Built-in anti-dusk kit for harsh environment

14..Dual AC Input

15.Two PV Input. (If need two side in Parallel, please make sure same number solar Panels in Series each side)

NOTE: 1.Support works without battery

             2.Support Grid Feedback(need work grout battery)

            3.2 MPPT Solar Charge Controller

This is a wide voltage Hybrid inverter, If Solar Inverter without external battery ,The voltage which starts to connect to the solar panel must be above 150V for the inverter

package:

inverter X 1

WiFi module x 1

Instruction x1
