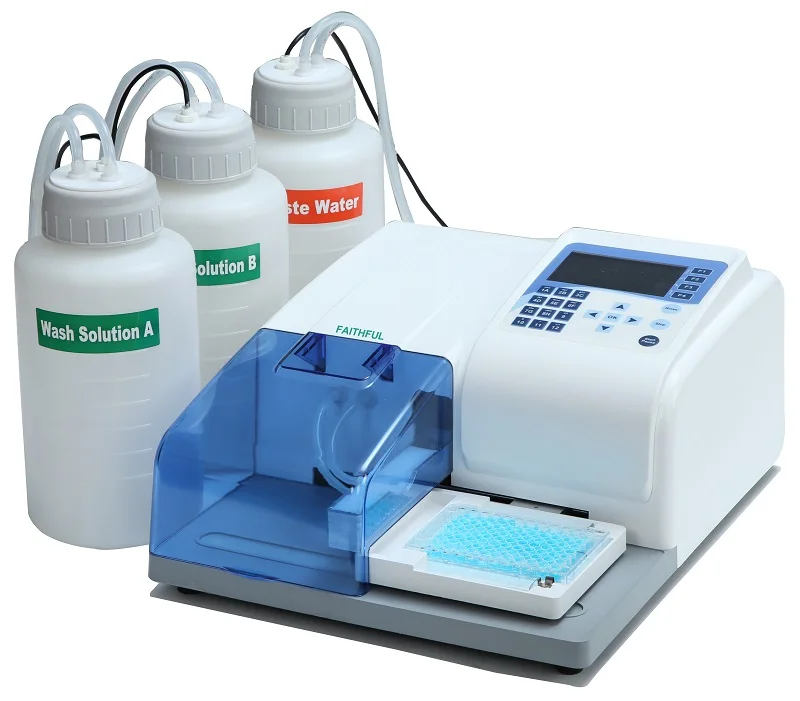

APW-200 Microplate Washer Elisa for Medical Laboratory
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Model Number: APW-200
- Name: Microplate Washer Elisa Microplate Washer For Medical Laboratory
- Residual liquid: ≤1μL
- Washing heads: 1×8 or 1×12 heads
- Washing volume: 50-2000μL, increase by 50μL
- Washing times: 99 times
- Washing channels: 3
- Dispense accuracy: ≤2%@300μL
- Liquid injection accuracy: CV≤1.5% @ 300μL
- Data connection: USB
- Weight: 12kg
Product Description
Features
1. Low residual liquid, each well ≤1µL
2. Compatible for microplates: flat, U, V, C bottom
3. 4.3 inch color LCD display, easy to operate
4. Washing head position can accurate to 0.1mm
5. Wash parameters can be set to make sure the best washing effect
6.Support external U-disk, for program exporting
7. 100 programs can be saved
8. Uniform volume mark make it easy to measure the liquid
9. Automatic alarm for full liquid
10. Strainer in the pipeline and automatic washing functions avoid the liquid blocking the pipeline
Products Advantages
01
Easy Operation
The APW-200 Microplate Washer has 4.3 inch LCD display with friendly interface, U-disk can be used to transfer the datas between the PC and the washer or between two washers, it can also be used to upgrade the software. The washing head can be replaced easily for different kinds of microplates.
02
Safety and reliable feature
The APW-200 Microplate Washer is equipped with liquid position sensor to avoid the washing liquid used up or waste liquid from overflow, minimize the risk and avoid the liquid being sucked into the pump to break the equipment. Besides it has shaking function, which can improve the washing efficiency
Specification
|
Residual liquid
|
≤1μL
|
|
Washing heads
|
1×8 or 1×12 heads
|
|
Plate types
|
Flat, U, V, C bottom
|
|
Washing method
|
Single-point, two points and multi points
|
|
Washing volume
|
50-2000μL, increase by 50μL
|
|
Washing times
|
99 times
|
|
Washing channels
|
3
|
|
Bottles
|
3pcs 2.5L washing bottle, 1pcs 2.5L waste bottle
|
|
Dispense accuracy
|
≤2%@300μL
|
|
Liquid injection accuracy
|
CV≤1.5% @ 300μL
|
|
Soaking and shaking time
|
19’59”
|
|
Data connection
|
USB
|
|
Weight
|
12kg
|
|
Power supply
|
AC110-240V, 50/60Hz
|
