Autel KM100E Key Programming Tool Automotive Diagnostic Scanner

Autel KM100E Key Programming Scan Tool Professional Car Diagnostic Scanner V200 Key Programmer Free Update Lifetime

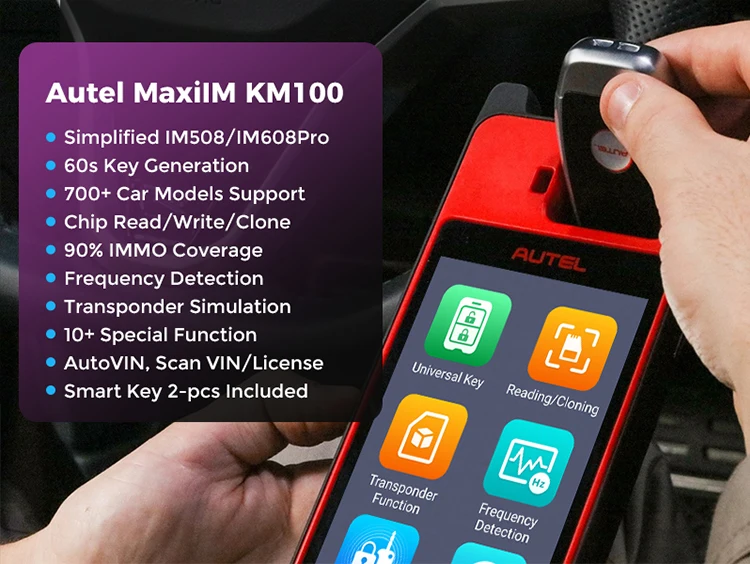

Specialized in automotive key fob programming for years, 2024 Newest Autel MaxiIM KM100 key programmer, this 5.5-inch, Android touchscreen with Bluetooth VCI can program the Autel I~KEY as a smart key replacement for 700+ vehicles and offers IMMO Key Learning via OBD on 90% vehicles including for BMW, for Volkswagen, for Toyota, for Honda, and for General Motors. Additional innovative features such as Key renewal and Transponder Editing of 20 supported protocols.

Hightlights in Key Fob Programming & IMMO Learning

60s Autel Universal Key Generation, speed up by 50%, Compatible with Dual-Band (315M/433M) and (868M/915M);
Programs Autel’ s IKEY universal key as smart key replacement for 700+ vehicles;
IMMO Key Learning via OBD on 90% vehicles, for BMW, for Volkswagen, for Toyota, for Honda, for General Motors, etc.;
Chip Reading/ Writing/ Cloning of 20 supported protocols.;
Transponder Generation/ Simulation/ Conversion between ID63 and ID83;

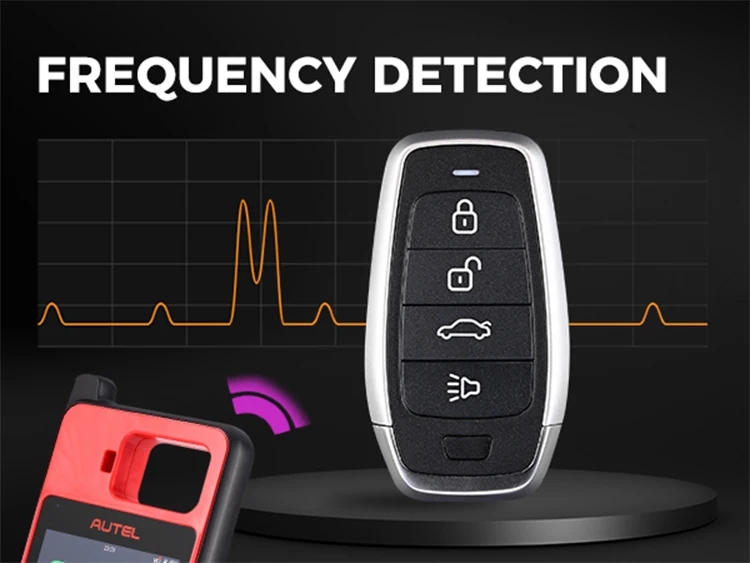

Frequency Detection；
7+ Special Functions;
And More…

Multi-Language Supported

English, German, Spanish, French, Polish,
Portuguese, Italian, Dutch, Swedish, Russian, Chinese

Note : After getting the device,please send us the CLEAR SN number so that we can active language for you.

60s Universal Key Generation:

As shown in the above two pictures, we can see that compared with other compatitors, Autel 2022 KM100 Key Fob Programming Tool has greatly simplifies key generation process for better user experience. Only 1 Min, 4 Steps, Speed up by 50%, you can generate a IKEY, helping you save more time and win more business.

What’s more important, this Autel KM100 Car Key Fob Immobilizer Tool supports One Tap to the IMMO function just after key generation, while competitors need you return to the main screen again, and then manually select menu to perform the IMMO funtion, which is undoubtedly the most annoying thing for a locksmith!

Last but not least, our KM100 key scanner comes with 2pcs FREE universal smart blank keys in the package which support generating a wide range of universal keys with reliable quality to meet various needs of customers. Autel IKEY supports 37 kinds of appearance (continuously increasing with updates), and is compatible with low frequency (315M/433M) and high frequency (868M/915M) two types.

Buy-this-product-on-Aliexpress

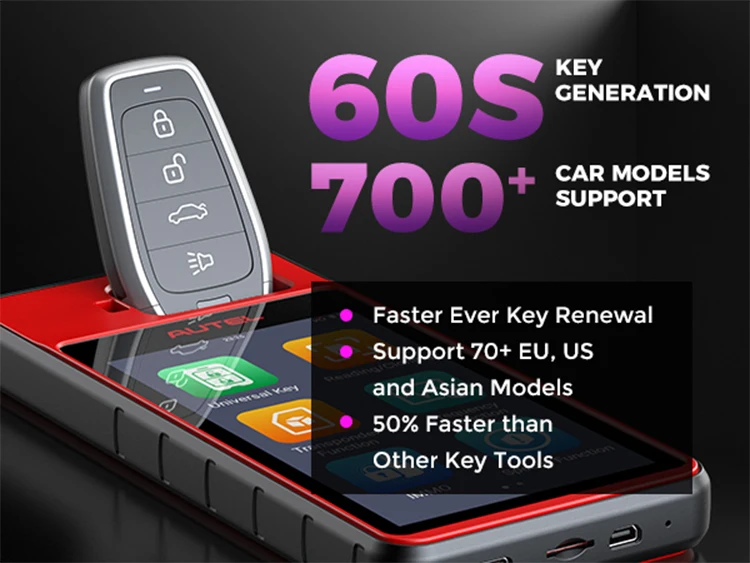

1-Min Ultra-fast Universal Key Generation, Beyond Your Imagination!

60s Autel Universal Ke-y Generation, speed up by 50%, Compatible with Dual-Band (315M/433M) and (868M/915M);

Programs Autel’ s I~KEY universal key as smart ke-y replacement for 700+ vehicles;

IMMO Key Learning via OBD on 90% vehicles, for BMW, for Volkswagen, for Toyota, for Honda, for General Motors, etc.;

Chip Reading/ Writing/ Cloning of 20 supported protocols.;

Transponder Generation/ Simulation/ Conversion between ID63 and ID83;
Frequency Detection；
10+ Special Functions;

4 Methods for Quick Car Identification

Auto VIN, Manual VIN Input, Automatic Selection, Manual Selection.

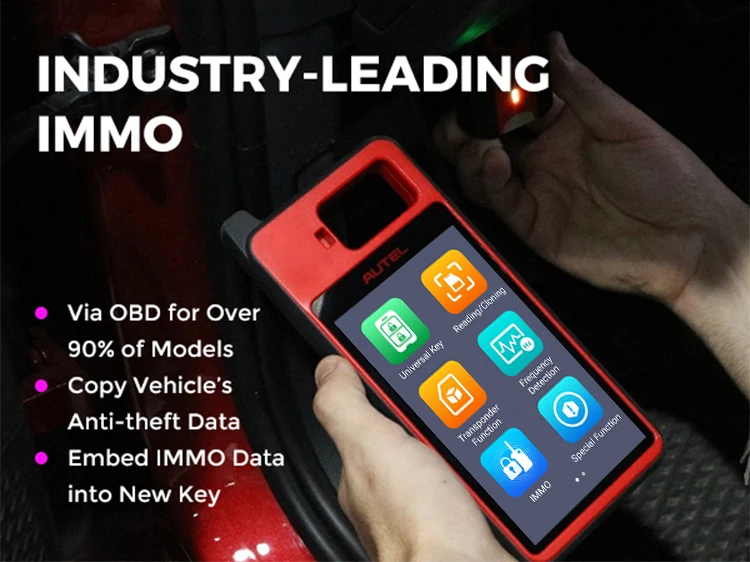

Professional & Complete IMMO Key Learning Via OBD on 99% Vehicles, Meet All Your Needs!

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBDII connection. The application retrieves vehicle IMMO information and performs IMMO related functions. For example:

Read PIN;
Key Learning;
Remote Control Learning;
Remote Control Add;
All-Key-Lost;
IMMO data backup/restore;
IMMO ECU Reset/ Adaptation/ Refresh/ Coding;
And More…
Buy-this-product-on-Aliexpress
Note:

1.Industry-Leading coverage of IMMO learning via OBD for more than 90% of models, including for BMW, for Volkswagen, for Toyota, for Honda, for General Motors, etc.
2.Welcome to send your car VIN# to us to help you check compatibility first.

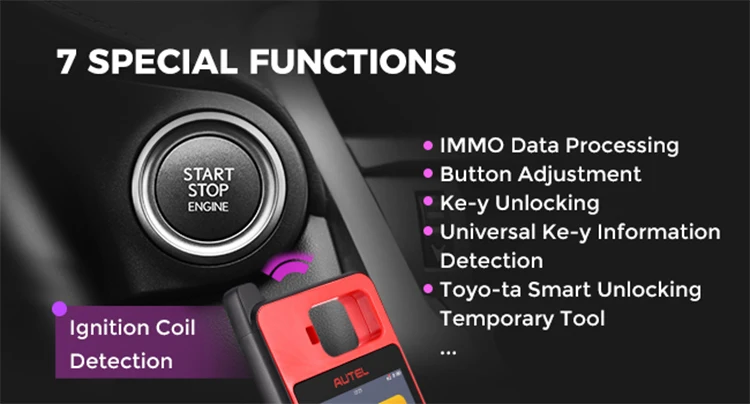

7 Hot & Special Functions, All- in-one Tool Solutions for Auto Keys!

Apart from professional features such as Universal Ke-y Generation, Complete IMMO Key Learning, 2022 Autel MaxiIM KM100 also supports 10+ hot and special functions:

1.IMMO Data Processing: load the IMMO related ECU information of a vehicle to calculate a password and other IMMO information, which will be written into the transponder of the vehicle, the processed transponder can be used to start the vehicle, in other words, you now have an extra ke-y available.

2.Key Unlocking (Ke-y Renewal): enables you to renew a used smart key to unlock a new car, which is achieved by renewing the firmware of the used smart key via cable connection, working on 36 vehicle makes.

3.Toyota Smart Un-locking: With this function, you can unlock other Toyota models with your Toyota smart ke-y. Unlocking of the 4D 40/80 bit and 8A 128 bit original Toyota smart chips is supported.

4.Button Adjustment: assign the button functions of the Autel universal key.

5.Universal Key Information Detection: especially designed to read the Autel universal key information, including the serial number, key ID, and IMMO version, etc.

6.Ignition Coil Detection: enables the key tool to gather the data of the IMMO protocol and transponder type of the vehicle, while Autel old models IM508/ IM608 cannot support this special functions.
And more helpful funtions wait for you to unlock!

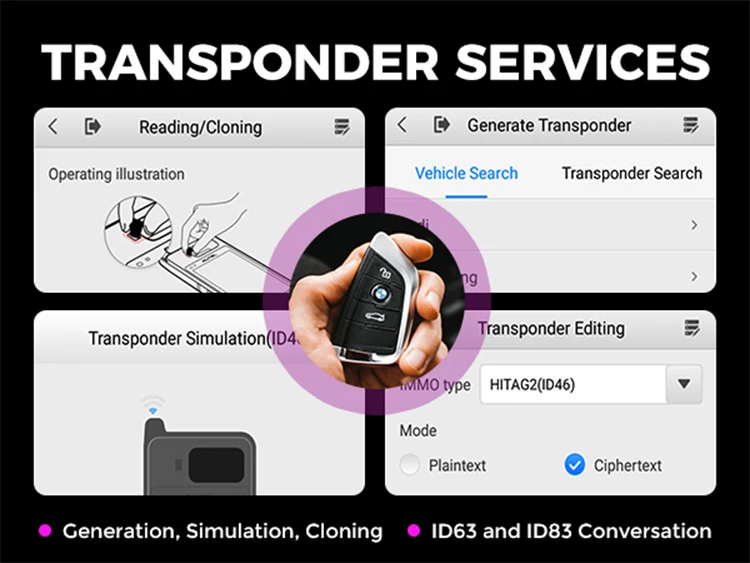

Extensive Transponder Functions

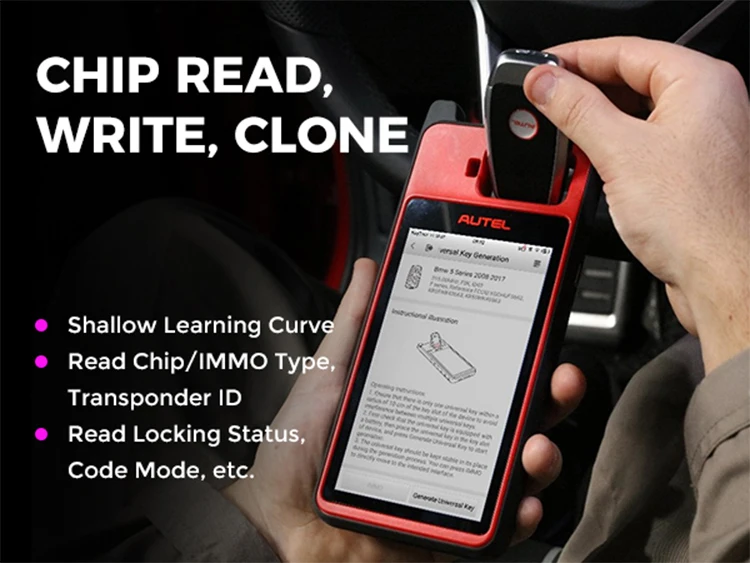

1.Transponder Reading: access to some basic information of the key, including chip type, IMMO type, transponder ID, locking status, and code mode.

2.Transponder Cloning: detect the transponder and vehicle informationin order to decrypt a code which shall be used to directly clone and generate a functional transponder for your vehicle. The whole process saves the trouble of using the old OBD approach.

3.Transponder Editing:read and edit transponder information such as its configurations and EEPROM data. Choose an IMMO type (which can be accessed by the transponder reading function) and start editing according to your needs.

4.Transponder Generation: generate a transponder accommodating different protocols or models using a blank transponder.

5.Transponder Simulation: used to simulate the KM100 as a transponder using a variety of IMMO protocols. This function is particularly useful when your vehicle needs emergency start or such.

6.Conversion between Ford ID63 & ID83: especially designed for the conversion between two types of Ford transponder — ID63 and ID83.

Kindly Noted:

The KM100 supports various transponder types for cloning and editing. Choose the corresponding cloning procedure according to your transponder identification number (ID).

KM100 Don’t support the following local vehicle

You need to buy the following car software,please contact with us.

Australian car: Fordau, Holden

Malaysian car: Perodua,proton

Brazil, Latin America, South America: Fiat Brazil, Gm Brazil

Indian cars: Maruti Suzuki, Mahindra, Tat, India Datsun

Buy-this-product-on-Aliexpress

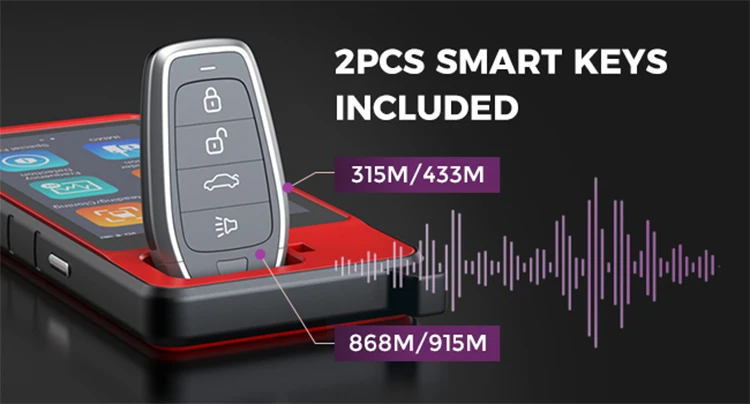

2PCS Blank Smart Key with OE-Level Stable Quality

1.Stable OE-Level Quality: Autel KM100 comes with 2pcs FREE universal smart blank k~eys in the package which can generate a wide range of universal keys with reliable quality to meet various needs of customers.

2.Dual-Band: Supports 8 series of Autel IKEY & 37 kinds of appearance (continuously increasing with frequent updates), and is compatible with low frequency (315M/433M) and high frequency (868M/915M) two types.

Specification

Screen: 5.5-inch screen with 1280 x 720 resolution
Processor: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Operating System: Android TM9.0
Memory: 2GB RAM/64GB on-board memory
Camera: 8 megapixels
Connection: Wi-Fi, Bluetooth 5.0, USB 2.0 type C
Battery: 4950mAh lithium-polymer battery
VCI: V200
Input: 5V/2A
Sensor: Ambient light sensor
Audio Input/Output MIC: supported
Speaker: supported
Operating Temp: -10 to 45°C (14 to 113°F)
Storage Temp: -20 to 60°C (-4 to 140°F)

Package List

1pc x KM-100 Universal Key Generator
1pc x OBD Adapter
2pcs x Universal Keys
1pc x Hard Shell Carrying Case
