Autel MaxiIM IM508SPRO Key Programming Tool OBD2 Scanner

Autel MaxiIM IM508S XP400PRO OBD2 Auto Automotive Scanner IMMO Programming Diagnostic Tool All-in-One Key Programmer

■ Import Selling Points

• Powerful combination of key and immobilizer programming, all system diagnostics, extensive service menu
• Smart Mode for guided and automated key learning
• Expert Mode for advanced key learning
• Read PIN/CS (all keys lost) key generation, key learning, remote learning
• IMMO ECU reset/adaptation, refresh/coding
• Transpronder read/write, EEPROM/MCU read/write
• All Systems diagnostics for U.S., Asian, and European vehicles, 1996 and newer
• Extensive Service Menu, including EPB, DPF, SAS, Oil Light Reset, and BMS
• Cloud-based report management, allowing you to view device and test records anytime, anywhere
• Quad-Core processor
• Internal reliable 64GB Memory
• Android 11.0 Operating System for fast bootup and multitasking
• 7-inch LCD touchscreen with 1024 x600 resolution

1.Key programming scan tool has advanced IMMO functions

Read PINCS(all key l-ost), Key generation, Auto detect make/mode/year/system, Key learning

Remote learning, I-M-M-O ECU
Reset/adaptation, I-MM-O ECU Refresh/coding, Backup/restore I-MM-O data

Benz 3rd generation I-MMO Add key,all key lo-st,key learning, Benz FEM/BDC Key Learning and ECU adaptation

BMW CAS4/3/2 Key learning, VW/Audi MQB(VDD&JCI) Add key, IM-MO V A4/A5/Q5 2015+Key learning

For V-W/A-udi /Sko-da/S-eat IMMO IIIV/NV Add key, all key lo-st Programming, Key read / write

EEPROM Read/ Write, MCU Read/ Write, Smart mode, Expert mode etc.

2.ADVANCED CAR KEY CHIP PROGRAMMING

Autel MaxiIM IM508S professional car key programming scanner comes with most useful key programming capabilities including Key Chip Read & Write, EEPROM Read & Write, Transponder Read & Write and basic MCU Read & Write.

3.COMPREHENSIVE IMMO & KEY CHIP PROGRAMMING

IM508S Diagnostic Scan Tool can perform:
Read PIN/CS(All Key Lost), key generation, key learning, remote learning on Benz FEM/BDC Key Learning/ECU Adaptation, BMW CAS3/2 Key Learning, VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost, IMMO ECU reset/adaptation/refresh/coding, Transpronder read & write, EEPROM/MCU read & write. Being compatible with XP400 Key Programmer, you may choose to upgrade its programming capabilities further with XP400.

Buy-this-product-on-Aliexpress

Work with XP400PRO/IMKPA/APB112/G-box-3

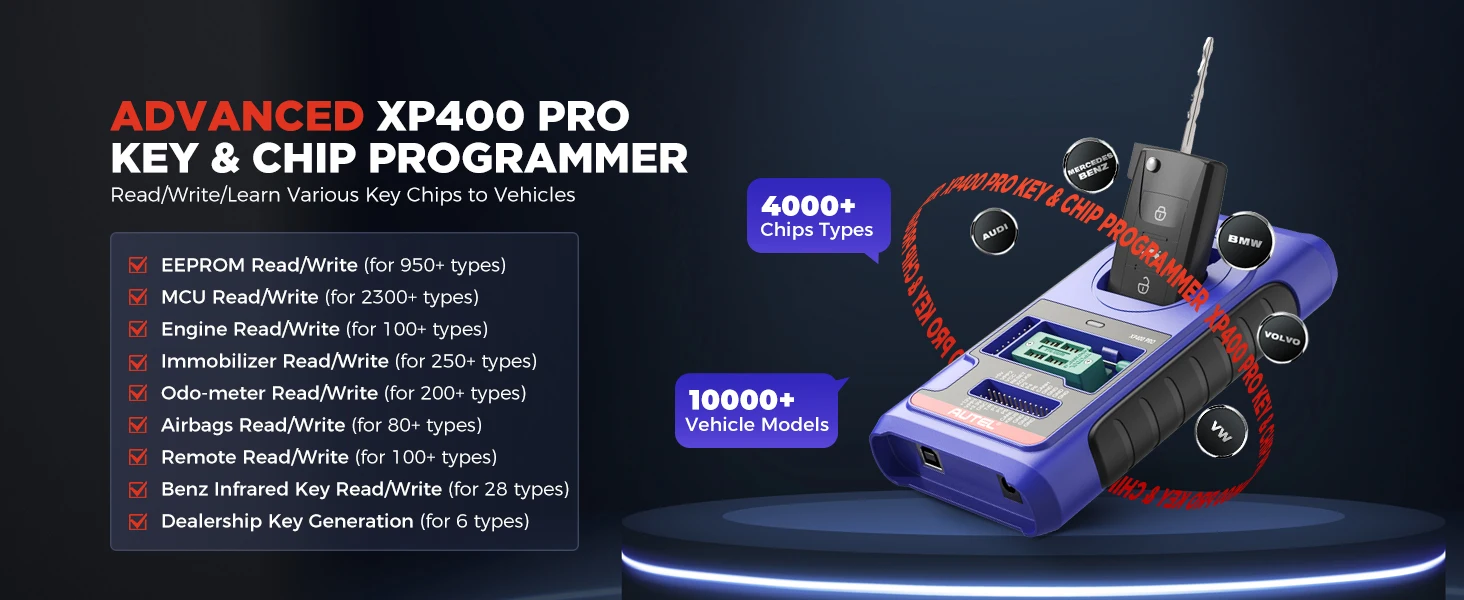

√ Use with XP400 PRO:
1. Expanded EEPROM functions for more component access
2. 170+ types Odometer component reading functions
3. 180+ Im-mobilizer ECU component types
4. 40+ Engine ECU component types
5. 2000+ MCU component types
6. 440+ EEPROM component types
IMMO Anti-theft: Benz 3rd Generation IMM-O Add Key; All Key Lo-st; Key Learning BMW CAS4/3/2 Key Learning
Key Programming: Mer-cedes Infrared Key Read/Write; Remote Frequency Detection; Read/Write PIN (All Key L-ost); For 2015- 2019 Ja-guar La-nd Rover Write Key via Dump; Vo-lvo Smart Key/ Fobik Smart Key Learning; IC Chip Keys on Late Model Hyun-dai K-ia Vehicles; ECU, IC Card & MC9S12 Encryption Chip

√ Use with G-BOX3:

The Autel G-BOX2 is an adapter used to program keys for Mercedes-Benz DAS3 CAN EIS/EXS (All Keys Lost), Mercedes-Benz All Keys Lost Password Calculations and DME/DDE ISN Reading & Writing in Boot Mode or Bench Method for BMW; Reads and writes Bosch engine ECU on F chassis of BMW and MQB of Volkswagen.This G-Box2 contains cables, fuse connector, and CAN line connectors.

√ Use with APB112:

Collect the data sent from the ignition coil, identify the ignition coil troubles , 46, 4D key chip data collection and key simulation,Toyota/ Lexus smart key all key lost.

√ Use with IMKPA:

IMKPA is a Key Programming Adapter Kit, compatible with the XP400Pro Key & Chip Programmer. Includes 12 adapters for the XP400Pro that enable Read/Write/Erase for Mercedes Benz ESL_W209 / W906 Data, for Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and for Volkswagen/AUDI/BMW/Benz Key Unlock.

5.Upgraded Bi-Directional Control

What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don’t be in a hurry to dismantle your cars! Bidirectional control tool IM508 can perform real active test that can send commands to the vehicle’s ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues.
Note: Functions NOT universal, please send VIN(17 digits),car makes, model, year to check compatibility before purchase.

6.FCA “Auto Auth” Access:

Supports FCA “Auto Auth” gateway for 2018 and newer FCA cars(Chrysler/Dodge/Jeep,etc) for US/Canada & Mexico.
NOTE: All these new functions are released on Autel system V2.62 and above, which are available to download for all IM508 since 1st, June, 2022.
NOTE: For a few Renault and FCA cars, when doing IMMO key programming, “autoauth” is not enough, sill need 12+8 adapter.

Buy-this-product-on-Aliexpress

8.OE-LEVEL ALL MODULES DIAGNOSIS

Autel MaxiIM IM508S automotive scan tool can quickly diagnose all modules of more than 80 US, Asian and European makes and models on the market. With complete capabilities for codes, live data, ECU Info, adaptation, matching, coding and etc, IM508 is the perfect automotive diagnostic tool pick for technicians and mechanics.

9.36+ SERVICE FUNCTIONS

As a professional diagnostic scanner, IM508 comes with most useful service functions.
Oil Reset Service

Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;

Electronic Parking Brake (EPB) Service

Maintains the electronic braking system safely and effectively through deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

Steering Angle Sensor (SAS) Service

Performs calibration for the Steering Angle Sensor (SAS), which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.

Tire Pressure Monitor System (TPMS) Service

The TPMS service function include displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors

DPF Service

carry out numerous functions to the Diesel Particulate Filter system. The tool will manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

BMS Reset

Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information and prevent the related control module from detecting false information.

IMMO Service

enables you to disable the lost vehicle keys and program a replacement key fob.

ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion.

Throttle Matching

to initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately

Injector Coding

to make the cylinder better identify injector after ECU or injector is replaced.

Suspension

Seats

Lang Change

Trans adaption

TEC learn

Headlamp

CHG Tire Size

WIN DR ROOF

Note:

Please also know that Not All service & Special functions are universally compatible. Please send VIN number and the functions you need to us to check compatibility.

10.Smart Mode & Expert Mode

IM508S comes with comprehensive IMMO functions that provides Smart Mode and Expert Mode to guide both professional technicians and home mechanics performing IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, All Key Lost and etc.
Smart Mode: Guided and automated key learning for home mechanics.
Expert Mode: Advanced key learning for professionals
NOTE: The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II

11.Auto Scan Technology

The Autel IM508S professional OBD2 scanner comes with Auto Scan function that performs a comprehensive scanning over all the ECUs in the vehicle to locate systems
faults and retrieve DTCs for efficient diagnosis.

Note: Auto VIN Scan don’t support all car,please confirm it with us before payment.

12.Live Data & Review Freeze Frame Data

The IM508 car diagnostic scanner reads codes, show live data of multiple sensors in or graph or text, clears codes. The Review Data section allows you to playback the
recorded data frames of live data streams.

13.IM508S EEPROM Read/Write Supported Types

For AT24C01,AT24C02,AT24C04,AT24C08,AT24C16,AT24C32,AT24C64,AT24C128,AT24C256,AT24C512,AT24C1024,AT24C128_1.8
AT24C256_1.8,AT24C512_1.8,AT24C01A,AT25010,AT25020,AT25040,AT25080,AT25160,AT25320,AT25640,AT25128,AT25256
AT25512,AT25010_1.8,AT25020_1.8,AT25080_1.8,AT25320_1.8,AT25640_1.8,AT25128_1.8,AT25256_1.8,AT59C11,AT59C22
AT93C46A,AT59C13,AT93C46,AT93C46R,AT93C56,AT93C57,AT93C66,AT93C76,AT93C86

For CATALYST
CAT25C01,CAT25C02,CAT25C04,CAT25C08,CAT25C16,CAT25C32,CAT25C64,CAT25C128,CAT25C256

For FAIRCHILD
NM24C16U,NM24C16UT,NM24C17U,NM24C17UT,FM93CS46T

For MICROCHIP
85C72,85C82,85C92,25xx080,25xx160,25xx320,25xx640,25xx040_TSSOP,25xx320_TSSOP,25xx640_TSSOP,93C06,25xx040
93C46X,93C46A,93C46,93C46AX,93C46BX_93C46CX,93C56A,93C56,93C66A,93C66,93C76A,93C76,93C86A,93C86

For NXP
PCF8582C,PCF8594C,PCF8598C

For NATIONAL
NM93C13,NM93C14,NM93CS06,NM93C14TM8,NM93CS46,NM93CS56,NM93CS66

For OKI
MSM16911

For SONY
CXK1011,CXK1012,CXK1013

For Seiko
S_24S45,S_24H30,S_24H30_SOP8,S_24H45,S_24H45_SOP8,S_24S30

For ST
M24C01,M24C02,M24C04,M24C08,M24C16,M24C32,M24C64,ST24x01/ST25x01,ST24x02/ST25x02,ST24x04/ST25x04
ST24x08/ST25x08,ST24x16,ST25x16,AT25040_1.8,AT25160_1.8,M95010,M95020,M95160,M95040,M95080,M35080,M95320
M95640,M95256,M95128,M95512,M93C46,M93C56,M93C66,M93C76,M93C86,M93S46,M93S56,M93S66

TOSHIBA
TC89101,TC89102,TC89121,TC89122

For TMC
TMC93LC46,TMC93LC56,TMC93LC57,TMC93LC66,TMC93LC86

For XICOR
X5043,X5045,X25043,X25045,X24C44

For 9S12 Read/Write Supported Types
FREESCALE
MC9S12DG128

14.IM508S Don’t support the local vehicle

Australian car: Fordau, Holden
Malaysian car: Perodua,proton
Brazil, Latin America, South America: Fiat Brazil, Gm Brazil
Indian cars: Maruti Suzuki, Mahindra, Tat, India Datsun

If you need to add the following car software,please contact with us.

15.Supports Muti-Language

English / Portuguese / Germany / Japanese / French / Spanish / Italian/ Dutch/ Polish/ Swedish/ Turkish/ Vietnamese/ Russian/ Korean/ Arabic/ Thai

16.Specifications

Power and Battery 5000mAh 3.7V lithium-polymer battery
Input Voltage 12V (9-24V)
Power Consumption 500mA
Protocols ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

17.Autel MaxiIM IM508S Package List

1* Main Unit
1* 1XMain Cable
1* Mini USB Cable
1* Power Adapter
1* AAC001
1* APB001
1* APB002
1* APA002
1* APA001
1* Kia-10 Adapter
1* KIA-20 Adapter
1* Honda-3 Adapter
1* Mazda-17 Adapter
1* Quick Reference Guide
1* Packing List
1* Soft Cloth
1* Carrying Case(504*360*133mm)
