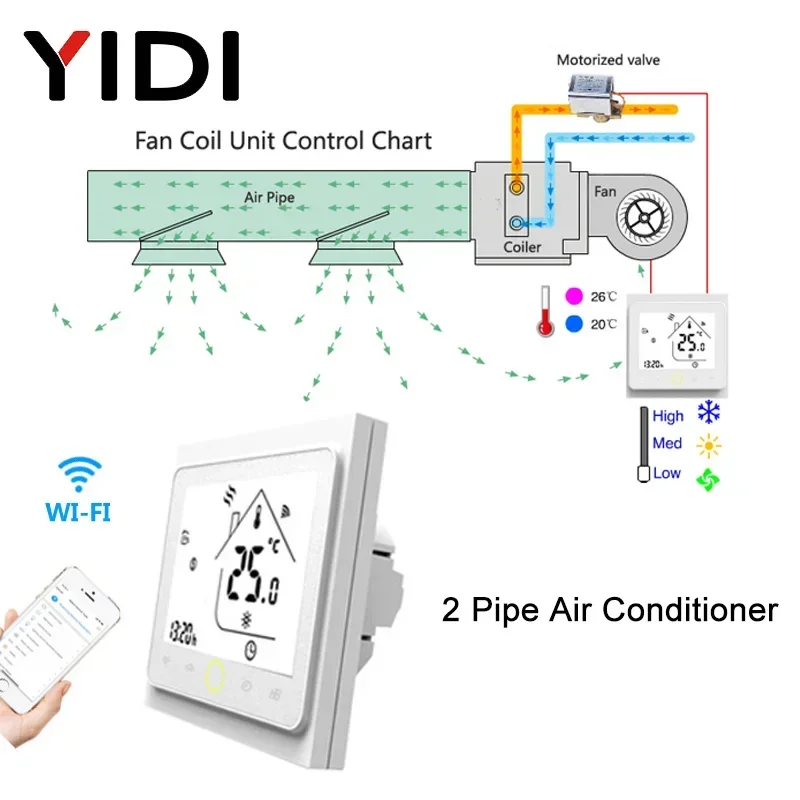

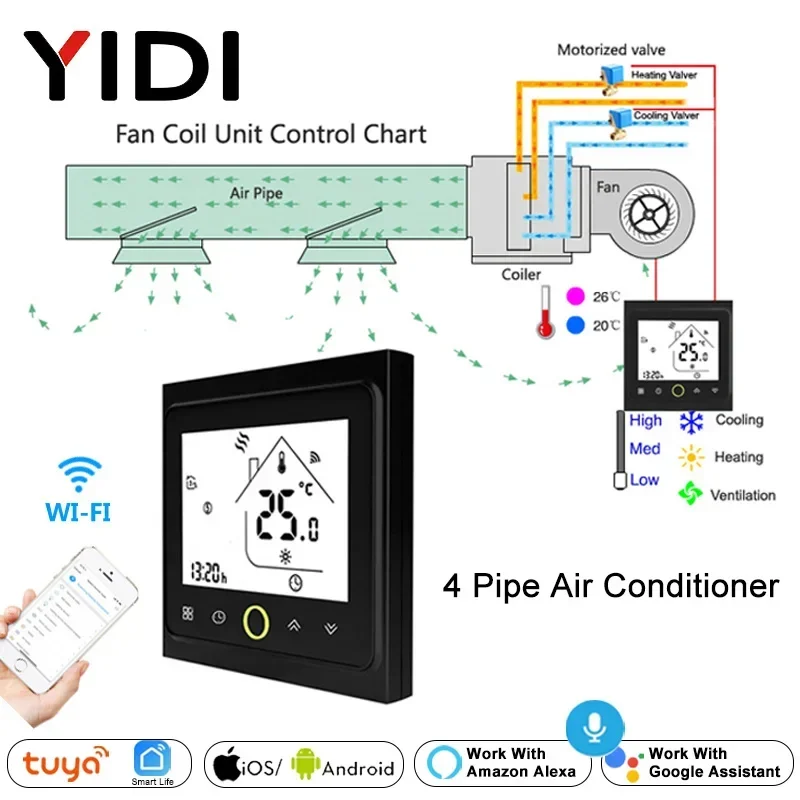

BAC-002-2P/ BAC-002-4P Pipe WiFi Smart Central Air Conditioner Thermostat

Appearance:
1. 86mm hidden box and european 60mm round box is suitable.
2. Whie, black or mix-color housing creates your colorful life.
3. White backlight protect your eyes.
4. Touch buttons to make simple operations.

Function:
1. Powerful functions are available such as WIFI/Modbus ect. If need Modbus type, contact us.
2. 0.5℃ Accuracy keeps temperature within the level you set.
3. Clock memory when power is off.
4. 5+2 six periods programmable maximize comfort and economy/
5. Creat thermostat group to centrally control.
6. Integrated with Amazon Echo, Google Home, Tmall Genie.
7. Support device sharing to your family or friends.
8. All setting languages synchronize your time zone, address and language.
9. No limit to add thermostats in APP.
10. Support Smart Scene.

Technical Data:
Power Supply: 95~240VAC, 50~60Hz
Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC 3950, 10K
Accuracy: ±0.5℃
Set Temp. Range: 5-35℃
Display Temp. Range: 5~99℃
Ambient Temp.: 0-45℃
Ambient Humidity: 5~95% RH (Non Condensing)
Storage Temp.: -5~45℃
Power Consumption: ＜1.5W
Timing Error: ＜1%
Shell Material: PC+ABS (Fireproof)

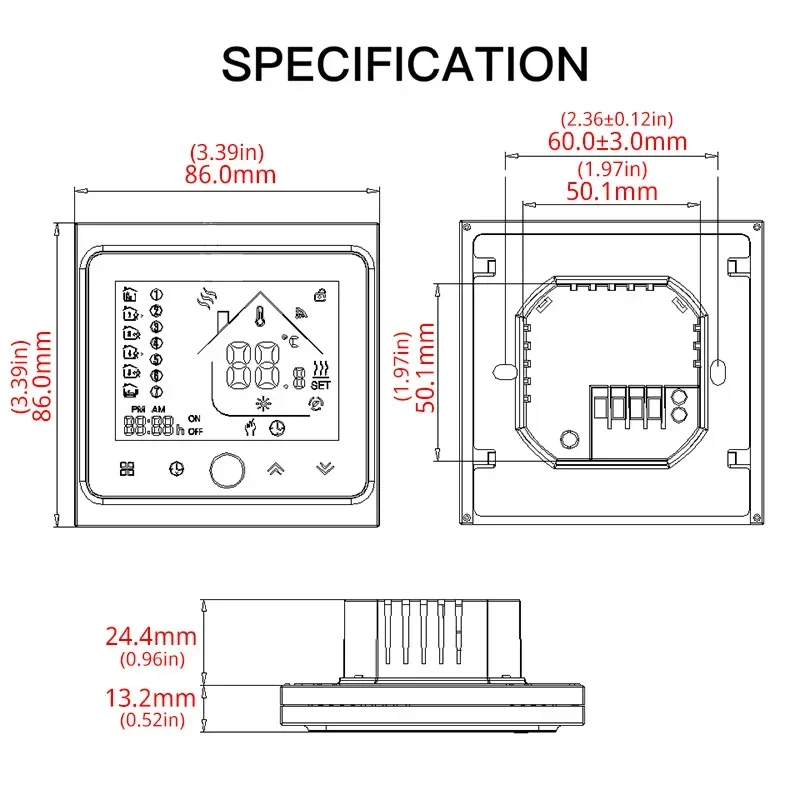

Installation Box: 86*86mm Square or European 60mm Round Box
Wire Terminals: Wire 2×1.5mm² or 1×2.5mm²
Protection Level: IP20
Buttons: Capactive Touch Buttons
Before Wir And Install:
1. Read the instructions carefully. Failure to follow them will damage the product or cause a hazardous conditions.
2. Check the ratings given in the instructions and on the product to make sure the product is suitable for your applications.
3. Installer must be a trained, experienced service technicia.
4. After installation finished, check out product operations as provided.

Packing List:
1x Thermostat
2x Screw
1x User Guide
1x Wall Plate
1x QC Passed
