BSIDE A1/A5 Voltage Tester & Multimeter.
- Power Supply: Battery
- Model Number: BSIDE Voltage Tester
- Dimensions: 127*42*25mm
- Operating Temperature: 0℃-40℃
- Display Type: Analog and Digital
- DIY Supplies: ELECTRICAL
- Brand Name: BSIDE
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- True RMS: Yes.
- A1 MAX Display:: 2000 counts
- A5 MAX Display:: 6000 counts
- Screen:: 2.2 inch

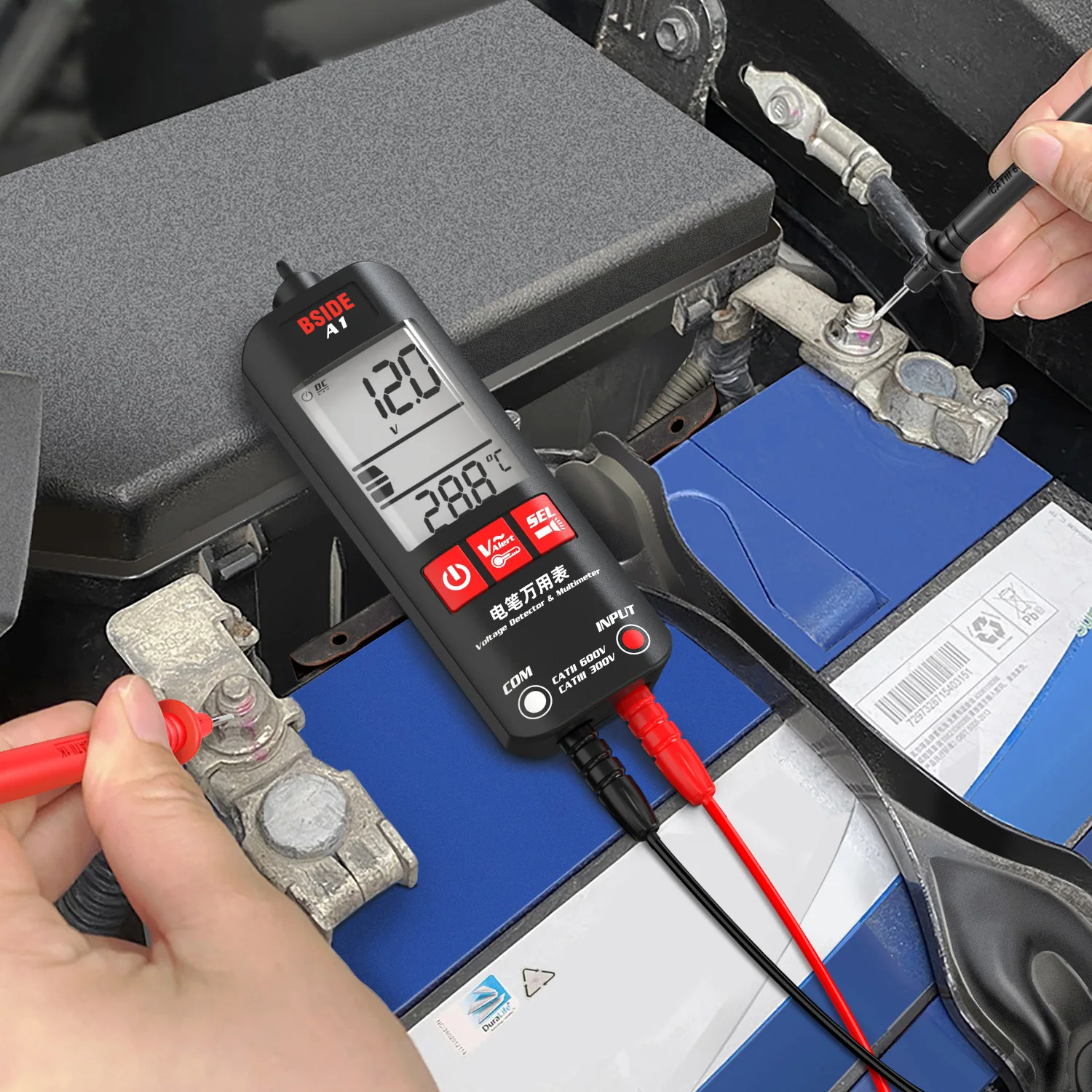

- DC Voltage:: 500V 0.01V ±(0.8% 3)

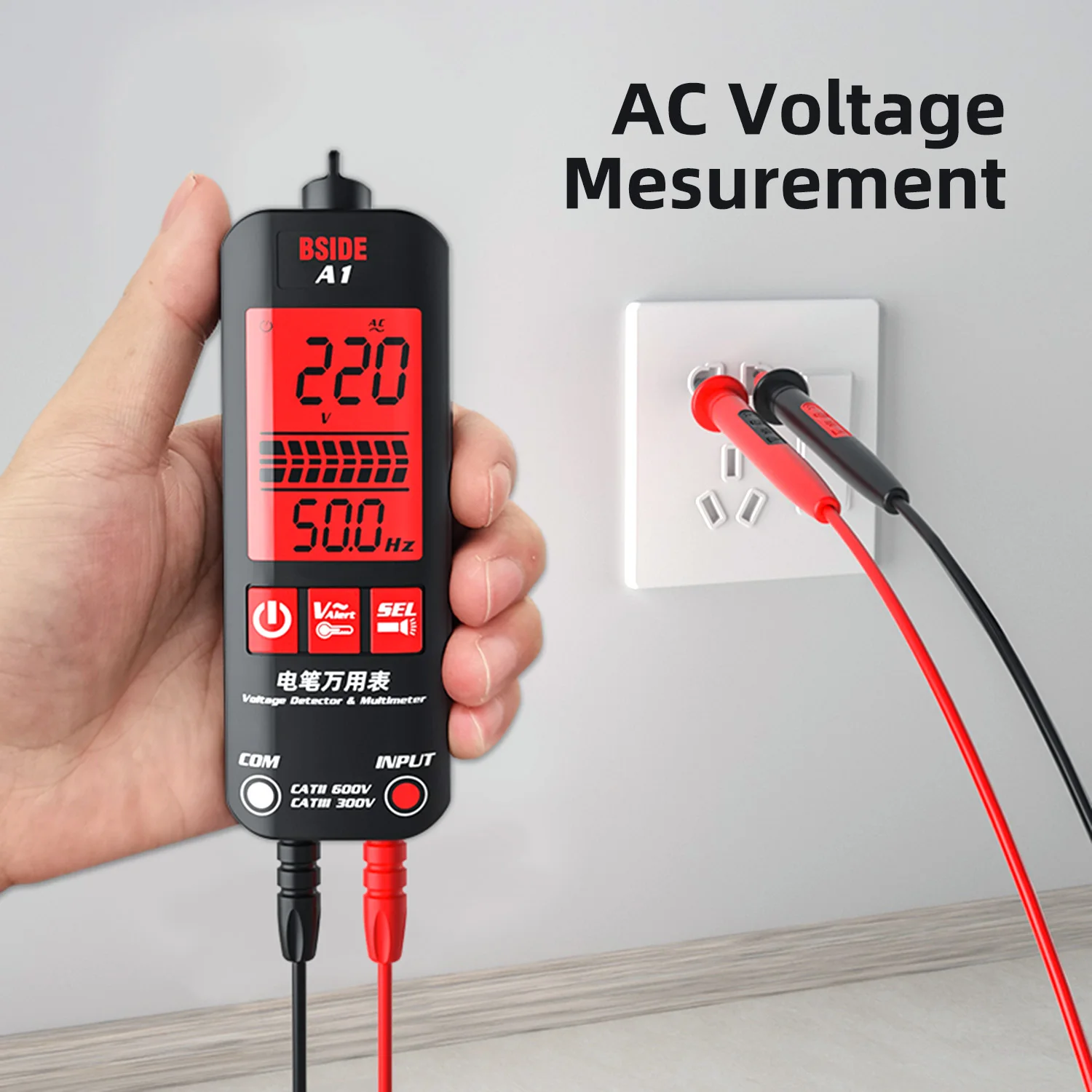

- AC Voltage:: 500V 0.01V ±(1.2% 5)
- Resistance:: 0Ω-10MΩ 1Ω ±(1.2% 3)
- Frequency:: 1000Hz 0.1Hz ±(2.0% 3)
- Continuity:: If the resistance less than 30Ω, the beeper sounds
- V-Alert (Non-contact Voltage Detection):: Yes.

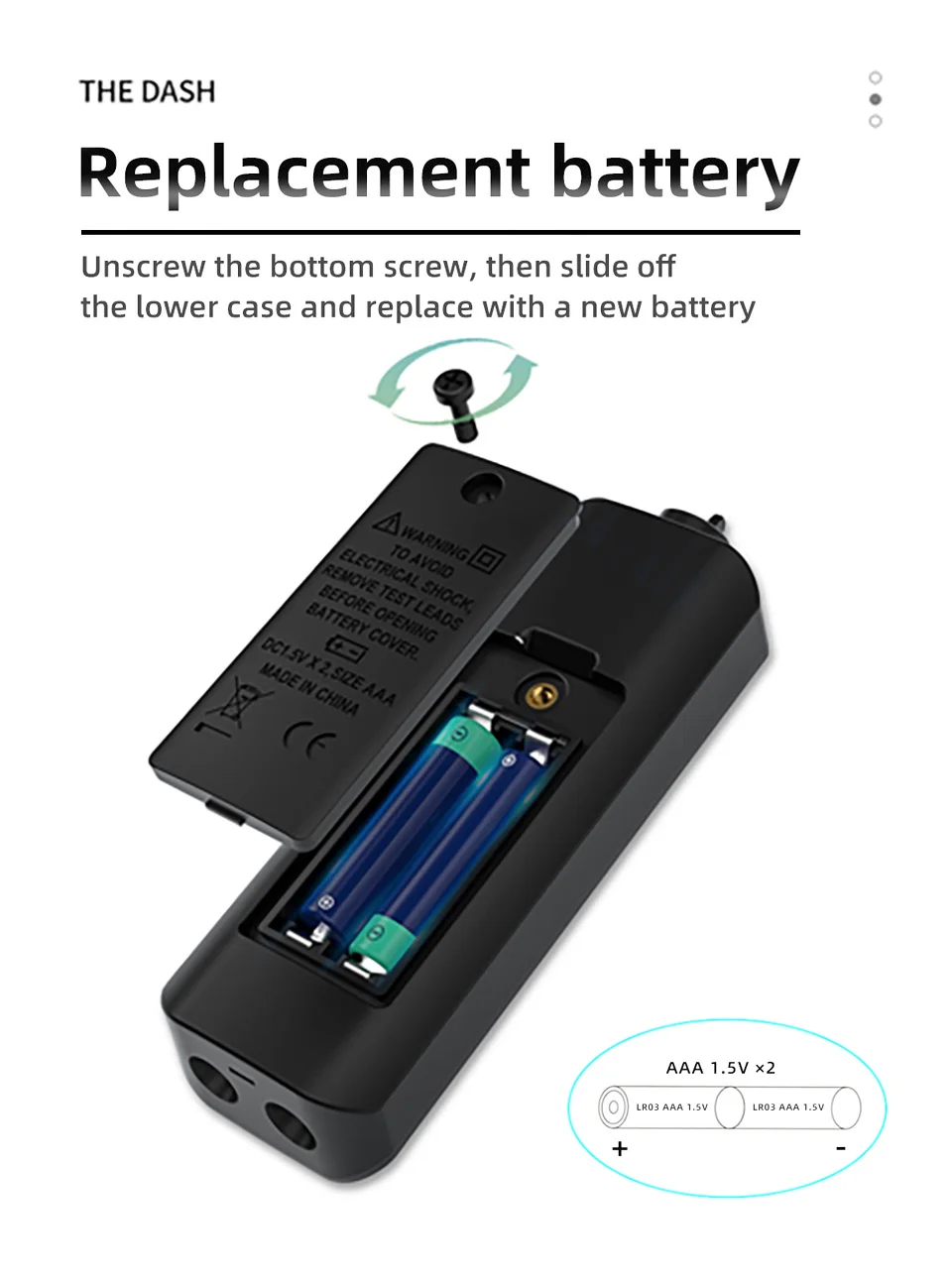

- Power: 2 * 1.5v AAA
- DC AC Current: Yes(A5).
- Capacitance: Yes(A5).
- Diode: Yes(A5).
- Temperature: Yes(A5).
- VFC variable frequency voltage: Yes(A5).

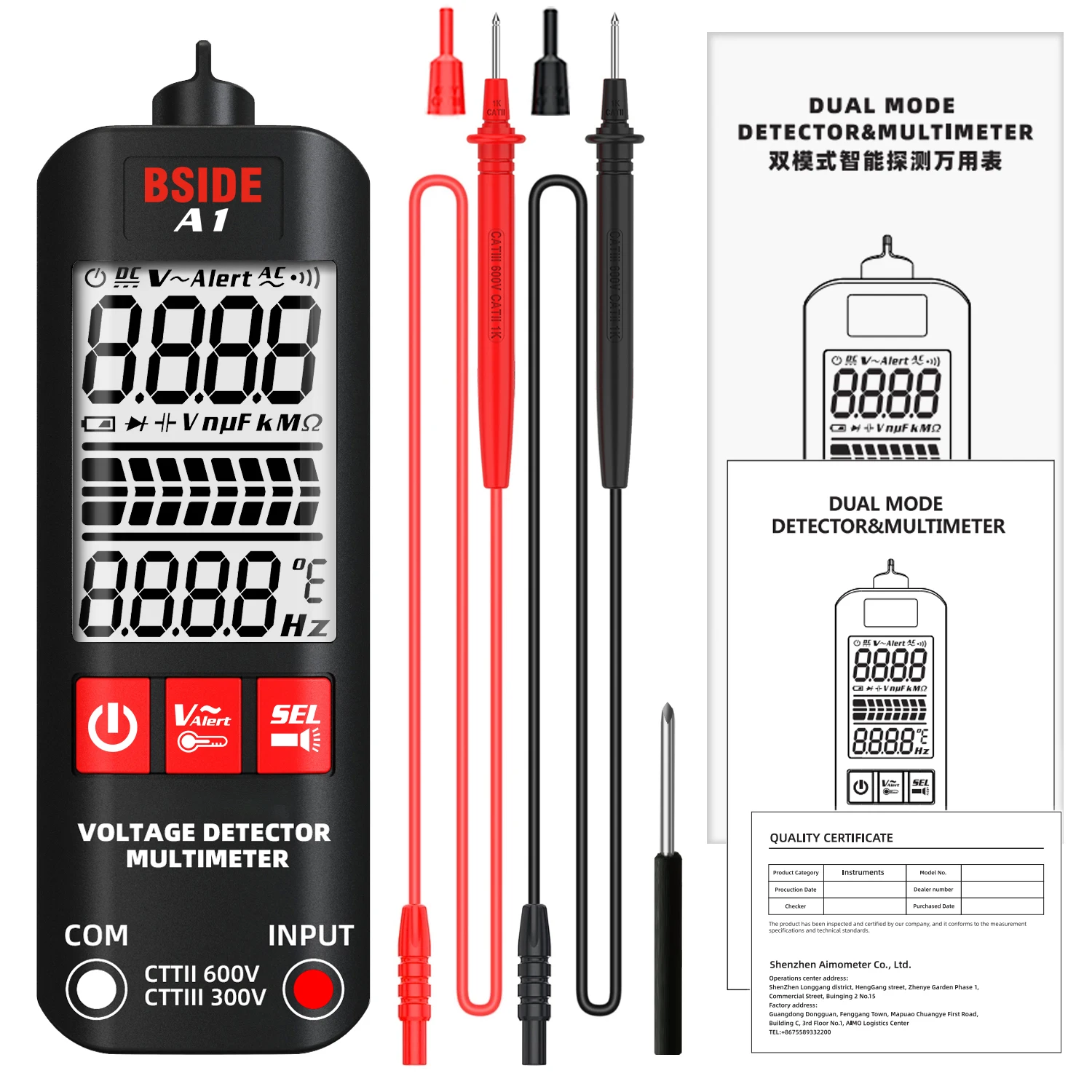

BSIDE A1/A5 Voltage Tester Smart Digital Multimeter Non-Contact Electrician Pen Detector Voltmeter Ac Live Wire Test Ohm Hz NCV Meter
Product introduction:
This products belong to the latest generation of BSIDE brand smart voltage detector tester multimeter！

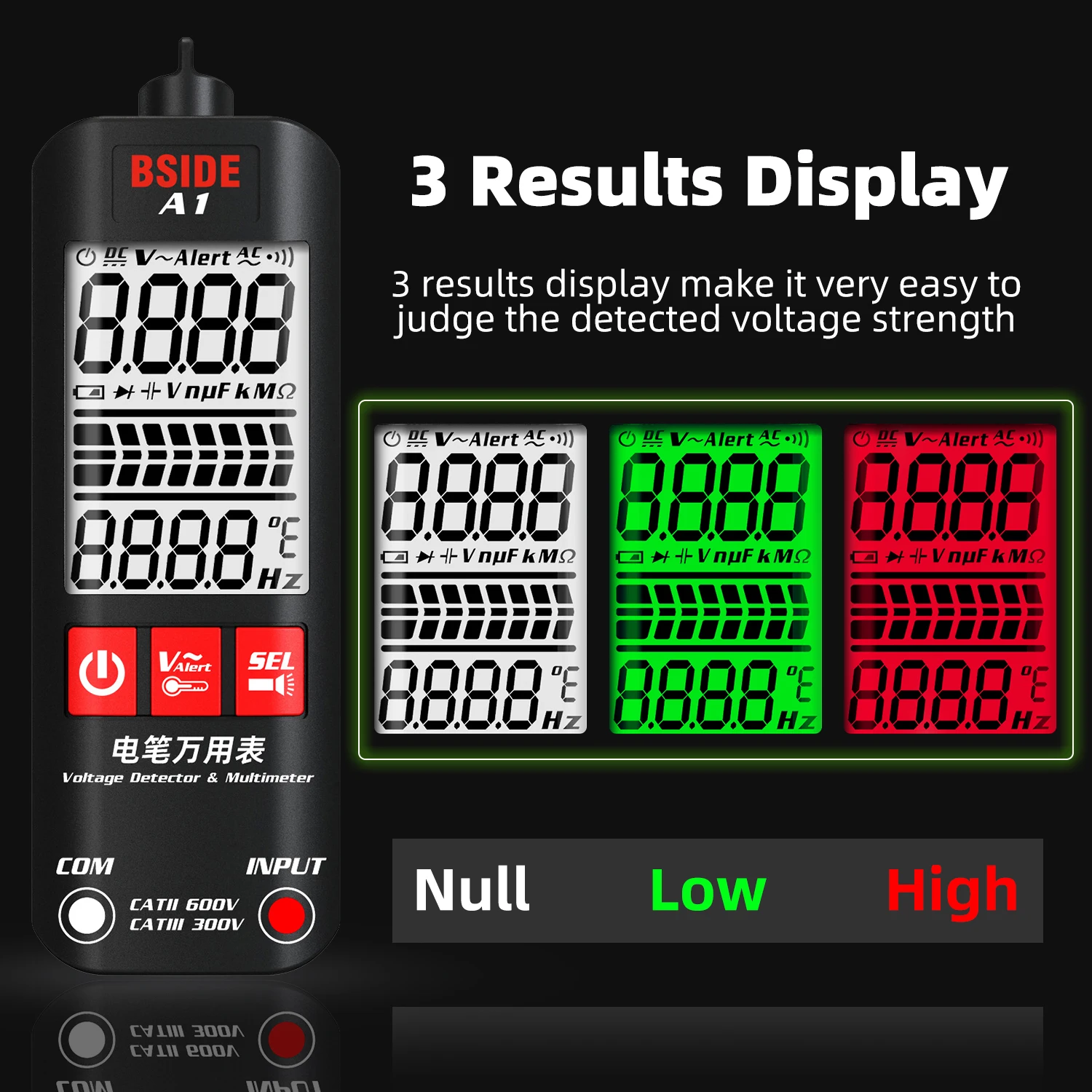

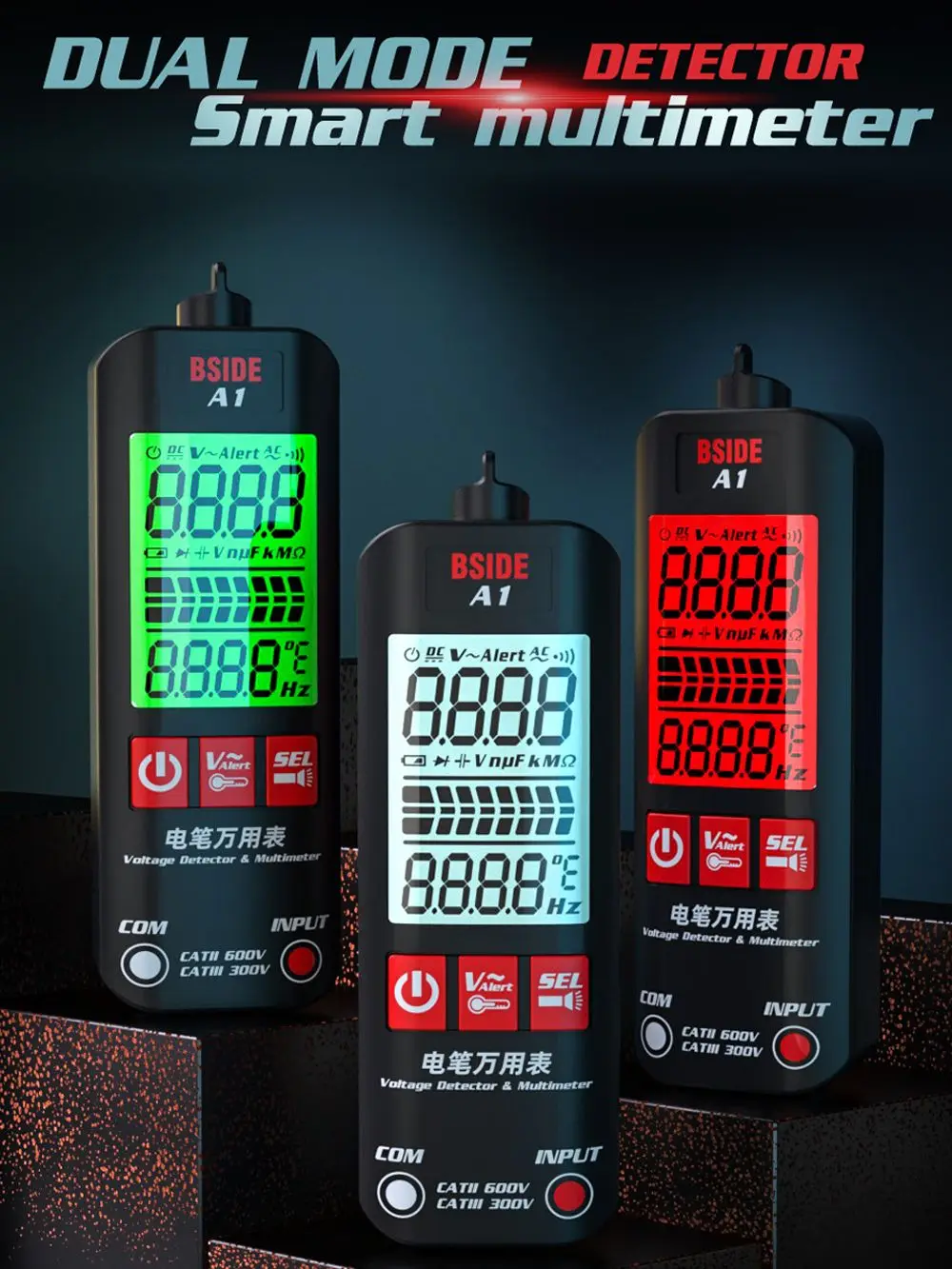

2.2-inch red/green two-color display design, can leave an excellent user experience for buyers; The easy-to use/Single Button to Switch design is well recognized by buyers.
Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as gift.
The A5 product is an upgraded version of the A1：
Additional DC/AC current, capacitance, diode, temperature, VFC frequency conversion voltage test functions, etc.
Main Features:

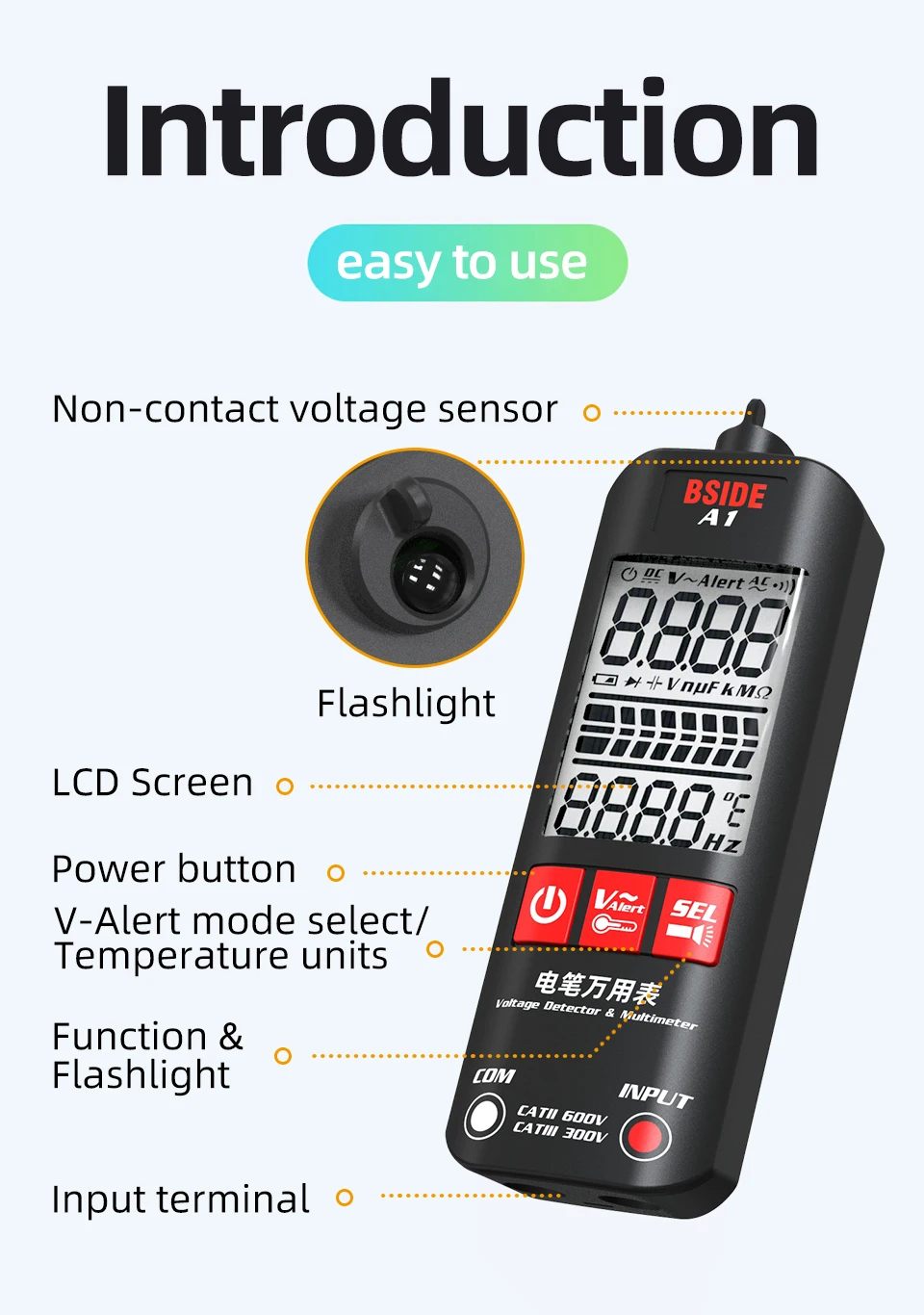

Non-contact and pen shaped desigh,convenient to operate and carry.
Dual sensitivity mode（High：12~1000V / Low：48~1000V）. The sensitivity of the product can be adjusted freely according to the actual scene used.
This product has a Self-test function at boot time. It can effectively detect whether the product can work normally and avoid wrong judgment.

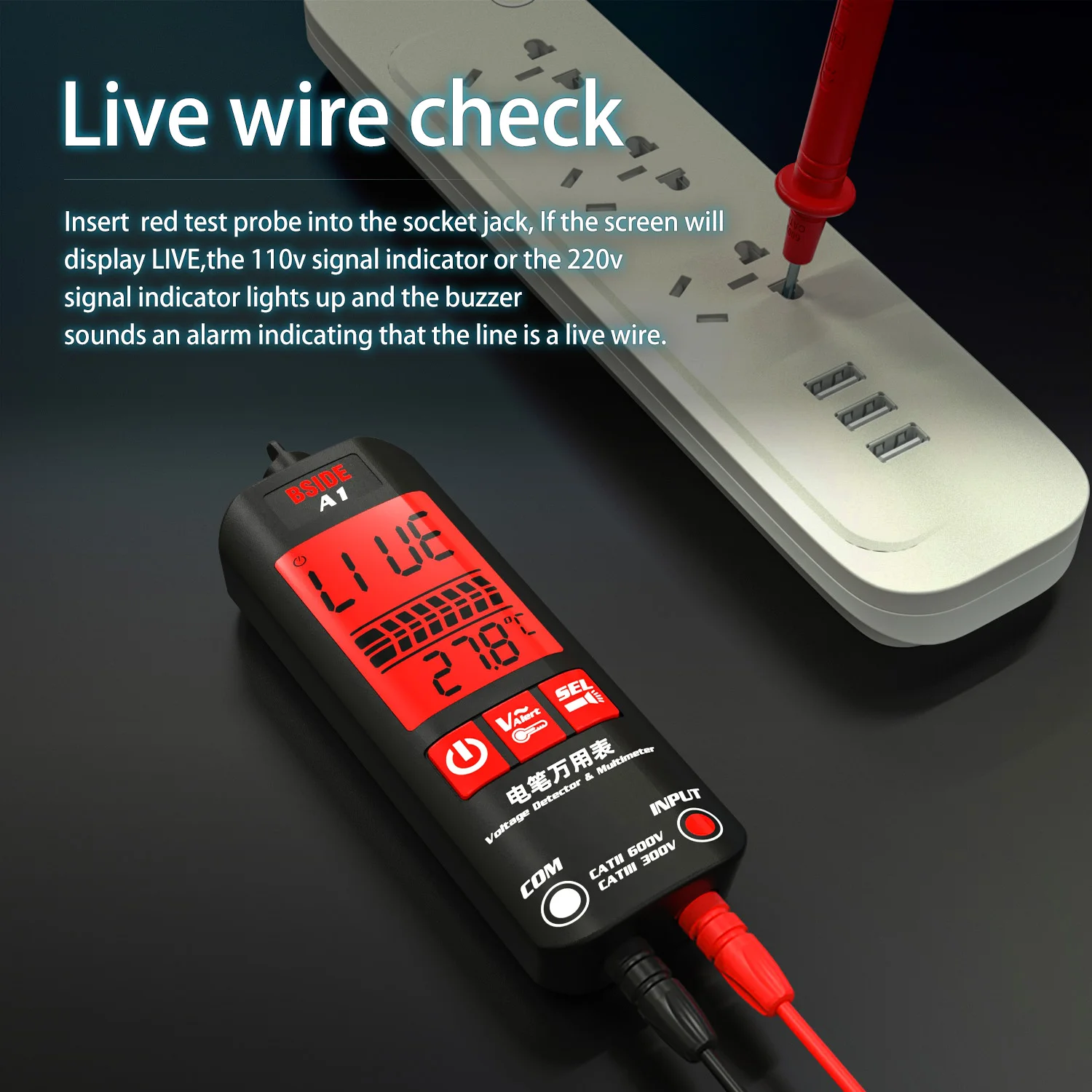

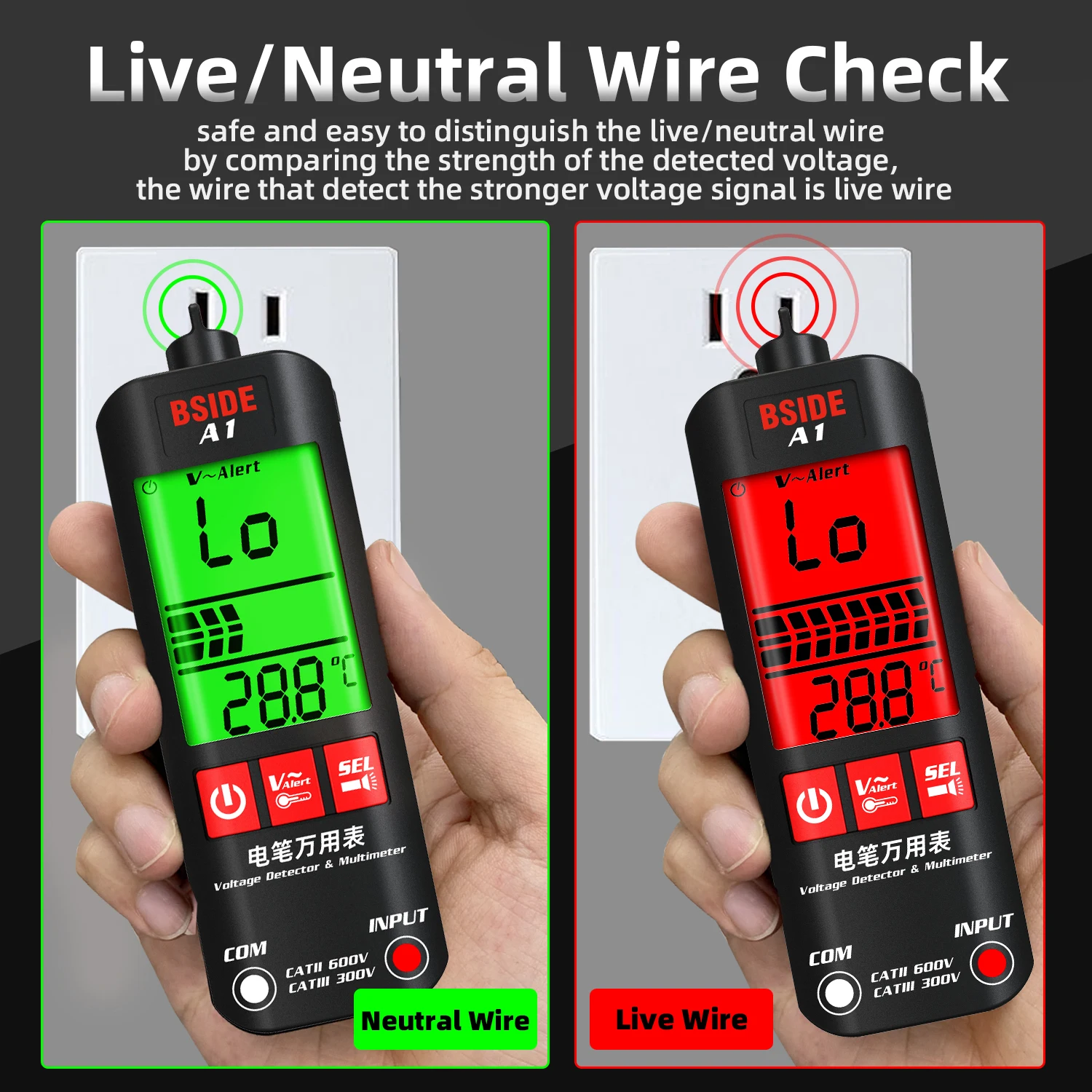

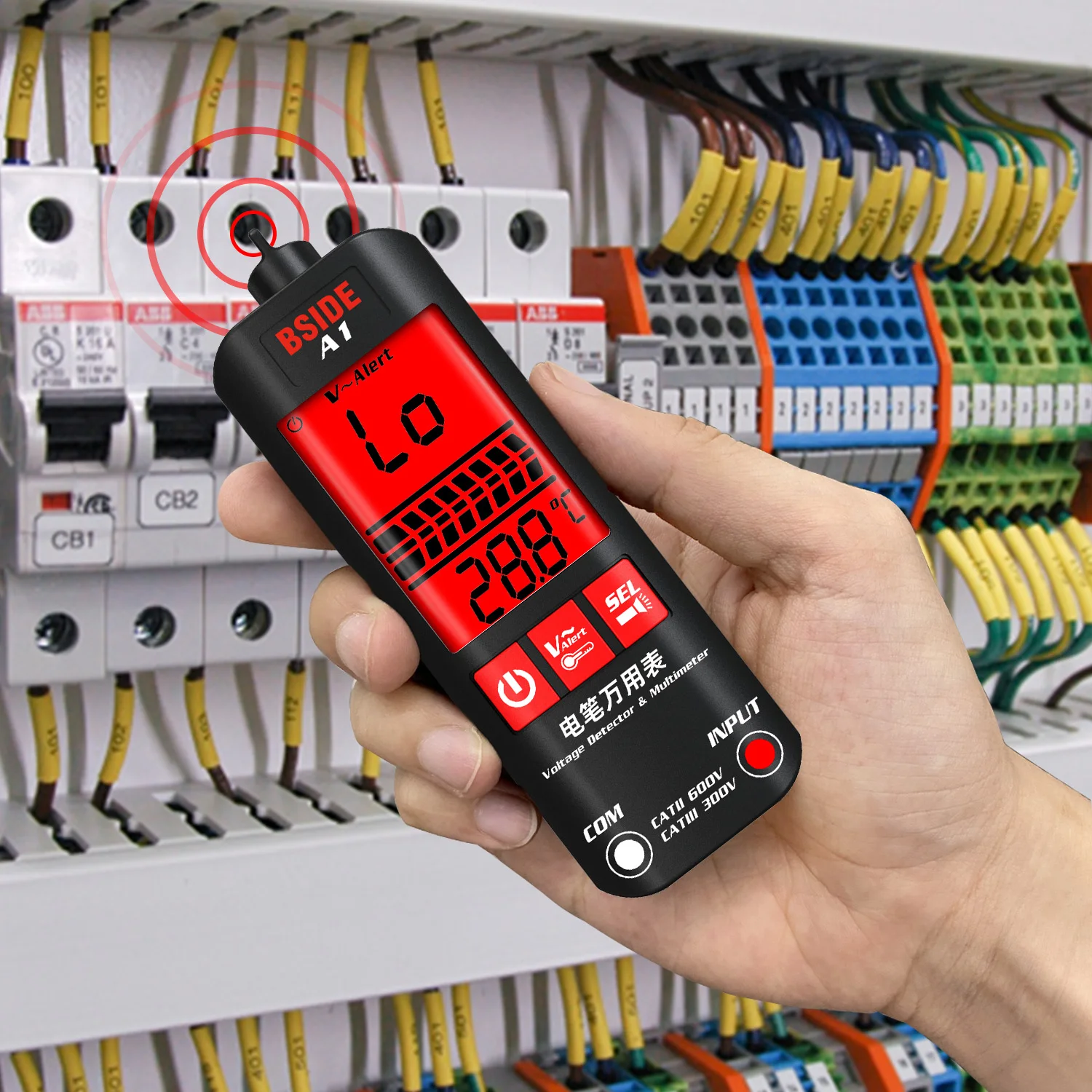

Has Induction dangerous voltage alarm, Live/Neutral wire distinction, Live Wire Breakpoint Locate, Continuity check, DC/AC voltage, resistance, frequency, flashlight lighting features etc.
Alarm mode:Sound and light (Red/Green).
LED spotlight, Battery low voltage reminder, Auto power off features.
Safety level: CAT II 1000V. Compliance with international safety standards.
