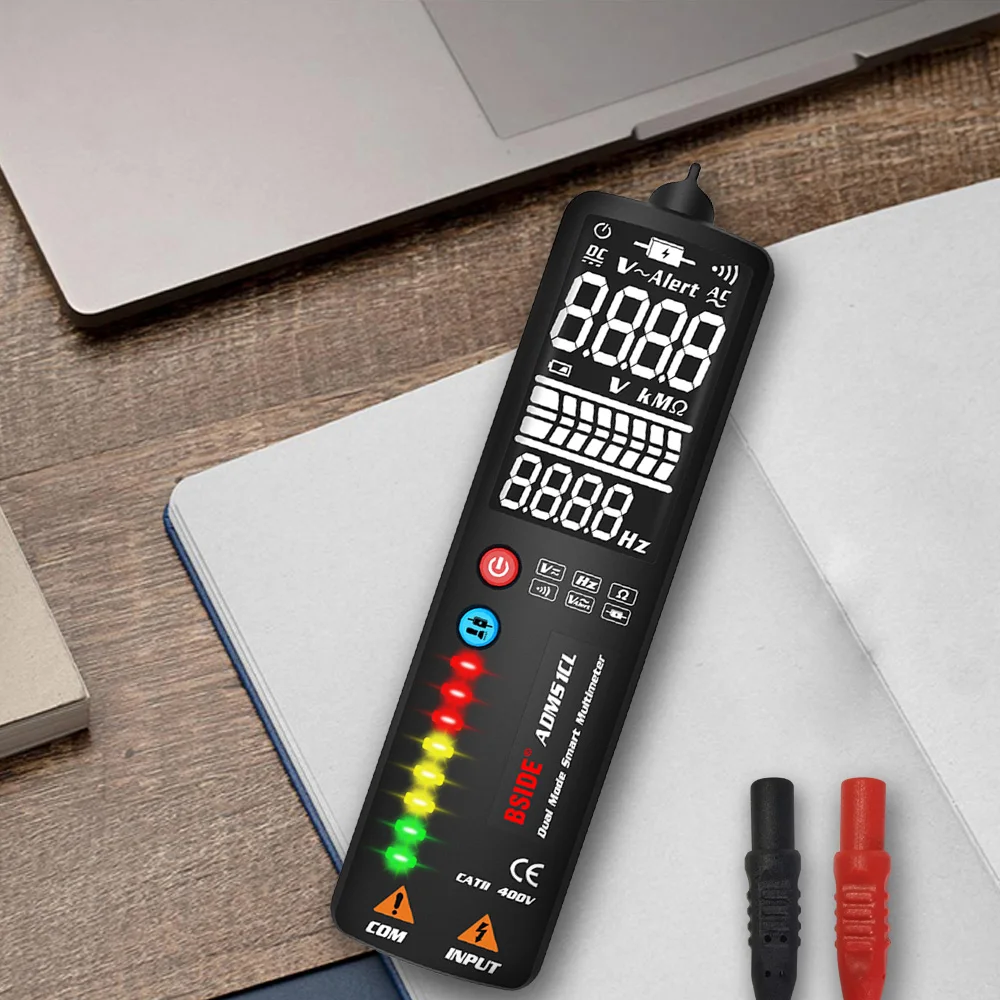

BSIDE ADMS1 Voltage Tester Multimeter

BSIDE ADMS1 Voltage Tester Multimeter

Power Supply: Battery
Model Number: Voltage Tester Digital Multimeter
Dimensions: 15*4*1.5CM
Operating Temperature: 0~40
Display Type: Analog and Digital
DIY Supplies: ELECTRICAL
Brand Name: BSIDE
Origin: Mainland China
Certification: CE,FCC,RoHS

Mô tả
Đánh giá (0)

BSIDE ADMS1 Voltage Tester Multimeter

Power Supply: Battery
Model Number: Voltage Tester Digital Multimeter
Dimensions: 15*4*1.5CM
Operating Temperature: 0~40
Display Type: Analog and Digital
DIY Supplies: ELECTRICAL
Brand Name: BSIDE
Origin: Mainland China
Certification: CE,FCC,RoHS
Maximum display: 2000 counts
Display method (ADMS1): LCD display
Display method (ADMS1CL): EBTN display
Display advantage: 3-line display.(Voltage/analog strip/frequency)
DC/AC Voltage test: 400V
Resistance test: 10M
Frequency test: 1000Hz
NVC test: Yes.
Test advantage: 3 colors 8 lights / analog strip
Hidden Wire Test: Less than 2.5cm.
Live/Neutral Check: Yes.
Continuity/Buzzer test: Yes.
Battery test: Yes.
Flashlight: Yes.
Backlight: Yes.(ADMS1CL)
Automatic shut-down: About 2 minutes.
Low voltage alert: Yes.
Power: 1*1.5v AAA battery.( Not included )
Weight: 65g.
Security Level: Comply with international safety standards. CE certification.

BSIDE 3-IN-1 Smart Voltage Tester Digital Multimeter Color LCD Non-contact Live wire Detector Indicator Electric Pen Voltmeter Ohm Hz Meter

The ADMS1 product is a future-oriented electrical tester created by the BSIDE brand designer.

The product has a 2.4-inch smart display and adds the test attributes of a smart multimeter. With the increasing importance of electricity safety, this product will become a necessity in your daily life.

At the same time optimize the use of functions and test experience.And added the latest design of “Strong sensitivity mode”（6V~1000V）. This is the most sensitive voltage detector.

The product has two display designs, and there is always one for you.

– ADMS1 uses LCD display.

– ADMS1CL uses the latest EBTN display.

H72fd7ec38f594fafb0874cc9cd094219J

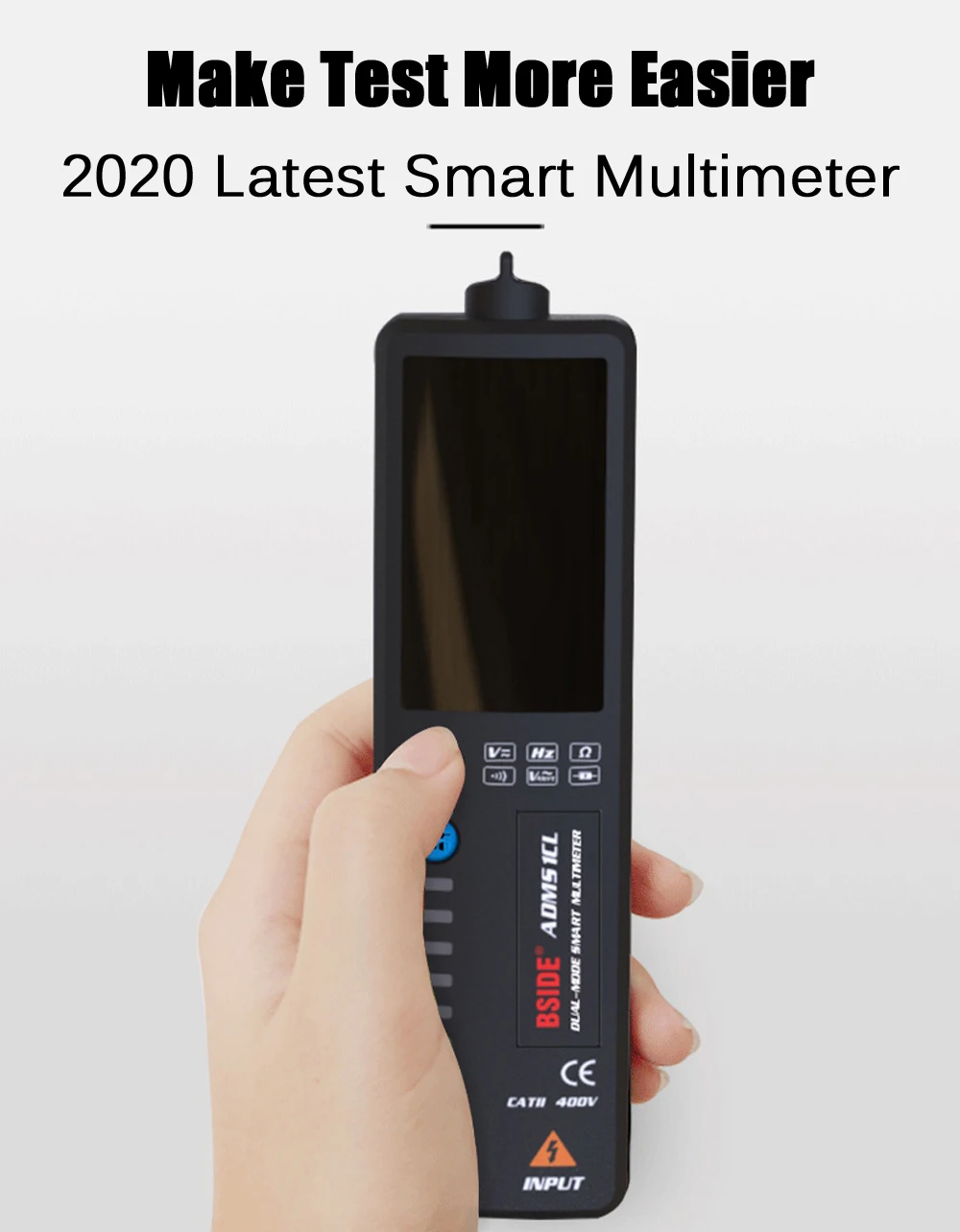

The latest design in 2020.

– Exquisite and unique.

With a patent certificate, you can order with confidence.

H2cd2303332b940dfa6925a1b097eb96dk H772ca6c8fd8f42fab49d3bbcdde2d7c22

Ultra-portable multi-function multimeter.

– Your excellent tool partner.

ADMS1 = Smart Multimeter + Voltage Detector + Strong Sensitivity Detector + Flashlight.

H9d309e896cfc452cbc712f570350c3f5X H2219dde3b317498299daf10493b44636i

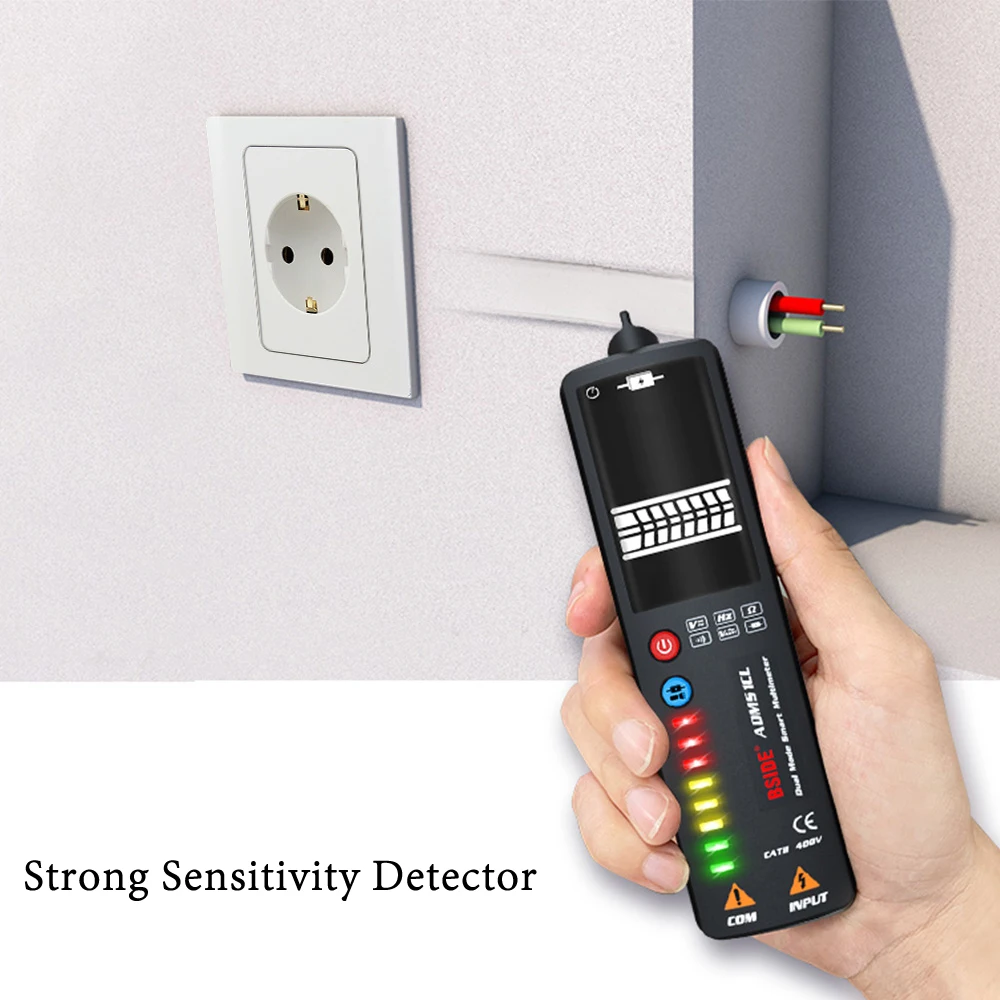

This is the most sensitive voltage detector.

The lowest detectable voltage is 6V.

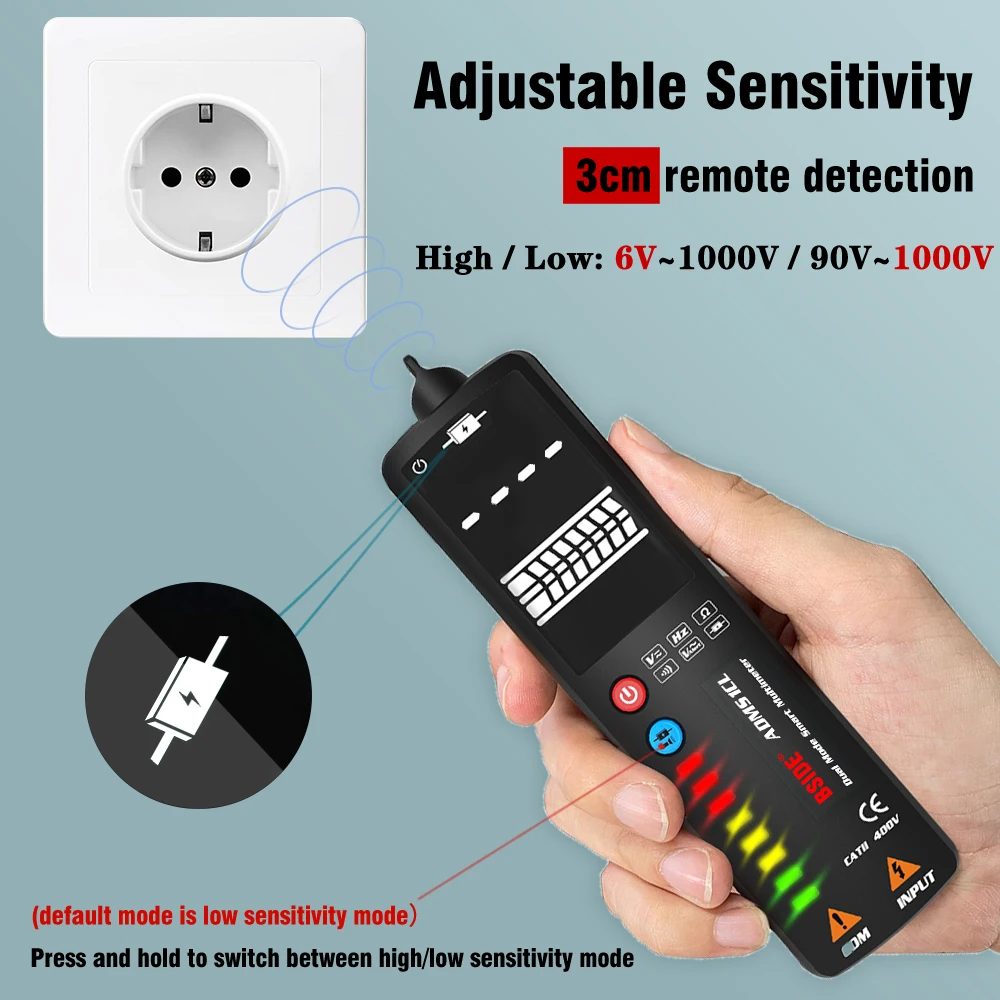

Two sensitivity modes. ( 6V~1000V / 90V~1000V )

Easy but not simple.

Customers’ first impression for it is simple and comfortable，Excellent workmanship will win word of mouth.

Hc69d408b5ed54d549ab2ddec91e20da4y H0de54d32c65c40258cd15ad95e6b67efT

Perfect display design.

8 LED Indicators in 3 color make it very easy to judge the detected voltage strength.

High resolution large screen triple line display can show 3 test results on the screen, the voltage, frequency and analog bar.

BSIDE EBTN LCD display greatly enhance the reading experience, the lighted up numbers & letters with black background make it very easy to read, even in bright sunlight or poor light.

H48f35dc782a542e6a545ddaac3fd2f1fz Hfae3aa9b48f14453a6cc2fc69b04fcbeR H52482912e2f44c9e9aec88a00c22e10cJ Hd9ce389e6eff4e6d95a705b5e9e48234y

Excellent workmanship will be reflected in every product detail.

High-quality industrial ABS material.

Highly sensitive and rugged sensor probe.

Bright LED spotlight.

Screwless design on the integrated surface.

One 1.5V battery power supply, more energy saving and environmental protection.

Hc6c1b128c9584b00945513b99c427d225 H26624f91d1524e5d9831d076e0925e02l Hcb42d4a66eac457ba4b5512259d715d7D H39f88b46edc243f6bb8af92b4ad924b32 Hf55fd4bf2bc946d682a19e15f072891al Ha5977b8d15514e08b8c03d85a3583059k H09dd796acbed4deeb40a5f5a500fc18dQ

Smart and convenient test method.

Hfe80215c5970492a80800bfb2b987b7bC Hc7122dec513e41ddaf89a11bf6d9a465s H7cea15578dfa4fc89e934532715415b4Z H88c374dc3b084cafb6eabb1684a871594 H270c44fc417d48d8b08c29336429fb5fN Hd1402766cbce46ce8d9f9b320e9b7b76f Hc32eb899415847c891e34648bece2b37R

Product description:

Maximum display: 2000 counts.

Display method: ADMS1（LCD display）；ADMS1CL（EBTN display）

Meter Thickness: 1.5 cm.

DC Voltage test: 400V ±(0.8%+3).

AC Voltage test: 400V ±(1.2%+5).

Resistance test:10MΩ ±(1.2%+3).

Frequency test: 1000Hz ±(1.0%+5).

Non-contact dangerous voltage detection:Yes.

Hidden Wire Test: Less than 3cm. (The actual test depth is determined by the wall material)

Live/Neutral Check: alarm beep sounds, LCD screen display stripe.

Continuity test: If the resistance is less than 30Ω, the beeper sounds.

Battery test: 1.5V/6V/9V/12V.

Power: 1 * 1.5v AAA battery.

Size: 150*39*18mm.

Weight: 65g.

Security Level:Comply with international safety standards. CE certification.

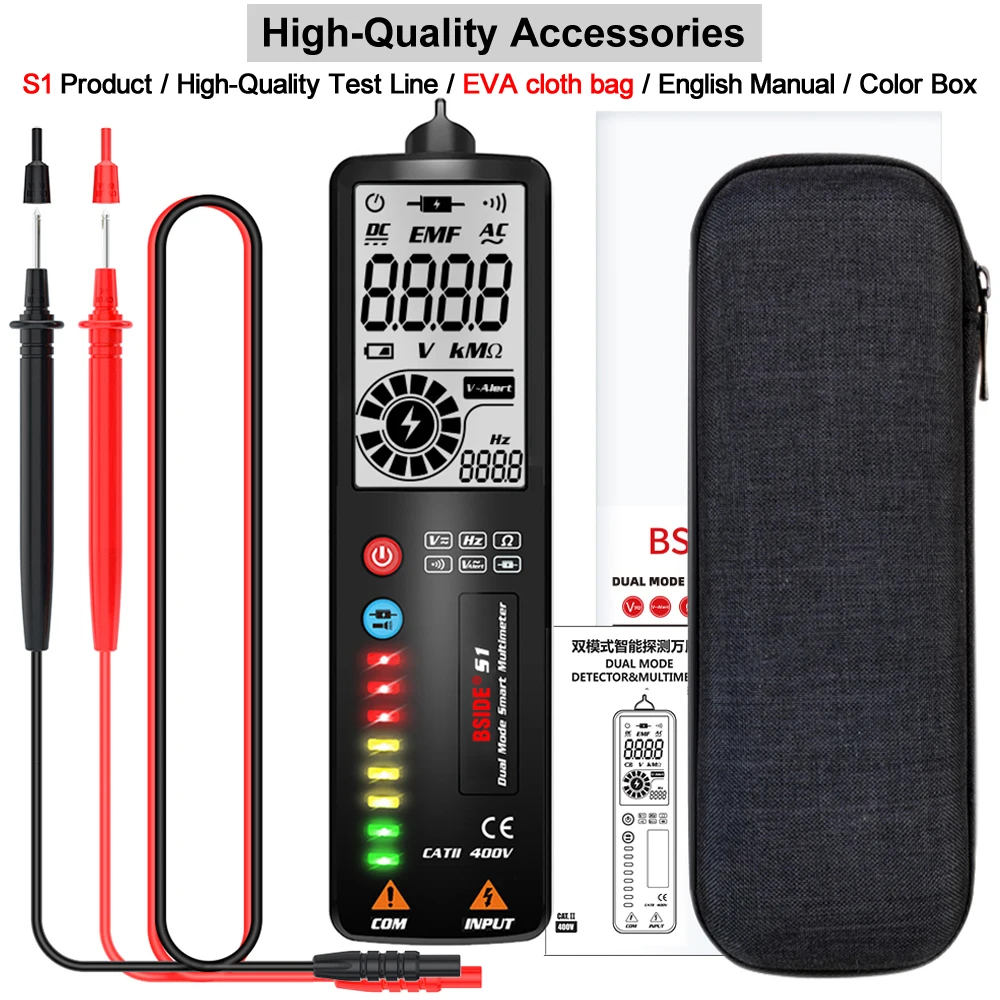

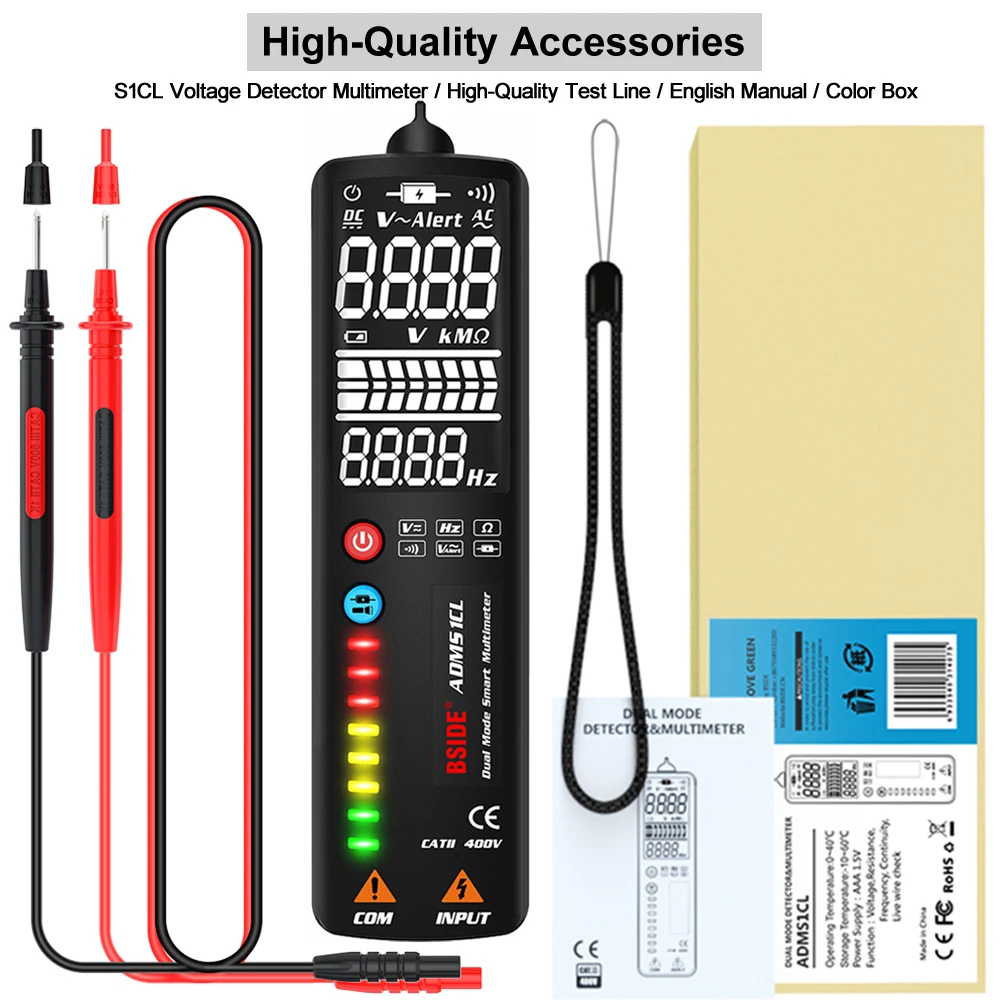

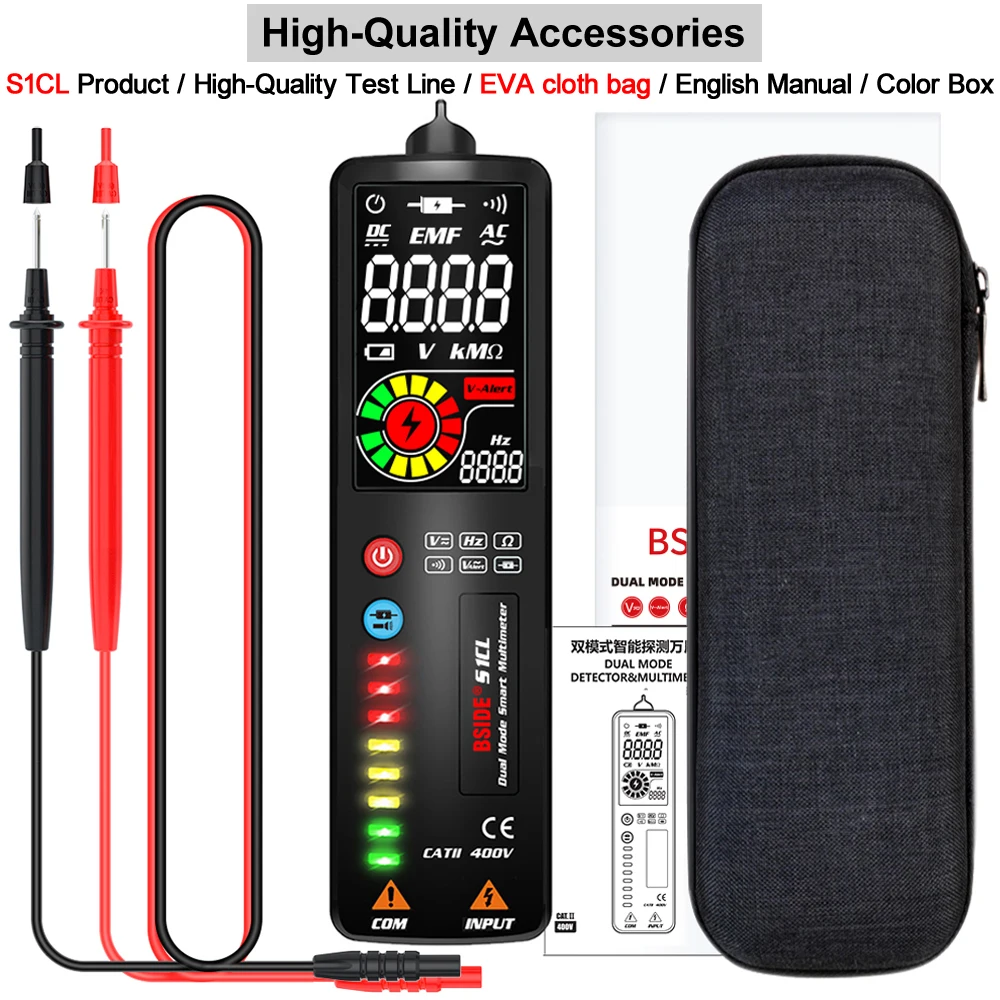

The package includes:

1 * ADMS1 Multifunction Voltage detector. 1 * Silicone Lanyard. 1 * User manual. 1 * Box.

1 * EVA material portable cloth bag（NEW）
