BSIDE S10/ A10/ S11/ S20 Digital Multimeter
- Is Smart Device: YES
- DC Current: N/A
- AC Current: N/A
- DC Voltage: 0V ~ 620V
- AC Voltage: 0V ~ 620V
- Operating Mode: Automatic/Manual
- Measuring Capacitance Range: 99.99mF
- Measuring Resistance Range: 60M Ohm
- Model Number: Digital Multimeter
- Dimensions: 147*85*4.2mm
- Operating Temperature: 0 – 40 ℃
- Measuring Inductance Range: N/A
- Display Type: Digital display
- DIY Supplies: ELECTRICAL
- Brand Name: BSIDE
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Display: 9999 counts
- Screen: 3.5 inch / 3.2 inch
- EMF detection: Yes.(S20)
- DC/AC Voltage: Yes.
- Capacitance: Yes.
- Resistance: Yes.
- Frequency: Yes.
- Duty Cycle: Yes.
- Diode: Yes.
- V-Alert(non-contact voltage detection): Yes.
- Live Check: Yes.
- Continuity: Yes.
- S10 Power: 1.5V (AAA) x 2
- A10/S11/S20 Power: Built-in 800mA Lithium Battery.
BSIDE S10/A10/S11/S20 Profesional Digital Multimeter USB charging Smart 9999 EMF Multitester DC AC Voltage Capacitor Ohm Diode Live test Electric Tester.
Order Notice:
The A10 product is currently the most cost-effective smart multimeter with a built-in rechargeable lithium battery on the market.
The test parameters of S10/S11 are exactly the same, the difference is: S10 uses 1.5V AAA battery power supply; S11 built-in 800mA rechargeable lithium battery.
The S20 product is the highest version of the series, adding EMF detection function.
USB charging design – energy saving and environmental protection.
Fully functional – wide range of application scenarios.
Upgraded version – 3.5” large screen high-definition EBTN display
No visual limitations/Solve industry pain points.
Specifications:
Display: 9999 counts.
Screen: 3.5 inch.
DC Voltage: 0-620V ±(0.5%+3); Resolution: 0.001V.
AC Voltage: 0-620V ±(0.5%+5); Resolution: 0.001V.
Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.

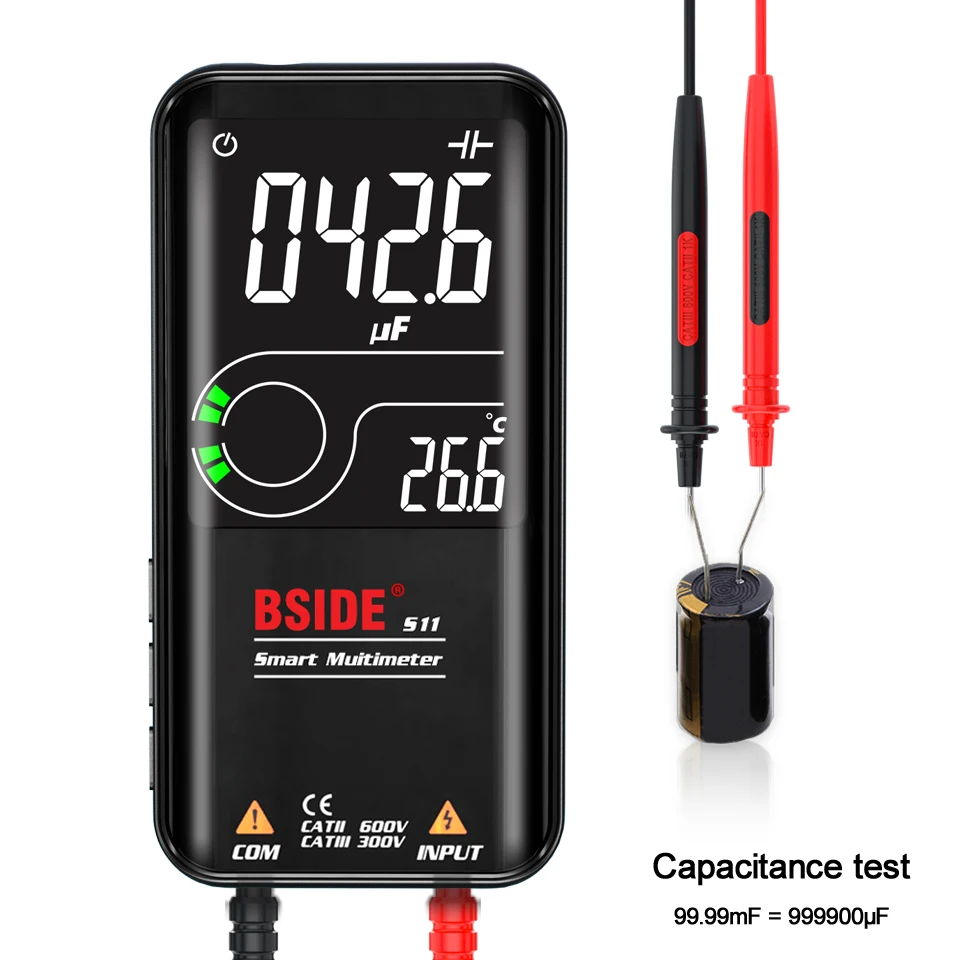

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF.
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz.
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.
Diode: Auto identify diode if less than 3.0V.
V-Alert(non-contact voltage detection): beep alarm sounds.
Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 30Ω, the beeper sounds.

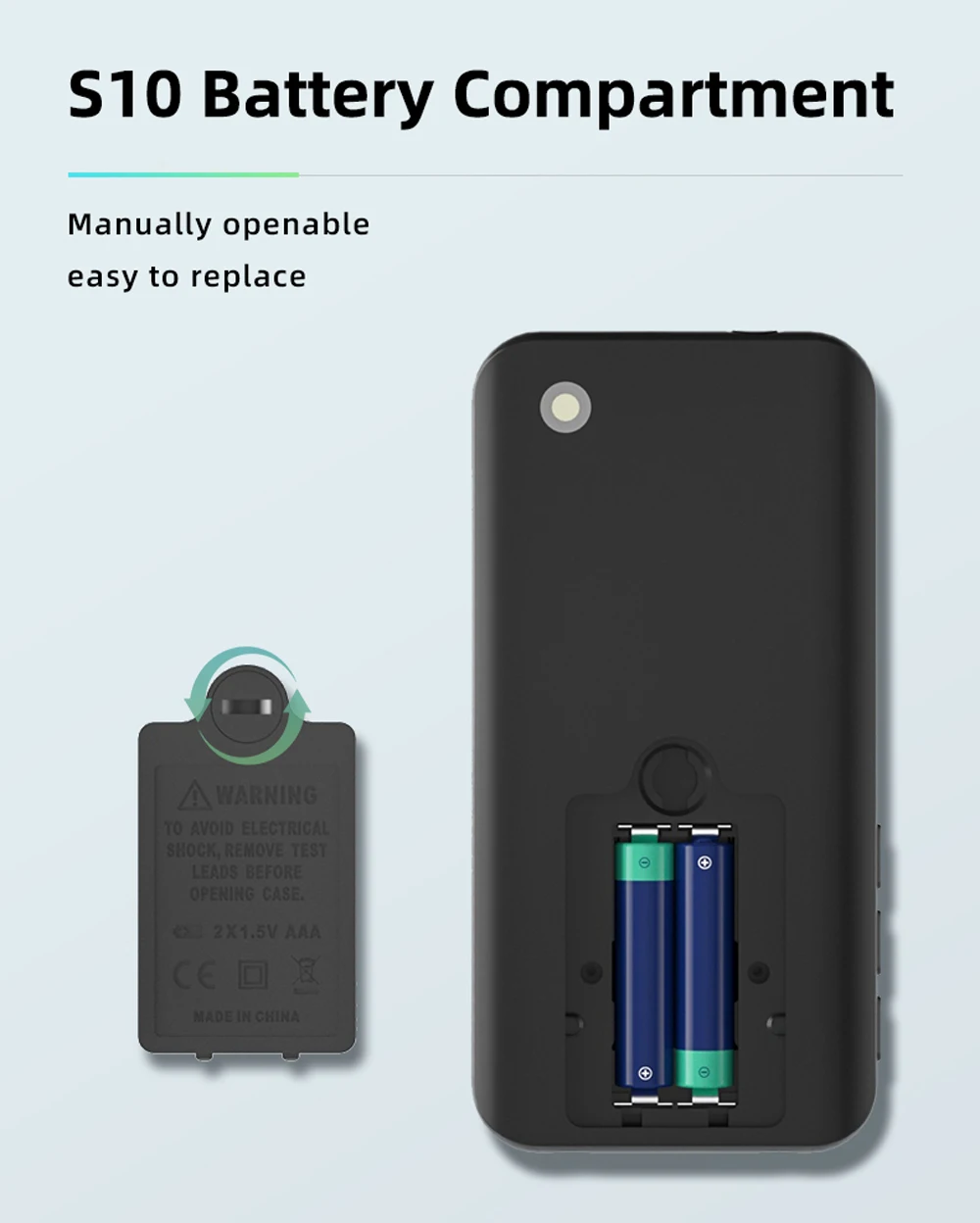

S10 Power: 1.5V (AAA) x 2.
S11 Power: Built-in rechargeable lithium battery.
Package Size: 147*85*42mm.
Package Weight: 180g

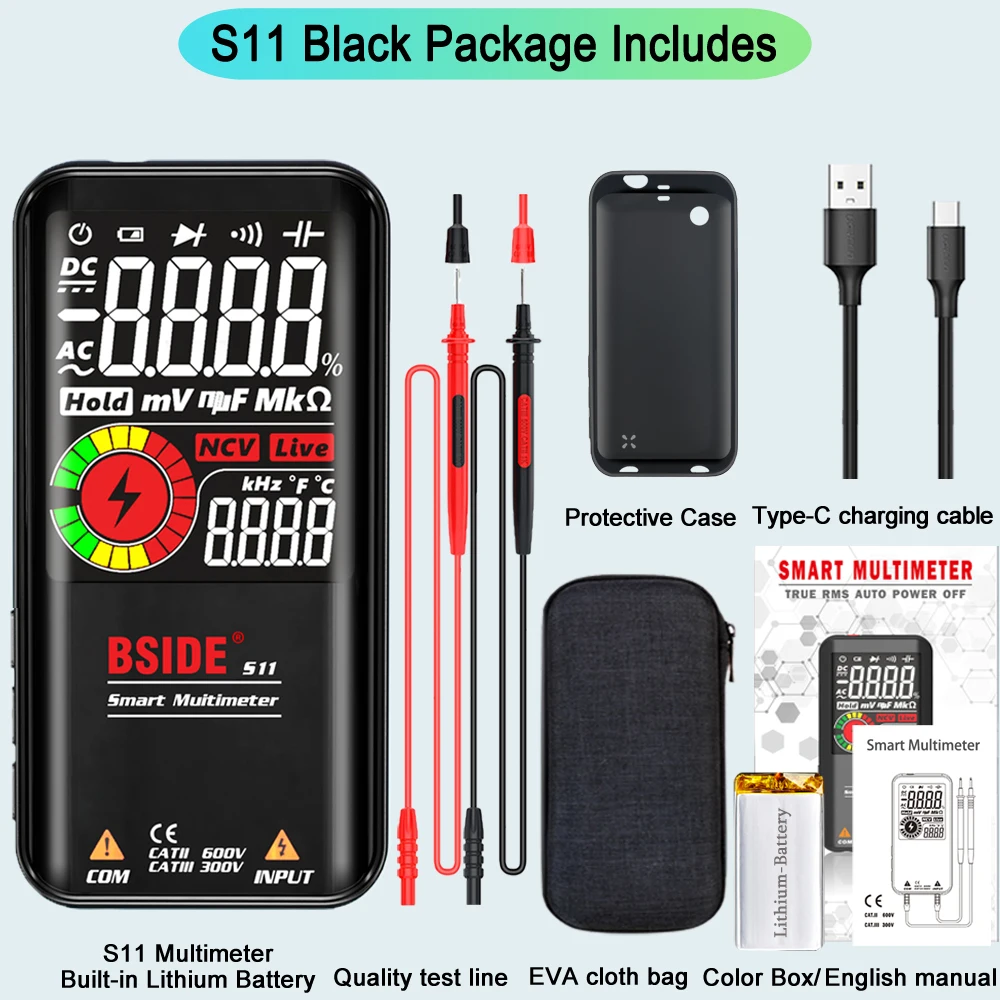

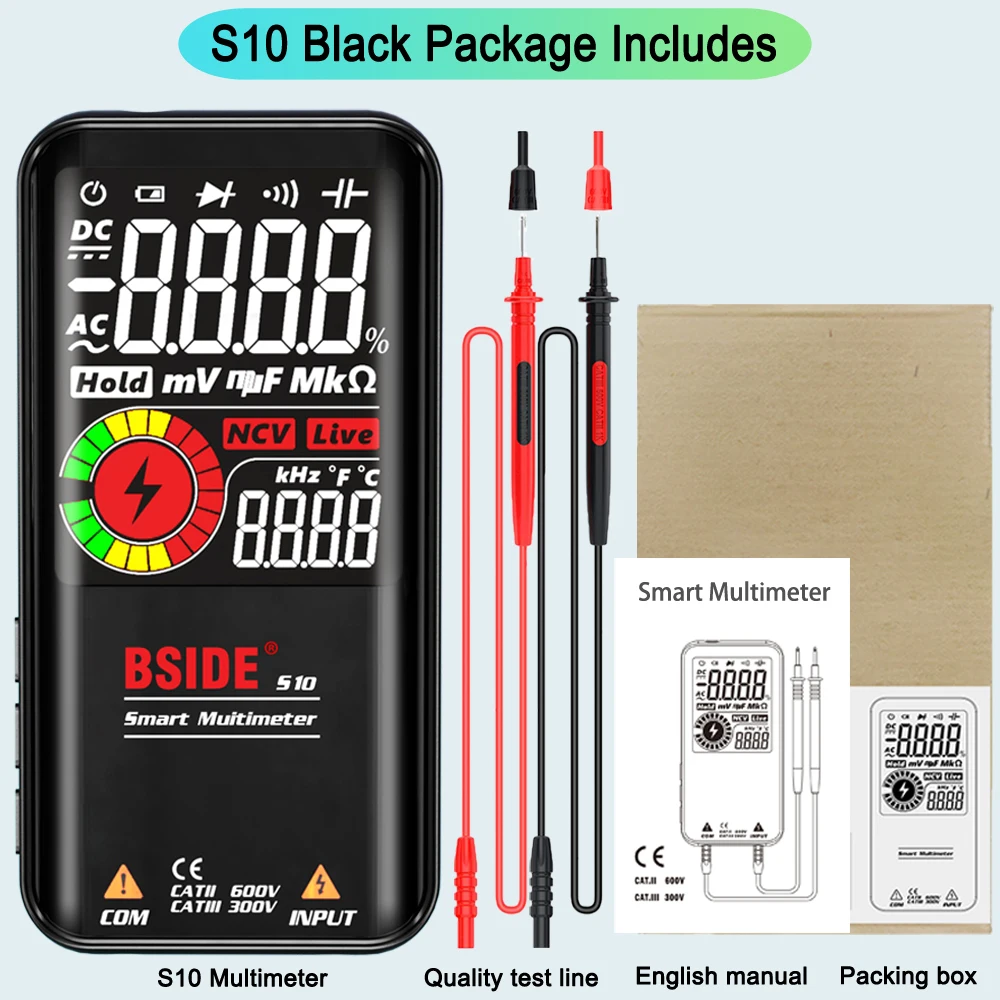

Package Includes:
1 * Multimeter. 1 * Test Lead.
1 * English user Manual. 1 * Packing Box.
1 * USB charging cable.（S11）
1 * EVA portable cloth bag.（S11

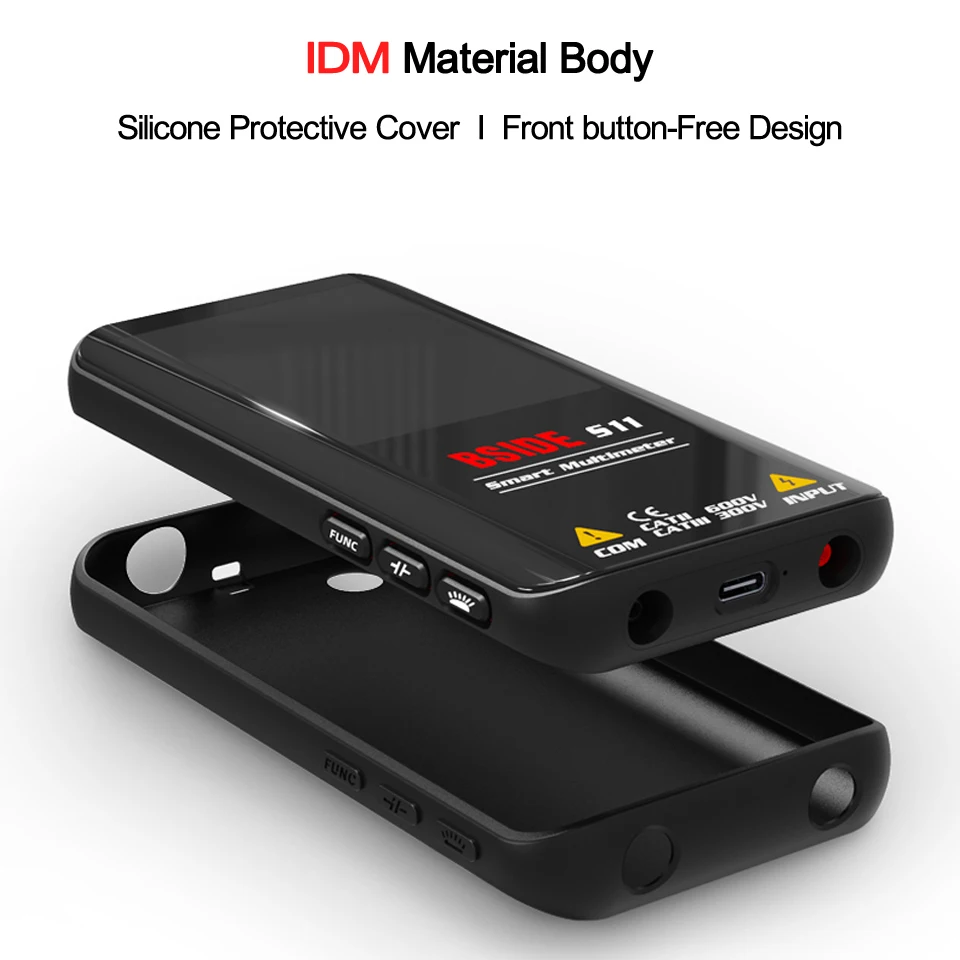

1 * Protective shell.（S11）
