BSIDE U6 Digital Clamp Meter

• Professional DC/AC 600A Clamp Meter Ammeter Plier with infrared thermometer test.
• Maximum display 9999 Counts.
• Eetn color large HD LCD display.
• True RMS, Auto/Manual Range.
• Support dual-mode power supply :
• 1. Built-in Rechargeable Battery (USB charging)

2. 1.5V AA battery*2 (Not included)

• Electrical amp tester with smart mode for easy to use.

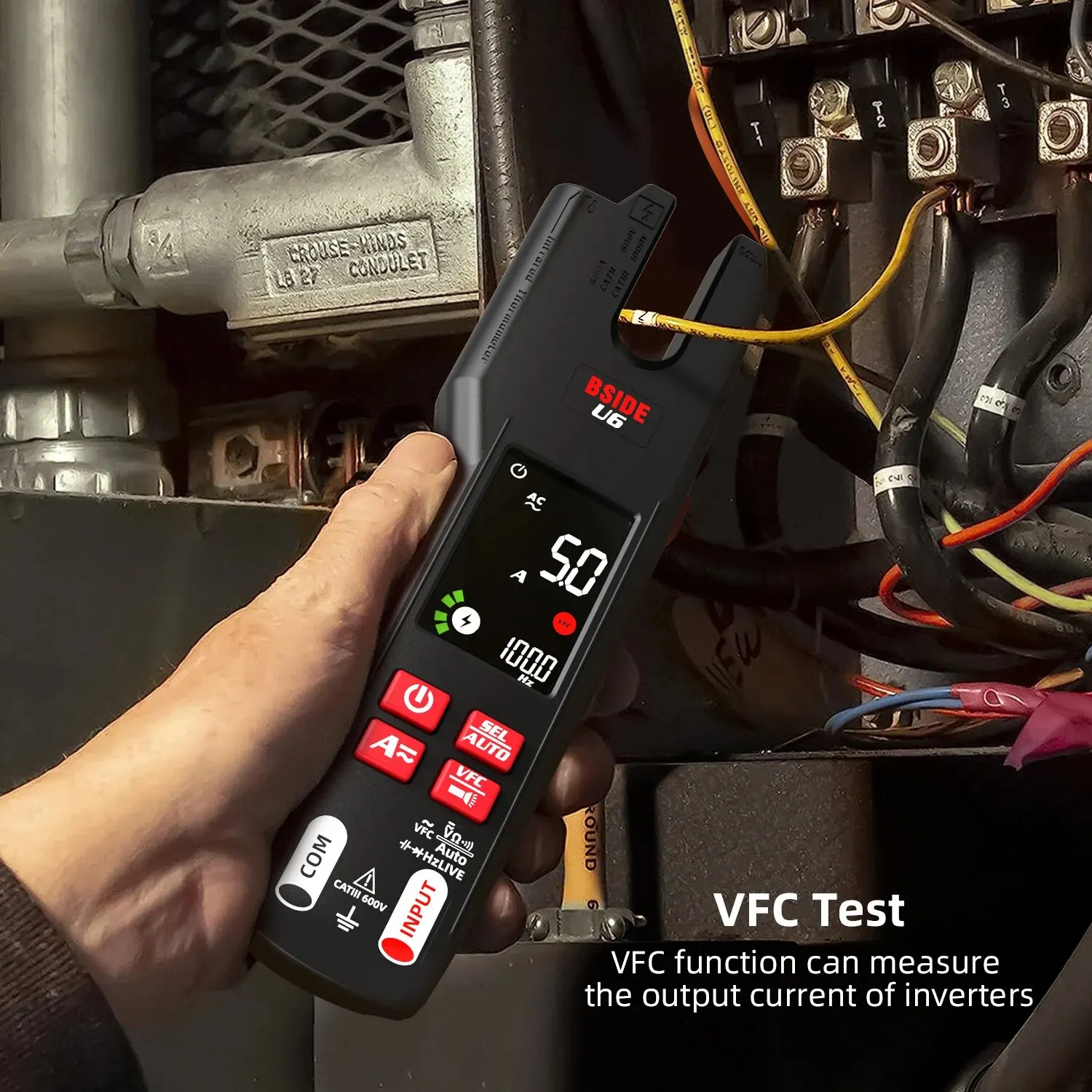

• VFC/VFD frequency conversion voltage test.
• Oversized body design makes testing safer.
• The large pen design card is more convenient with the rear side and side of the fuselage.
• Equipped with high-quality portable cloth bag.
• Also can be used as a professional voltage detector with adjustable sensitivity.
• Auto range, Auto power off, low battery indication with flashlight.
• CAT111 600 high safety gauge to meet the global test maintenance.

• Display: 9999 counts
• DC current: 1-600A 0.1A ±(2.5%+5 counts)
• AC current: 1-600A (AC mode, 40-200 Hz) 0.1A ±(2.5%+5 counts); 1-600A (VFC mode, 40-200 Hz) 0.1A ±(4.0%+5counts)
• DC voltage: 0-620V (DC mode) 0.001 V ±(0.8%+3 counts); 0.5-620V (Auto Mode) 0.001 V ±(0.8%+3 counts)
• AC voltage: 0-620 V (AC mode) 0.001 V ±(1.2% + 5 counts); 0.8-620V (Auto Mode) 0.001 V ±(1.2% + 5 counts); 0-620 V (VFC mode) 0.1V ±(4.0% + 3 counts)
• VFC/VFD voltage: Yes.
• Resistance: 0-10MΩ 0.1Ω ±(1.2%+3 counts)
• Capacitance: 0.5µF-1000µF 0.1µF ±(3.5%+8 counts); 1000µF-10mF 0.1µF ±(4.5%+10 counts)
• Frequency: 10-1000Hz 1Hz ±(2.0%+10 counts)
• Infrared temperature: -20 °C ~ 0 °C/-4 °F-32 ≤ 0.1 °C/0.1 °F (3.0% + 2 °C/°F); 0 °C ~ 400 °C/32 °F-752 ≤ 0.1 °C/0.1 °F ±(2.5% + 3 °C/°F)
• Diode: Measure diodes within 2.0V
• Continuity: If the resistance is less than 30Ω, the continuity beeper sounds
• Temperature: 0-50℃/32℉-122℉ ±2℃/℉
• V-Alert (non contact voltage detection): Yes
• Live wire check: Yes

Power:

1. USB charging (built-in rechargeable battery)

2. 1.5V AA battery*2 (not included)

Size: 210×63.7x33mm

Weight: 216 g

Package Includes:

1 x BSIDE U6 Electronic tester Clamp meter
1 x Upgrade Test Leads；2 x Lithium Battery
1 x USB Charging Cable;1 x Carrying Case
1 x Screwdriver；1 x User Manual；1 x Color Box
