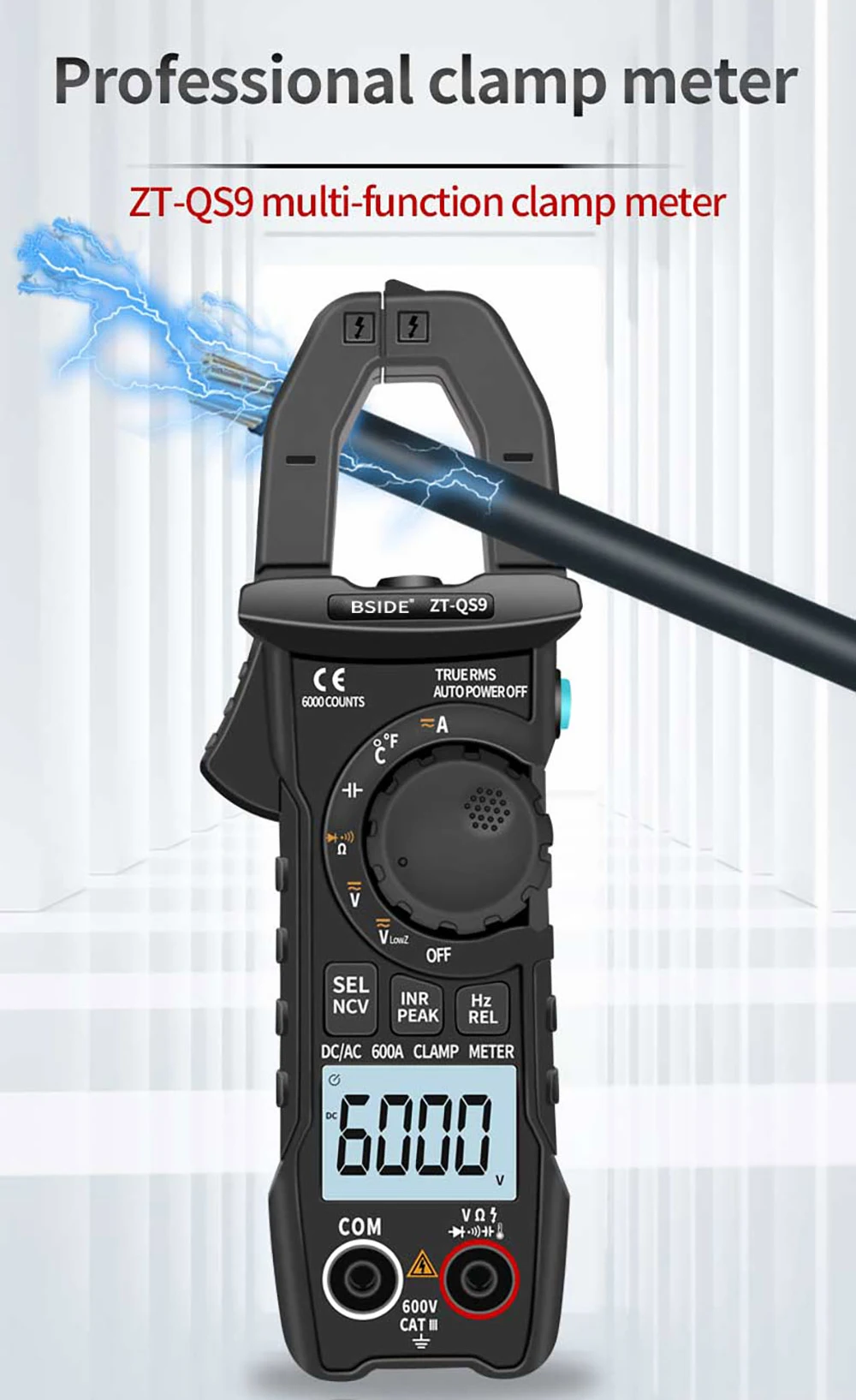

BSIDE ZT-QB9/QS9 Digital Clamp Meter
- BSIDE ZT-QB9/QS9 Digital Clamp Meter
- Weight: 280g
- Dimensions: 175mm x 65mm x 30 mm
- Operating Temperature: 0-40C
- Measuring Inductance Range: N/A
- Measuring Capacitance Range: 60mF
- Measuring Resistance Range: 60MΩ
- Measuring Voltage Range: 600V
- Measuring Current Range: DC AC 600A
- Display Type: Digital Only
- Model Number: DC AC Clamp Meter
- DIY Supplies: ELECTRICAL
- Brand Name: BSIDE
- Origin: Mainland China
BSIDE ZT-QB9/QS9 Digital Clamp Meter
- Weight: 280g
- Dimensions: 175mm x 65mm x 30 mm
- Operating Temperature: 0-40C
- Measuring Inductance Range: N/A
- Measuring Capacitance Range: 60mF
- Measuring Resistance Range: 60MΩ
- Measuring Voltage Range: 600V
- Measuring Current Range: DC AC 600A
- Display Type: Digital Only
- Model Number: DC AC Clamp Meter
- DIY Supplies: ELECTRICAL
- Brand Name: BSIDE
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- True RMS: Yes.
- Display Counts: 6000 Counts
- Auto Ranging: Yes.
- Inrush current: Yes.
- Temperature test: Yes.
- Low impedance voltage: Yes.
- V-alert measurement (NCV): Yes.
- Diode: Yes.
- Frequency: 300kHz.
- Continuity: Yes.
- Flashlight Lighting: Yes.
- Backlight: Yes.
- Automatic shut-down: Yes.
- Low Battery Reminder: Yes.
- Battery: 1.5V AAA battery * 2 ( Not included )
BSIDE ZT-QB9/QS9 Digital Clamp Meter Multimeter Auto Range True RMS NCV DC AC 600A Voltage Inrush Current Temperature Tester Automatic Voltmeter Smart Multitester
Product introduction:

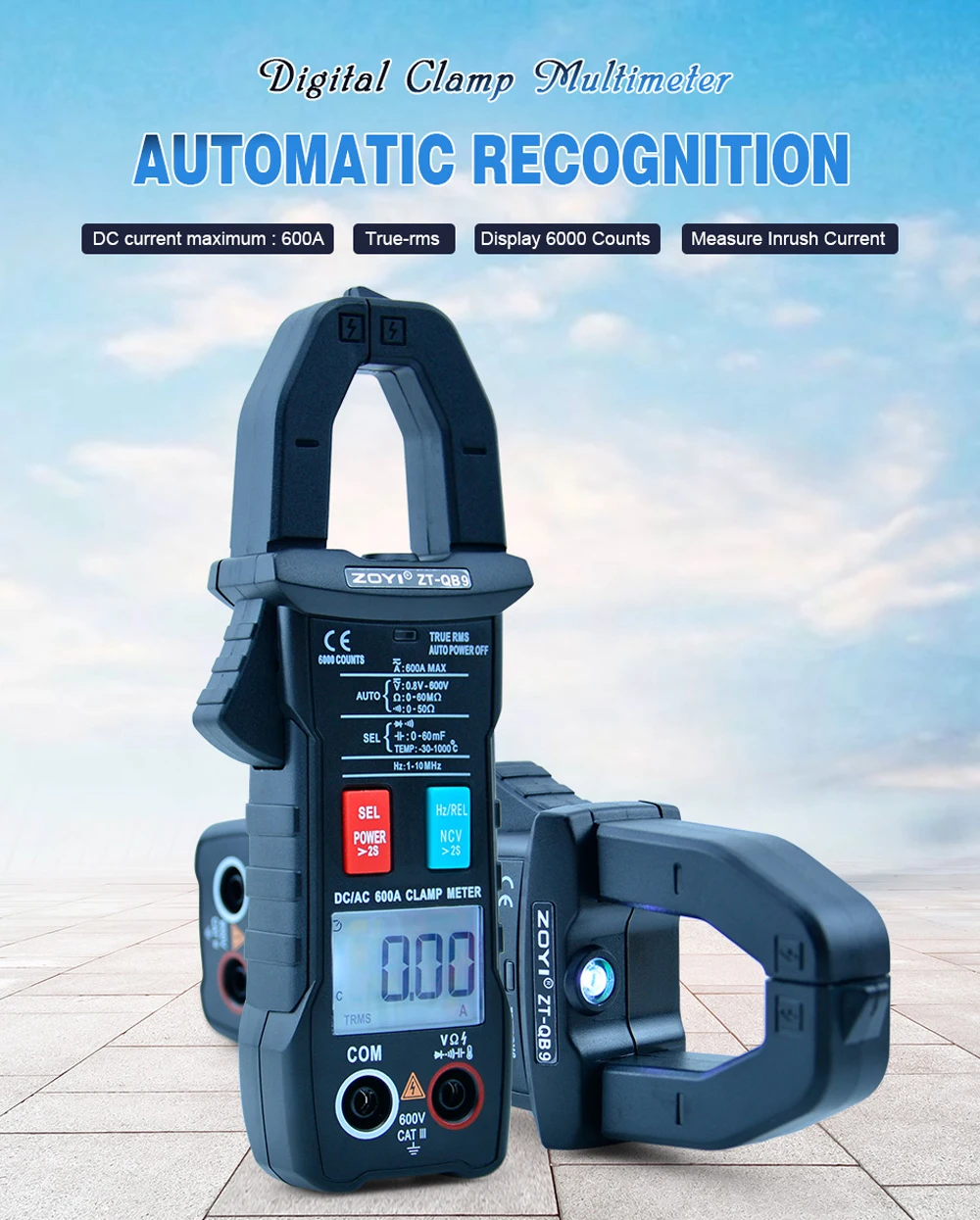

It is a pocket smart digital clamp meter, Has True RMS characteristics, DC AC current test range is 600A.
The product has complete testing functions, precise and intelligent operation methods; it is very suitable for professional and factory inspection.
Product advantages:

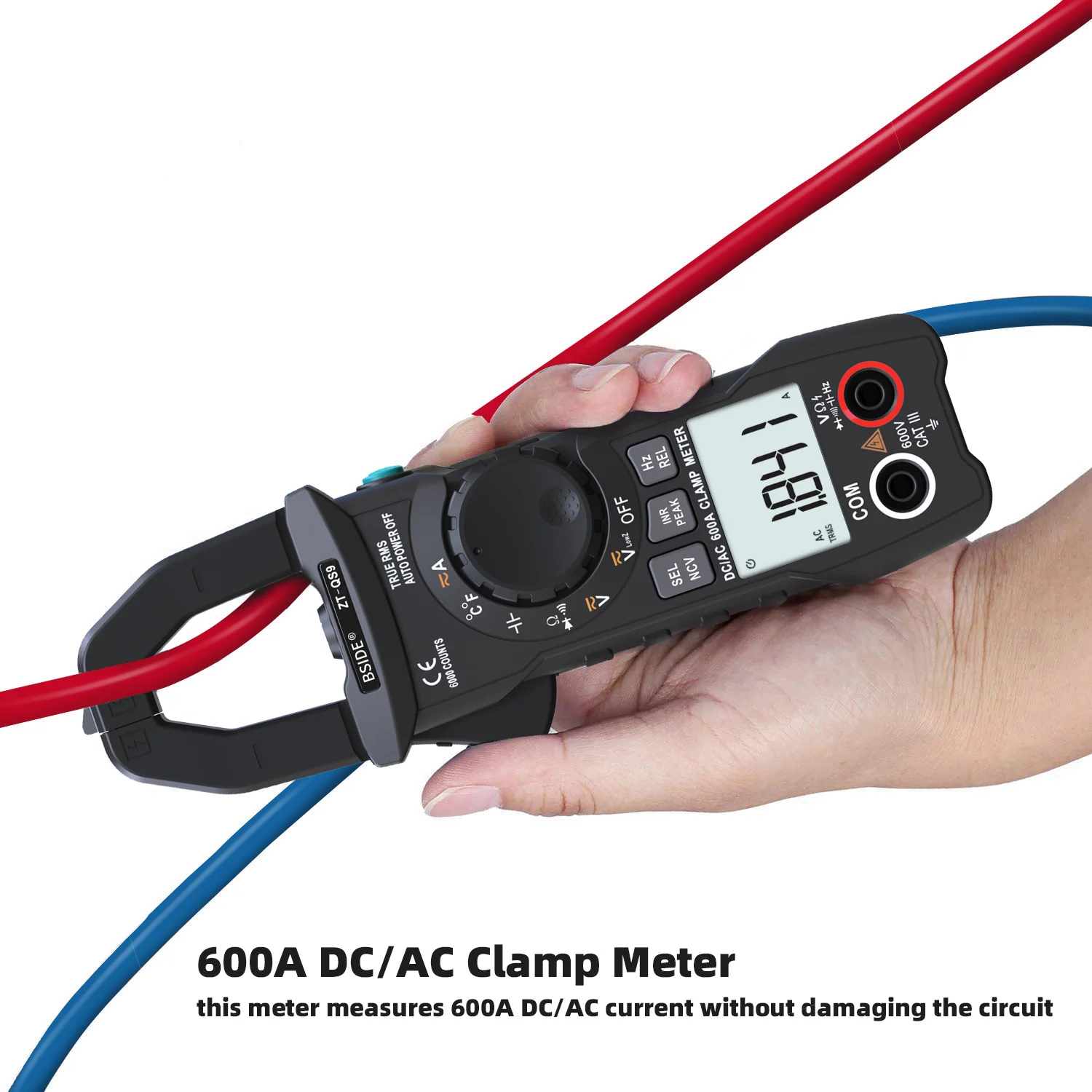

[ DC/AC 600A Clamp Meter ]: The clamp meter measures DC/AC current up to 600A without damaging the circuit.
[ Inrush Current Test and Peak hold Function ]: Inrush current function is designed to capture inrush current accurately; Peak hold function makes test and record more convenient. [ Complete test function ]: This true rms clamp meter can test Capacitance, Diode, Battery, Temperature, etc. [ Flashlight Design ]: Upgraded flashlight can change the dark environment. Hang hole design make it more portable.Feature:
Max display value: 6000 Counts.
True-RMS / Automatic-Range.
During the DC current test, the “REL” key is reset to zero to make the test results more accurate.
LCD display with backlight for clear reading.
Support one-handed switching of all test functions, making operation more convenient and quick.
Can measures DC/AC Current, DC/AC voltage, Resistance, Capacitance, temperature, Diode, Continuity, Frequency, battery voltage,Dangerous voltage alarm(NCV).
Battery test: 1.5V/6V/9V/12V.
Non-contact dangerous voltage detection:Yes.
Continuity test: If the resistance is less than 30Ω, the beeper sounds.
Data hold, Low battery indication functions, Auto power off.
Added back hooks, convenient to carry.
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Over-voltage protection class CAT III 300V, CAT II 600V,
