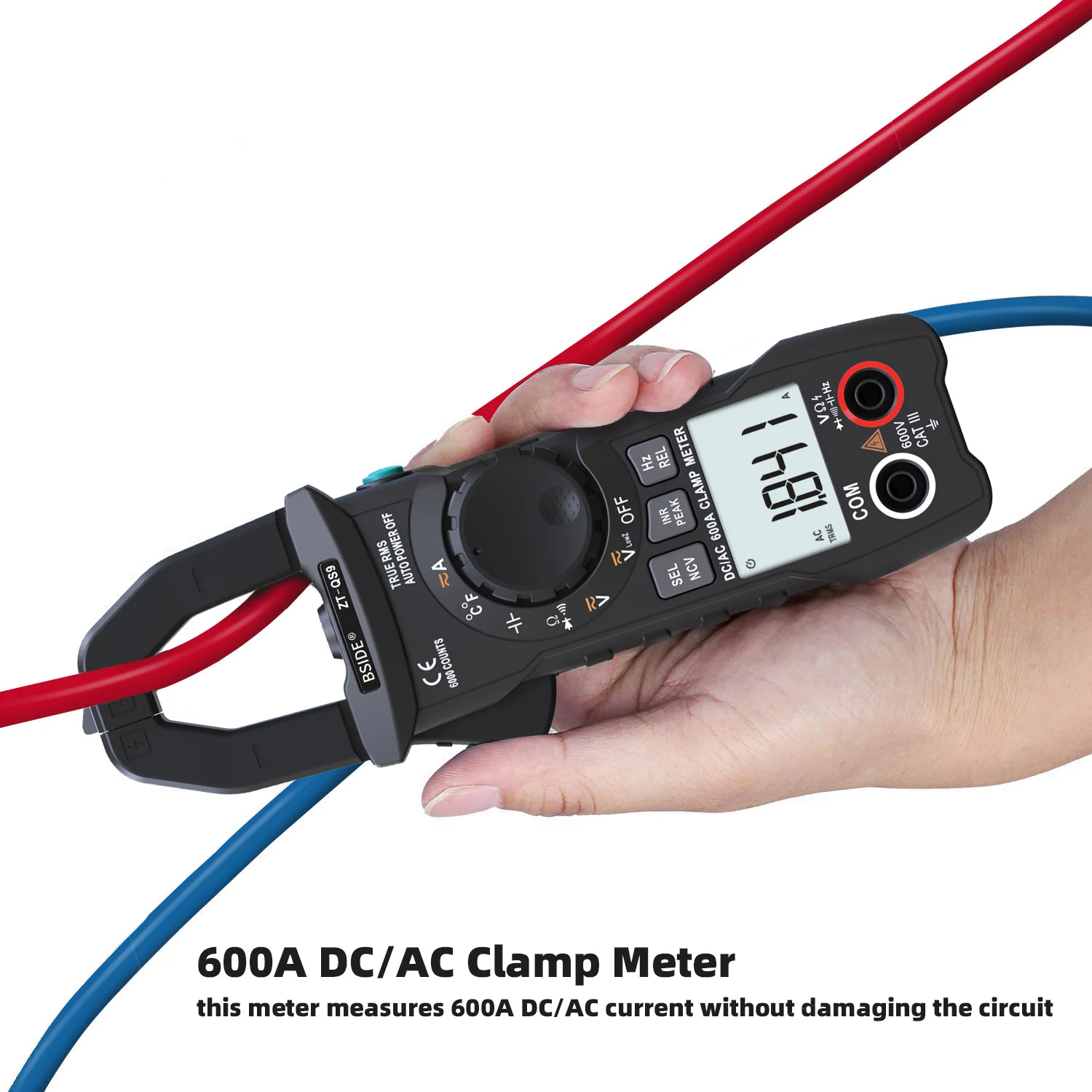

BSIDE ZT series Digital Clamp Meter
- Weight: 280g
- Dimensions: 175mm x 65mm x 30 mm
- Operating Temperature: 0-40C
- Measuring Inductance Range: N/A
- Measuring Capacitance Range: 60mF
- Measuring Resistance Range: 4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
- Measuring Voltage Range: DC AC 600V
- Measuring Current Range: DC AC 600A
- Display Type: Analog and Digital
- Model Number: ZT-QS9 Digital Clamp Meter
- DIY Supplies: ELECTRICAL
- Brand Name: BSIDE
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- True RMS: YES
- Maximum Display: 4000(QB1)/6000counts(QB9/QS9)
- ZT-QB1/QB9 Operating mode: Smart test.
- ZT-QS9 Operating mode: Automatic/Manual test.
- Auto Ranging: YES
- DC AC 600A Current test: ZT-QB9/QS9
- AC 600A Current test: ZT-QB1
- V-alert measurement (NCV): YES
- Continuity: YES
- Capacitance test: YES.(ZT-QB9/QS9)
- Temperature test: YES.(ZT-QB9/QS9)
- Diode test: YES.(ZT-QB9/QS9)
- Frequency: 10MHz
- Automatic shut-down: YES
- Low Battery Reminder: YES
- Backlight: YES
- Flashlight Lighting: YES
- Battery: 2*1.5V AAA( Not included )
Product advantages:
Max display value: 4000(ZT-QB1)/6000 Count(ZT-QB9/QS9).
True-RMS:Yes.
Automatic-Range:Yes.
HD LCD display with backlight for clear reading.
Support one-handed switching of all test functions, making operation more convenient and quick.
DC voltage, AC voltage, DC Current(ZT-QB9/QS9), AC Current, Inrush current, Capacitance, Diode, Temperature, Resistance, Continuity, Frequency, Live wire detection, Dangerous voltage alarm(NCV).
Data hold, Low battery indication functions, Auto power off.
Added back hooks, convenient to carry.
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Over-voltage protection class CAT III 300V, CAT II 600V.
Order Notice :
ZT-QB1 clamp meter only supports testing AC current ；
ZT-QB9/QS9 clamp meter supports testing DC AC current.
Package Includes:
1 x Digital Clamp Meter.
1 x Test Leads.
1 x Carrying Case.
2 x C3104 Crocodile Clips（Gift）.

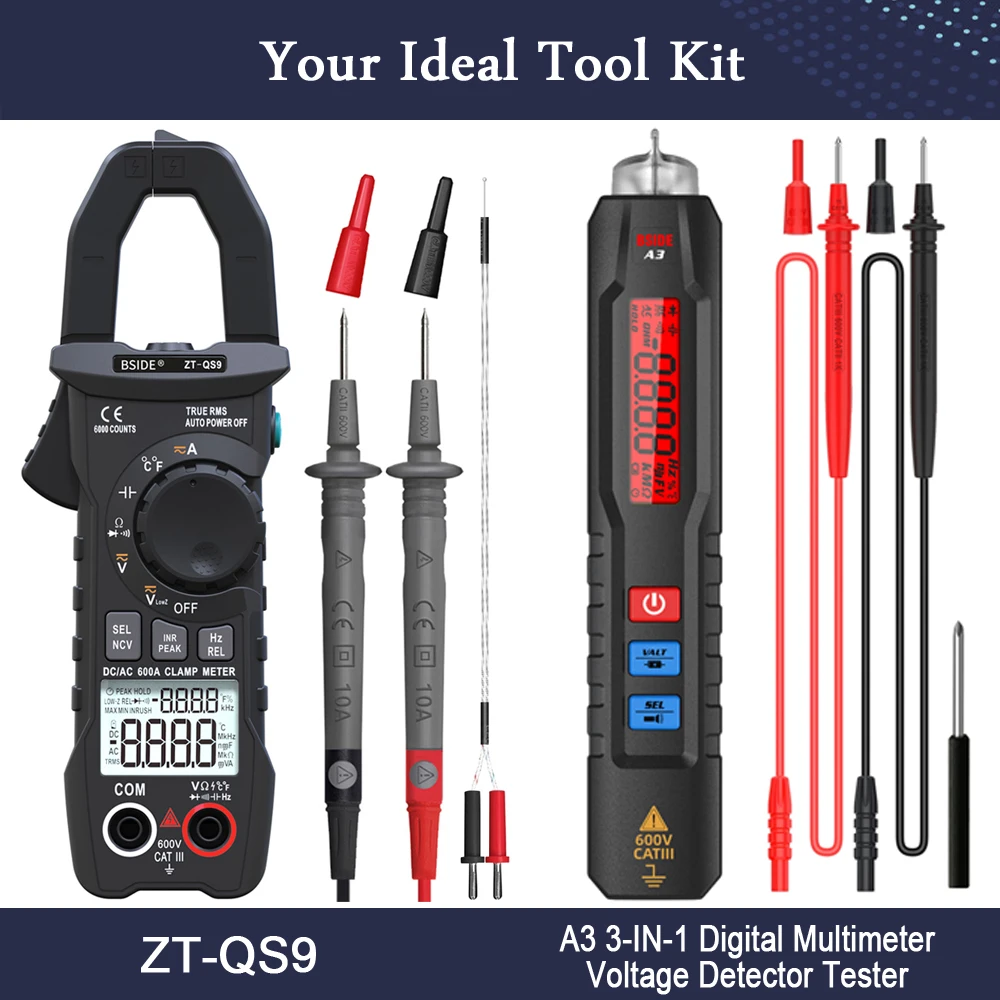

Tool Kits：
