CIT800/ CIT868 4 Channels Diesel Common Rail Injector Tester
- Hign-concerned Chemical: none
- Electronic: No
- Material Type: Plastics and iron
- Item Weight: 2.5kg
- Item Height: 10cminch
- Item Width: 20cminch
- Item Length: 25cminch
- External Testing Certification: CCC
- Voltage: AC220V/110V
- Special Features: drive injector
- Power: 50
- Model Name: CIT868
- Software Version: v1.5
- Hardware Version: v2.3
- Item Type: Other
- Brand Name: Kawish
- Origin: Mainland China
- Special Features: injector tester
- function 1: common Rail injector tester
- function 2: injector driver
- function 3: electromagnetic injector driver
- function 4: Piezo Injector tester
- function 5: Measuring impedance
- function 6: 24V injector
- function 7: Measuring injector impedance
- function 8: diesel injector
- function 9: Diesel injector test
- function 10: 24V Diesel injector tester

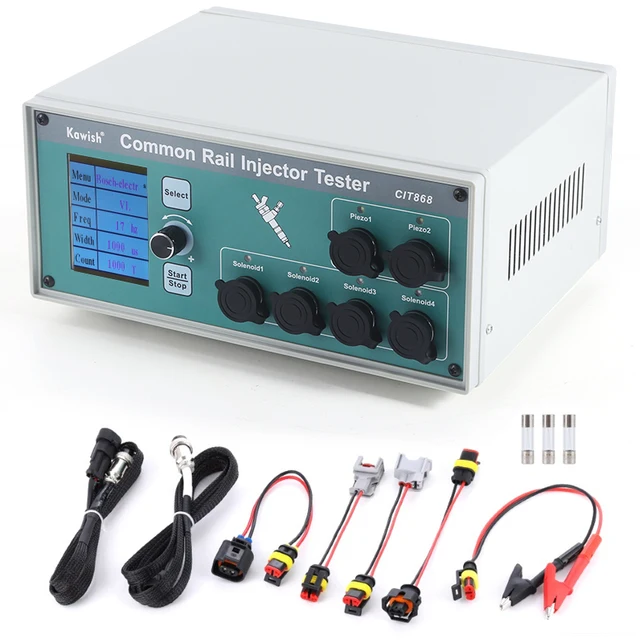

CIT868 diesel common rail Piezo and electromagnetic Tester
What can this tool do ?
1. Test 2pcs common Rail Piezo injectors at same time
2. Test 4pcs common Rail electromagnetic injectors at same time
3. Test 2pcs GDI Piezo injectors at same time
Product Brief

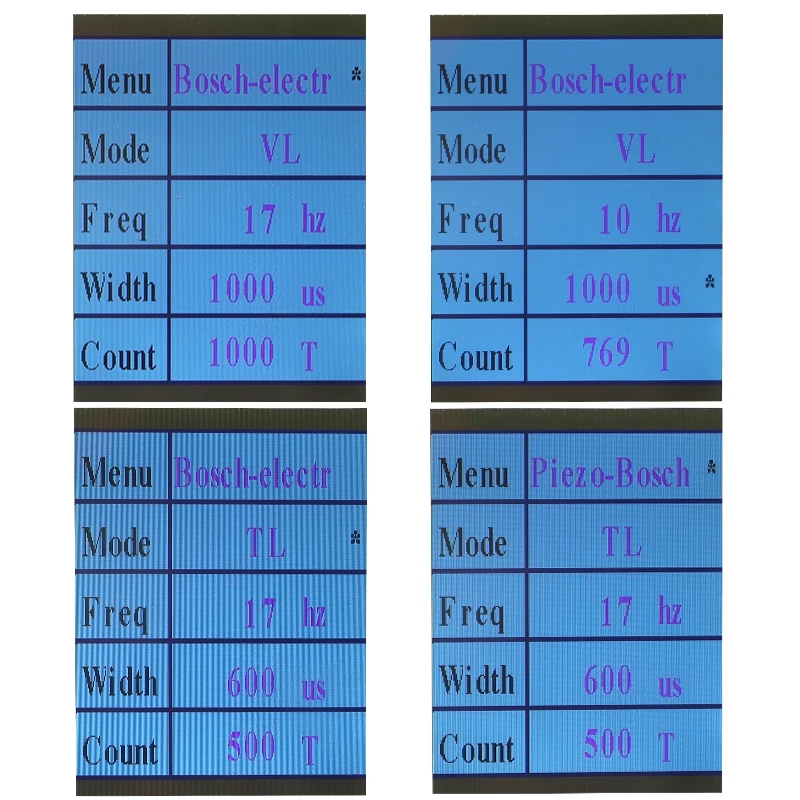

CIT868 multifunction of common rail injector tester can accurately and effectively, to imitate ECU drive signal for each work condition of injector, such as pre injection, emission point, full load point conditions. Can drive a variety of brands, For Bossch injector,for Densoo,for Delphii and Piezo common rail injector.
CIT800multifunction of common rail injector tester using the simple operation, can meet the detection of common rail injector combination and ordinary nozzle tester. To effectively reduce the investment threshold of repair equipment. The detector has the advantages of small size and convenient carrying can provide customers the way detection and repair of common rail injector, can greatly improve the work efficiency.
Common rail injector tester is a easy operated tool, could do the test with the injector hand pumps. It’s small size and light weight, could meet the requires from repairman on the simple device of testing.
Safeguard: 1,Protection fuse use in Power In 2,Hardware protection circuit 3,Software protection,4,Out connector safety protection

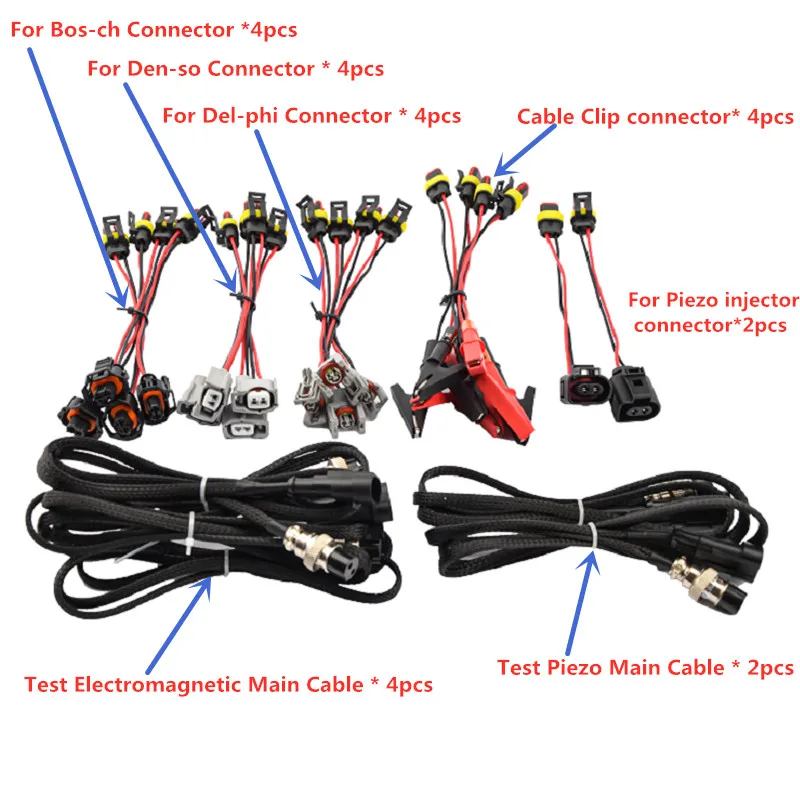

Cit868 Main Unit Machine * 1pcs
Test Electromagnetic Main Cable * 4pcs
For Bos-ch Connector *4pcs
For Del-phi Connector * 4pcs
For Den-so Connector * 4pcs
Cable Clip connector* 4pcs
Test Piezo Main Cable * 2pcs
For Piezo injector connector*2pcs
Fuse * 3pcs
Manual * 1pcs
