Clouday Ruida RDC6432 CO2 Laser Controller
- Is Smart Device: YES
- Application: Lathe and Turning Center
- Model Number: Ruida RDC6432
- Brand Name: Cloudray
- Origin: Mainland China
- Certification: CE
- Interface Port: USB
- Input Power: DC24V
- LCD Size: 3.5 inch
- Support Software: Laser CAD/CORELDRAW/AUTOCAD
- Display: Color Diaplay
- Support Format: DST PLT BMP DXF DWG AI etc
Ruida Software RDC6432G (can only use this newest version)
download link:
http://cloudray.oss-us-west-1.aliyuncs.com/Controller/Ruida/Software/RDWorksV8Setup8.01.48-20200618.rar

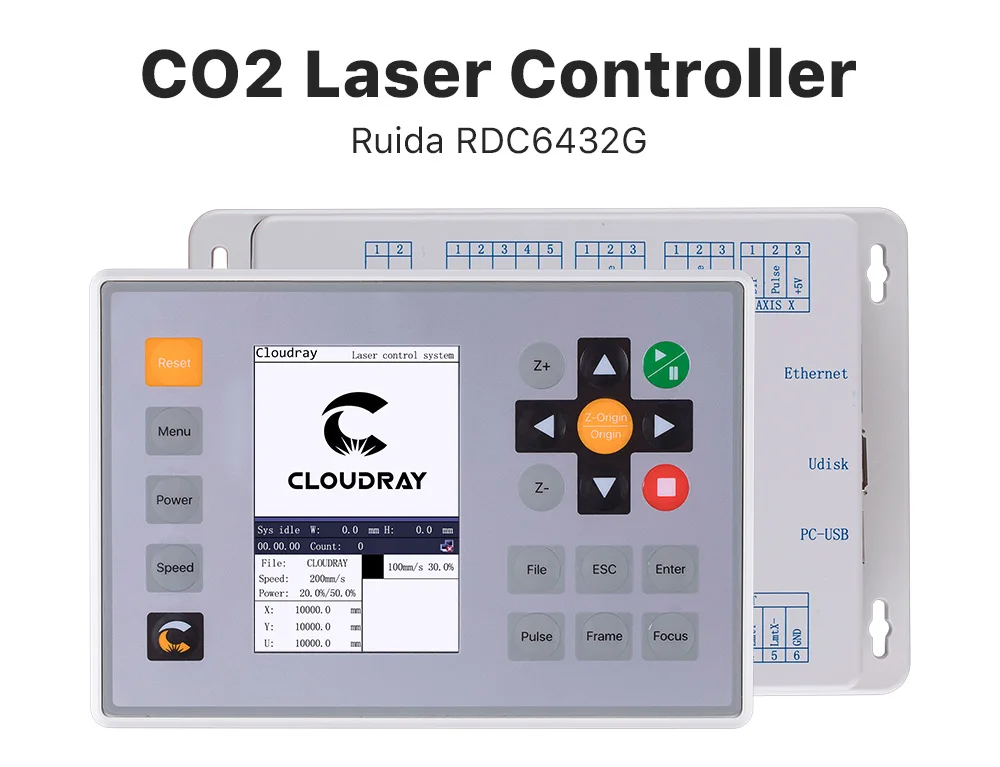

Name: Co2 Laser Controller
Model: Ruida RDC6432G
Feature:
-
The RDC6432G system is the latest laser engraving/cutting control system.
-
True color TFT screenman-machine operating system.
-
1-way independent adjustable laser power control. Multi-channel general/dedicated IO control.
-
Better and better motion control functions.
Parameters:
-
Digital laser control signal;
-
TTL level output, 50mA drive capability;
-
The PWM frequency is adjustable from 2K to 50K;
-
PWM duty cycle is adjustable from 1% to 99%;
-
Motor control signal OC output, 300mA drive capability;
-
Motor control pulse frequency is up to 500KHZ;
-
USB maximum transmission rate of 12M, the longest distance of 5 meters;
-
Linear/circular/B-spline interpolation accuracy+/-0.5 pulse;
Multiple Languages:
-
Support simplified Chinese, traditional Chinese,English,Japaness, German, Russia, Spanish,Portuguese,Korean,French and other 16 languages.

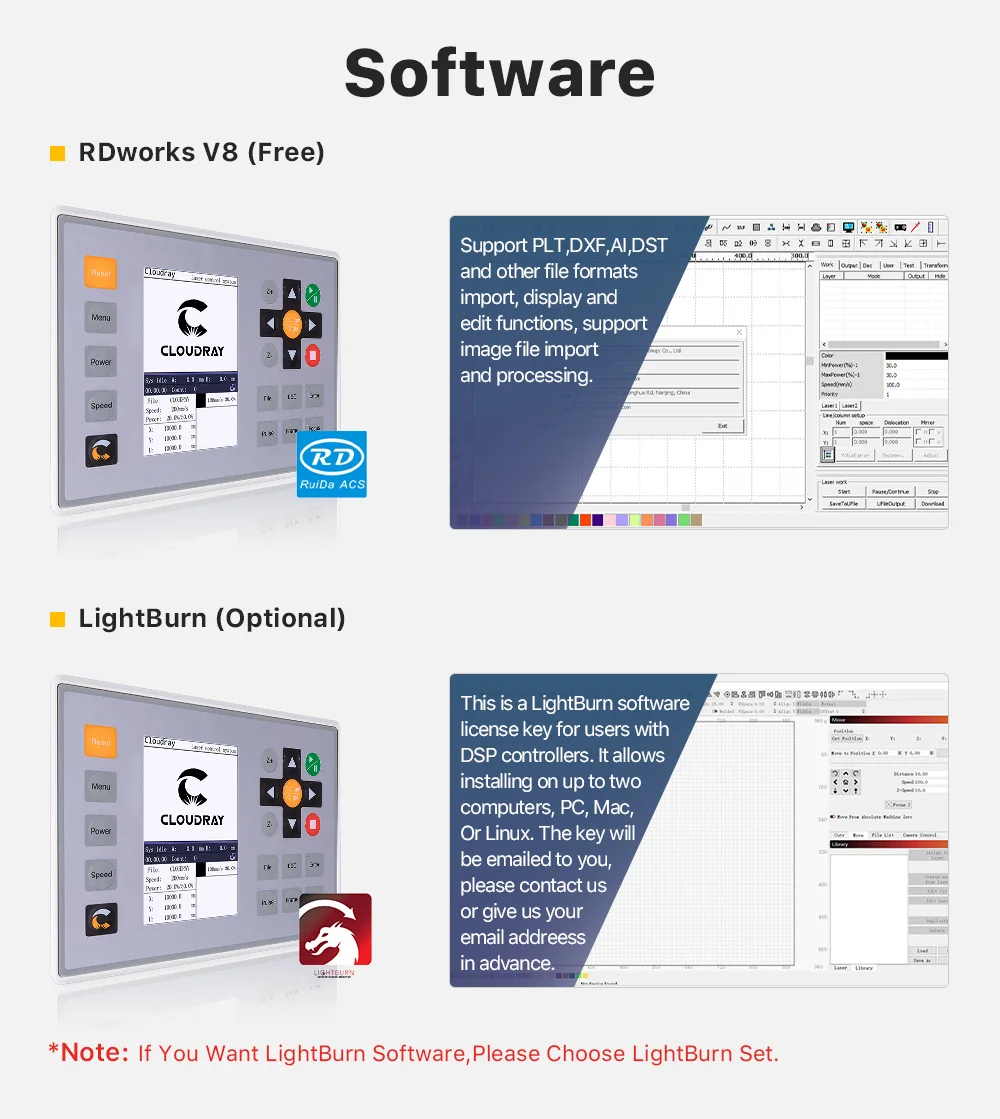

Software RDworKs V8:
-
Support PLT,DXF,AI,DST and other file formats, display and edit functions, support image file import ans peocessing.
Application Area:
-
Focus on non-metal cutting, suitable for leather, fobric, sign and 3C application fields.
