CNC Router 3020 with Square Linear Rail, 500W ER11 Spindle, 3/4/5 Axis Engraving Machine for PCB, Wood, Metal Milling, USB Port
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

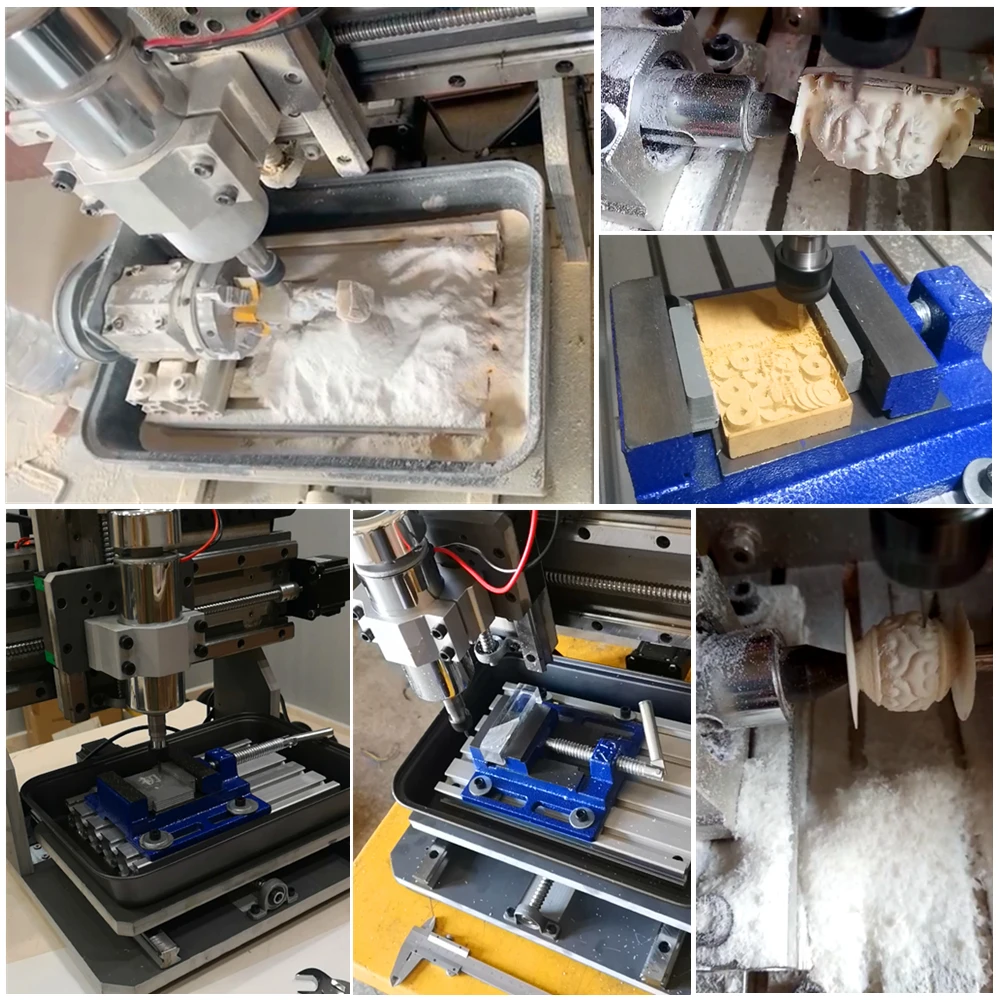

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty
Buy-this-product-on-Aliexpress
Model and Technical Parameters
| MODEL |
CNC 3020 |
||
| Attribute | 3axis | 4axis | 5axis |
| Axis | 3axis | 4axis | 4axis |
| Interface | USB Port | USB Port | USB Port |
| Spindle Motor: | 500W | 500W | 500W |
| Weigh | 27 | 31 | 33 |
| Max. working stroke | XYZ=300*200*100mm | ||
| Acceptable material thickness | ≤100mm | ||
| Rack material: |
15mm PVC + corner brace connection |
||
| Table material: |
Aluminum alloy T table + Water tank |
||
| Rail type | X Y Z 1204 ball screw,
Square line rail track, three-axis is 20 mm square wire track, |
||

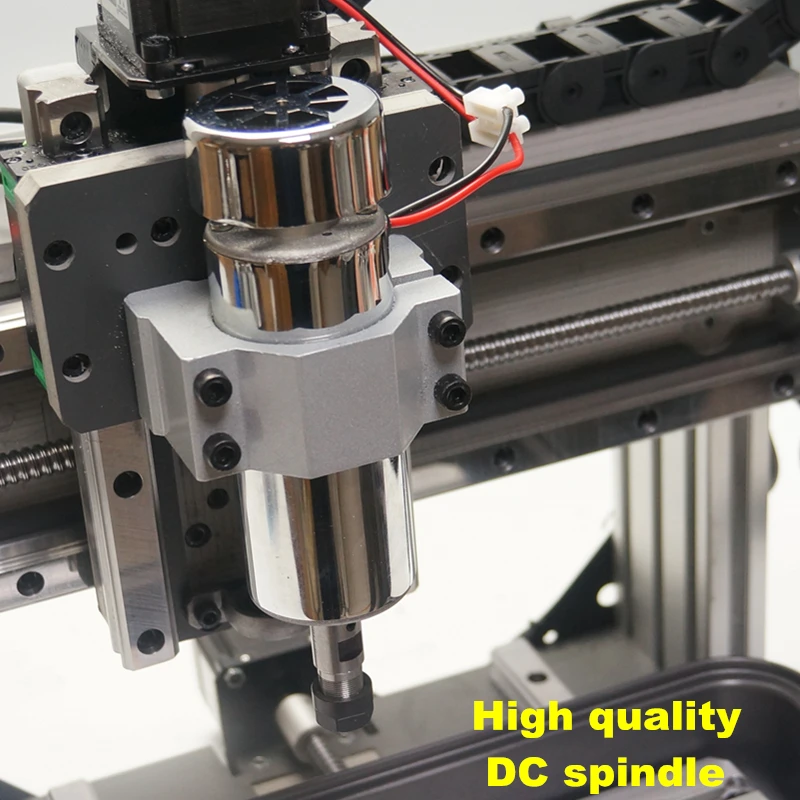

| Spindle motor |
500W DC spindle , 0-12000r/min |
||
| Collet type |
ER11,1/8″(3.175mm) Collet |
||
| Stepper motor and drive |
57HS56 |
||
| Repeat positioning Accuracy |
0.02mm |
||
| Communication interface |
USB Port |
||
| System requirements | Win-XP / Win 7 Win 8 Win10 | ||
| Software Co
patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
||
| Command code |
G code/.nc/.ncc/.tab/.txt |
||
| Machine weight |
27kg |
||

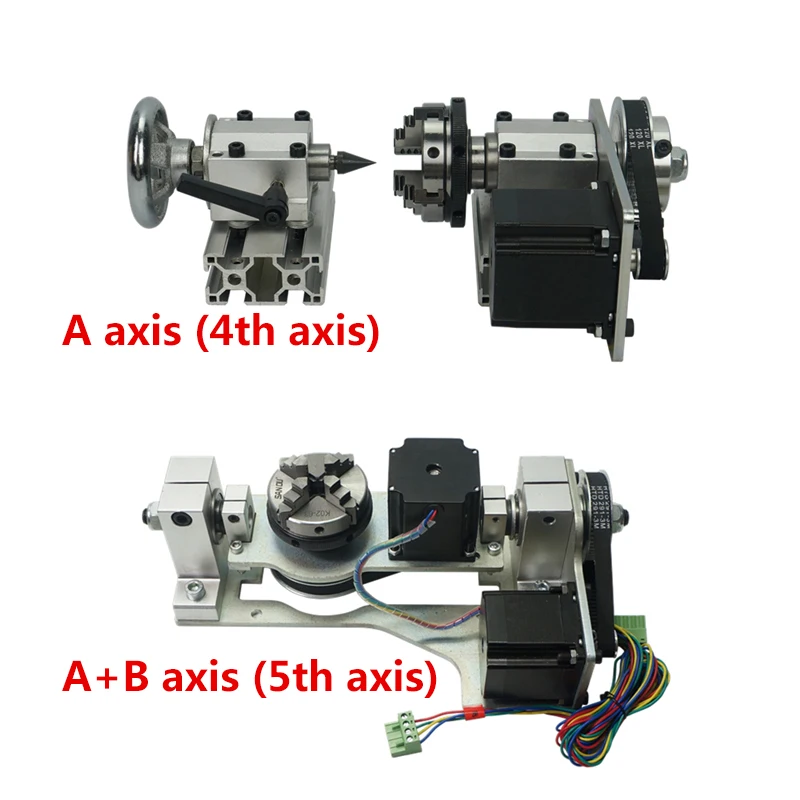

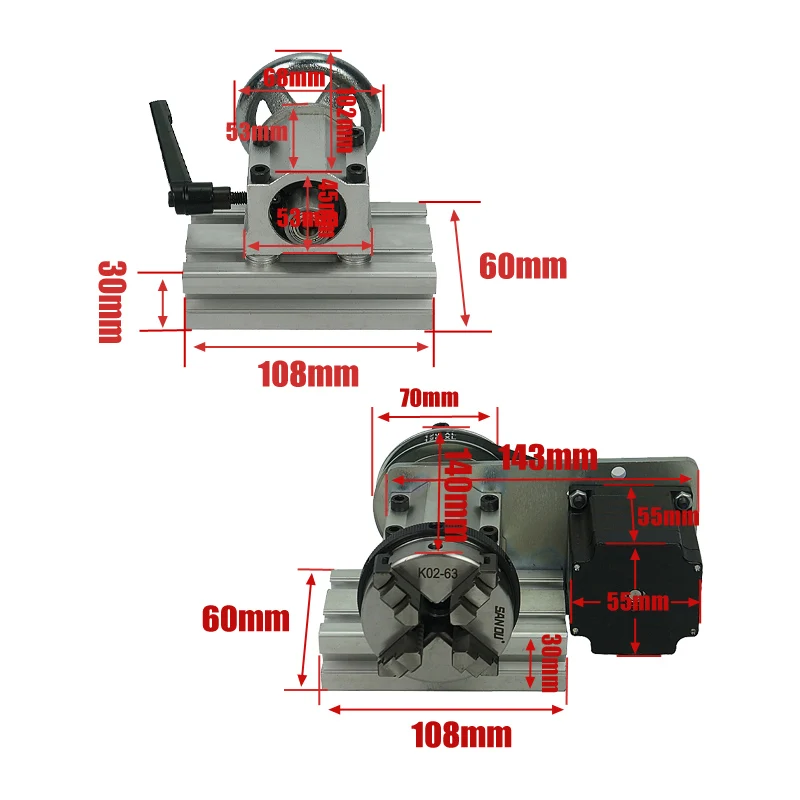

| 4th Axis
Description: |
Center height: H = 51mm
Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 |
||
| 5th Axis
Description: |
The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N)
The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm |
||
