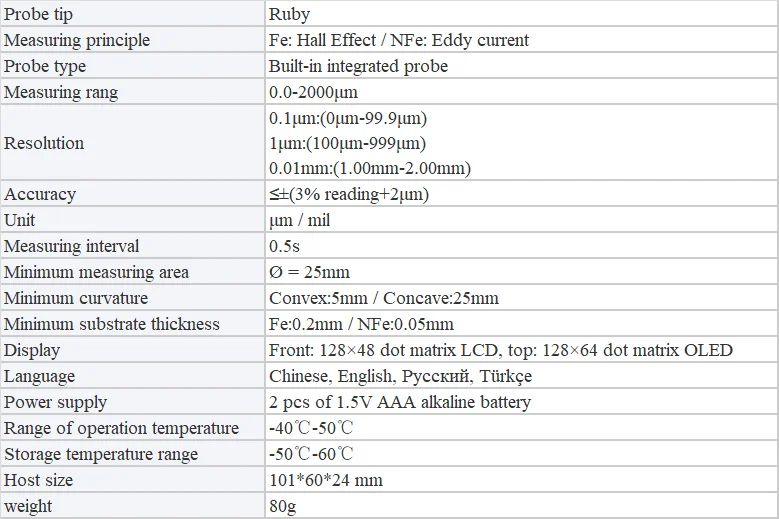

Coating Thickness Gauge LS236
- Model Number: LS236
- Brand Name: Kaalee
- Origin: Mainland China
- Certification: CE
- Power: Electronic
- Operation temperature: -40℃-50℃
- Measuring principle: Fe:Hall Effect / NFe: Eddy current
- Measuring range: 0.0-2000μm
- Resolution: 0.1μm:(0μm-99.9μm) 1μm:(100μm-999μm) 0.01mm:(1.00mm-2.00mm)
- Accuracy: ≤±(3% reading 2μm)
- Unit: μm / mil
- Measuring interval: 0.5s
- Minimum measuring area: Diameter = 25mm
- Minimum curvature: Convex:5mm / Concave:25mm
- Minimum substrate thickness: Fe:0.2mm / NFe:0.05mm
Overview
LS236 paint film instrument is professionally used for automotive paint thickness inspection. It features the classic function of automatically identifying iron, aluminum body and plastic substrate. In addition, LS236 adopts new intelligent identification algorithm, which can detect accident cars refined with metallic putty, and can also automatically identify galvanized-iron high-grade anti-corrosion body. Equipped with high-definition LCD screen and ultra-low temperature LCD screen, it can be used normally in strong light and -40 °C temperature environment. The dual-screen design ensures that users can read quickly when measuring the car at any angle. paint mil gaugepaint mil thickness testingpaint mill gauge
coating thickness gauge costcoating thickness gauge calibration certificate
