Creality 3D Scanner CR-Scan Raptor 3D Printing Handheld Scan
- Hign-concerned Chemical: None
- Model Number: CR-Scan Raptor
- Brand Name: CREALITY 3D
- Origin: Mainland China
- Certification: CE,FCC
CR-Scan Raptor 3D Scanner
- 7 Blue Parallel Laser Lines
- Metrology Grade Accuracy, up to 0.02mm
- Scanning Speed up to 60fps
- Objects between 5-2000mm
- Anti-shaking for Smooth Scanning
- Scan Black/Metal Objects Without Sprays
- 24-Bit Full-Color Scanning
- Light and Compact(215mmx50mmx74mm), only weight 372g
- Compatible Models: K1 Max, K1 C, K1
- Blue Light(Blue 7-line laser) Mode:
- Accuracy: Up to 0.02mm @ 100mm [1]
- 3D Resolution: 0.02-2mm
- Scanning Speed: Up to 60fps
- Min. scanvolume: 5mm x 5mm x 5mm
- Single Capture Range: 270mmx170mm@300mm
- Working distance: 150mm-400mm
- Color Mapping: Yes
- Alignment mode: Marker
- NIR(infrared binocular structured light) Mode:\Accuracy:Up to 0.1mm
- 3D Resolution:0.1-2mm
- Scanning Speed:Up to 20fps
- Single Capture Range:930mmx580mm@1000mm
- Working distance: 170mm-1000mm
- Color Mapping: Yes
- Alignment mode: Marker / geometry / texture

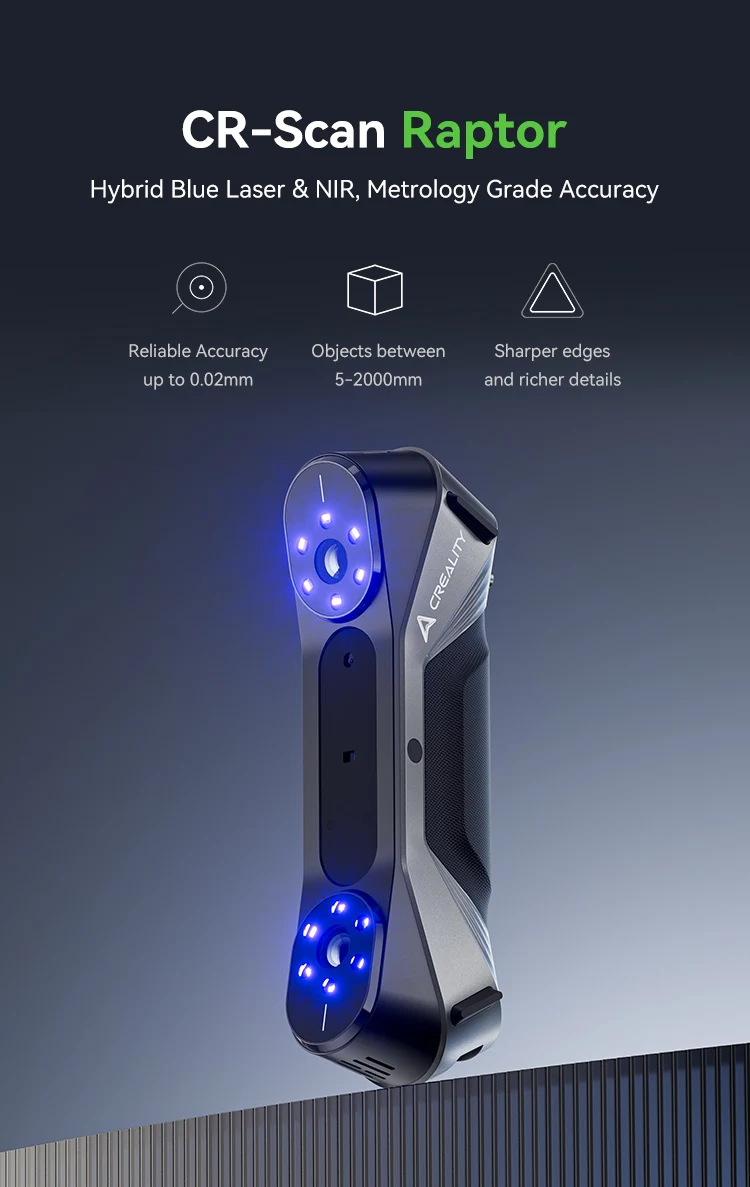

- CR-Scan Raptor
- Hybrid Blue Laser & NIR, Metrology Grade Accuracy
Buy-this-product-on-Aliexpress
The First Multiple-line Blue Laser Consumer 3D Scanner
BLUE LASER & NIR
The CR-Scan Raptor integrates an innovative combination oblue laser and infrared light sources, covering scanning ofsmall, medium, and large objects, which can meet the needsof diverse industrial 3D scanning scenarios.
7 Laser Lines
Metrology Grade Accuracy
parallel blue laser lines for fine scanning details, single laser lineis very thin, up to 0.1mm to obtain sharper and clear edges.
Accuracy up to 0.02mm
Buy-this-product-on-Aliexpress
High-speed Scanning Beyond Your lmagination
Blue Light Scanning Speed up to
60fps
NIR Scanning Speed up to
20fps
lnfrared Structured Light Scanning
Markerless Scanning
The CR-Scan Raptor utilizes speckle matching 3D imaging,No markers needed for feature-rich workpieces.Objects can be scan quickly and directly.
Unique Face & Body Algorithm
Face & body mode is equipped with a unique face mapping algorithm that captures more details, a human body scan onlyneeds as quick as 2 minutes.
Accurate and Detailed Scanning
Advanced temperature
compensation algorithm
It can improve temperature stability and ensure accuracy.
High Performance Structure
φ20mm large depth of field lens
Low distortion lens < 5%.
9-elements glass lens
Metal lens barrel and holder
The CR-Scan Raptor covers near and far distance scanning,and is equipped with good stability in high and low temperatures, providing reliable measurement scanning results.
Buy-this-product-on-Aliexpress
Versatile Scanning for All Sizes
Combining line lasers with infrared structured light, the CR-ScanRaptor can scan objects ranging in size from
5*5*5 mm⊃3;-2000*2000*2000 mm⊃3;
. Effortlessly scanning smalfigurines, bolts, faces, human bodies, automobile components, and more.
Anti-shaking for Smooth Scanning
Equipped with One-Shot 3D imaging technology, the CR-Scan Raptor is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.
Scan Black/Metal Objects
without Sprays
Even without scanning spray, you can scan cars, car parts, tiresand other black/metal objects to get the desired model effect.
24-bit Full-Color Scanning
Equipped with 12 circular LED texture lights, it can enhancethe brightness of color mapping in dark environments
and truly present the color of objects.
Peaceful Scanning in Various Environments
Dual-color circular LED texture lights can help achieve morerealistic scanning results.
Blue Light
Provides supplementary light for laser line scanning.
White Light
Used to enhance the brightness of color textures.
Buy-this-product-on-Aliexpress
Intuitive Experience
Ring indicator light, providing real-time scanning status feedback; Paired with buttons, it offers comfortable and straightforward
operation
Lightweight and Portable One-hand Control
Lightweight 372g
Effectively reduces long-term work fatigue.
High Precision Glass Calibration Board
Utilizes high-precision glass substrate calibration board foraccuracy calibration,
you can maintain the high precision of the scanner, maintain accuracy.
