CRS968 Common Rail Injector Tester
- Material Type: Iron+Plastic
- Voltage: 110V/220V
- Power: 150w
- Brand Name: HWAUT
- Origin: Mainland China
- OEM NO.: For Boasch Dench Delphi
- Name: CRS968 Common rail system controller
- Model: CRS968 Common rail injector pump tester
- Feature: CRS968 Common rail injector pump tester with coding function
- Function: Measure the flow,Test pump injector,All in 1 common rail injetcor pump tester Kit
- Common Rail Test Bench: Fuel Injection Pump Test Bench
- systems supports: windows,linux
Hwaut Coding IQA QR CRS968 Diagnostic System Controller Injector Punp Tester With Flowmeter BIP Kit For Common Rail Tester Bench
The default password for the program settings is 123456 or 789789.
We have the Windows and Linux 2 different systems ,pls choose the suitable one and leave us message while you ordering.
1.Drive up to six coils or Piezo injectors in same time ,Default 1 channel.
2.Support more than 20 different types of injector IQA QR coding,Our QR code is generated according to the algorithm of the original factory,ot randomly generated.
3.Support CRP,CP1,CP2,CP3 ,HP0，HP5/HP6，HEUI，HEUP，HPI ,EUI/EUP，CAT320D/336E,F2E,PT Injector .
4.Support BIP signal acquisition.BIP Sener(need extra fee to add the mould )
5,Support AHE (Dynamic stroke test) test.
6.It can be connected to the Internet for remote assistance, and can be upgraded with one key.
7.We accept the OEM&ODM Order .
CRS968 Product Specification
1.Name :CRS968 Common Rail Injector Tester
2.Power Supply:150w
3.Voltage:AC 220V/110V
4.Material:Iron plate
5.Product Size:32X26X12.6CM
6.Product Weight:About 4.85kg
7.Color:As picture show

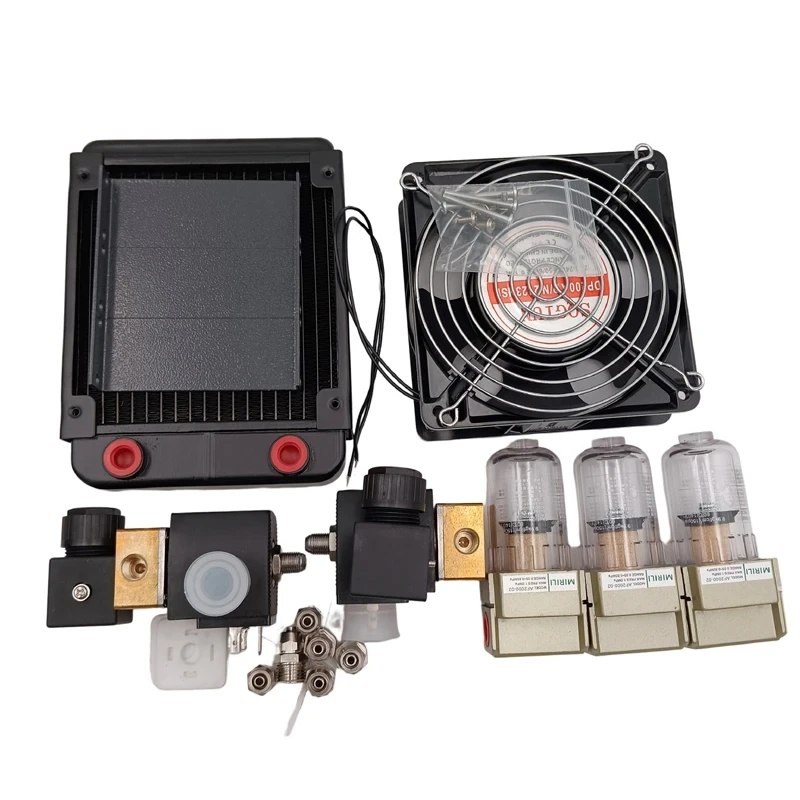

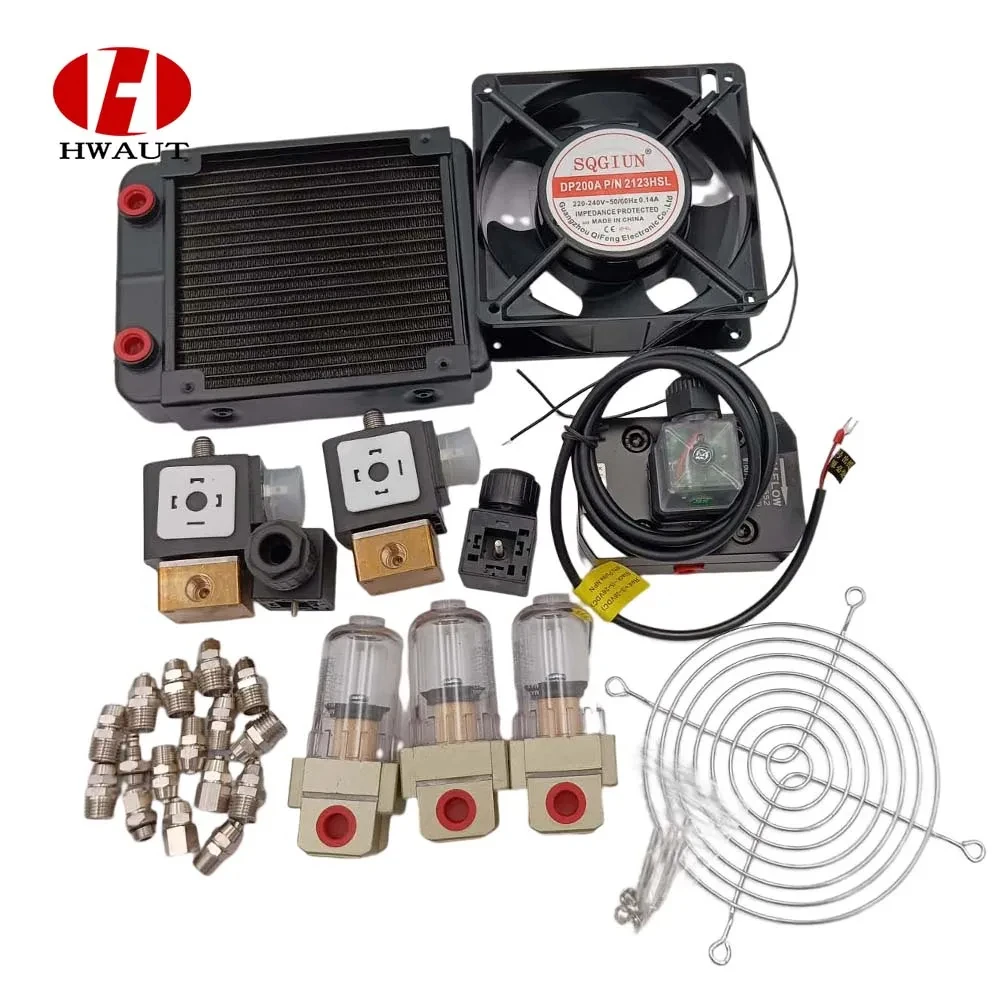

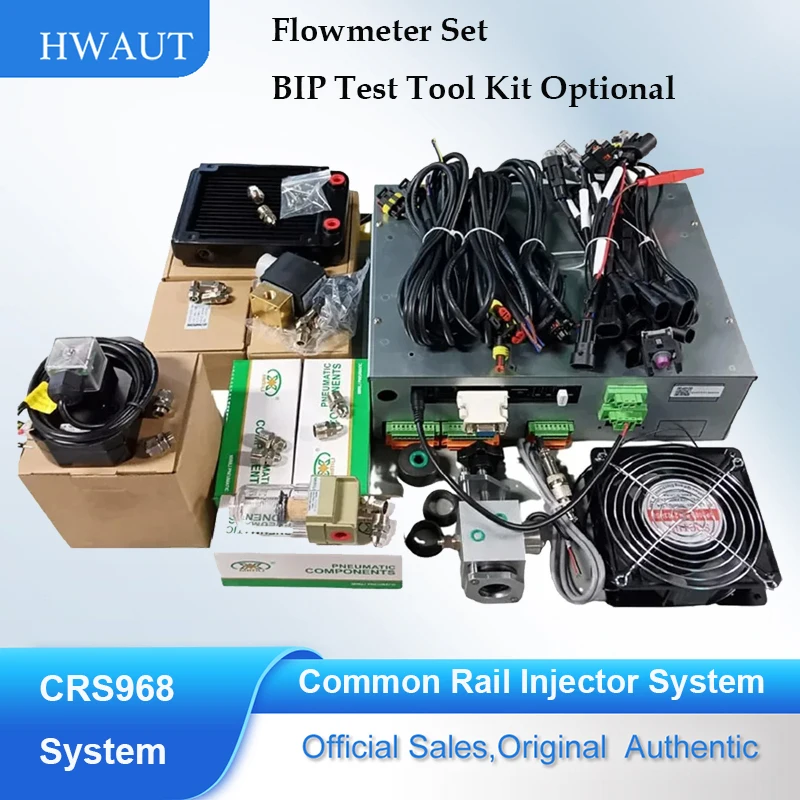

CRS968 6 injector

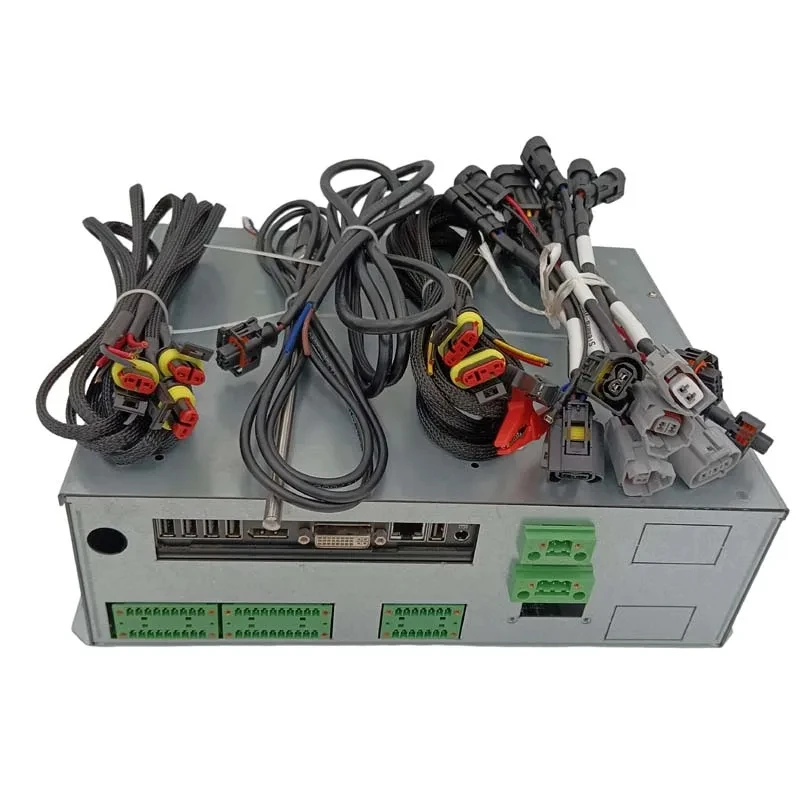

1. CRS968 host machine, testing 6 injectors;
2. Relay expansion board;
3. Injector flow meter;

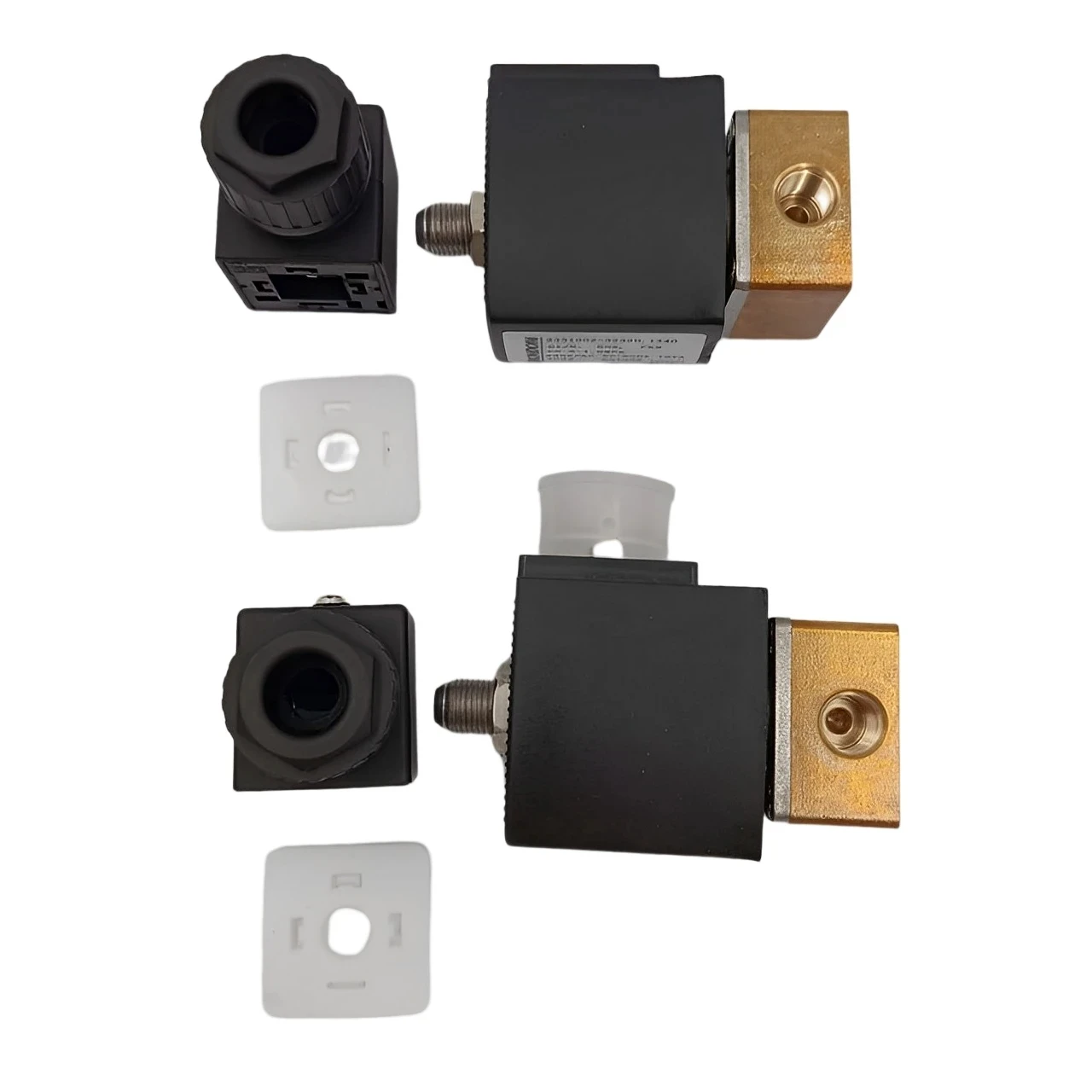

4. 7 solenoid valves, 8 filter elements, and a radiator;
5. Pump flow meter;
6. BIP oil collector + sensor,

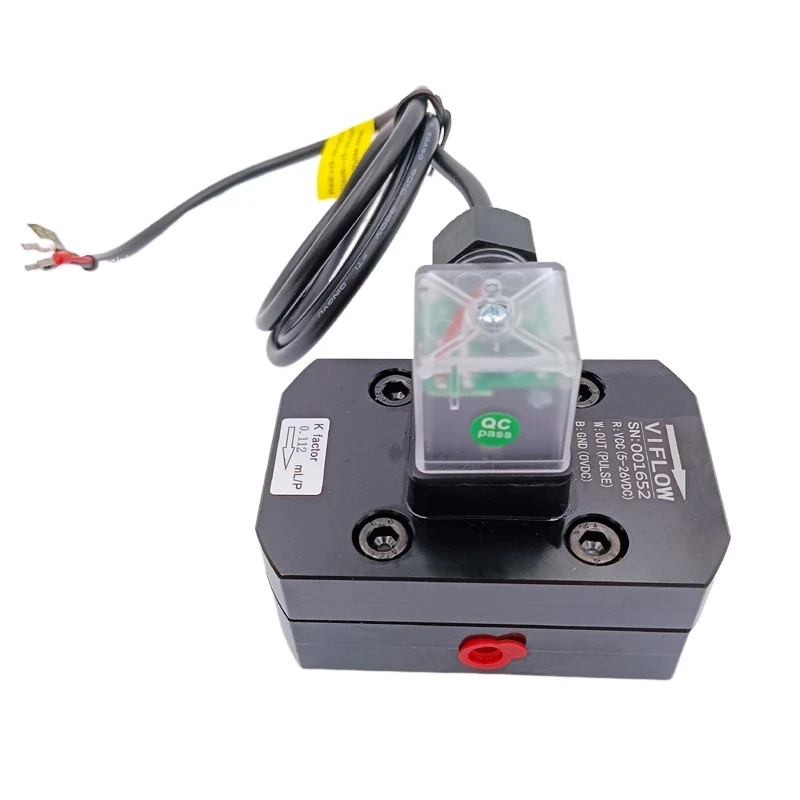

Flowmeter Product Specification:
1.Material: Housing:Aluminum Gear:Alloy
2.Seal:MVQ(Silicone rubber “o” ring)
3.Temperature:0℃~+50℃
4.Accuracy Level:±0.2%
5.Repeatability:±0.03%
6.Pressure Range: Max 32bar
7.Installation Method:Vertical installation
8.Dimensions:9.0×6.0x7.5 cm (LxWxH cm)
9.Power Supply:12V DC
10.Maximum Current:25mA
11.Thread:G1/8
