Decteam 12 Lines Laser Level 3D Cross Line Self-leveling
- Certification: CE,FCC,RoHS
- Origin: Mainland China
- Type: Vertical & Horizontal Lasers
- Size: 24.3*19.3*14cm
- Brand Name: Decteam
- Model Number: M03CG
- Measurement Model: 12 lines
- Precision: ±3mm/10m
- Wavelength: 505-520nm
- Name: Decteam 3D Cross Line Laser Level
- Diode: Japan Sharp Diode
- Self-Leveling Time: ≤3s
- Working distance( normal mode): 25m, 40-80m with the receiver
- Battery capacity: 7.4V / 2600mAh Li-ion Battery
- Mount Size: 1/4”-20 & 5/8″-11
- Compensation Range: 3.0±1°
- Type: Lazer Level Tools
- Mode: Manual & Self-leveling Laser Tools
- Suitable for: For Roof Tiling Floor
- Lines Type: Horizontal and Vertical Line
- Charging Port: Type-C
Decteam 12 Lines Laser Level 3D Cross Line Self-leveling Laser Level With Horizontal and Vertical Line Sharp Diode Laser Tools
| Model: |
Decteam M03CG 3D 12 Lines Laser Level |
||
| Laser Class: | Class 2 (IEC/EN60825-1/2014), <1mW power output |
Laser Light 12 Lines: | 3x 360° (4/8/12/lines are adjustable) |
| Laser Wavelength: | 510-525nm | Laser Beam Color: | Green beam |
| Horizontal / Vertical Accuracy: | ±1/9 inch at 33Ft (±3mm/10m) | Reference Operating Time: | About 5.5 hours with all laser beams on |
| Leveling Time: | ≤3s | Charging Time: | About 5 hours |
| Compensation Range: | ±3.0°+1° | Mount Size: | 1/4″-20 & 5/8″-11 |
| Working Distance: | 25m, 40m-80m with laser detector | Applicable Scenarios: | Indoor & outdoor |
| Power Source: | 7.4V / 2600mAh Li-ion Battery | Storage temperature: | Between -40℃and +80℃ |
| Charging Port: | Type-C | Operating Temperature: | Between -20℃and +50℃ |
| IP Rating: | IP54, waterproof, dustproof and shockproof, reliability and robustness | ||
 |
Package contents – Basic Set:
1x Decteam M03CG Laser Level 1x Soft bag |
 |
Package contents – Main Photo: 1x Decteam M03CG Laser Level 1x Soft bag 1x Laser Receiver DLR-8RG (or Huepar LR-8RG / LR-5RG) 1x Tripod DT14A (or Huepar TPD14A) 1x PV11+D (or Huepar PV11+) |
With DLR-8RG Laser Receiver |
With DT14A Tripod |
With Receiver + Tripod |
With Bracket PV11+D |
| 1x Decteam M03CG Laser Level
1x Lithium Battery 2600mAh 1x Magnetic L-Shape Bracket 1x Type-C Cable 1x Green Target Plate 1x Multi-Languages User Manual 1x Soft bag 1x Decteam Laser Receiver |
1x Decteam M03CG Laser Level
1x Lithium Battery 2600mAh 1x Magnetic L-Shape Bracket 1x Type-C Cable 1x Green Target Plate 1x Multi-Languages User Manual 1x Soft bag 1x Decteam Tripod DT14A |
1x Decteam M03CG Laser Level
1x Lithium Battery 2600mAh 1x Magnetic L-Shape Bracket 1x Type-C Cable 1x Green Target Plate 1x Multi-Languages User Manual 1x Soft bag 1x Decteam Laser Receiver 1x Decteam Tripod DT14A |
1x Decteam M03CG Laser Level
1x Lithium Battery 2600mAh 1x Magnetic L-Shape Bracket 1x Type-C Cable 1x Green Target Plate 1x Multi-Languages User Manual 1x Soft bag 1x Decteam Bracket PV11+D |
Self-leveling Mode & Manual Mode
When the tools is beyond the self-leveling range at 3.0±1°, it will sound an alarm, and the laser beam will flash.
In manual mode, you can lock the laser at any angle for better use.

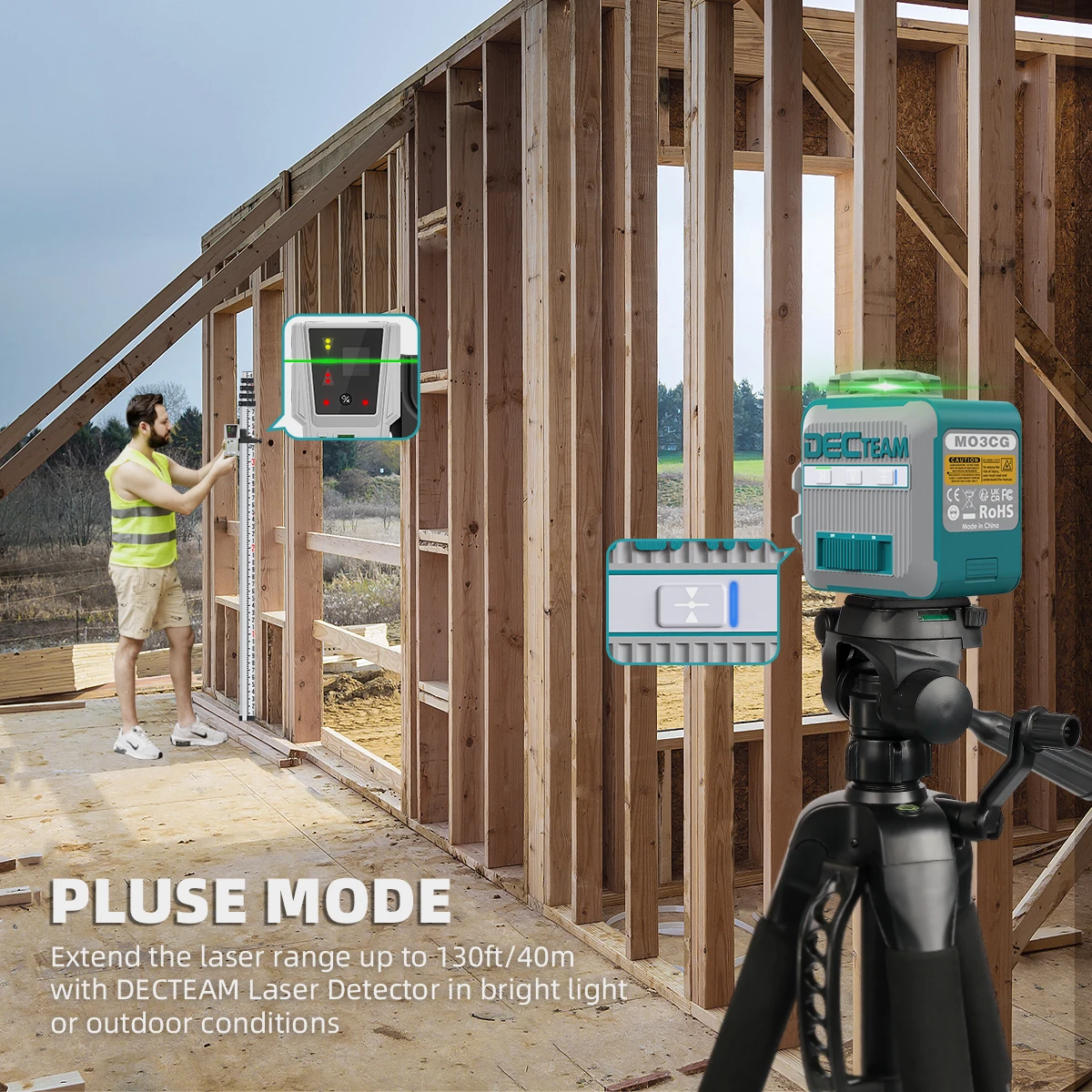

Pulse Mode
Extend the laser range up to 40m or 80m with Decteam laser detector in bright light or outdoor conditions.
Two Power Method Supplying
High-capacity lithium battery provided by Decteam M04CG laser level provides a high-capacity lithium battery which can be worked for 5.5 hours with all beams on with a single charge. It is also with a type-C charging port, it can be charged seperately in any condition.
The device can be used directly by plugging the type-C charging cable without the battery.
Buy-this-product-on-Aliexpress

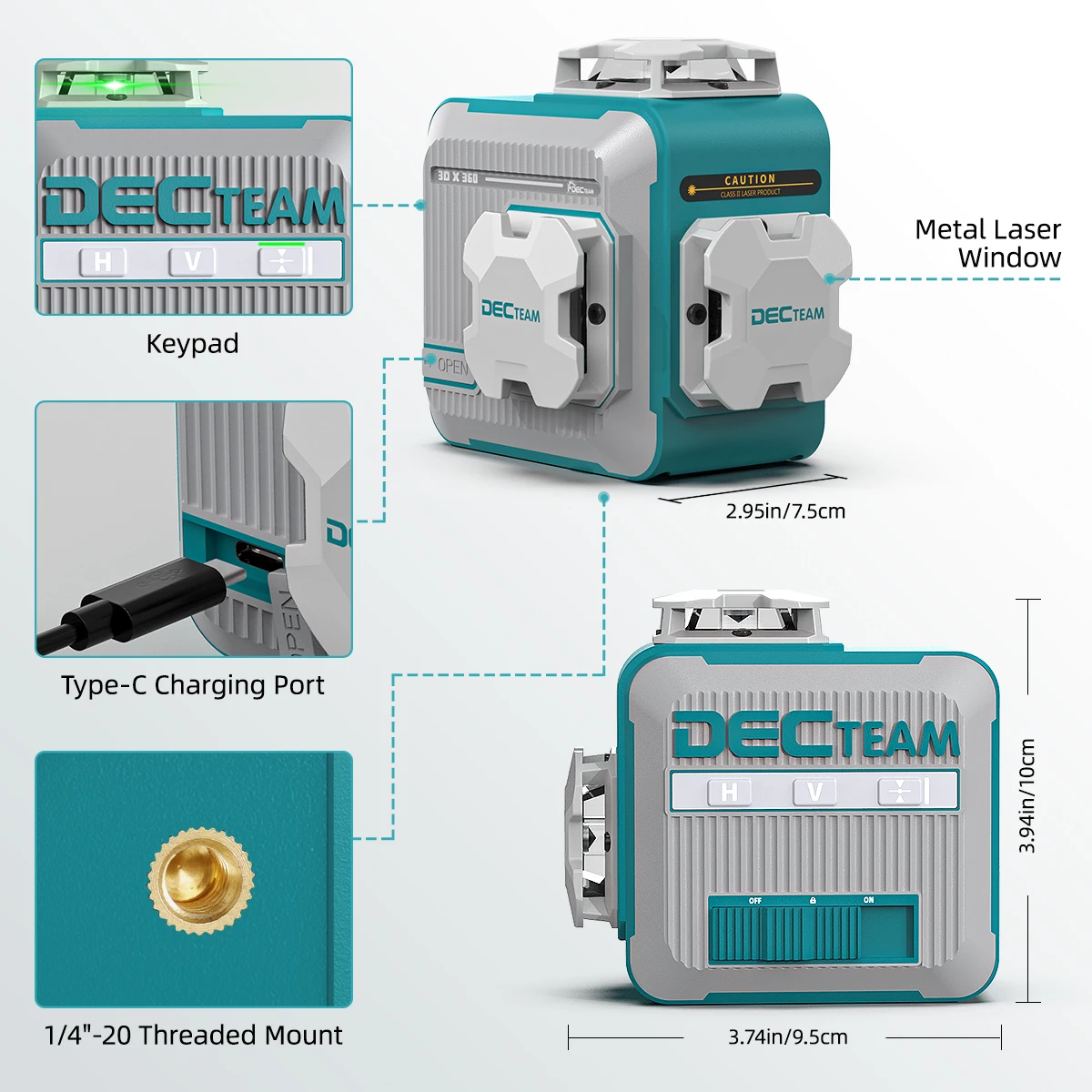

Wide Application & Easy to Install
The M03CG laser level comes with a 1/4″-20 & 5/8″-11 threaded port for easy mounting to a tripod or other mounting poles.
It also equippes with a strong magnetic pivoting base, which allows for easy adsorption onto metal surfaces, ensures that you can achieve the required angle for any task effortlessly.
With Green Target Plate
The green target plate could enhance the visibility for precise targeting with the laser level.
IP54 Waterrpoof Dustproof
IP54, waterproof, dustproof and shockproof, reliability and robustness.
