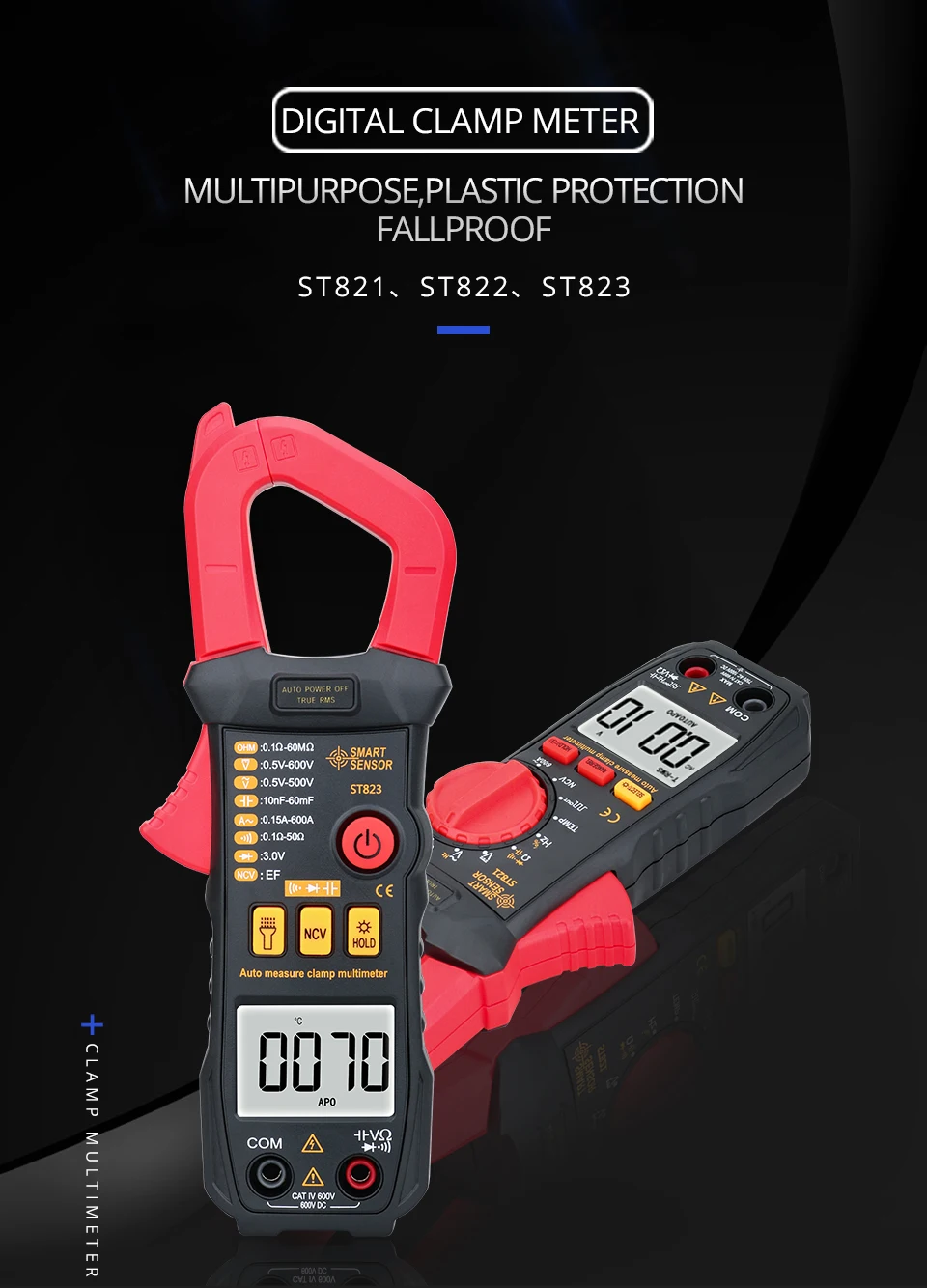

ST821/ST822/ST823 SMART SENSOR Digital Current Clamp Meter Multimeter.

ST821/ST822/ST823 SMART SENSOR Digital Current Clamp Meter Multimeter NCV True RMS Ammeter Voltmeter AC DC Ohm Meters Capacitance Resistance

Is Smart Device: no
DC Current: 6A-600A
AC Current: 60A-600A
DC Voltage: 6V-750V
AC Voltage: 6V-1000V
Operating Mode: Voltmeter Test
Measuring Capacitance Range: 10nF-60000uF±(3.5% 20)
Measuring Resistance Range: 6KΩ-600KΩ ±(0.8% 3)
Model Number: ST821/ST822/ST823
Dimensions: 179*51*27mm
Operating Temperature: 0-40°C

Mô tả
Đánh giá (0)

ST821/ST822/ST823 SMART SENSOR Digital Current Clamp Meter Multimeter NCV True RMS Ammeter Voltmeter AC DC Ohm Meters Capacitance Resistance

Is Smart Device: no
DC Current: 6A-600A
AC Current: 60A-600A
DC Voltage: 6V-750V
AC Voltage: 6V-1000V
Operating Mode: Voltmeter Test
Measuring Capacitance Range: 10nF-60000uF±(3.5% 20)
Measuring Resistance Range: 6KΩ-600KΩ ±(0.8% 3)
Model Number: ST821/ST822/ST823
Dimensions: 179*51*27mm
Operating Temperature: 0-40°C
Measuring Inductance Range: Transistors Multimeter
Display Type: Digital Display
DIY Supplies: ELECTRICAL
Brand Name: SMART SENSOR
Certification: CE,FCC
Origin: Mainland China
Model Number: ST821/ST822/ST823
Frequency Range: 1kHz-100kHz±(0.1% 3)
Diode On-Off: Yes

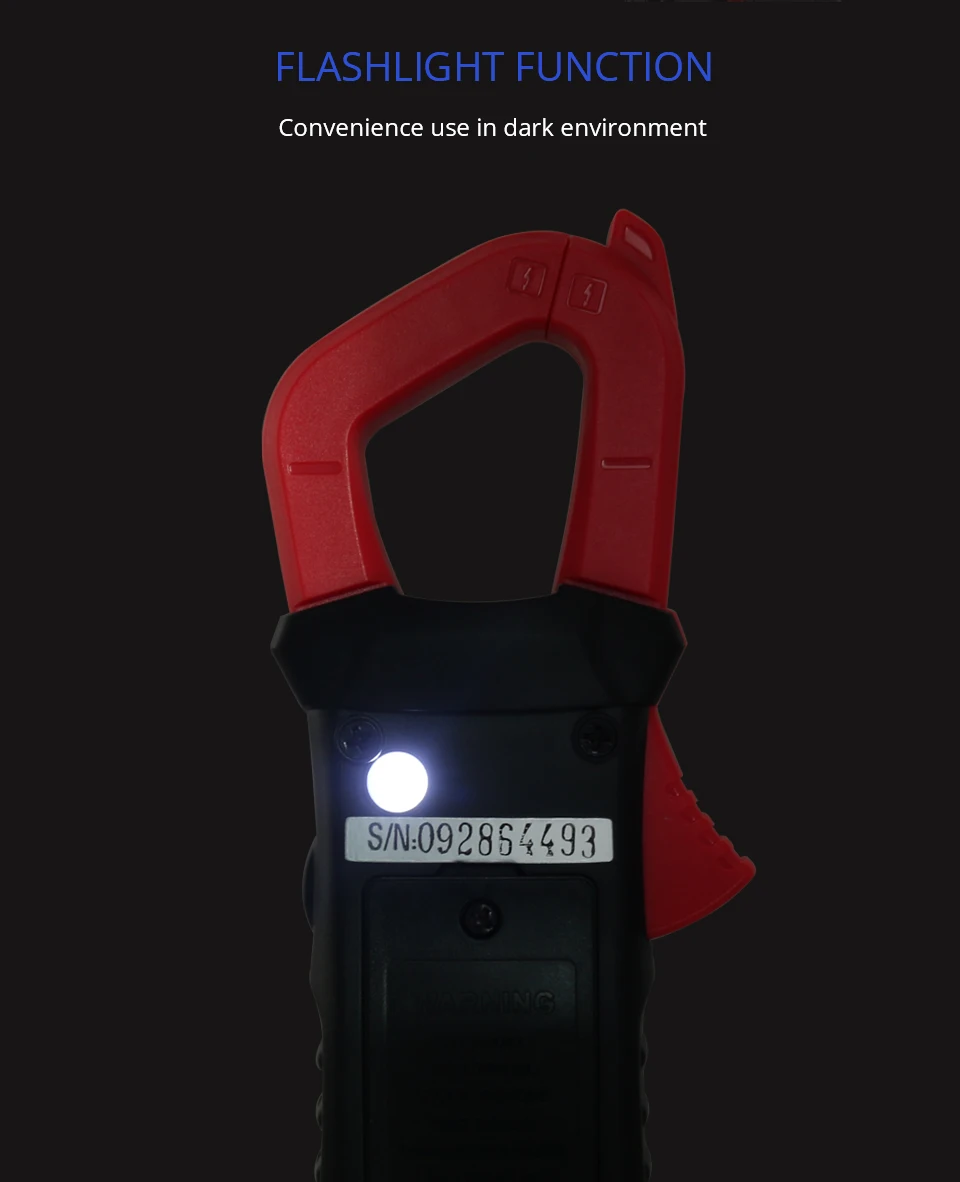

Flashlight: Yes
Sampling Rate: About 3 Second/Time
Power Supply: 2*1.5V AAA Battery(NOT Included)
True RMS Measurement: Yes
Full Unit Symbol: Yes
Multimeter: Clamp Meter
Non-Contact Voltage: Zero/Fire line Test
Backlight/Manual/Auto Off: Yes
Measurement Method: Double Integral A/D Conversion
Multifunction Meter: Clamp Meter
Current Clamp: Voltage Clamp

Digital Multimeter Clamp Meter Non Contact True RMS Measurement AC/DC Current Voltage Capacitance LCD Display Multimeter

1) Display: Liquid crystal display(LCD)

2) Maximum display:5999(35/6)/5999(55/6) bit automatic polarity display

3) Measurement method: double integral A/D conversion

4) Sampling Rate: About 3 times per second

5) Over range display: the highest position shows “OL”

6) Low voltage display: low battery indication

7) Working environment: (0-40)°C,relative humidity ＜80%

8) Power: AAA 1.5V battery*2(Not Included)

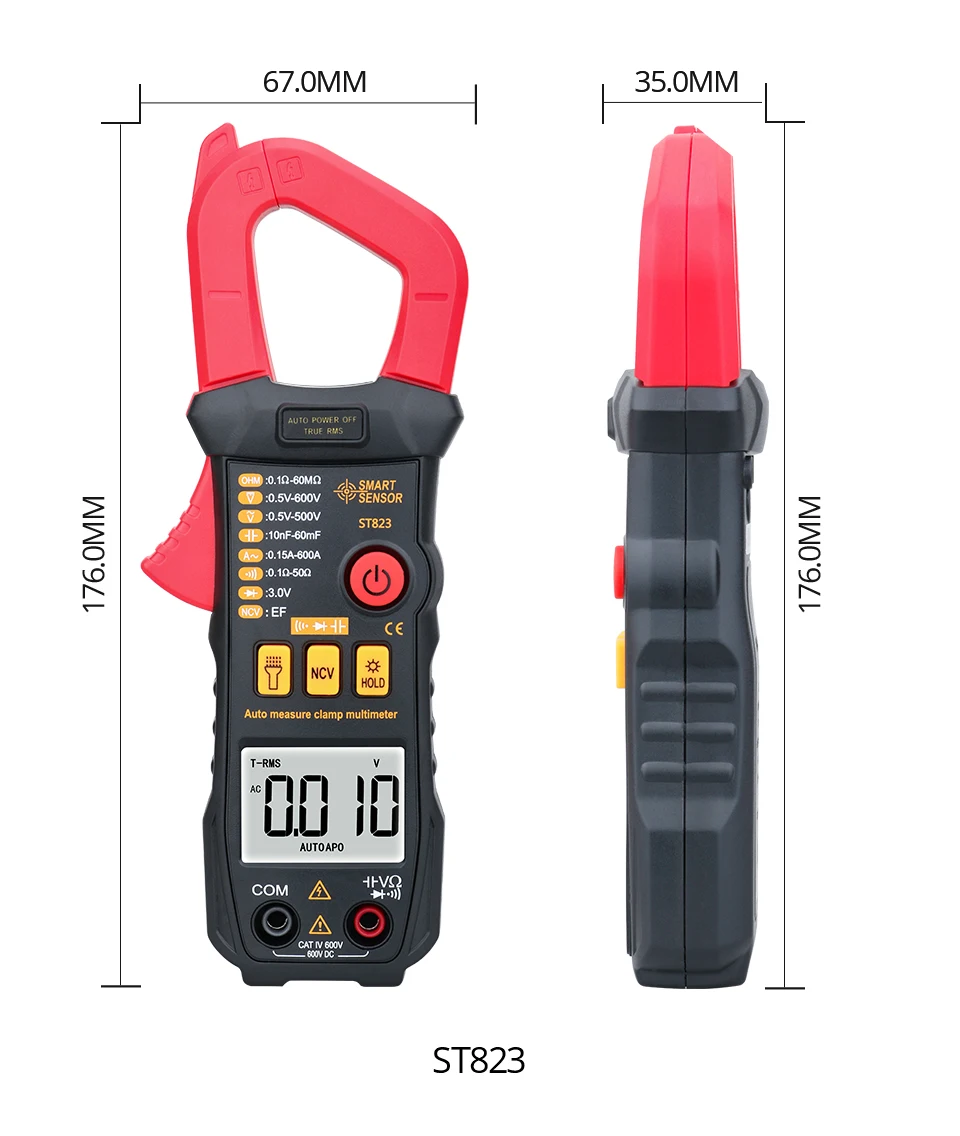

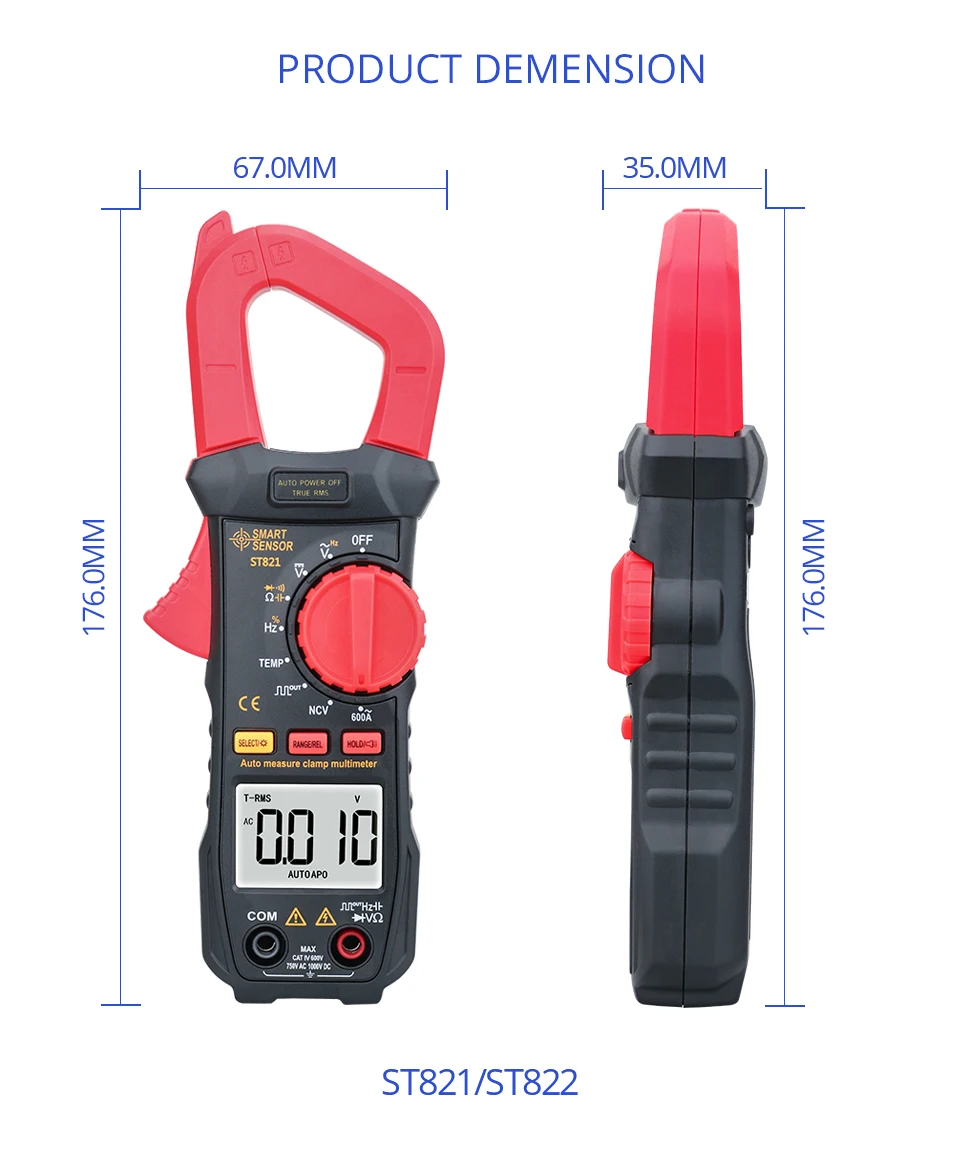

9) Volume: 176*67*33mm

10) Weight: About 205g

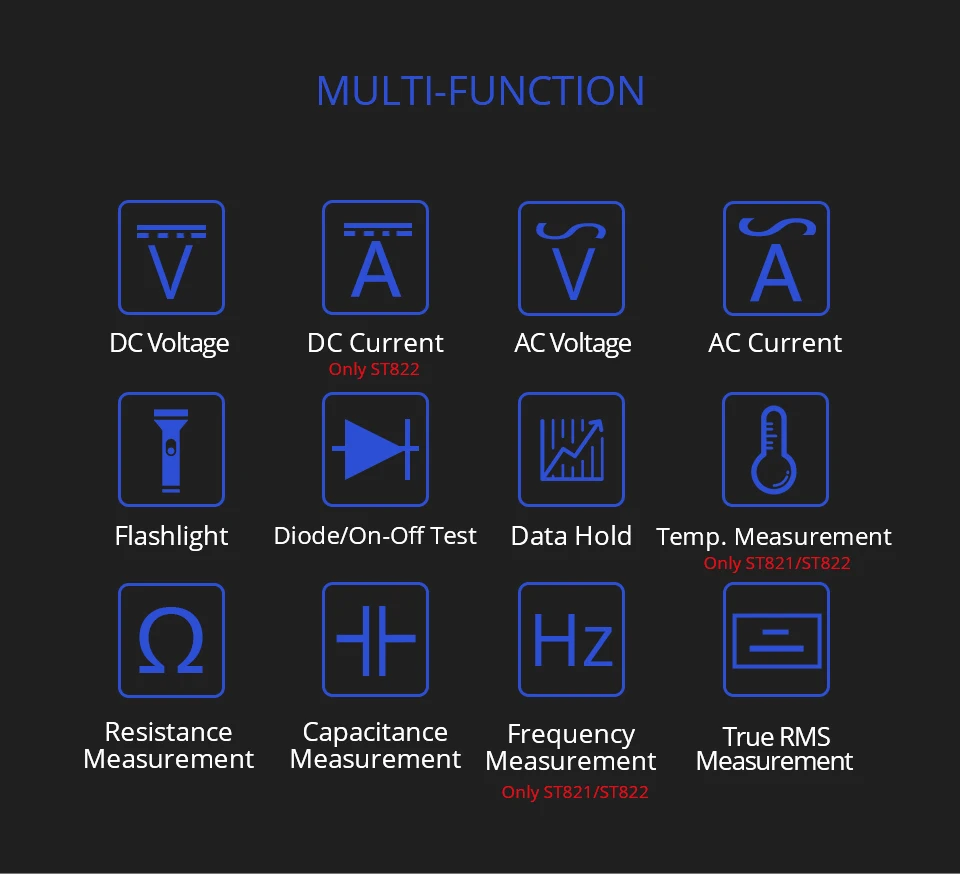

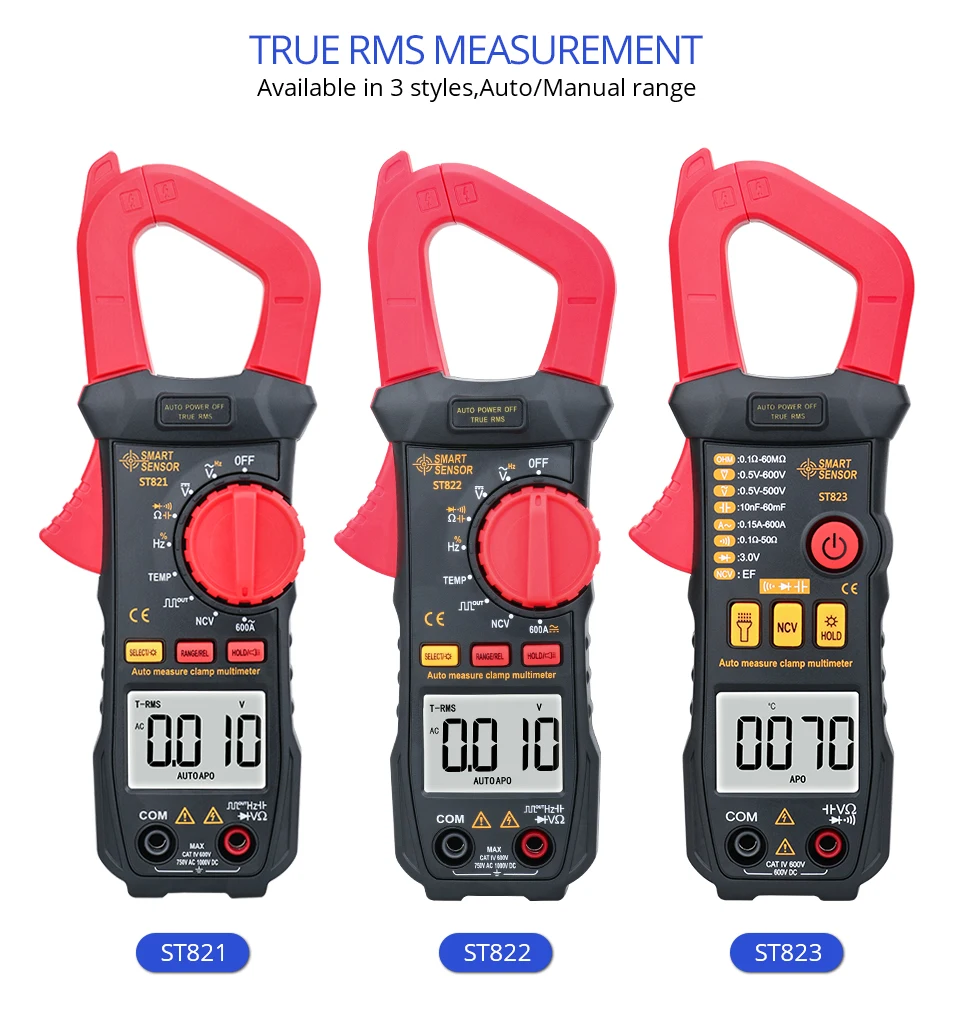

Model number	ST821	ST822	ST823 (No Shifting)
AC voltage(V)	6V-1000V ±(0.5%+3)	6V-1000V ±(0.5%+3)	6V-600V ±(0.5%+3)
DC voltage(V)	6V-750V ±(0.8%+3)	6V-750V ±(0.8%+3)	6V-500V ±(0.5%+3)
DC current(A)	×	60A-600A ±(2.5%+30)	×
AC current(A)	6A-600A ±(2.5%+30)	60A-600A±(2.5%+30)	60A-600A±(2%+30)
Resistance	6KΩ-600KΩ ±(0.8%+3)	6KΩ-600KΩ ±(0.8%+3)	6KΩ-600KΩ ±(0.8%+3)
Capacitance	60nF-30000uF±(3.5%+20)	60nF-30000uF±(3.5%+20)	10nF-60000uF±(3.5%+20)
Frequency(F)	1kHz-100kHz±(0.1%+3)	1kHz-100kHz±(0.1%+3)	×

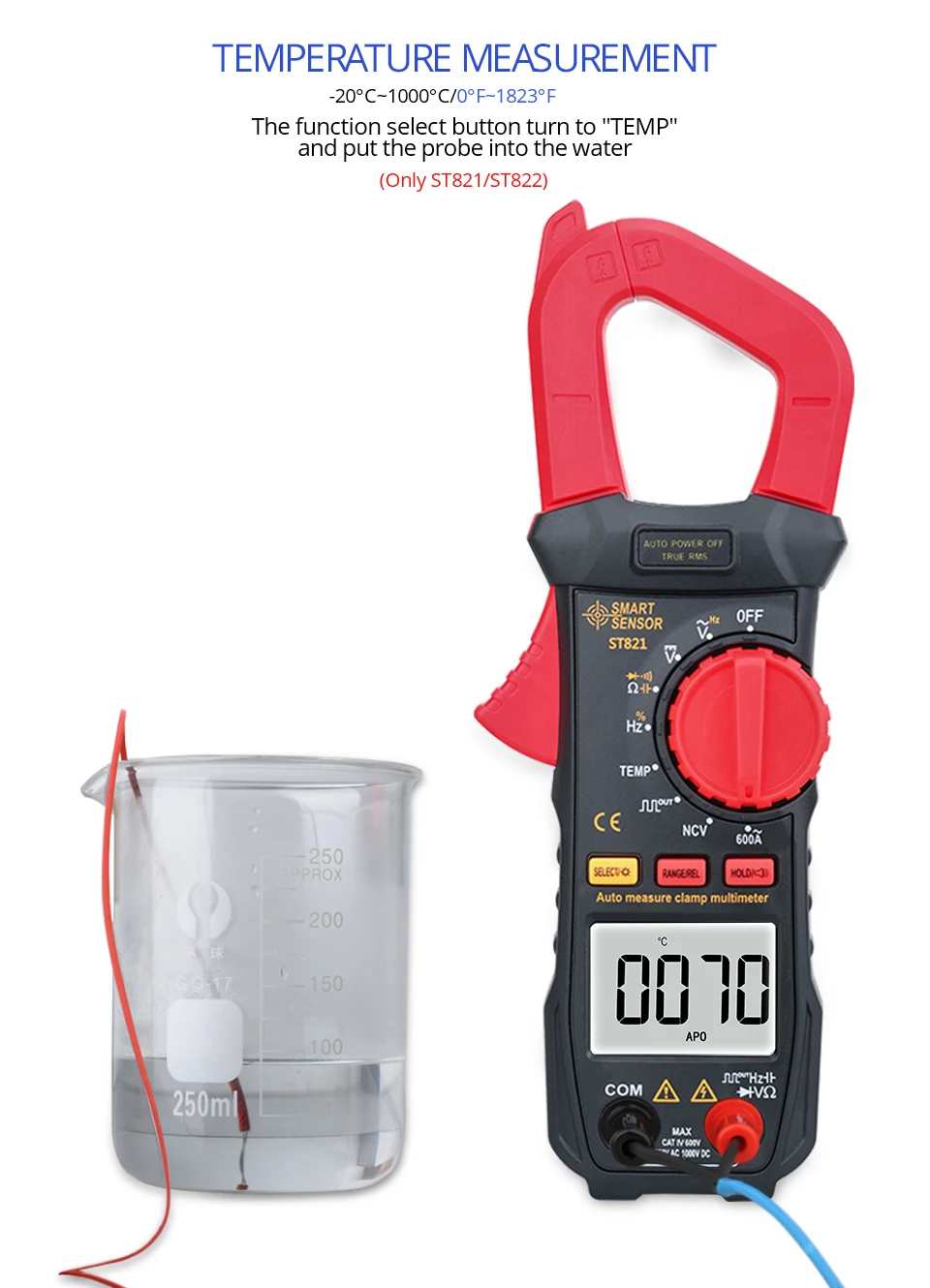

Temperature(°C/°F)	-200-1000°C/0-1832°F	-200-1000°C/0-1832°F	×
Maximum Display	5999(35/6) Bit Automatic Polarity	5999(35/6) Bit Automatic Polarity	5999(55/6) Bit Automatic Polarity

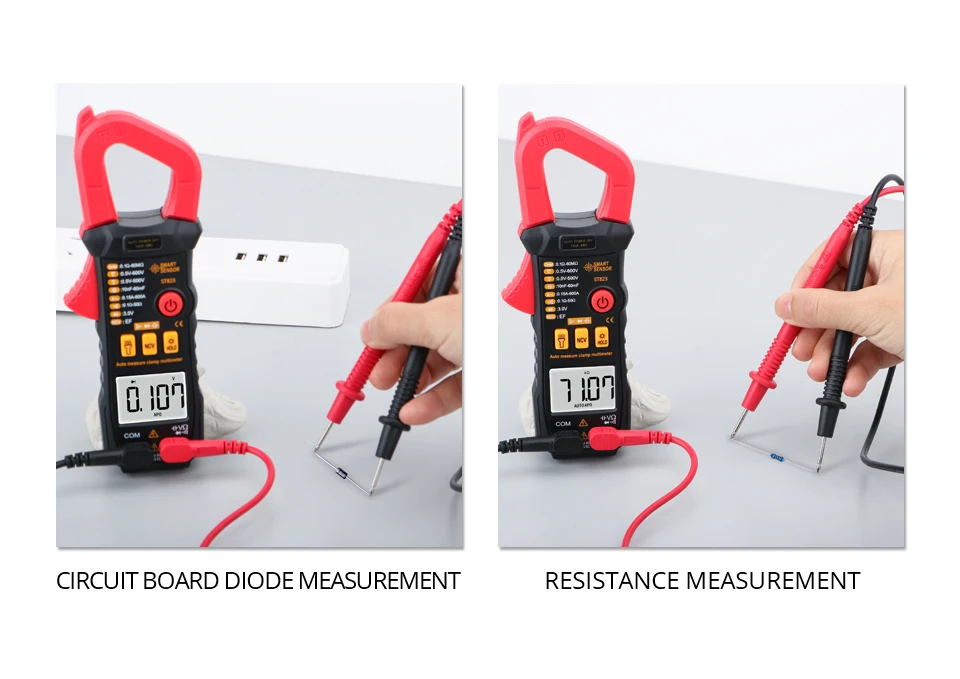

Diode	√	√	√

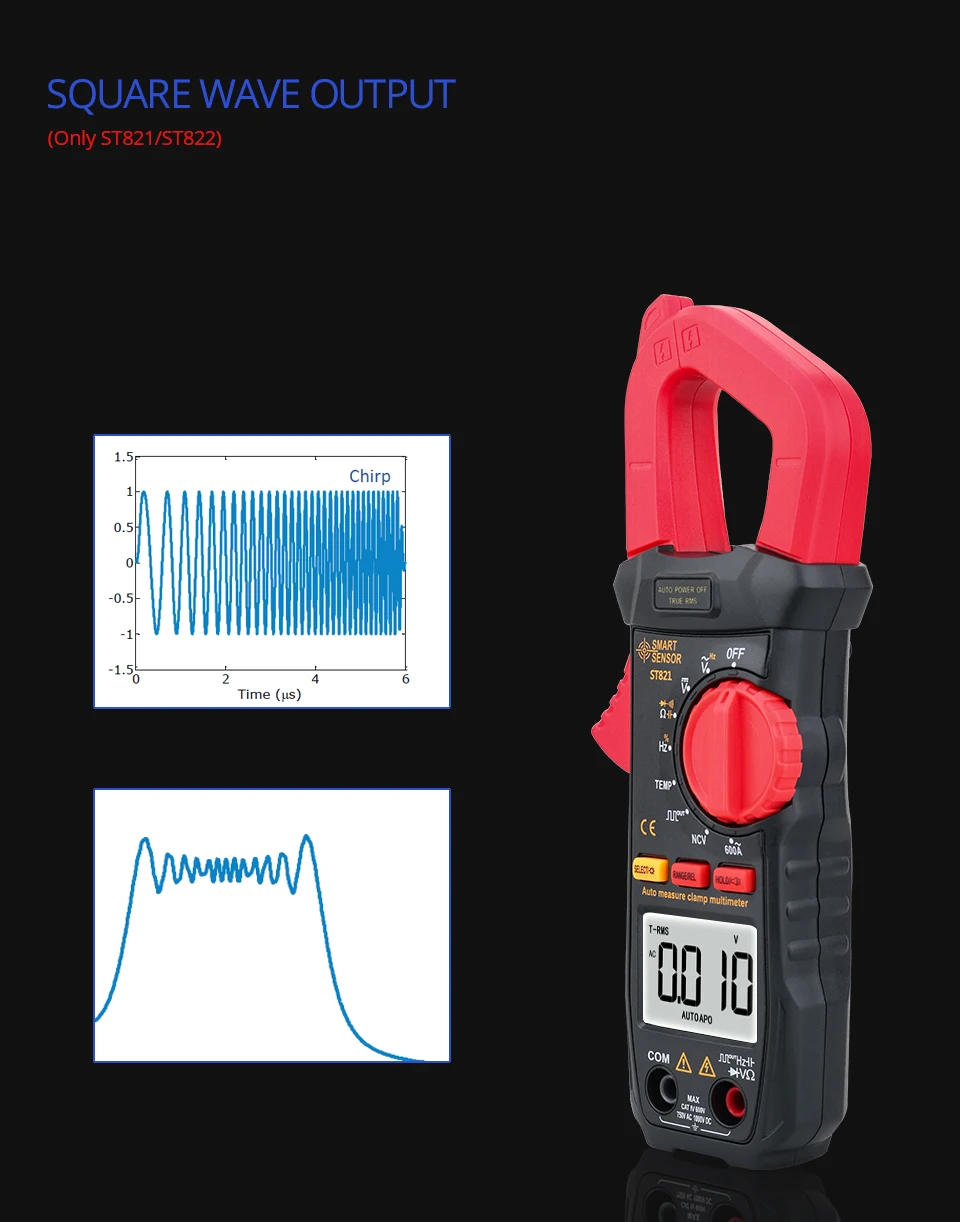

Square wave output	√	√	×

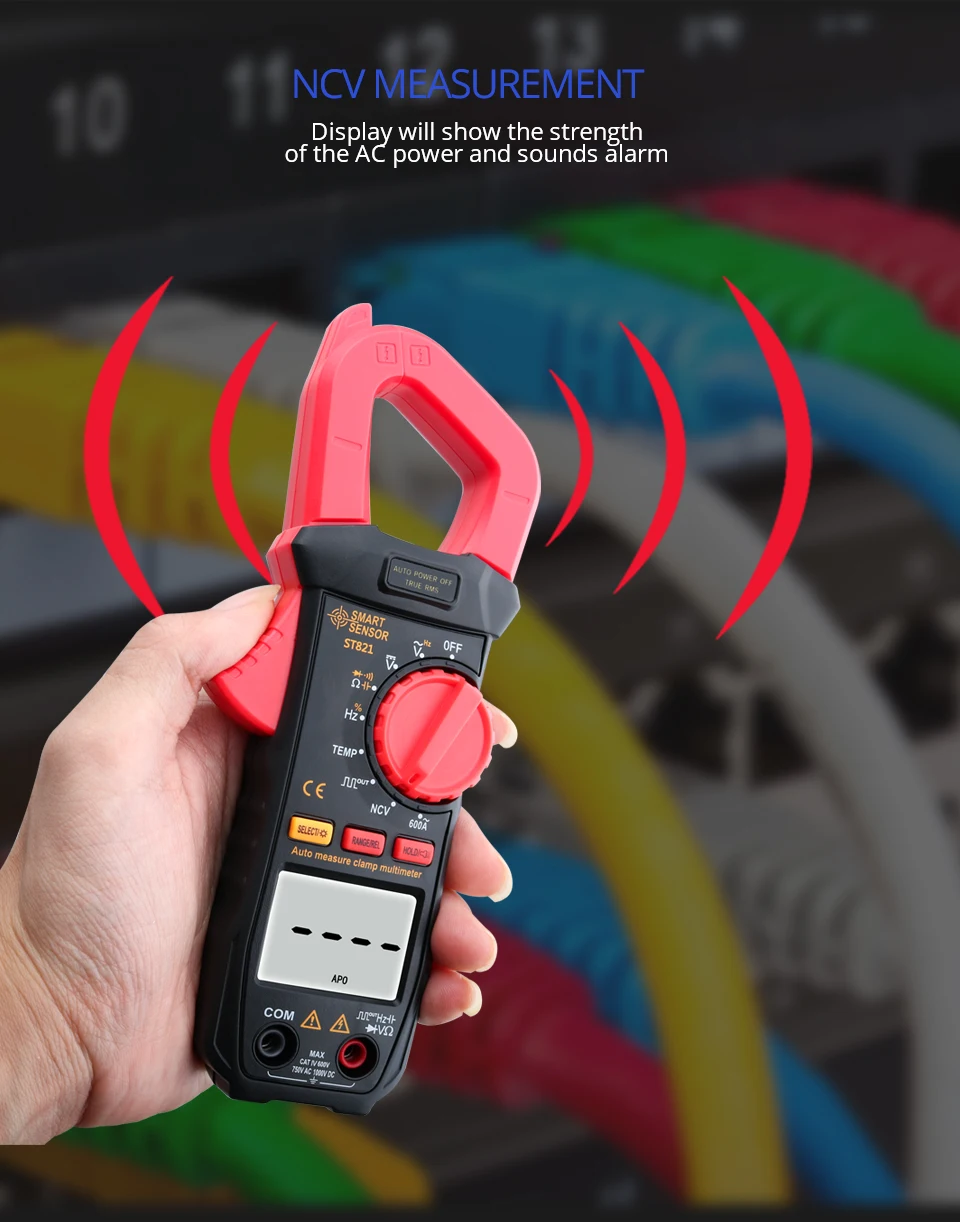

NVC	√	√	√

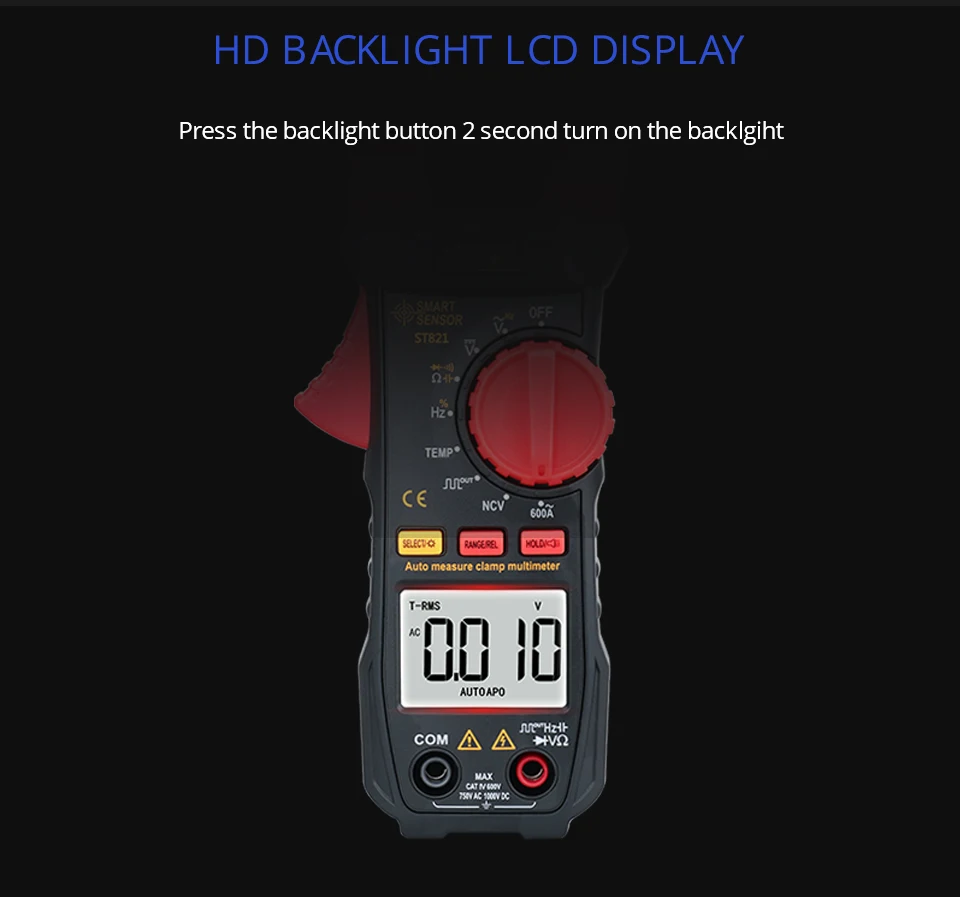

Backlight Manual/Auto Off	√	√	√
True RMS Measurement	√	√	√
Flashlight Lighting	√	√	√
Full Unit Symbol	√	√	√
Low voltage Indicator	√	√	√
Display	LCD display	LCD display	LCD display
Sampling Rate	About 3second/time	About 3second/time	About 3 second/time
Temperature Environment	0-40°C RH＜80%	0-40°C RH＜80%	0-40°C RH＜80%
Power Supply	2*1.5V AAA Battery	2*1.5V AAA Battery	2*1.5V AAA Battery
Package Weight	370g	370g	370g
Package Size	1795127mm	1795127mm	1795127mm

Hc9e85d768b8e4f1aaf5696bfc4a66690u

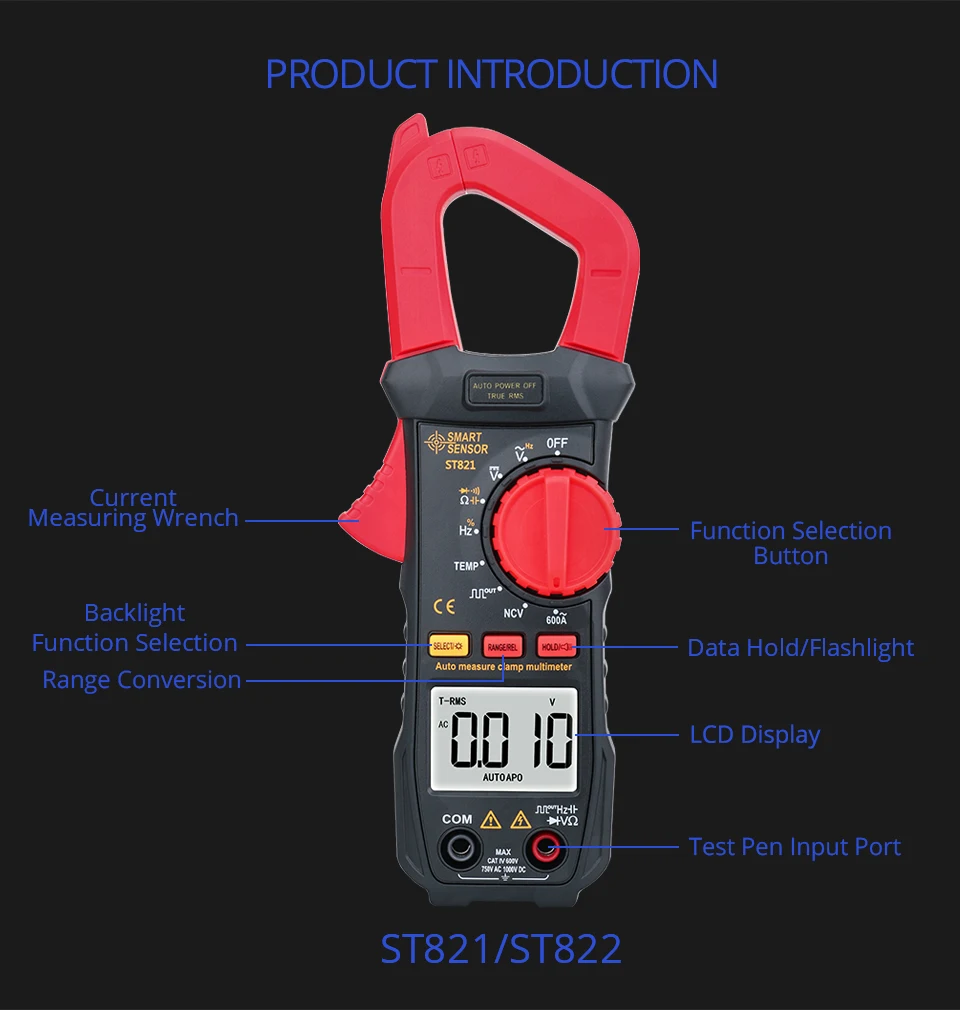

ST821

H93a26de94ee1462abc9d11fbda556c9en H4c6ba9752a5a42668dd8fae232d7c1a5P H4002497b3f8c40e798bc92e56af3d8dc9 H886ecce6ffb946f8afe5d81fbcc5dc61j H291c4b7372c446f7bfedb2e30ce5b725P Hdde148e503914e2988d118af123613deB H289b37e1d5b44869b0f1a5b1675feac7b

ST822

Hdc5ad3b2f7b043ac9003dfcea36b6af1C H332e9d564cc44789aae7e7ee66fd40d3H H0e18f8f5efcb4abc8891db8e54d7019dK

Hbf7007cd8eaf48d8a00597143ccfb9443 H7abd7fa7dda74d09b7ab16660ea333b0J

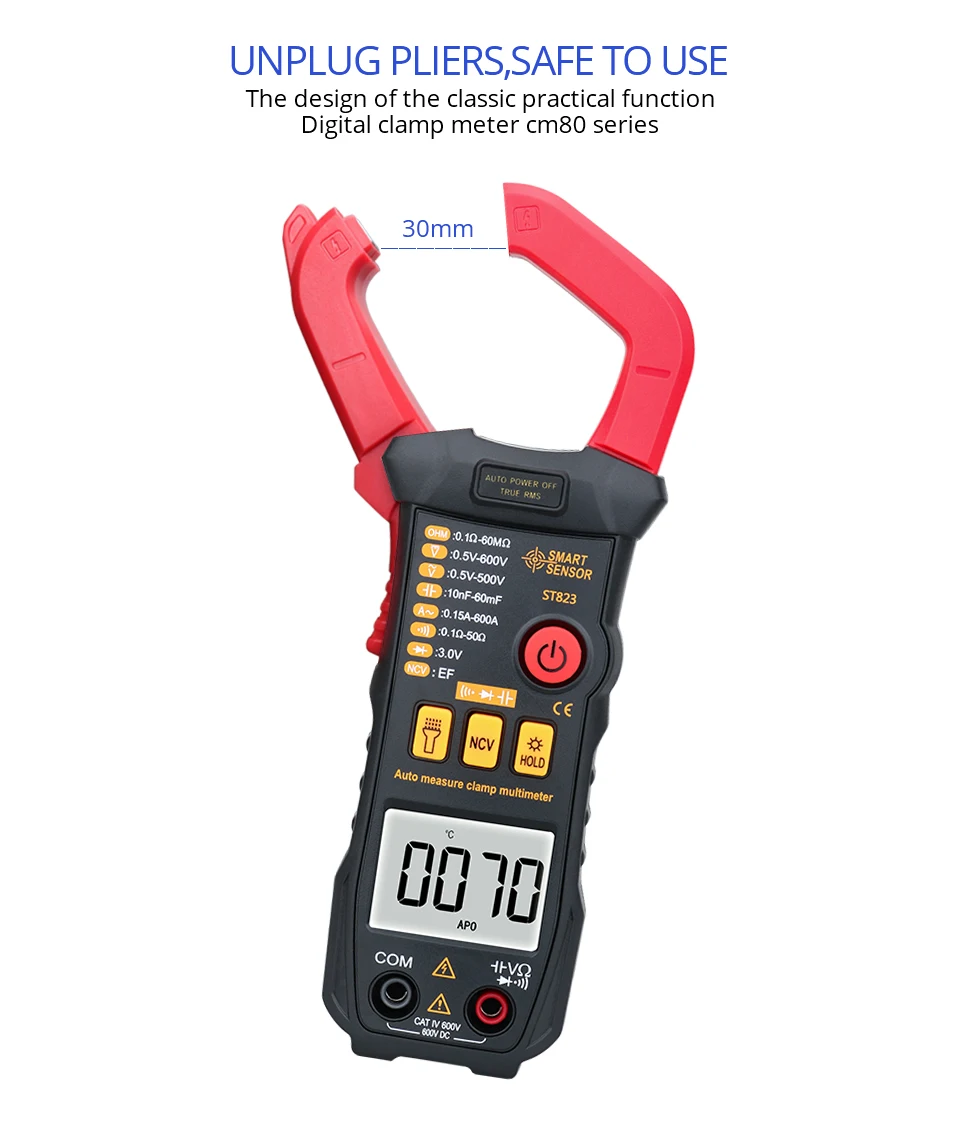

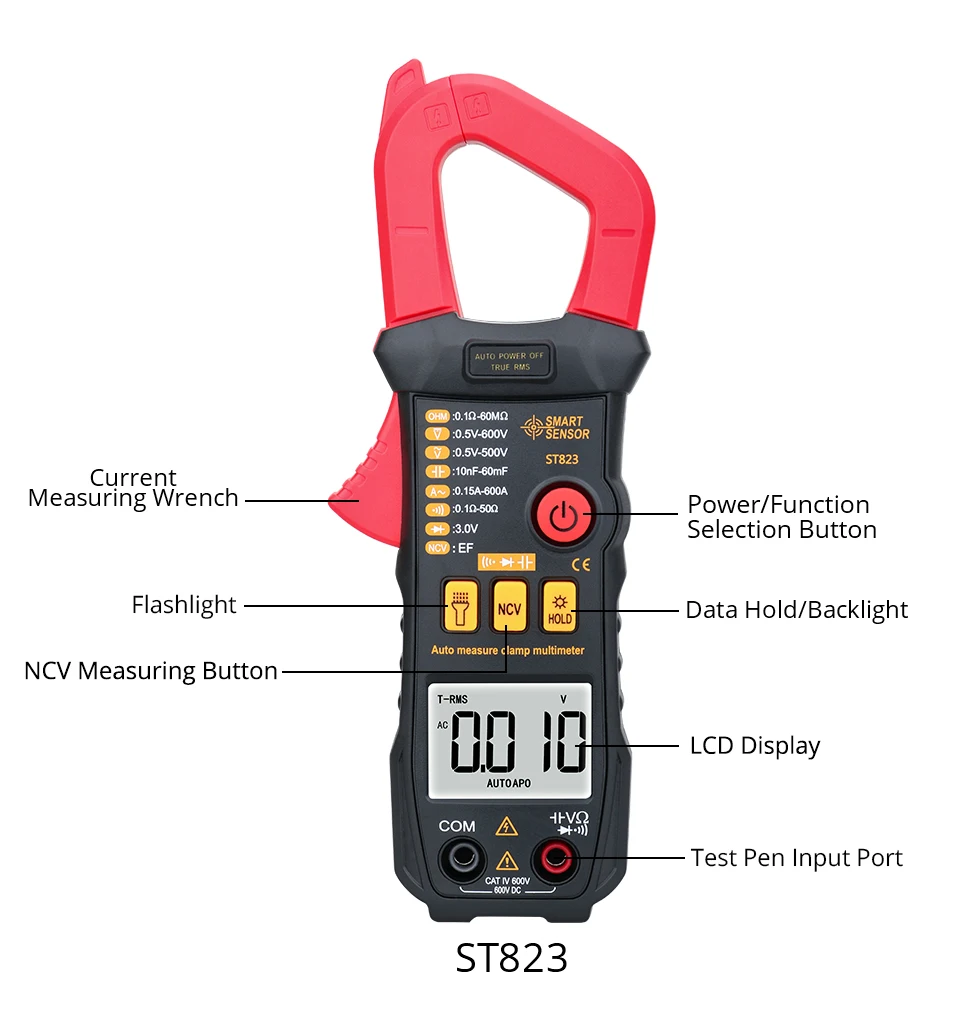

ST823

H9a11d4e27a09448c992b966fc1a7b2dcI Hd7110b0a76d94513a2f8e3ccbd5d3bb1a H9a92abd9bde44a78bba5d0fbe6e87bd9T Hcc746debddf548649b35276fda58c395d H1a8fd1066cab4c29b37e726a449fbc05Z H87a3fbcecf2d4ee5a2cea28bb81af4ddI Hc8c5f485b3b94d4d845675c15bbbeb69j

H69992ecd02df40bdb4603289700c1bf1b

H4f1b314a253c433e84f937605ec59394h
