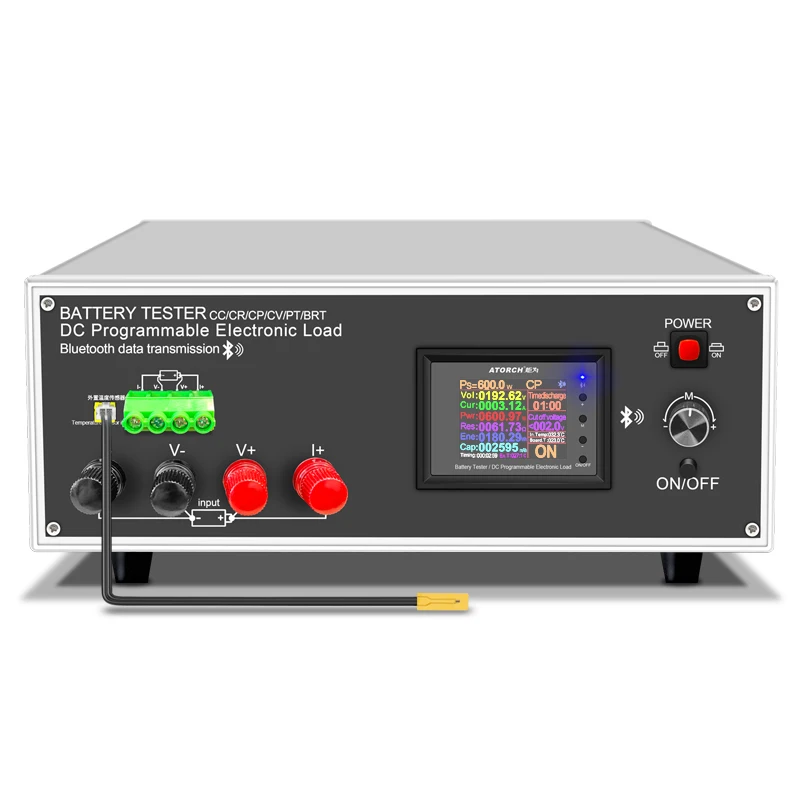

ATORCH DLB-600W Device Battery Tester (Electronic Load Tester)
- ATORCH DLB-600W Device Battery Tester (Electronic Load Tester)
- Model Number: DLB-600W
- Type: Electronic Device Battery Tester
- DIY Supplies: ELECTRICAL
- Brand Name: ATORCH
- Origin: Mainland China
- Certification: CE

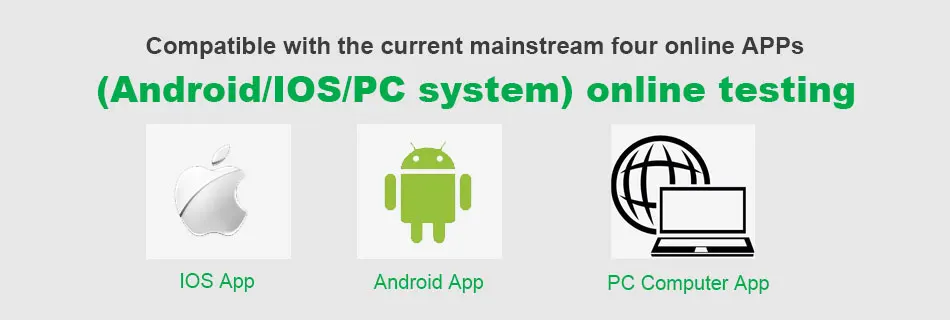

- Support Bluetooth APP: Apple IOS & Android & PC Computer
ATORCH DLB-600W Device Battery Tester (Electronic Load Tester)
- Model Number: DLB-600W
- Type: Electronic Device Battery Tester
- DIY Supplies: ELECTRICAL
- Brand Name: ATORCH
- Origin: Mainland China
- Certification: CE
- Support Bluetooth APP: Apple IOS & Android & PC Computer
- Support bidirectional current: yes
- Support full power cut off: yes

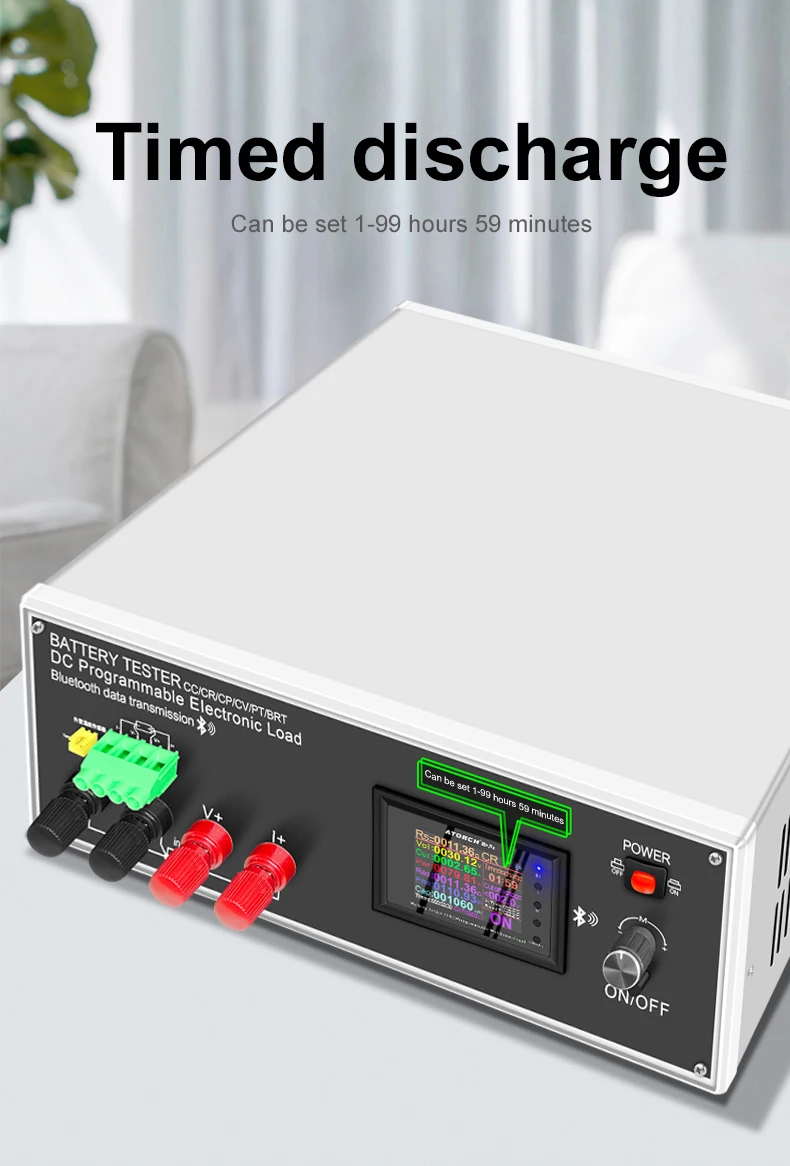

- Timed charging: 00H:01S-99H:59S setting
- Measuring voltage range: 2-200V
- 600W Measuring current range: 3mA~40A & 600W
File Download Way and 600W<25C（200V & 3mA~40A>10V）The packaging is reinforced and protected again
1, User manual, PC software installation instruction and PC software and Android APP download link : https://www.mediafire.com/folder/wnfpdnqfxscj2/DLB600W
2, IOS APP: search E_test on iphone APP store to download
3, Android APP: https://www.mediafire.com/file/0jiio43c0vuu1wx/U_Meter-Phone_mobile.apk/file
4, Android APP: search E-test at Google play to down load
5, 600W(V*A
2, IOS APP: search E_test on iphone APP store to download
3, Android APP: https://www.mediafire.com/file/0jiio43c0vuu1wx/U_Meter-Phone_mobile.apk/file
4, Android APP: search E-test at Google play to down load
5, 600W(V*A
Buy Attention:The power supply specification we provide is DC12V US US standard power supply, and we will also be equipped with a US to EU EU adapter. If your country cannot use this power supply, it is recommended not to purchase it to avoid disputes!
At the same time, you can also find a local power supply DC12V 1A
150W 180W DC12V 1A
300W 450W 600W using DC12V 3A
At the same time, you can also find a local power supply DC12V 1A
150W 180W DC12V 1A
300W 450W 600W using DC12V 3A
Thank you for your support!

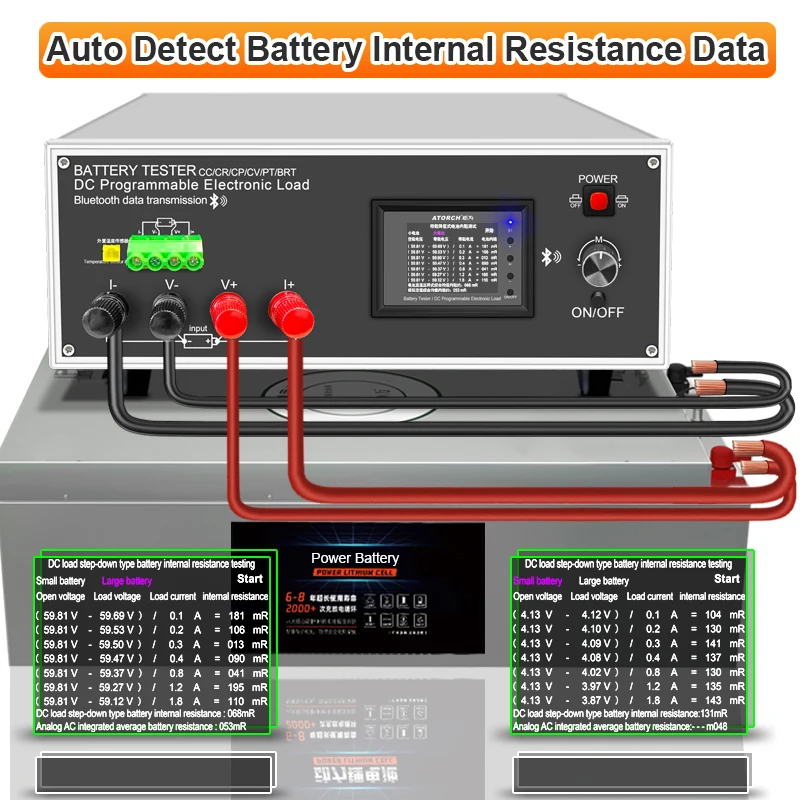

Note: The discharge current is limited by the maximum power, less than 3A above 200V, and less than 40A at 15V.1.1 Battery capacity test
The tester is designed for the discharge of various batteries,18650 battery,car battery including NiMH, NiCd, LiPo, LiFe and Pb, as well as capacity testing.
The tester is designed for the discharge of various batteries,18650 battery,car battery including NiMH, NiCd, LiPo, LiFe and Pb, as well as capacity testing.

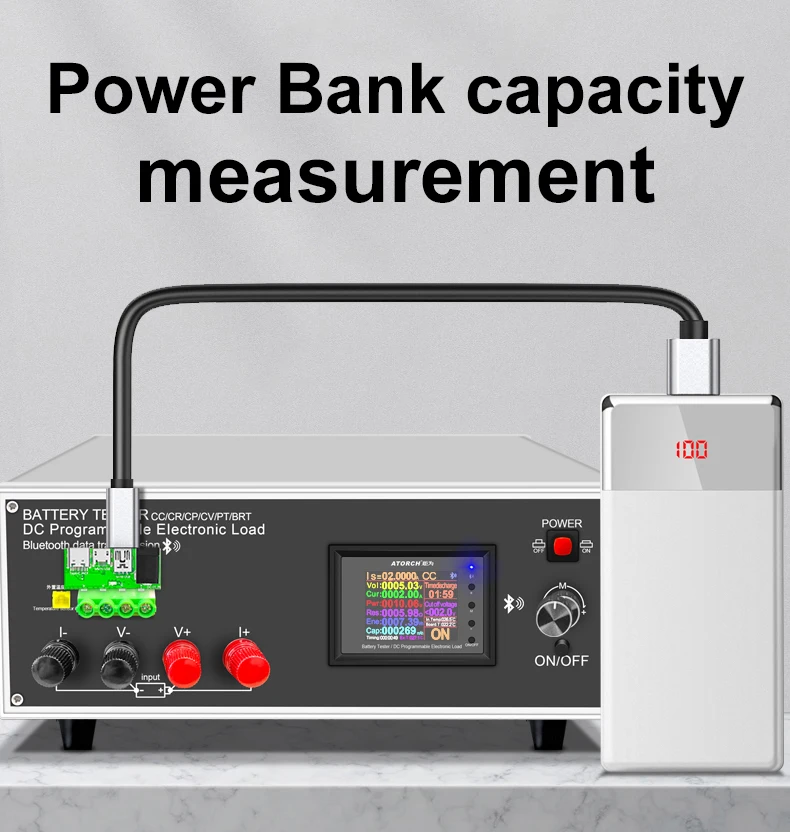

1.2 Mobile power test
This tester supports discharging of mobile power supply and capacity test.
1.3 Power performance test
The tester supports performance and aging tests of various DC power supplies.
(2):
2.1 Power supply: DC 12V/2A
2.2 Voltage range: 0-200.00V, step 0.01V

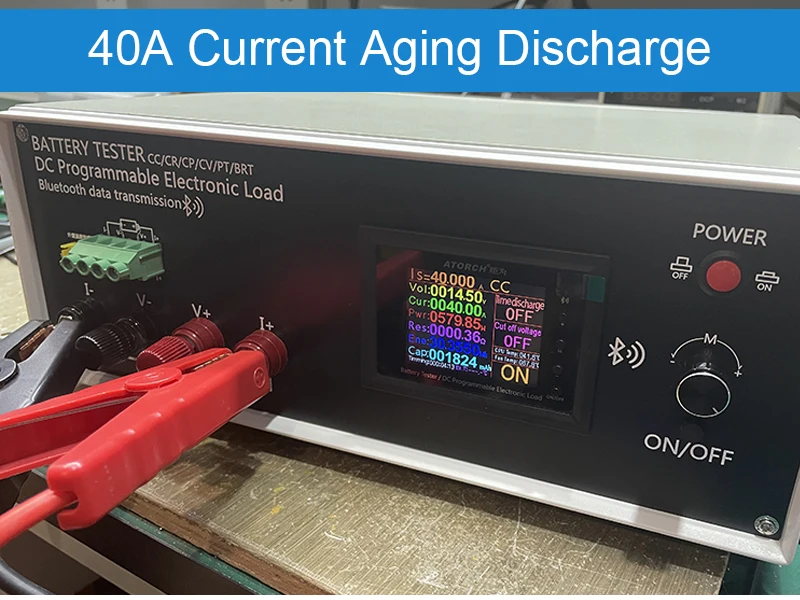

2.3 Current range: 0.010-40.00A, step 0.01A (the current is automatically adjusted according to the power limit)
2.4 Discharge method:
CC: Constant current discharge of the battery, which supports testing of battery capacity or power supply current.
CP: Discharge the battery with constant power for use or test power such as constant power equipment.
2.5 Discharge power:600W

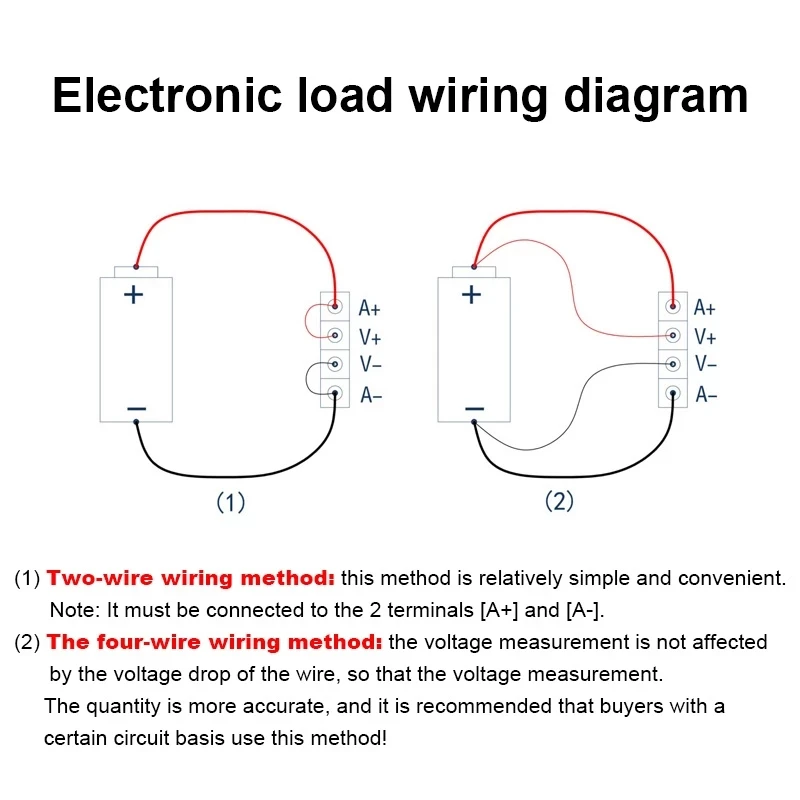

2.6 Four wires: voltage and current channels are separated, with high test accuracy
2.7 IPS display: voltage, current, time, capacity, power, electric energy, etc.

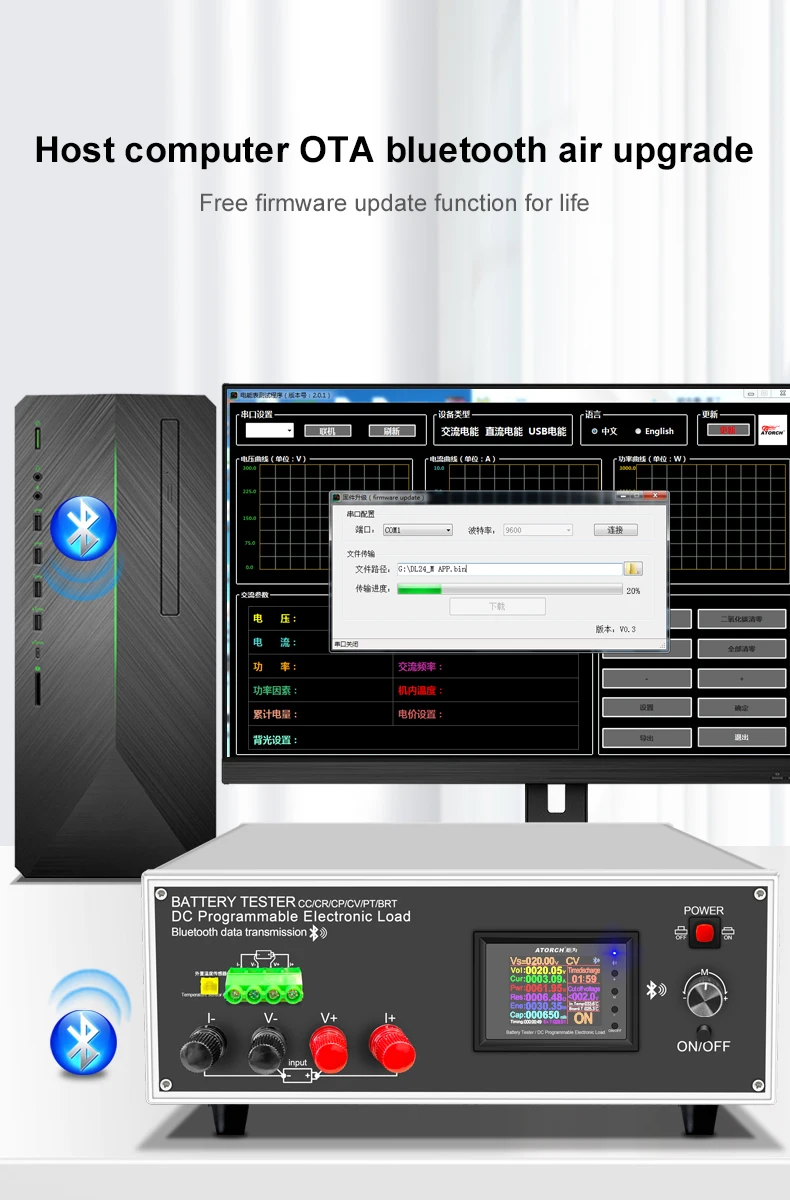

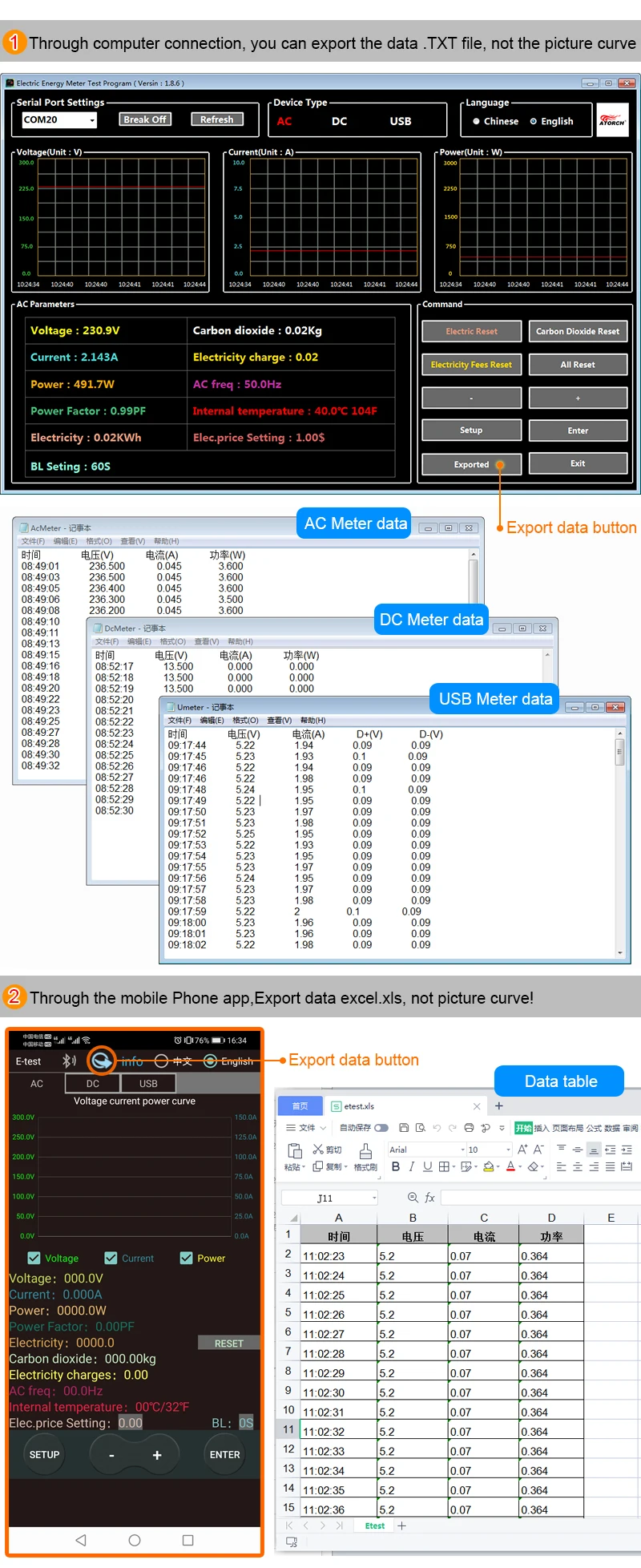

2.8 PC connection: The tester can be connected to the computer through Bluetooth to achieve more functions, such as graphics, calibration, firmware upgrades, and test cycles.
This tester supports discharging of mobile power supply and capacity test.
1.3 Power performance test
The tester supports performance and aging tests of various DC power supplies.
(2):
2.1 Power supply: DC 12V/2A
2.2 Voltage range: 0-200.00V, step 0.01V
2.3 Current range: 0.010-40.00A, step 0.01A (the current is automatically adjusted according to the power limit)
2.4 Discharge method:
CC: Constant current discharge of the battery, which supports testing of battery capacity or power supply current.
CP: Discharge the battery with constant power for use or test power such as constant power equipment.
2.5 Discharge power:600W
2.6 Four wires: voltage and current channels are separated, with high test accuracy
2.7 IPS display: voltage, current, time, capacity, power, electric energy, etc.
2.8 PC connection: The tester can be connected to the computer through Bluetooth to achieve more functions, such as graphics, calibration, firmware upgrades, and test cycles.

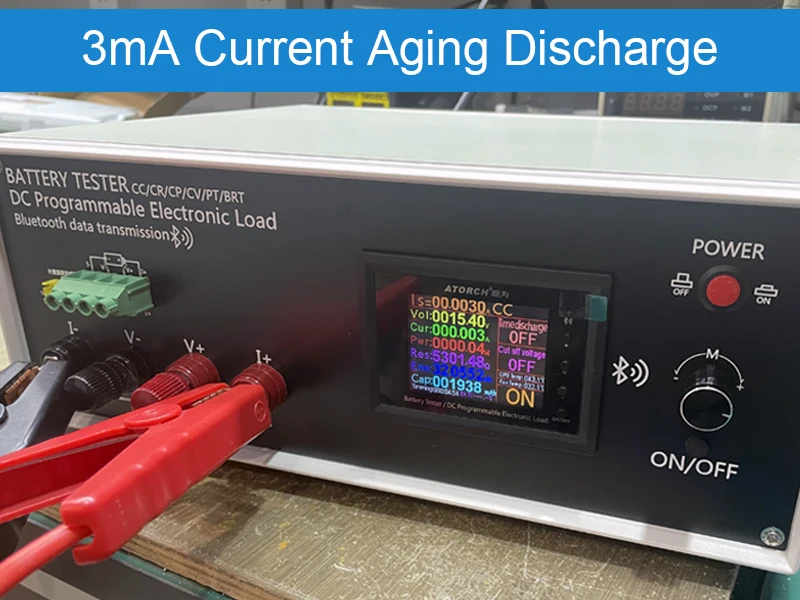

Two kinds of 1mA or 10mA current test gearOperation method: Long press the “ON/OFF” Button to enter the background, press the “M” Button, select 05 item: Precision of current: O10mA ●1mA, set by “+” or “-“
(Tips: Start the test with a minimum of 3mA)
(Tips: Start the test with a minimum of 3mA)
Introduction to the key operation of frequently used functions1)Short press the “ON/OFF” button to start and stop, short press the upper left corner of the “M” button to move the cursor and then adjust the corresponding value with the “+/- ” button
2) Long press the “+/- ” button at the same time to clear all accumulated data such as the current capacity, battery time, etc. (Long press the “ON/OFF” button to enter the background ，also can be cleared in the background menu)
3) Long press the “M” button and the function mode starts to flash, then short press the “+/-” button to select the function (CC/CV/CR/CP/BRT/PT)
4) In OFF mode, long press the “ON/OFF” button to enter the background interface, then short press the “M” button to switch the setting column, and the “+/-” button to adjust the number
5) Short press the “+/-” button in the constant current accuracy column of the background setting interface to switch the constant current accuracy (10mA Or 1mA)
6) When the system is not supplying power, press and hold the “M” button and do not let go. Then power on again. Enter the splicing power option and jump to the actual power value before let go

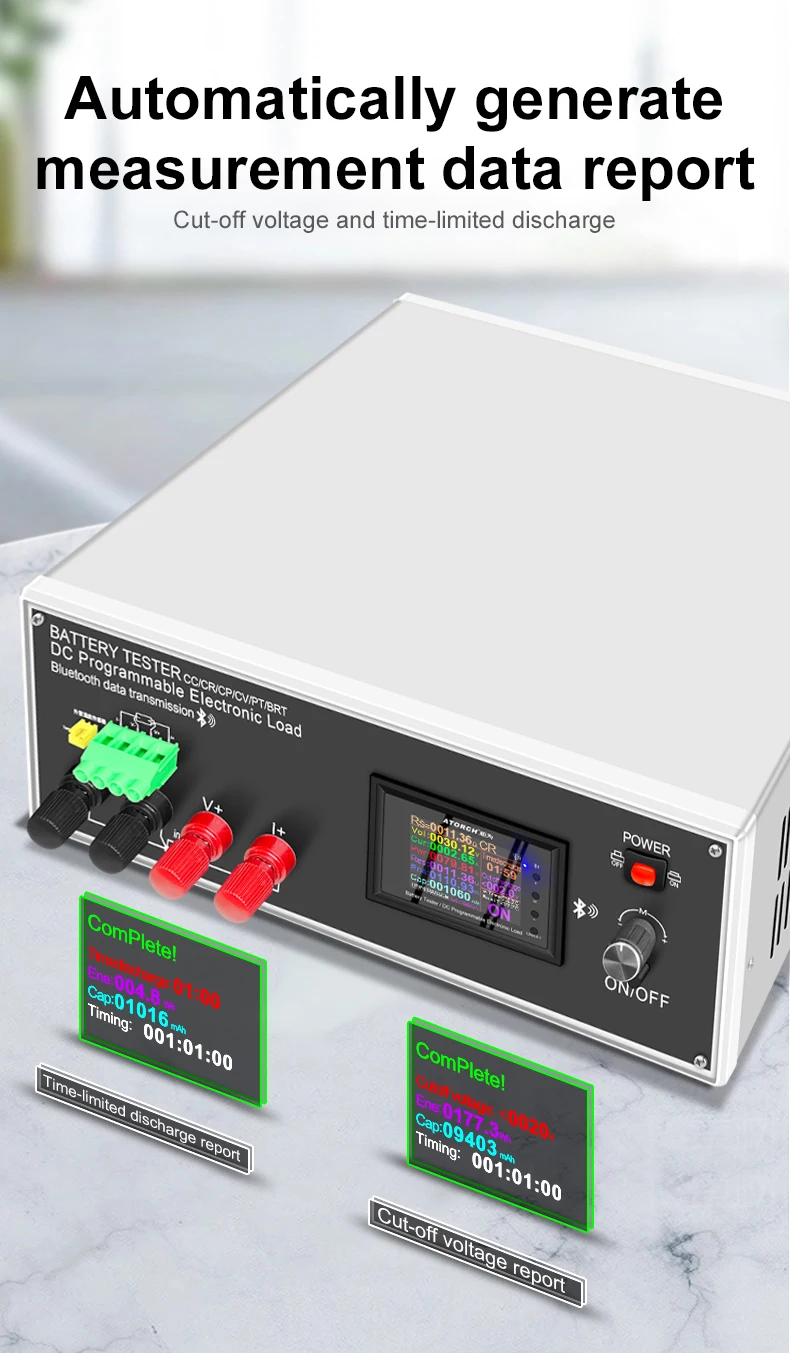

7) Long press the “M” button the function mode starts to flash, short press the “M” button again to enter the setting adjustment value of the time-limited discharge and Cut off voltage column value
2) Long press the “+/- ” button at the same time to clear all accumulated data such as the current capacity, battery time, etc. (Long press the “ON/OFF” button to enter the background ，also can be cleared in the background menu)
3) Long press the “M” button and the function mode starts to flash, then short press the “+/-” button to select the function (CC/CV/CR/CP/BRT/PT)
4) In OFF mode, long press the “ON/OFF” button to enter the background interface, then short press the “M” button to switch the setting column, and the “+/-” button to adjust the number
5) Short press the “+/-” button in the constant current accuracy column of the background setting interface to switch the constant current accuracy (10mA Or 1mA)
6) When the system is not supplying power, press and hold the “M” button and do not let go. Then power on again. Enter the splicing power option and jump to the actual power value before let go
7) Long press the “M” button the function mode starts to flash, short press the “M” button again to enter the setting adjustment value of the time-limited discharge and Cut off voltage column value

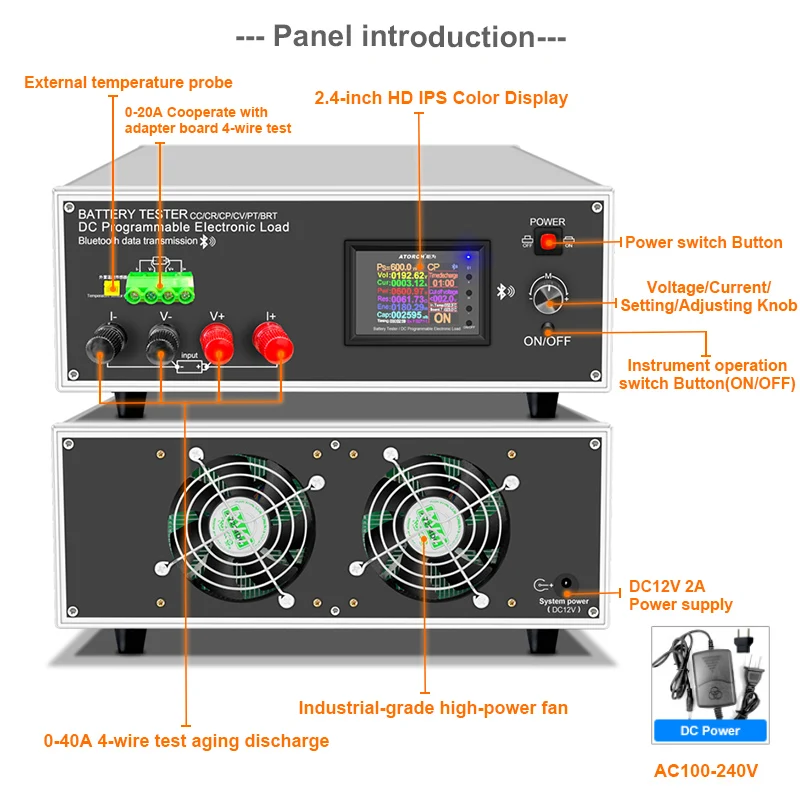

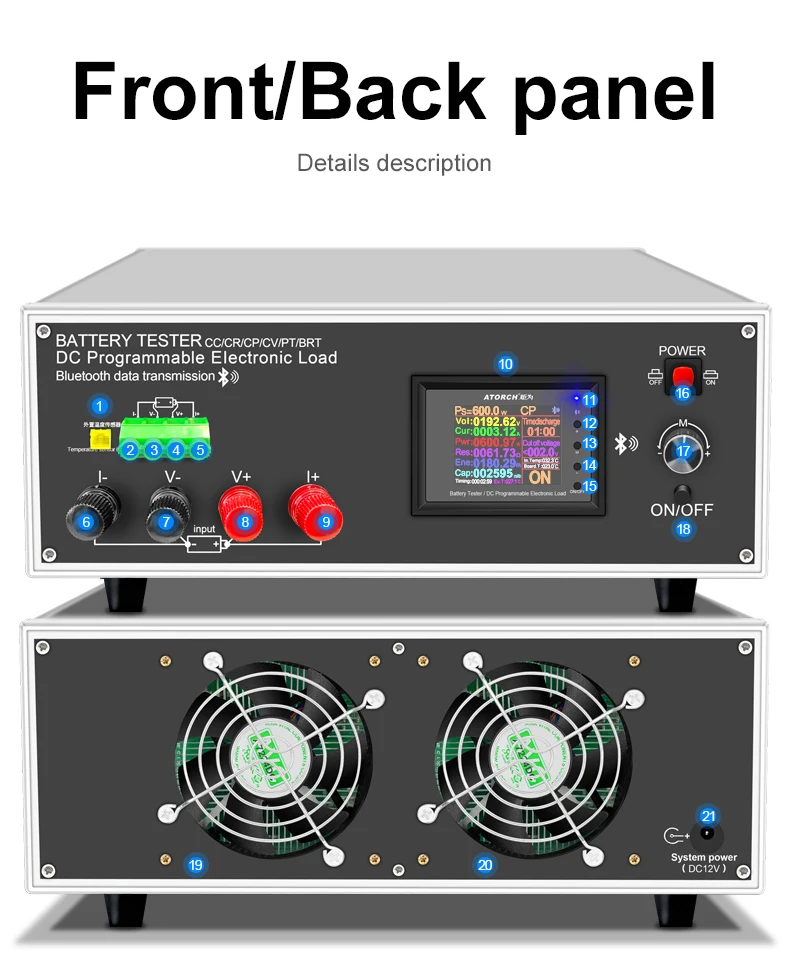

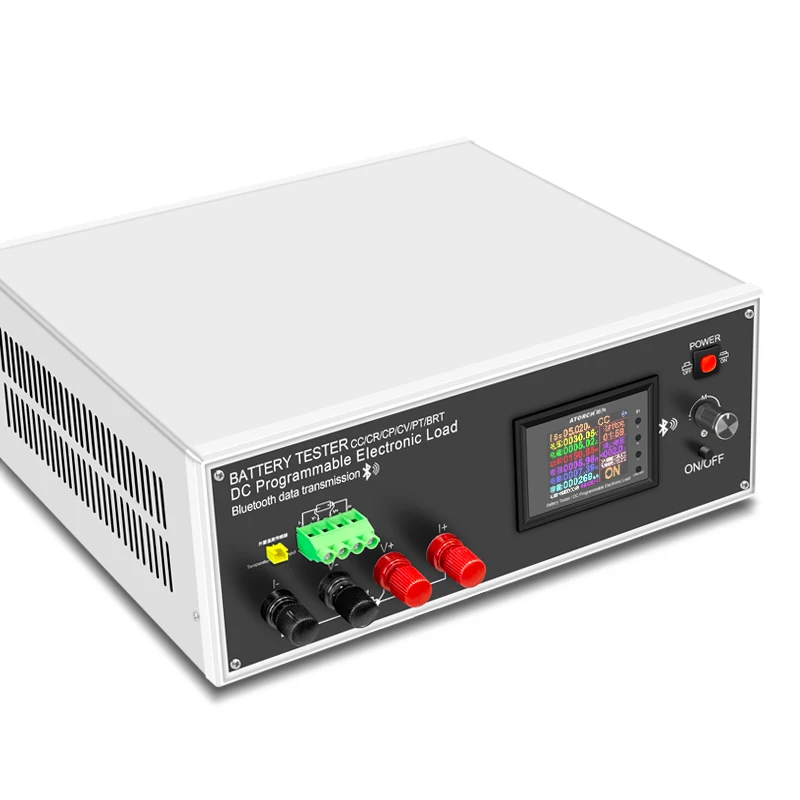

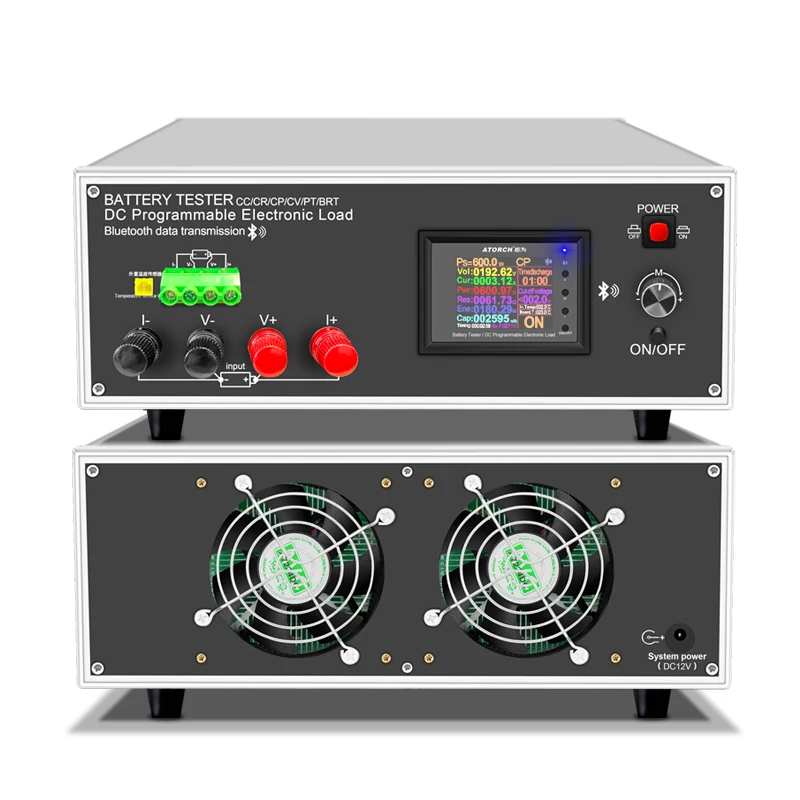

Panel Main buttons and descriptionⅠ：Bluetooth indicator（Flashing waiting for Bluetooth connection，Long light indicates successful connection）
Ⅱ：”+” Vave Increase Button（Short press the button to increase the number, long press the button to increase continuously,When the mode is flashing, short press the button to cycle backwards）
Ⅲ：”M” Set Buton（Long press “M” key to start function mode, press “+” or “-” key to switch CC/CV/CP/CR/BRT/PT mode, long press “M” key to start function mode, short press “M” again Key to switch between Time Discharge and Cut off voltage. Press the “+” or “-” key to set the value, the default is OFF）
Ⅳ：”-” Value Reduce Buton（Short press the button to decrease the number and long press the button to decrease continuously. When the mode is flashing, short press to cycle forward）
Ⅴ：”ON/OFF” Run ON/OFF Button(Short press the button, it is ON or OFF
Long press the button to enter the product background settings, and use the “M” button and “+” or “-” button to set the parameters）
Ⅱ：”+” Vave Increase Button（Short press the button to increase the number, long press the button to increase continuously,When the mode is flashing, short press the button to cycle backwards）
Ⅲ：”M” Set Buton（Long press “M” key to start function mode, press “+” or “-” key to switch CC/CV/CP/CR/BRT/PT mode, long press “M” key to start function mode, short press “M” again Key to switch between Time Discharge and Cut off voltage. Press the “+” or “-” key to set the value, the default is OFF）
Ⅳ：”-” Value Reduce Buton（Short press the button to decrease the number and long press the button to decrease continuously. When the mode is flashing, short press to cycle forward）
Ⅴ：”ON/OFF” Run ON/OFF Button(Short press the button, it is ON or OFF
Long press the button to enter the product background settings, and use the “M” button and “+” or “-” button to set the parameters）

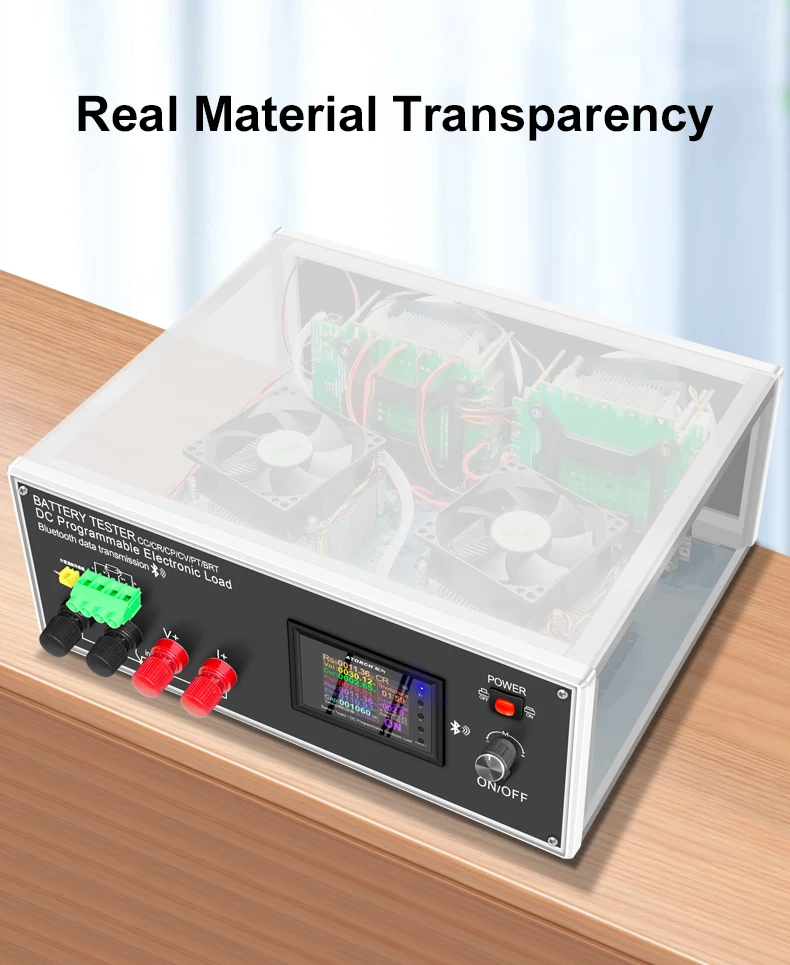

Host Parameters and description1.Test various DC power inputs
2.MiNi USB detection port inputs
3.Micro USB detection port inputs
4.Type-c USB detection port inputs
5.DIY assembly Different power reserve jumper positions（150W/300W/450W/600W）
6.External NTC temperature probe
7.DC5.5 system power supply (must supply DC12V 1A)
2.MiNi USB detection port inputs
3.Micro USB detection port inputs
4.Type-c USB detection port inputs
5.DIY assembly Different power reserve jumper positions（150W/300W/450W/600W）
6.External NTC temperature probe
7.DC5.5 system power supply (must supply DC12V 1A)

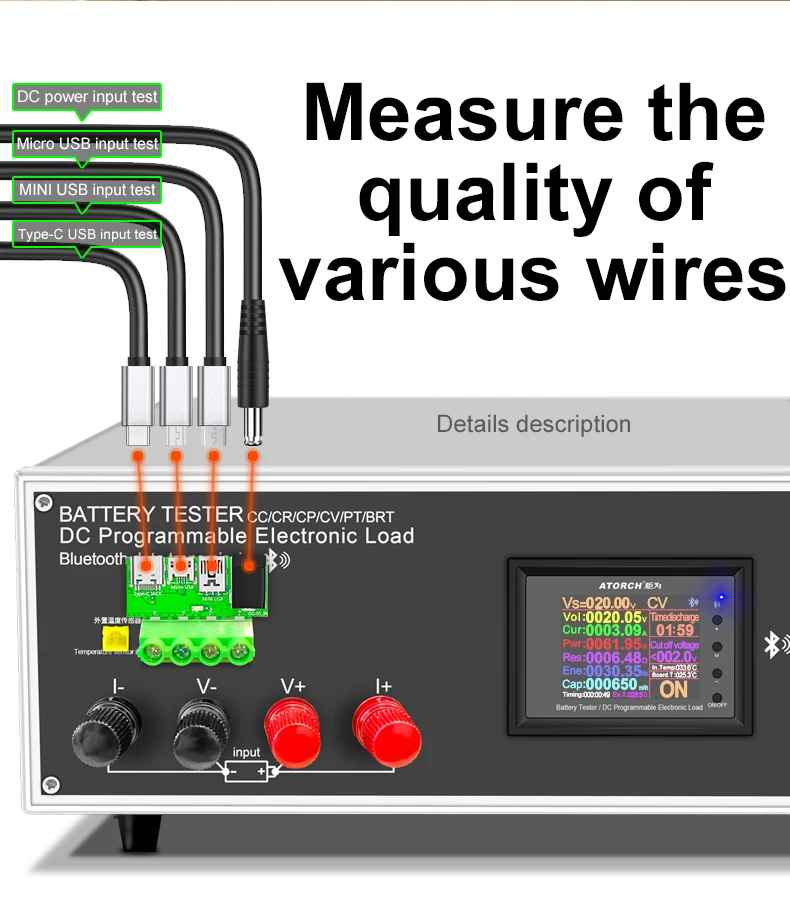

Test all kinds of data cables/chargersTest/discharge/aging/get it all

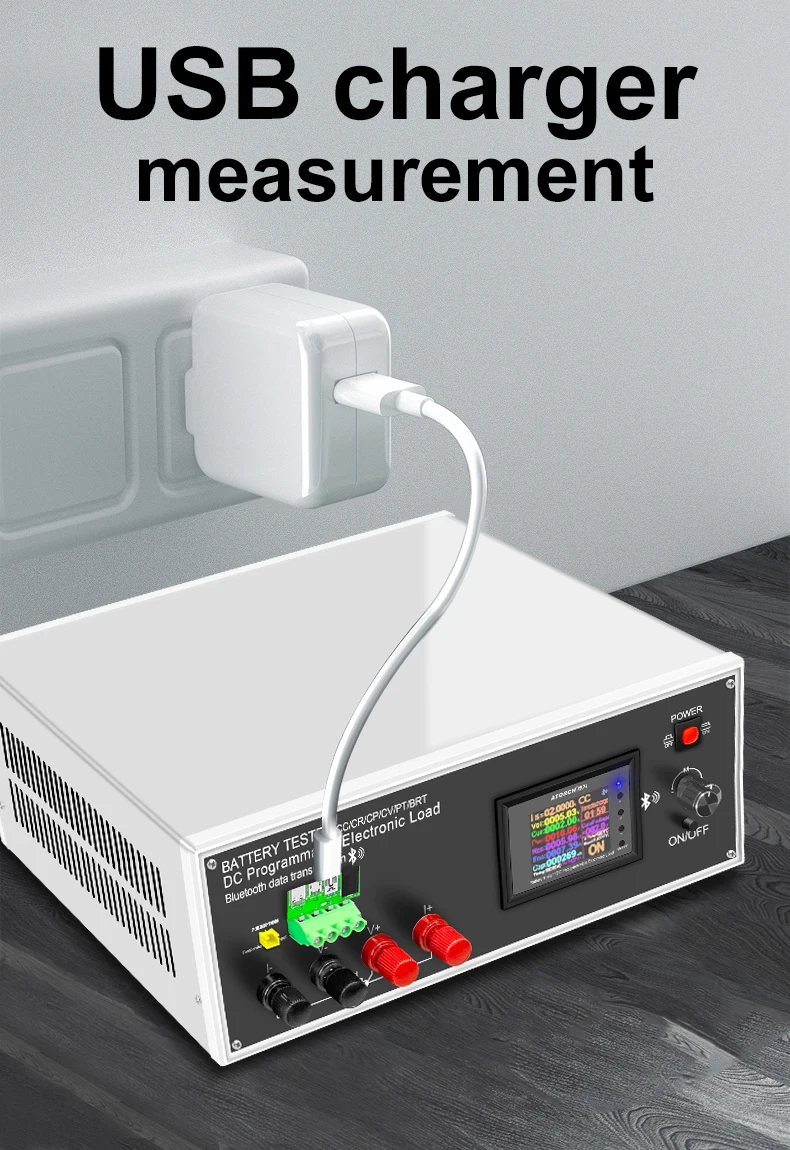

Play and test various USB data cables/chargers, first use a data cable
Connect the corresponding interface of the load, connect as shown in the figure below, when the load is turned on in the constant current mode
Adjust the current so that the voltage drop is 1V less than the no-load condition
The current value at this time is the current value of the measured data line
Play and test various USB data cables/chargers, first use a data cable
Connect the corresponding interface of the load, connect as shown in the figure below, when the load is turned on in the constant current mode
Adjust the current so that the voltage drop is 1V less than the no-load condition
The current value at this time is the current value of the measured data line

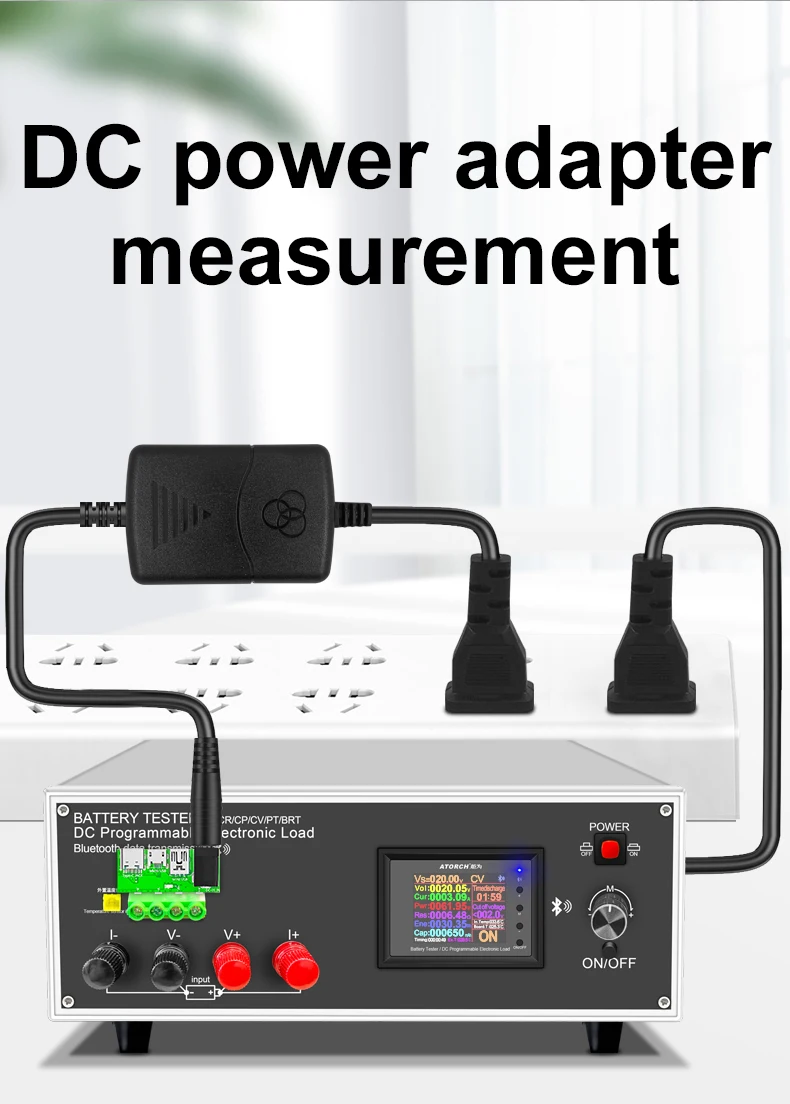

Through testing various DC power adaptersPlay and measure the current, voltage, power and other parameters of various DC power adapters
Use the DC power supply to connect the DC independent power supply port of the load meter, and then use the “Settings” button to connect as shown in the figure below.
Precisely adjust the current to test the voltage and rated current of the power supply
The DC power supply can also be aged for a long time, with strong functions, simple operation, convenient and quick testing
Use the DC power supply to connect the DC independent power supply port of the load meter, and then use the “Settings” button to connect as shown in the figure below.
Precisely adjust the current to test the voltage and rated current of the power supply
The DC power supply can also be aged for a long time, with strong functions, simple operation, convenient and quick testing

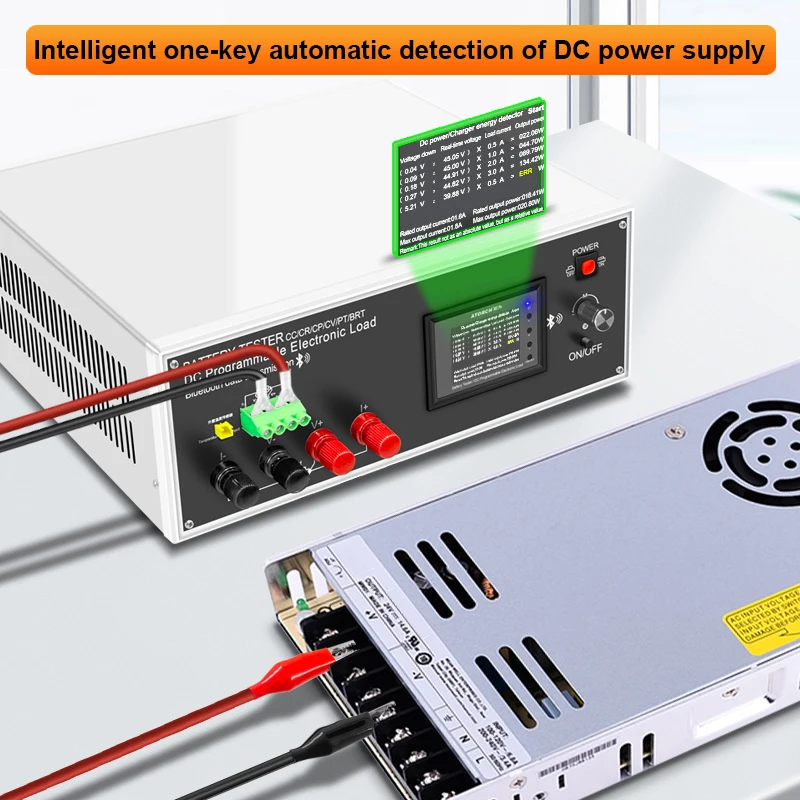

Intelligent one-key full automatic detection of DC power supplyPT mode of charger current power performance
Press and hold the M button in the menu until the mode bar flashes, wait a while after pressing the ten-key PT mode
Automatically enter the DC power supply/charger auto-detector mode, then plug in your tested power supply and
Charger, then short press the start button, it will automatically start to run for a period of time and then report
Displays 4 kinds of important numerical results, making complicated tests instantly simplified, accurate, and easy to use
Press and hold the M button in the menu until the mode bar flashes, wait a while after pressing the ten-key PT mode
Automatically enter the DC power supply/charger auto-detector mode, then plug in your tested power supply and
Charger, then short press the start button, it will automatically start to run for a period of time and then report
Displays 4 kinds of important numerical results, making complicated tests instantly simplified, accurate, and easy to use
Test all kinds of power bank capacity

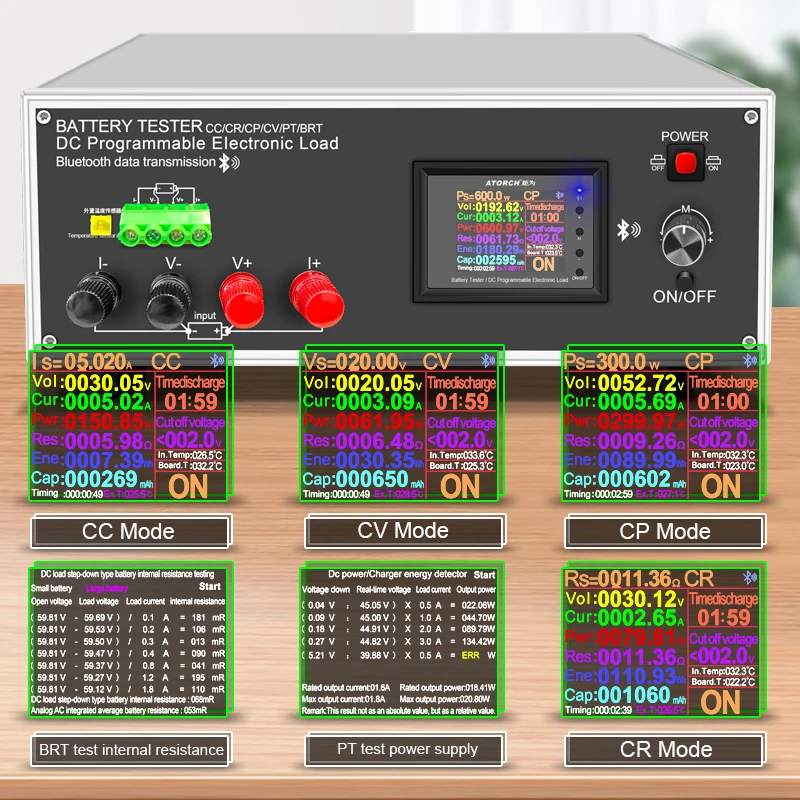

Four operating modes of operation1.Constant current operation（CC）
2.Constant resistance operation（CR）
3. Constant power operation（CP）
4. Constant voltage operation（CV）
2.Constant resistance operation（CR）
3. Constant power operation（CP）
4. Constant voltage operation（CV）

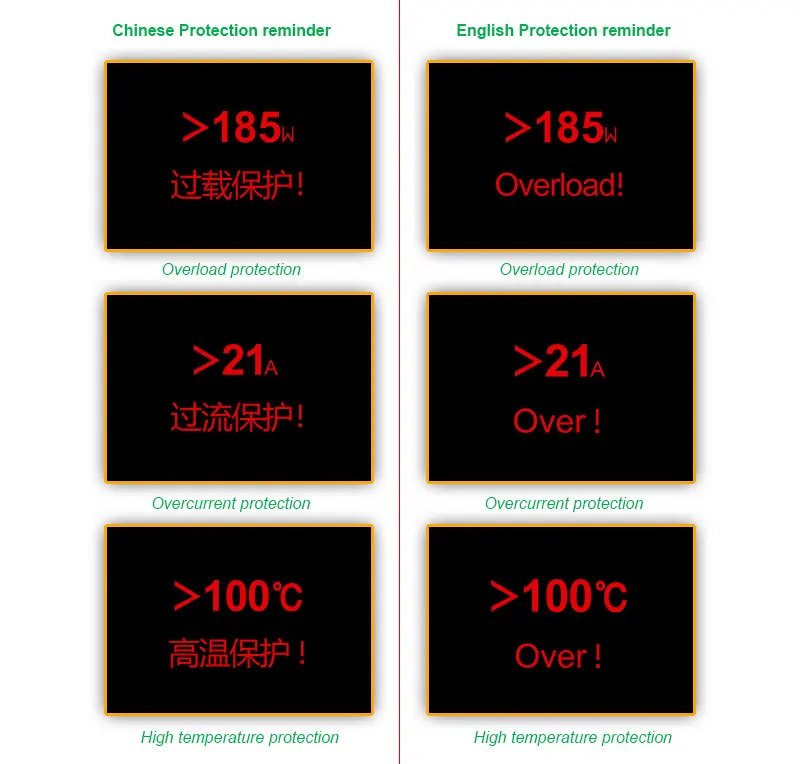

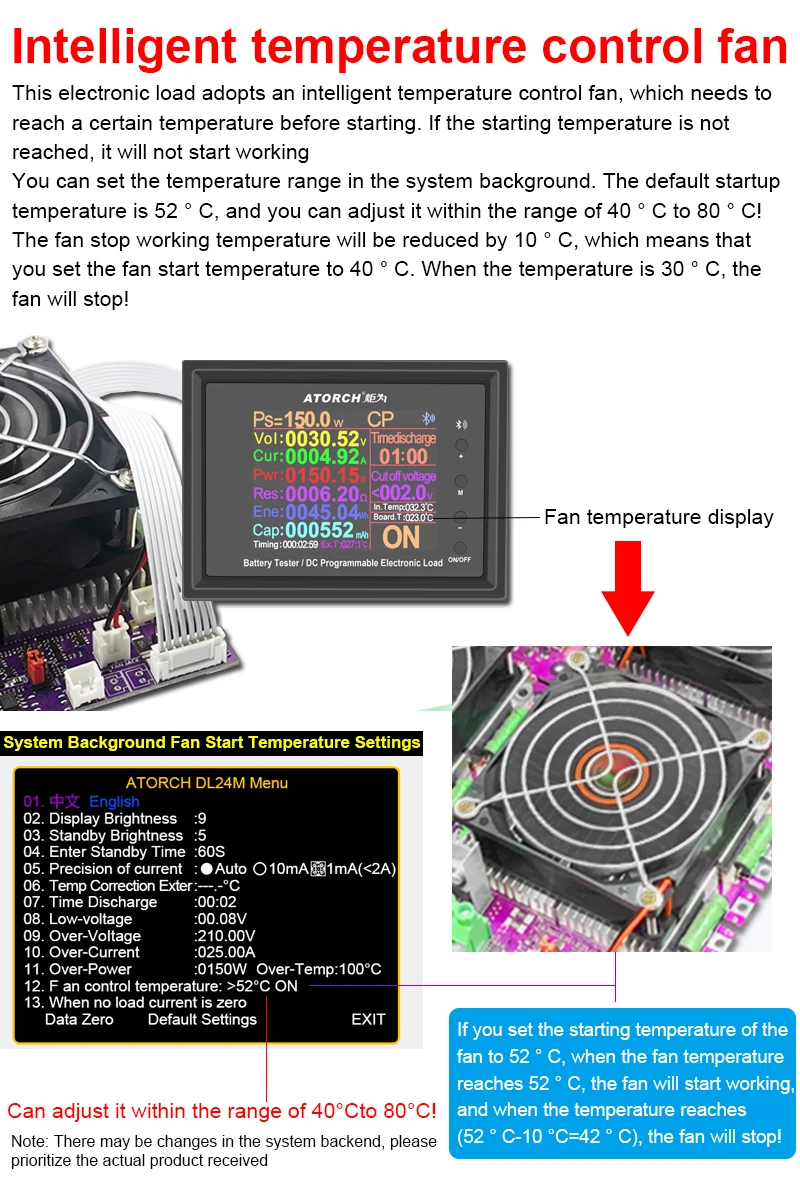

Protection settings1.Overload protection
2.Overcurrent protection
3. High temperature protection
2.Overcurrent protection
3. High temperature protection
Device background settings (Chinese / English settings)1.Chinese settings
2.English settings
2.English settings

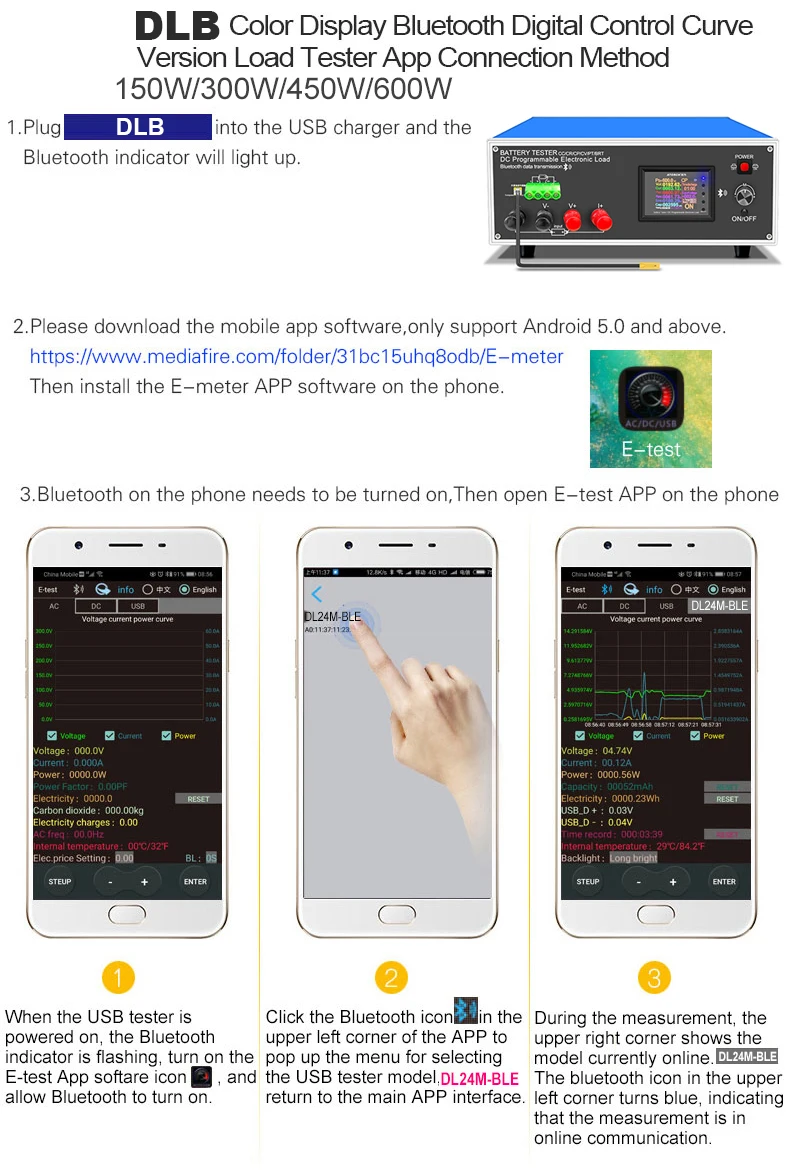

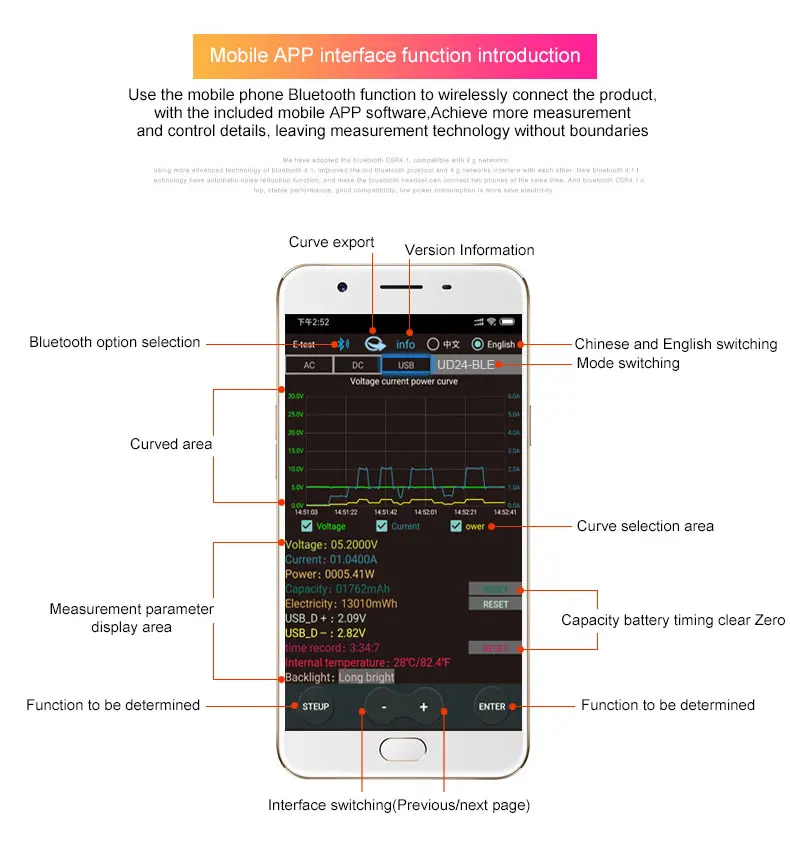

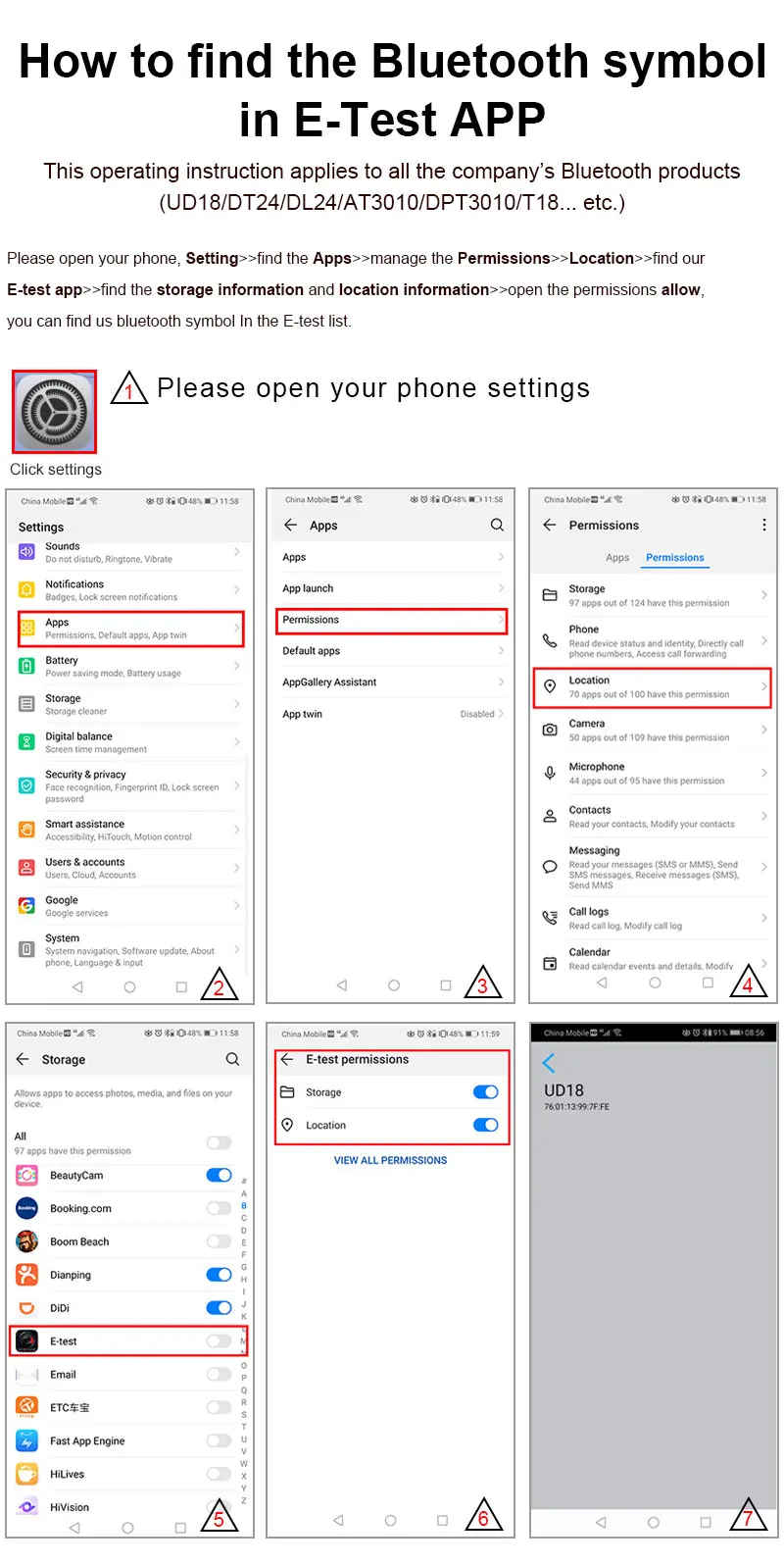

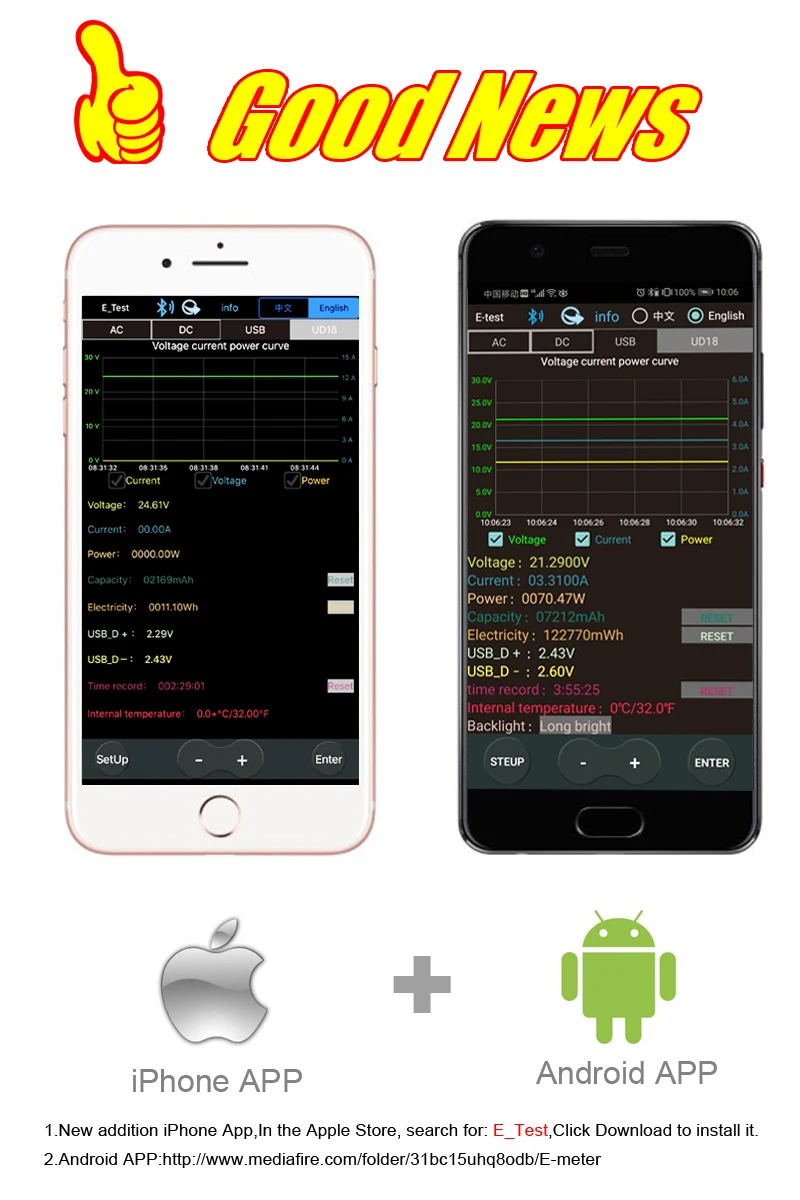

1) Apple Mobile APP:Please search for E_test in the application store to download and install, then click the Bluetooth APP icon to open the software, and then click the Bluetooth icon above the software to enter the selection DL24-BLE to connect, you can achieve mobile phone remote wireless remote control settings and Measurement function, the discharge status can be viewed at any time on the mobile phone, various data cleaning is visible, the voltage and current power curve of the discharge, etc.
2) Android phone APP:Scan the QR code on the back of the host to download the corresponding APP software or Android APP: search E-test at Google play to down load . After the installation is complete, open the software and click the Bluetooth icon to enter the direct selection of DL24-BLE to successfully use it online. (No need for Bluetooth pairing, the software Bluetooth icon directly selects DL24. can)

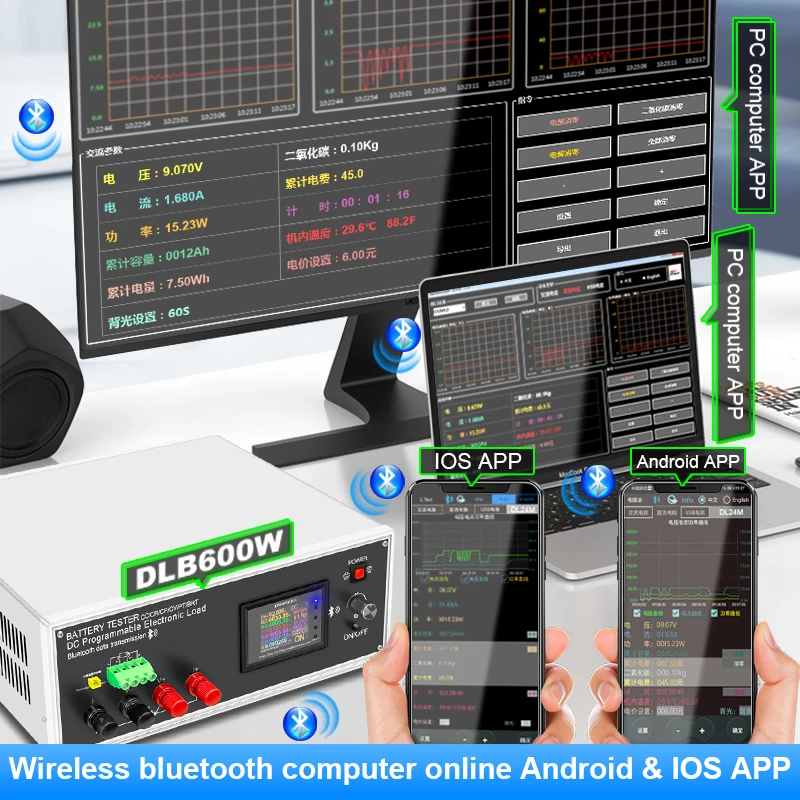

3) Computer Bluetooth wireless online APP:First add the Bluetooth device to the serial port device of DL24-SPP on the computer, then scan the QR code on the back of the host to download the corresponding APP software and store it. Open the software without installing and select the Bluetooth serial port model just added. You can successfully use online

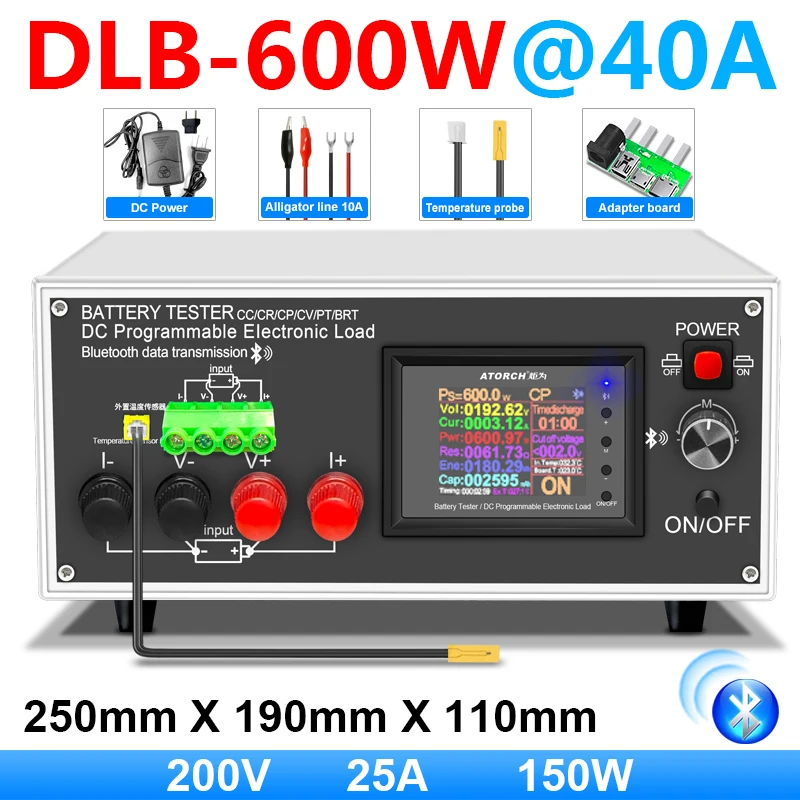

Product List
1.600W battery tester 1pcs
2.DC12V 2A power supply 1pcs
3.10A red and black alligator clip cable 1set
4. Temperature probe 1pcs
5. Adapter board 1pcs
6.US to EU adapter 1pcs
2.DC12V 2A power supply 1pcs
3.10A red and black alligator clip cable 1set
4. Temperature probe 1pcs
5. Adapter board 1pcs
6.US to EU adapter 1pcs

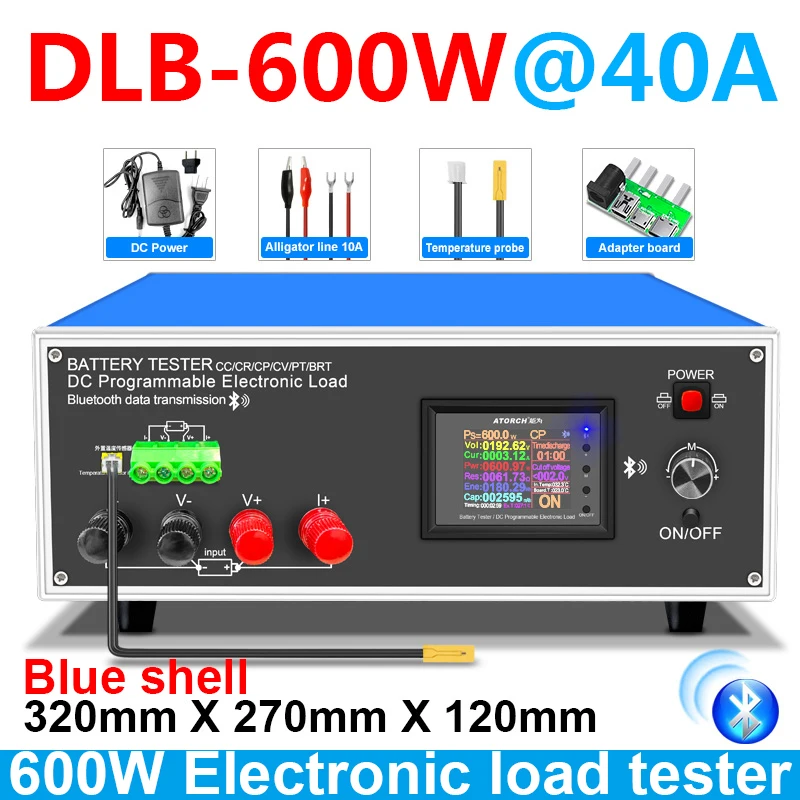

Product List1.600W battery tester blue 1pcs
2.DC12V 2A power supply 1pcs
3.10A red and black alligator clip cable 1set
4. Temperature probe 1pcs
5. Adapter board 1pcs
6.US to EU adapter 1pcs
2.DC12V 2A power supply 1pcs
3.10A red and black alligator clip cable 1set
4. Temperature probe 1pcs
5. Adapter board 1pcs
6.US to EU adapter 1pcs
