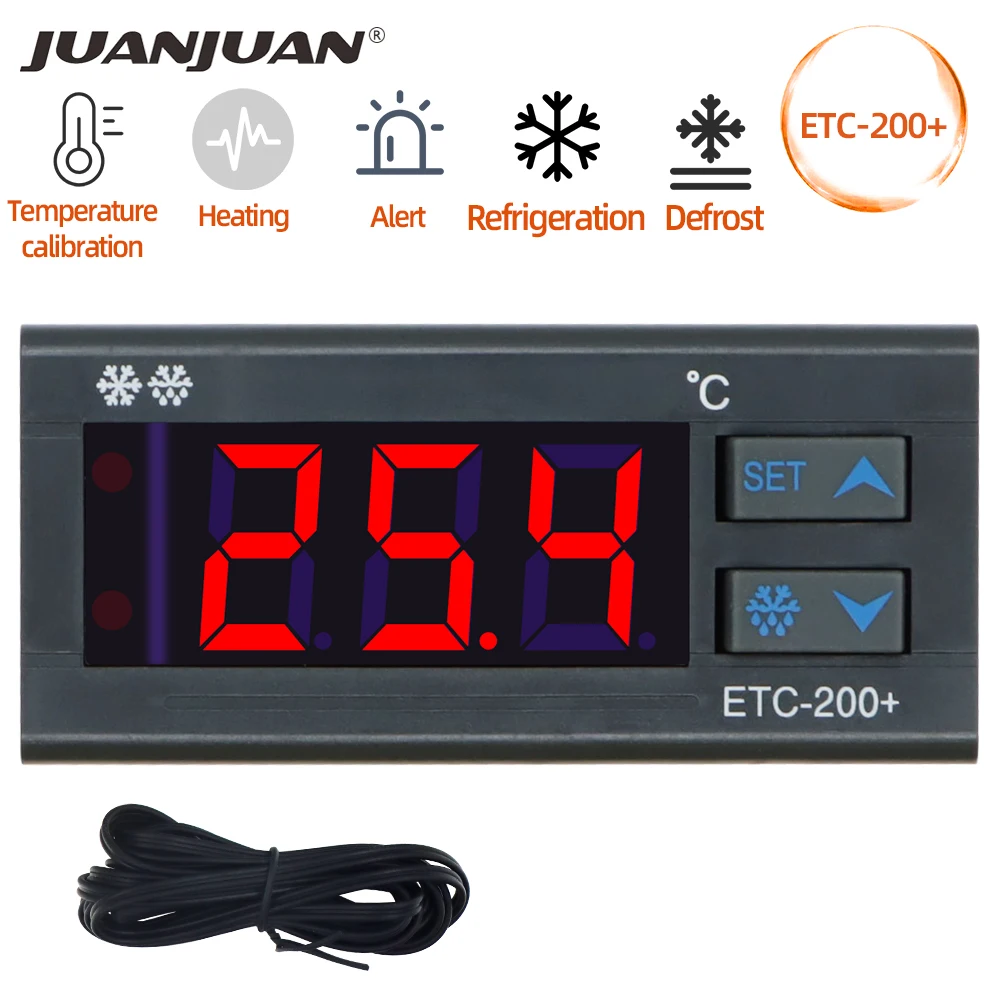

ETC-200+ Thermostat Temperature measurement and controller
- Temperature measurement and control
- Defrost control
- Temperature calibration
- Start-up delay protection
- Alarm when exceeding temp.limit
- Switch between refrigeration and heating
- Input password to adjust parameter
- Model:ETC-200+
- Item Type: Temperature Controller
- Material: ABS
- Working Voltage: 220V
- Power: <3W
- Measuring and Controlling Temperature Range: -40-120°C
- Resolution: 0.1 °C at (-40°C–99.9°C);1°C in other range
- Accuracy: ±1 °C at (-40°C–70°C);less thsn ±2°C at other range
- Power Supply Voltage: 220VAC ± 10%; 50Hz / 60Hz
- Temperature controlling range :-40°C–120°C
- Relay contact capacity:
- 1)Refrigeration:10A/220VAC,the max load it can driving is 0.5HP/220VAC
- 2)Defrost:10A/220VAC
- Sensor type:NTC sensor(10KΩ/25℃,B value 3435K)
- Ambient temperature:0℃~60℃
- Storage temperature:-30℃~75℃
- Relative humidity:20%~85%(No condensate)
- Front panel size:75(L.)×34.5(W)mm
- Mounting size:71(L)×29(W)mm
- Product size:75(L)×34.5×85(D)(W)mm
- Sensor length:2.0m(include the probe)

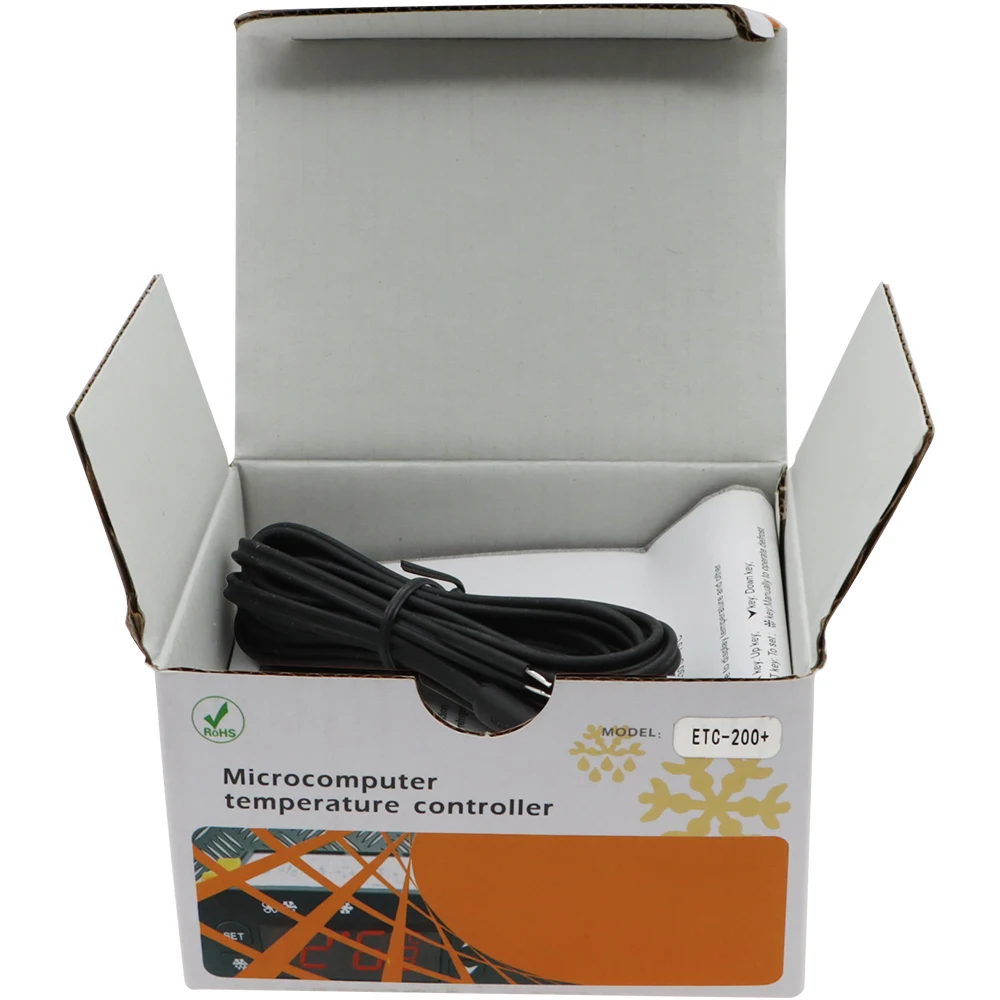

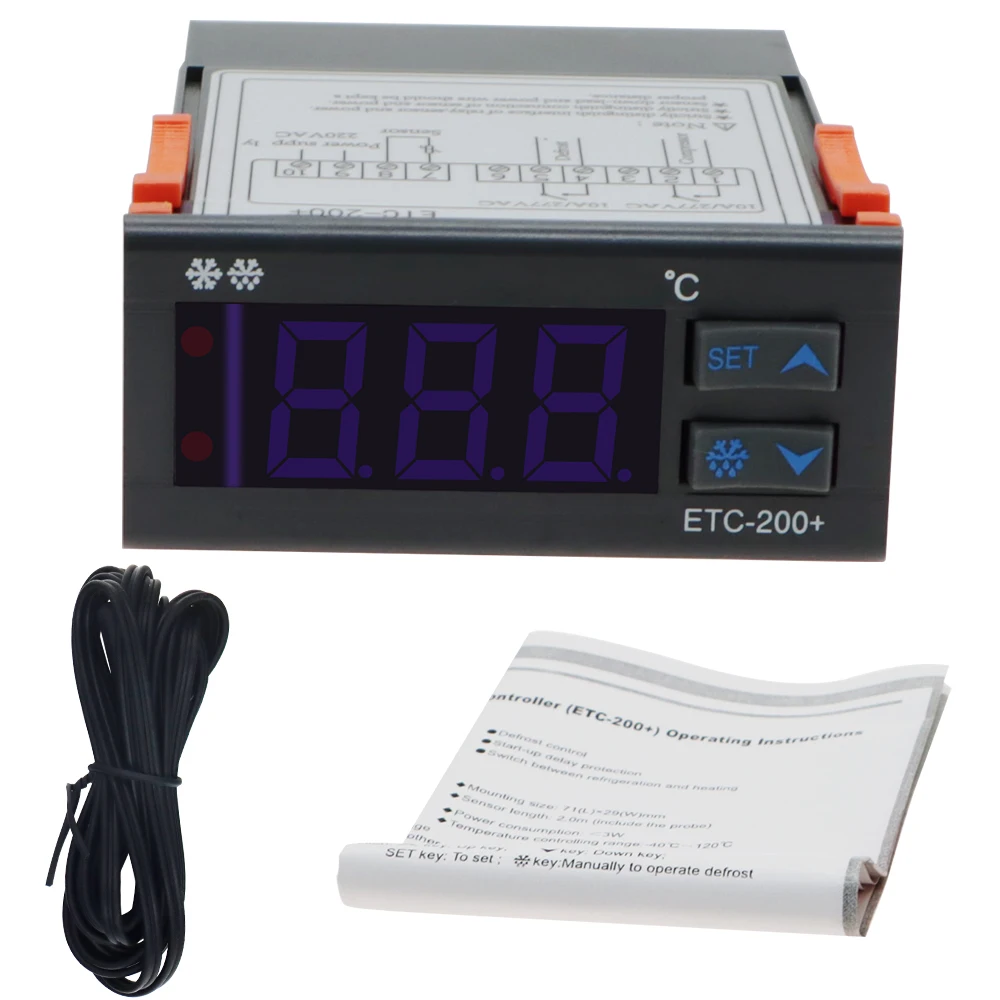

1 x Temperature Controller
1 x Instruction Manual
1 x Cable
