FNIRSI DSO-TC3 Digital Oscilloscope
- FNIRSI DSO-TC3 Digital Oscilloscope
- Model Number: DSO-TC3
- Certification: CE
- Origin: Mainland China
- Brand Name: FNIRSI
- DIY Supplies: ELECTRICAL
- Display screen: 2.4 inch TFT color screen
FNIRSI DSO-TC3 Digital Oscilloscope
- Model Number: DSO-TC3
- Certification: CE
- Origin: Mainland China
- Brand Name: FNIRSI
- DIY Supplies: ELECTRICAL
- Display screen: 2.4 inch TFT color screen
- Supply voltage: Rechargeable lithium battery
- Bracket specifications: All-in-one foldable stand
- Real-time sample rate: 10MSa/s
- Analog Bandwidth: 500Khz
- Input resistance: 1MΩ
- Coupling method: AC/DC
- Test voltage range: 400V
- Vertical Sensitivity (x1): 10mV-10V
- Horizontal time base range: 1us-10s
- Trigger mode: Auto / Normal / Single
- Trigger type: Rising edge / Falling edge
- Waveform Freeze: Yes
- Automatic measurement: Yes

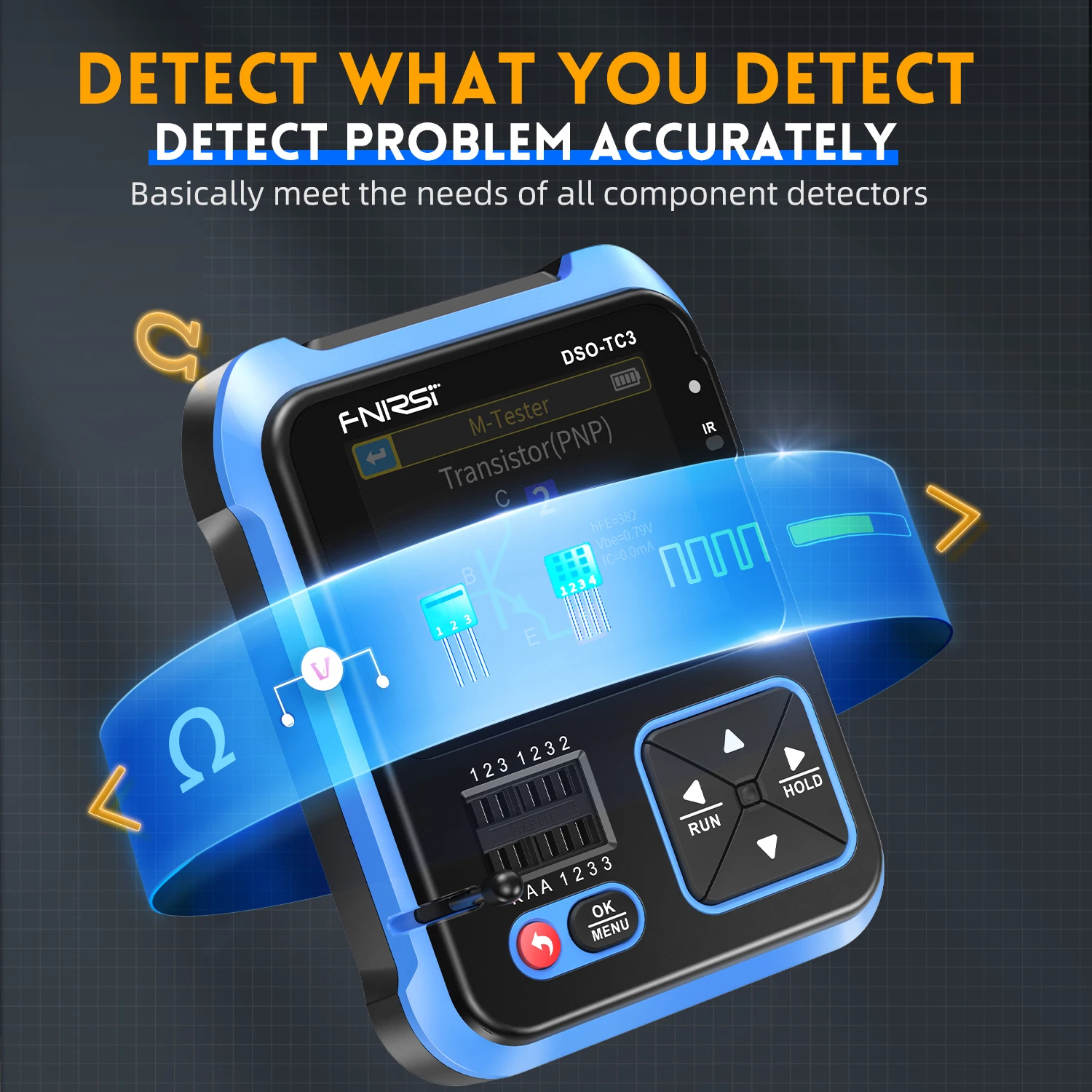

- Diodes: Forward voltage drop <4.5V
- Reglulated diode: 0.01~4.5V
- MOSFET: JFET IGBT MOSFET
- SCR: Turn-on voltage <5V, gate Pole trigger current <6mA
- Capacitor: 5pF~100mF
- Resistor: 0.01Ω~50MΩ
- Inductor: 10uH~1000mH
- Battery: 0.1~4.5V
- Input voltage: 0~40V
- DS18B20: 0-85℃
- DHT11: 0-60℃/5-95%
- Infrared remote decoding: NEC protocol infrared code

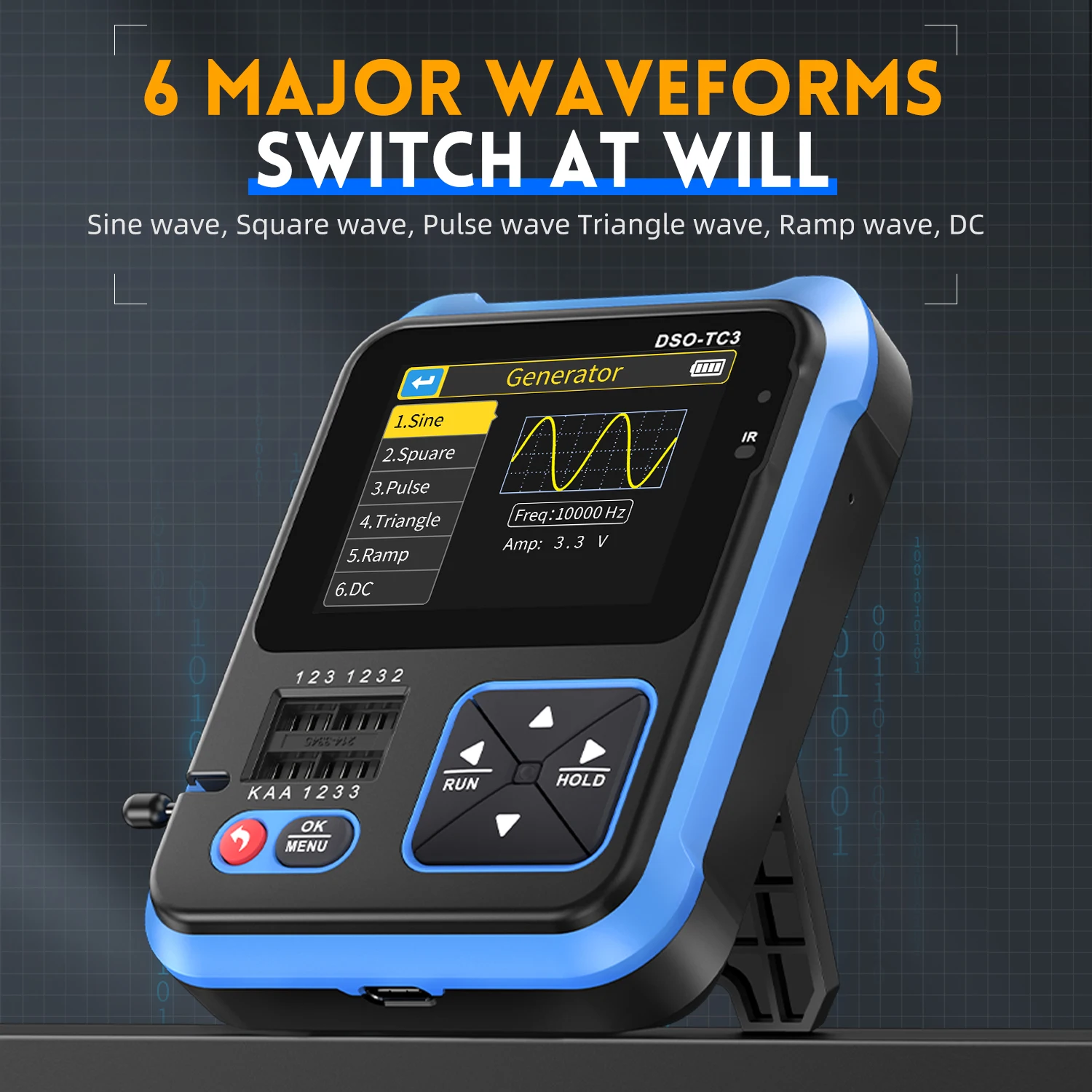

- Triangle wave: 1-10KHz/0-3.3V/50%
- Square wave: 1-100KHz/3.3V/50%
- Pulse wave: 1-100KHz/3.3V/0-100%
- Ramp: 1-10KHz/0-3.3V/0-100%
- DC: 0-3.3V

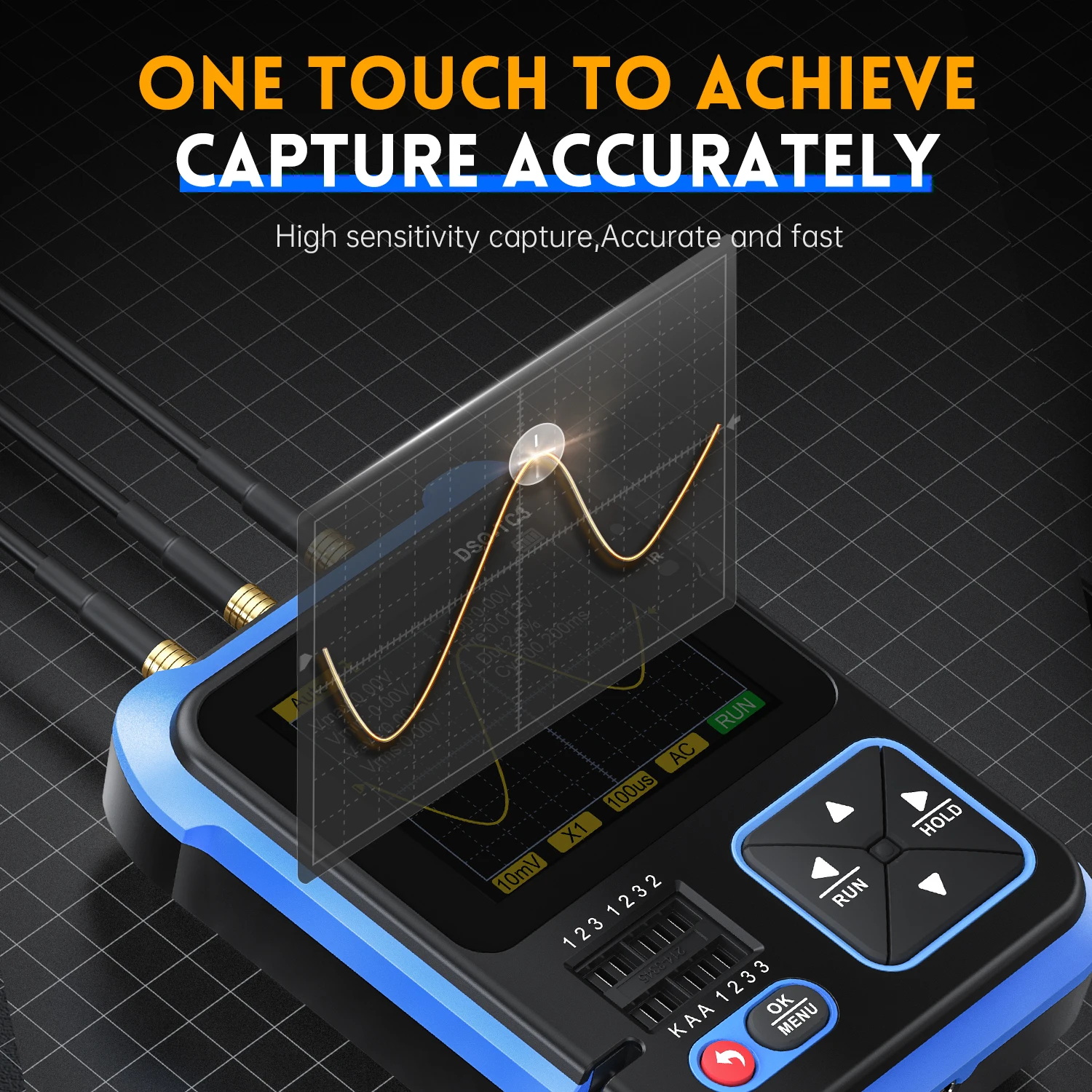

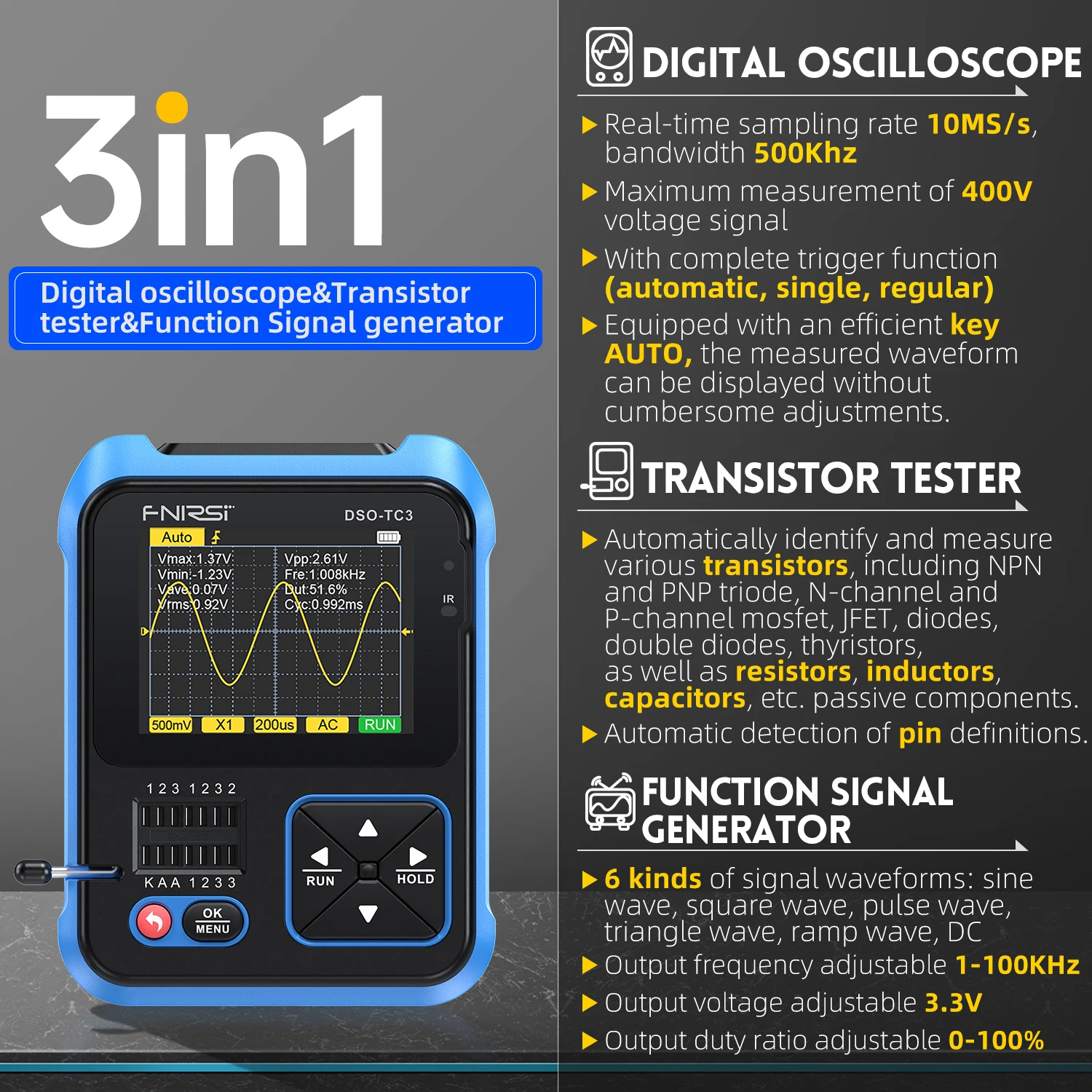

FNIRSI DSO-TC3 combines a digital oscillograph, electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement, infrared decoding and other functions are skillfully integrated. It is equipped with a 2.4-inch color TFT display, built-in rechargeable lithium battery, brings users stronger and more practical functions with good portability.
NO.1(Standard)
DSO-TC3 *1
Ordinary probe*1
Test hook*3
Type-C charging cable*1
Packing box*1
Manual*1
NO.2(Option)
DSO-TC3 *1
P6100 High Voltage Probe*1
Ordinary probe*1
Test hook*3
Adapter*1
Type-C charging cable*1
Packing box*1
Manual*1
