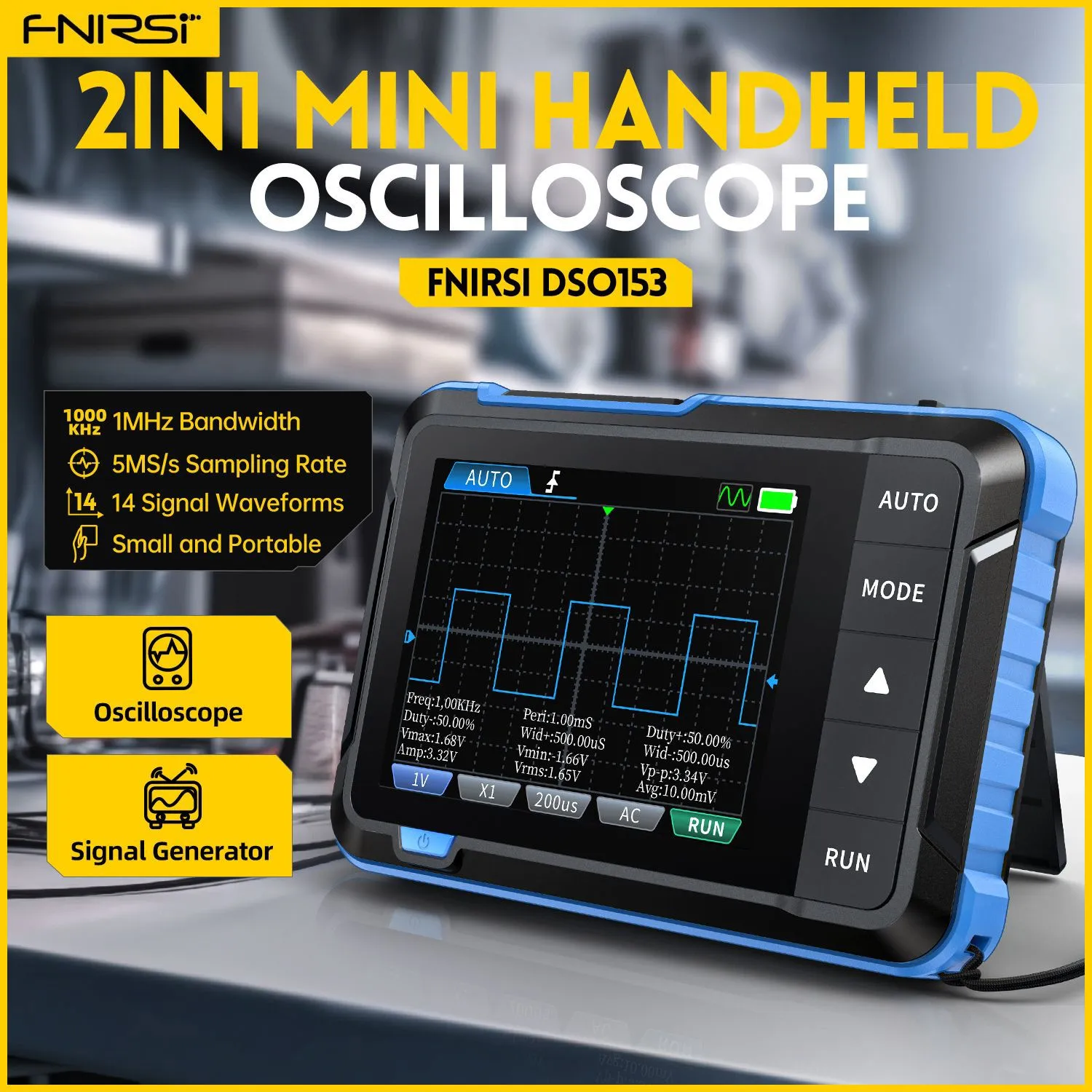

FNIRSI DSO153 Handheld Portable Oscilloscope

• Hign-concerned Chemical: None
• Model Number: DSO153
• Certification: CE
• Origin: Mainland China
• Brand Name: FNIRSI
• Display resolution: 320*240 Pixels
• DIY Supplies: ELECTRICAL
• Digital Channels: 1
• Vertical sensitivity: 10mV/Div-20V/Div
• Time base range: 500ns/Div-20s/Div
• Voltage range: X1:40V (Vpp:80V)
• Trigger method: Auto/Normal/Single
• Coupling method: AC/DC
• Frequency: 0-10KHz
• Duty cycle: 0-100%
• Amplitude: 0.1-3.3V
• Waveforms: 14 kinds
• Display: 2.8 inches/PPI:320*240
• USB charging: 5V/1A
• Lithium battery capacity: 1000mAh
• Size: 99×68.3×19.5mm
• Weight: 100g

Buy-this-product-on-Aliexpress

DSO-153 is a highly practical and cost-effective handheld oscilloscope launched by our company, targeting the maintenance industry and development education industry.

This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.

In addition, it also comes with multiple functions signal generator (10KHz). Equipped with a 2.8-inch 320 * 240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.

* Mini Oscilloscope *

Sampling rate：5MSa/s
