FNIRSI HRM-10 Battery Voltage Intemal Resistance Tester
- Hign-concerned Chemical: None
- Model Number: HRM-10
- Type: Vehicle Battery Tester
- DIY Supplies: ELECTRICAL
- Brand Name: FNIRSI
- Origin: Mainland China
- Certification: CE
- Voltage measuring range: 0 ~ ±100V (DC)
- Resistance measuring range: 0 ~ 200Ω
- Voltage gear: Auto, 1V, 10V, 100V
- Resistance gear: Auto, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
- Accuracy: ±0.5%
- Signal frequency: AC 1Khz
- Battery: 1000mAh lithium battery
- User calibration: Support

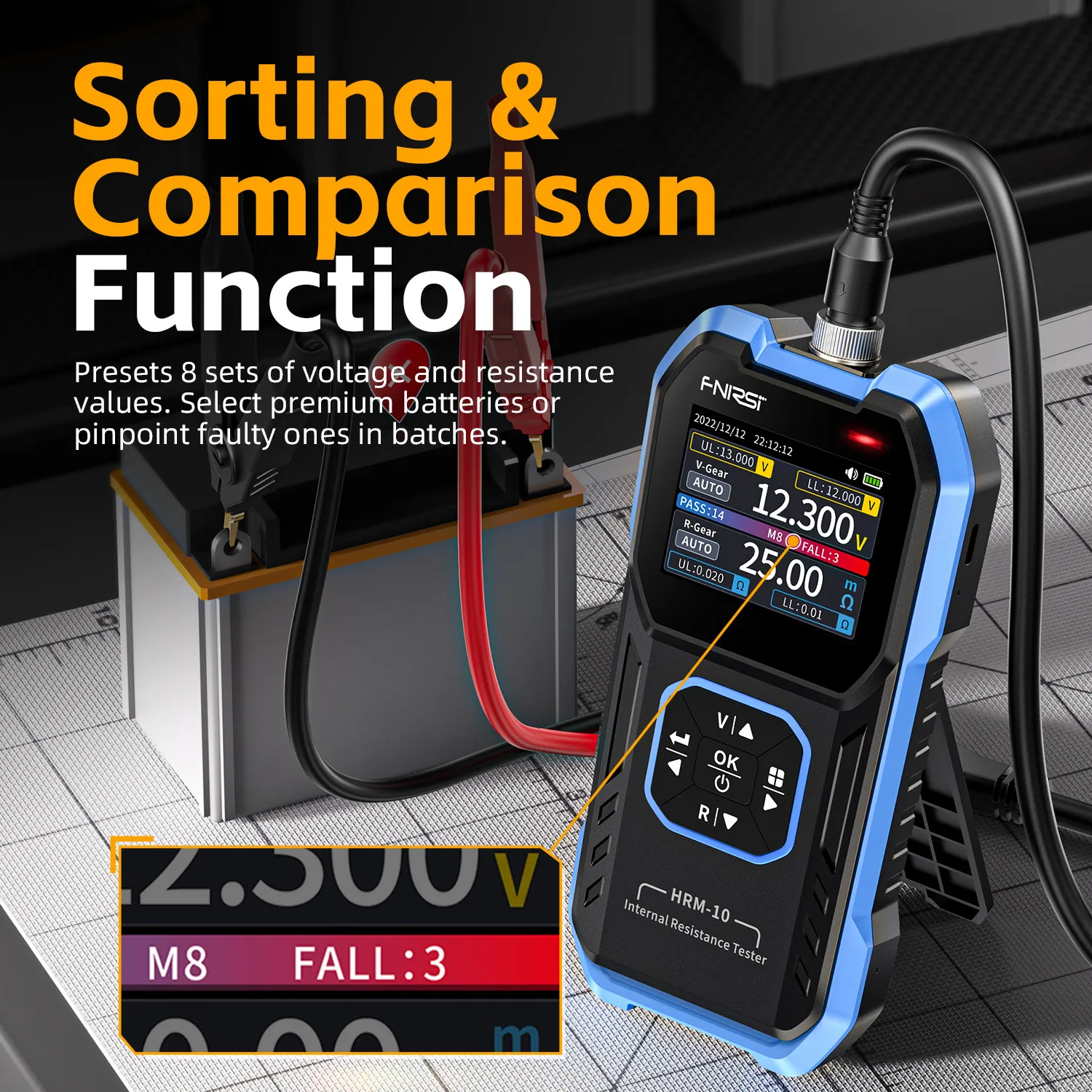

- Sorting mode: Support
- History recoed: Support
- Recorded data export: Support
- Working environment: -10℃ ~ +45℃
- Storage environment: -20℃ ~ +80℃
- Relative humidity: <80%
- Size: 158.7×80.5×28.4mm
- Weight: 225g

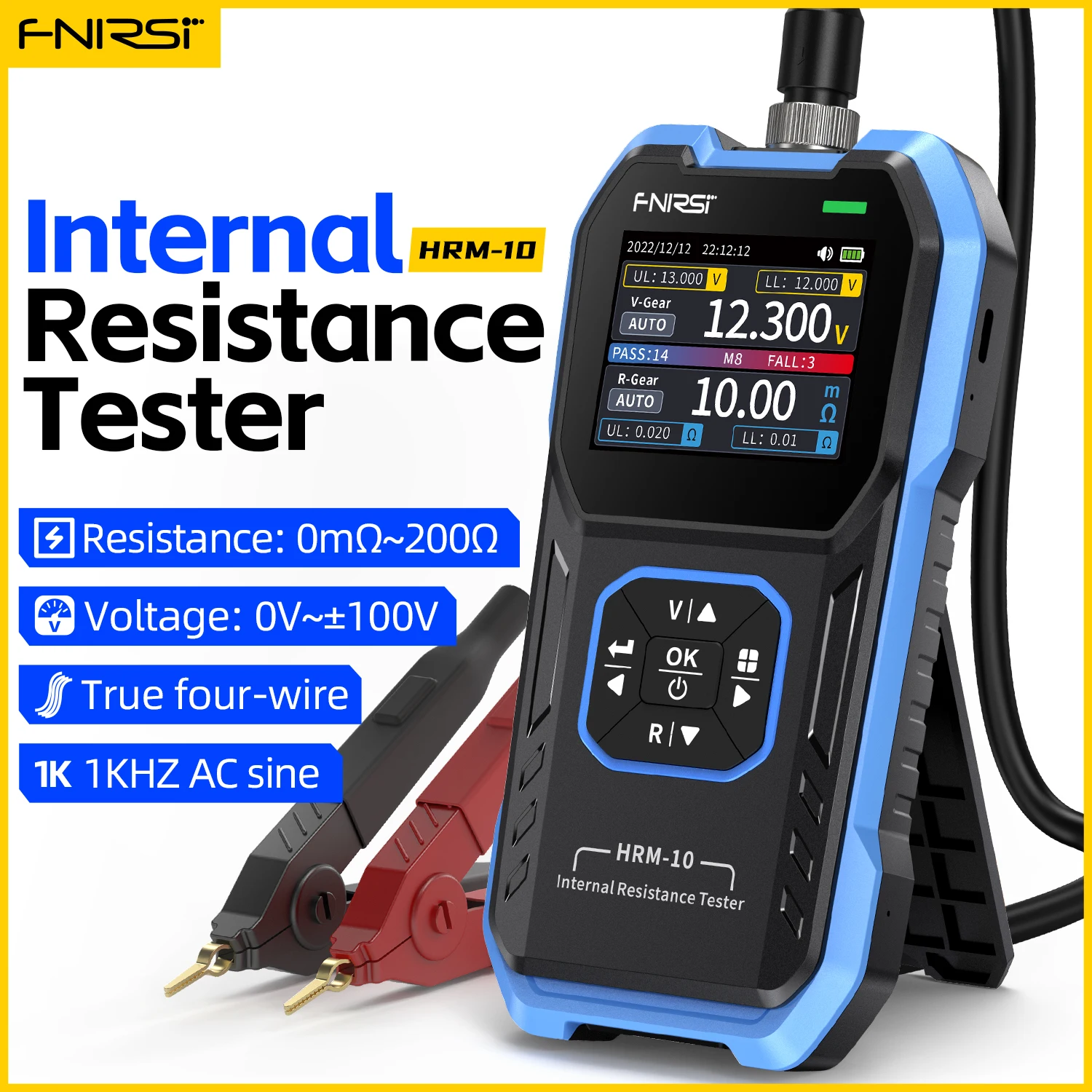

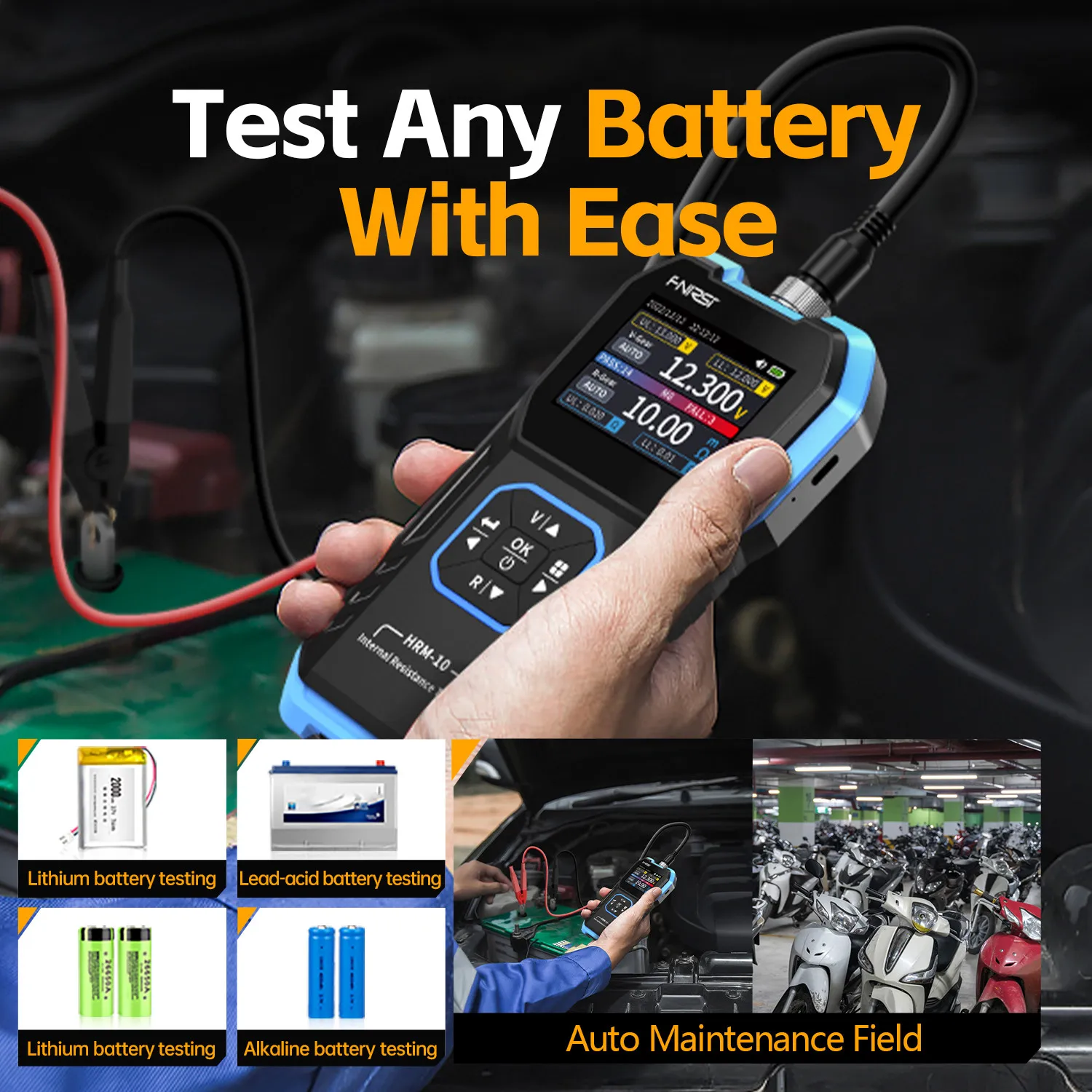

FNIRSI “HRM-10” is our company’s first handheld high-precision attery internal resistance meter. It is a true four-wire measurement internal resistance
meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.
Buy-this-product-on-Aliexpress
Voltage measuring range：0 — ±100V（DC）
Voltage gear：Automatic, 1V, 10V, 100V
Resistance measuring range：0 — 200Ω
Resistance gear：Automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Accuracy：±0.5%
Instrument test signal frequency：AC 1Khz
Rechargeable：Type-C interface (5V/1A)
Built-in battery：1000mAh lithium battery
User calibration：Support
Sorting mode：Support
History recoed：Support
Recorded data export：Support
Working environment：-10℃ ~ +45℃, relative humidity<80%
Storage environment：-20℃ ~ +80℃, relative humidity<80%
Size：158.7×80.5×28.4mm
Weight：225g
HRM-10 Host *1
Clip test line *1
Type-C data cable *1
User Manual *1
Packaging box *1
