GIT600 GDI/FSI Gasoline Injector Tester Petrol Injector Tester

Buy-this-product-on-Aliexpress
GIT600 GDI/FSI gasoline injector driver

GIT600  Item Feature:

This tester can diagnose injector problems, you can use it on each injector individually to test stuck, leaking or burnt-out.
it can set  Frequency and width ,also it preset  4 test mode .it can help  you identify the injector good or not
It can work with any fuel pressure tester together.
It can test 4 injectors at once .
It can test GDI Injector(Gasoline direct injecton engine) and gasoline injector

GIT600 Operation Instructions:

Turn off the vehicle’s engine

Connect Black / Red Clip to the Negative / Positive terminal of battery

Connect pulse output terminal to the fuel injector

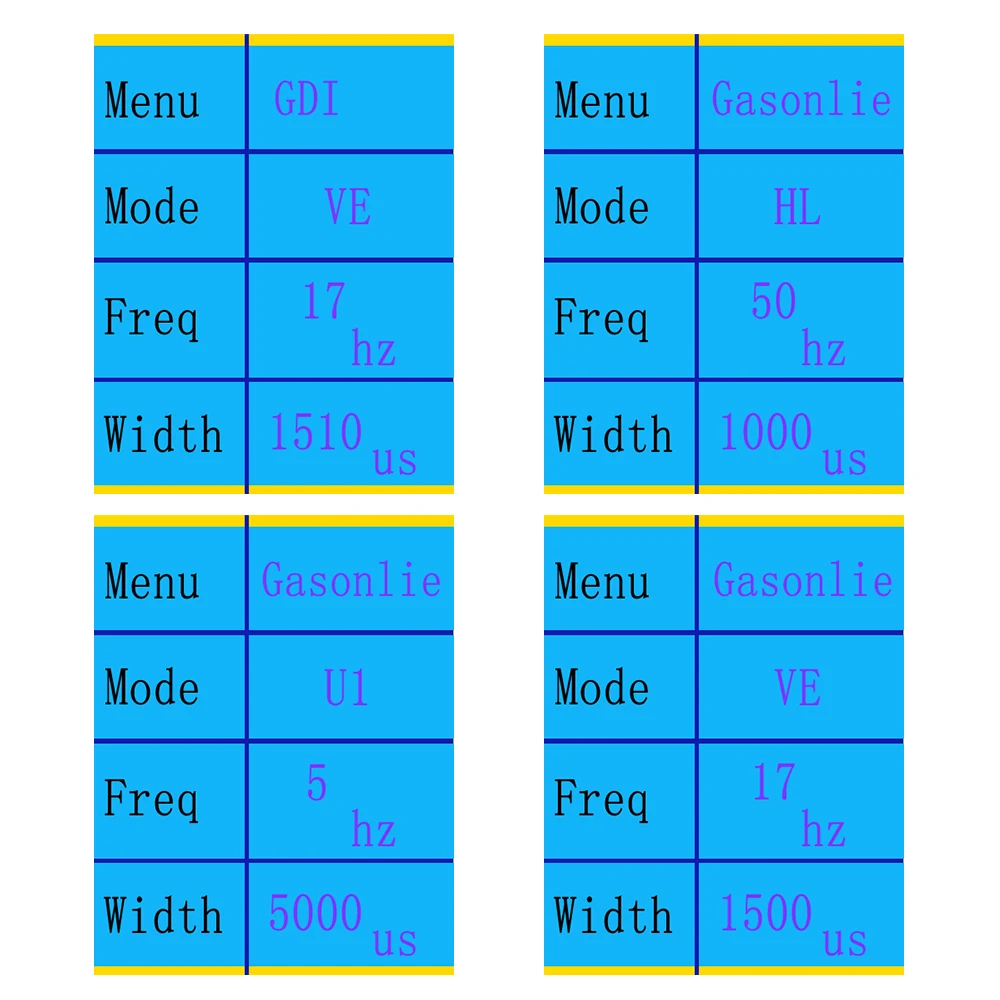

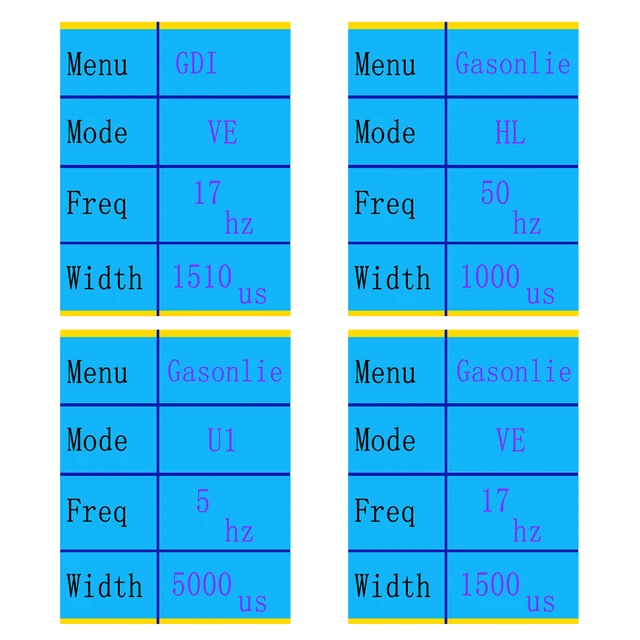

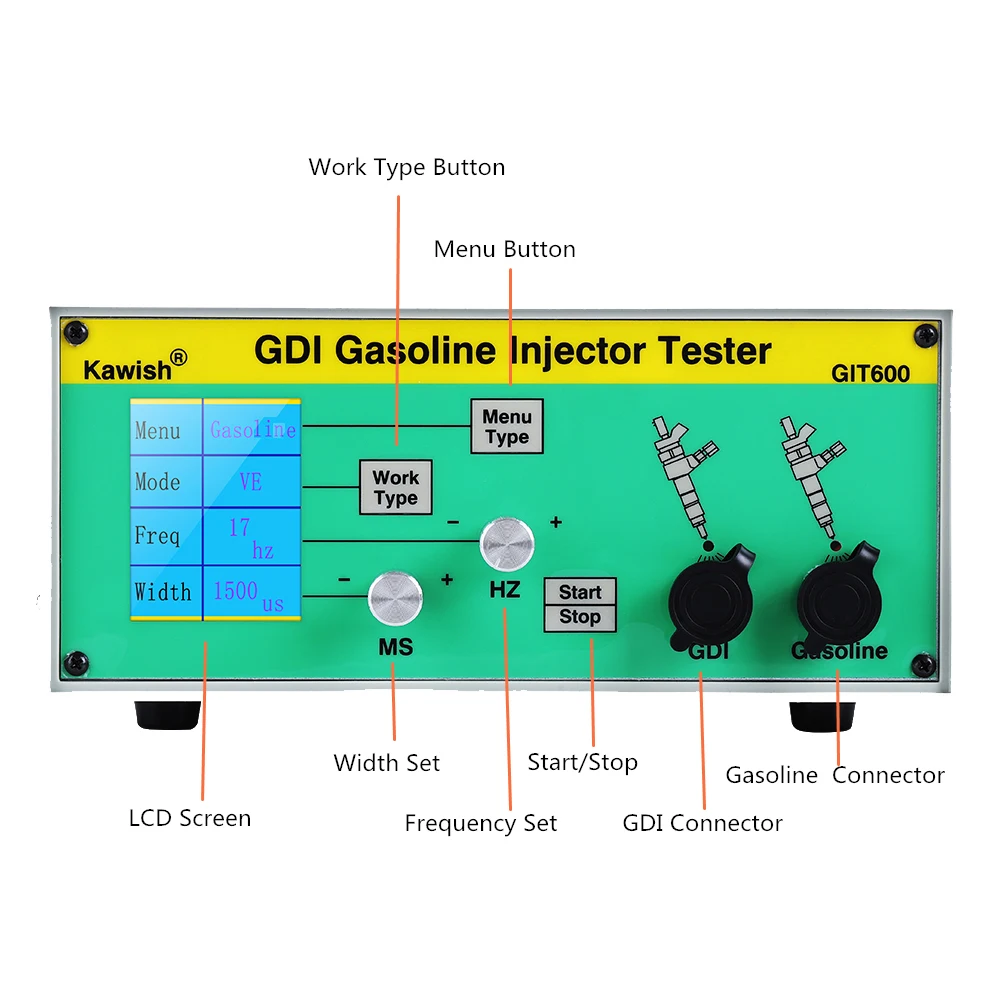

Press the “SELECT” key to select the desired pulse mode,and use knob to turn up or down the  Frequency or width

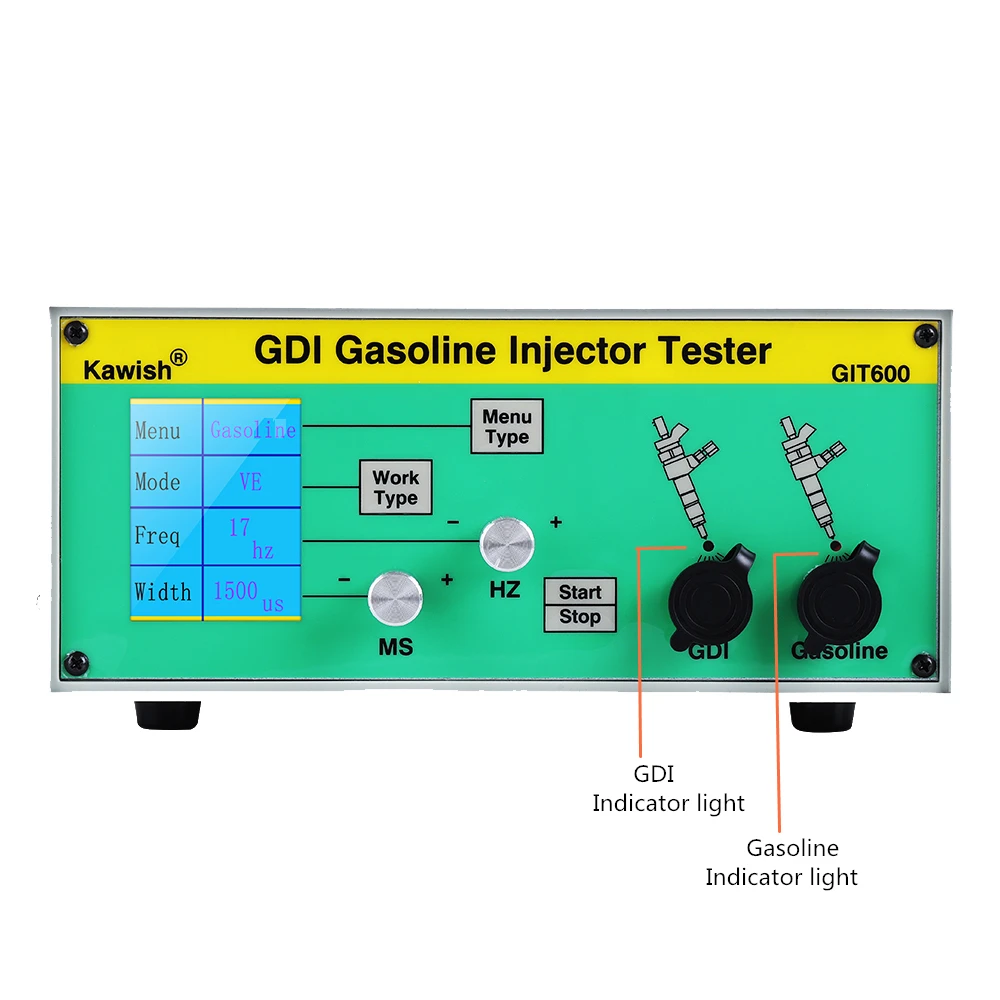

Press the “START”key, the tester will output pulse to the injector, and then the pulse signalindicator will light as indication

GIT600 specification:

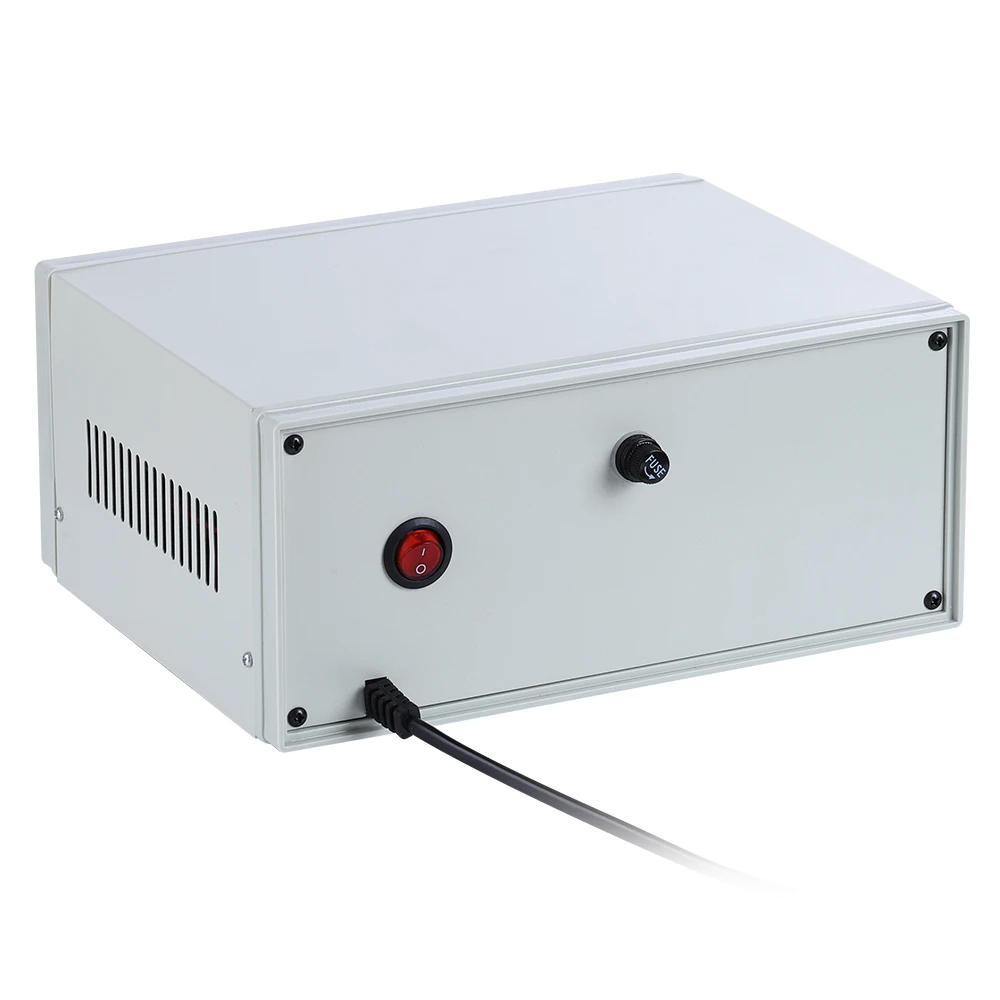

• Power Supply: AC110-220(50/60HZ)
• Screen:2.8inch 230*240LCD display
• Plusefrequency: 1-50hz
• Plusewidth:0.5-9.9ms
• Size: 260*200*110mm (for main body only)
• Weight: about 2.5kg
