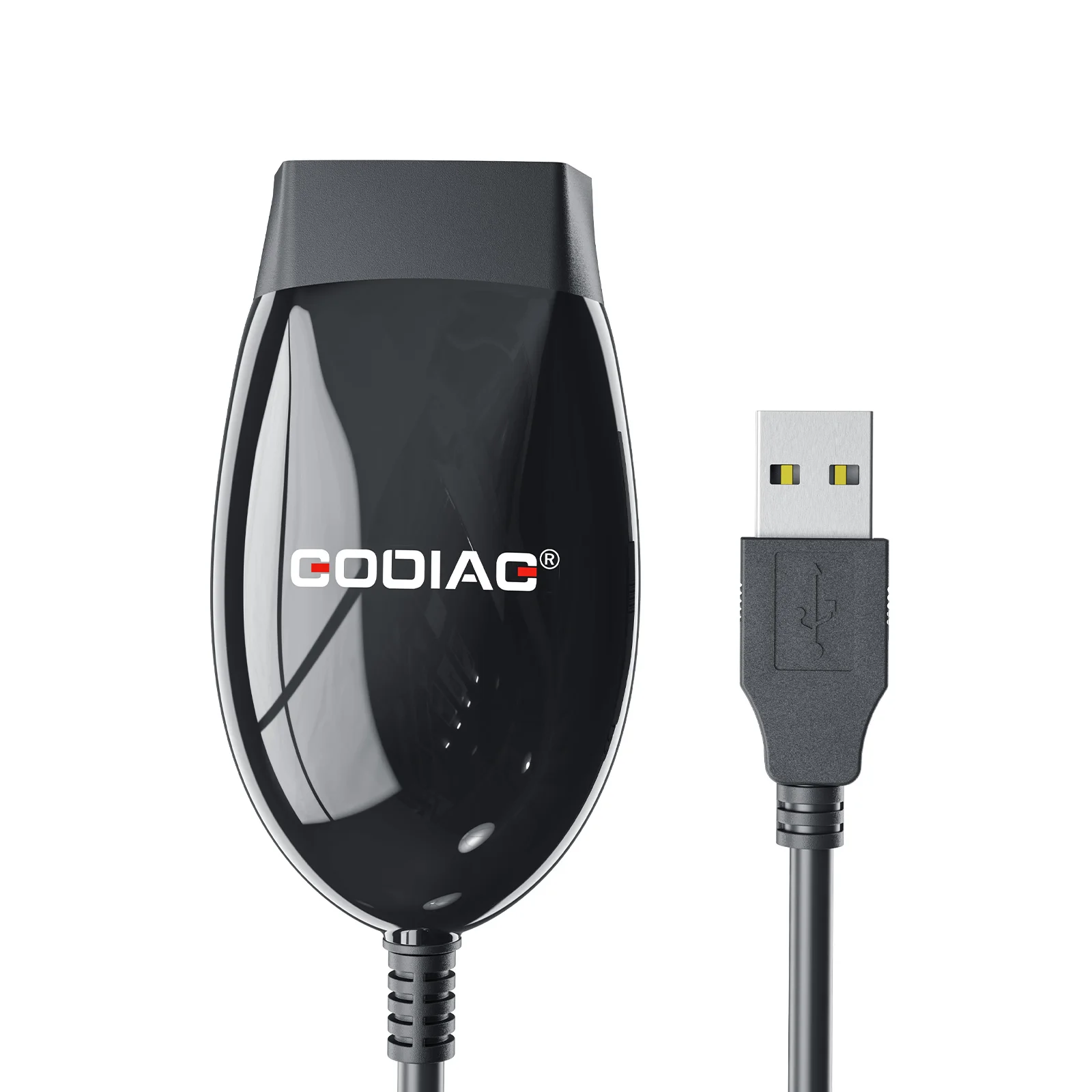

GODIAG GD101 – J2534 & ELM327 Diagnostic Cable for Toyota/ Honda/ Ford/ Mazda
- Electronic: No
- Item Weight: 0.1
- External Testing Certification: ce
- Voltage: 12V
- Model Name: GODIAG GD101
- Software Version: GODIAG GD101
- Hardware Version: GODIAG GD101
- Brand Name: GODIAG
- Origin: Mainland China
- Certification: CE
- Power (W): 8W
- Material: Plastic
Highlights:
1. Support J2534 and ELM327 mode in one device. Switch mode automatically.
2. More speedup. Faster communication and reprogramming.
3. More stability. Never let you down while reprogramming.
4. Portable and convenient. Small package and easy to carry.
1. Support most all of J2534 compatible software (HDS, TIS, JLR SDD,…).
2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster…).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.
5. Support Windows 8/10/11, 32/64bit
6. Supported languages:
for ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,
Russia, Greece, Chinese
for Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
for Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese
for JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
for Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian
for Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian
1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. Programming voltage.
7. Short to ground.
8. ELM327 with command set version 1.5a
GODIAG GD101 J2534 Hardware Configuration:
1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
3. J1850 PWM (OBDII PIN 2 and PIN 10).
4. J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
7. Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20℃-45℃(-4℉-113℉)
9. Vehicle voltage requirements: 8-18V DC
10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0
GODIAG GD101 J2534 Function List:
| Software | Brand | Year | NOTE |
| for Toyota TIS Techstream | for Toyota, Lexus | 1995-2022 | Free download and activate software, update by link |
| for Honda HDS 3.102 | for Honda Acura | 1995-2022 | Does not support non-#7 K-line, update by link |
| for ODIS-S, ODIS -E | for VW Audi Skoda Seat | 1995-2022 | For J2534 VAG only. Don’t support CAN FD protocol, Don’t support Ignition switch voltage detection |
| for Forscan 2.3.48 | for Ford Mazda Lincoln | 1996-2022 | Cannot do 3, 11 medium speed CAN |
| Scanmaster V2.0 | 1996-2022 | Free download and activate software | |
| PCM V1.2.0 | 67 modules | 1996-2022 | Yes, test by your side |
| J1979Tester | 1996-2022 | Free Honda immo code calculation | |
| ELMConfig | 1996-2022 | Yes, test by your side | |
| for Volvo VI-DA | for Volvo | 1996-2022 | Yes, test by your side |
| for JLR SDD2 | for Jaguar Land rover | 2006-2016 | Yes, test by your side |
| GDS2 | for GM Buick Cadilac Chevlert | 1995-2022 | Yes, test by your side |
| for Xentry Passthru | for Benz, Smart | 1995-2022 | Yes, test by your side |
| for ISTA-D, ISTA-P | for BMW, Mini | 1995-2022 | Yes, test by your side |
| for Consult III-R2R | for Nissan, Infiniti | 1995-2022 | Yes, test by your side |
1pc x GODIAG GD101 J2534
