GVDA GD119 Multimeter Ture RMS AC DC NCV Smart Multimetro Tester Ohm Capacitance Hz Voltage Meter
- DC Current: 600mA/6A/10A ±(1.2% 3);
- AC Current: 600mA/6A/10A ±(1.2% 3);
- DC Voltage: 600mV/6V/60V/600V ±(0.5% 3)
- AC Voltage: 6V/60V/600V ±(0.8% 3)
- Operating Mode: Auto and Manual
- Measuring Capacitance Range: 6nF/ 60nF/ 600nF/ 6uF/ 60uF/ 600uF ±(4.0% 5); 6mF/60mF ±(5.0% 5)
- Measuring Resistance Range: 600/ 6k/ 60k/ 600kOHM ±(1.0% 5);
- Model Number: GD118B GD119B
- Dimensions: 113x68x19mm
- Measuring Inductance Range: NO
- Display Type: Digital display
- DIY Supplies: ELECTRICAL
- Brand Name: GVDA
- GVDA Model: GD119B
- Origin: Mainland China
- Certification: CE,FCC
- Counts:: 6000counts
- Display:: HD Colour Display
- Capacitance:: 6nF/60nF/600nF/6uF/60uF/600uF ±(4.0% 5); 6mF/60mF ±(5.0% 5)
- Frequency:: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0% 3)
- Duty:: 1.0%-99.0% ±(1.0% 3
- Temperature: -40~1000°C; -40-1832°F 2°C
- Smart Function(AC/DC Voltage,resistance and continuity): Smart Function(AC/DC Voltage,resistance and continuity)
- Auto Identification of current input: NCV/Live/Continuity test:yes(sound and light alarm)
- Continuity: Diode test
- Bargraph/Data hold /True RMS: Fuse Burning Prompt:
- Input Jack LED indication: Low battery indication
- Auto power off: Flashlights
- Power supply:: 4pcs AAA Batteries (not include)

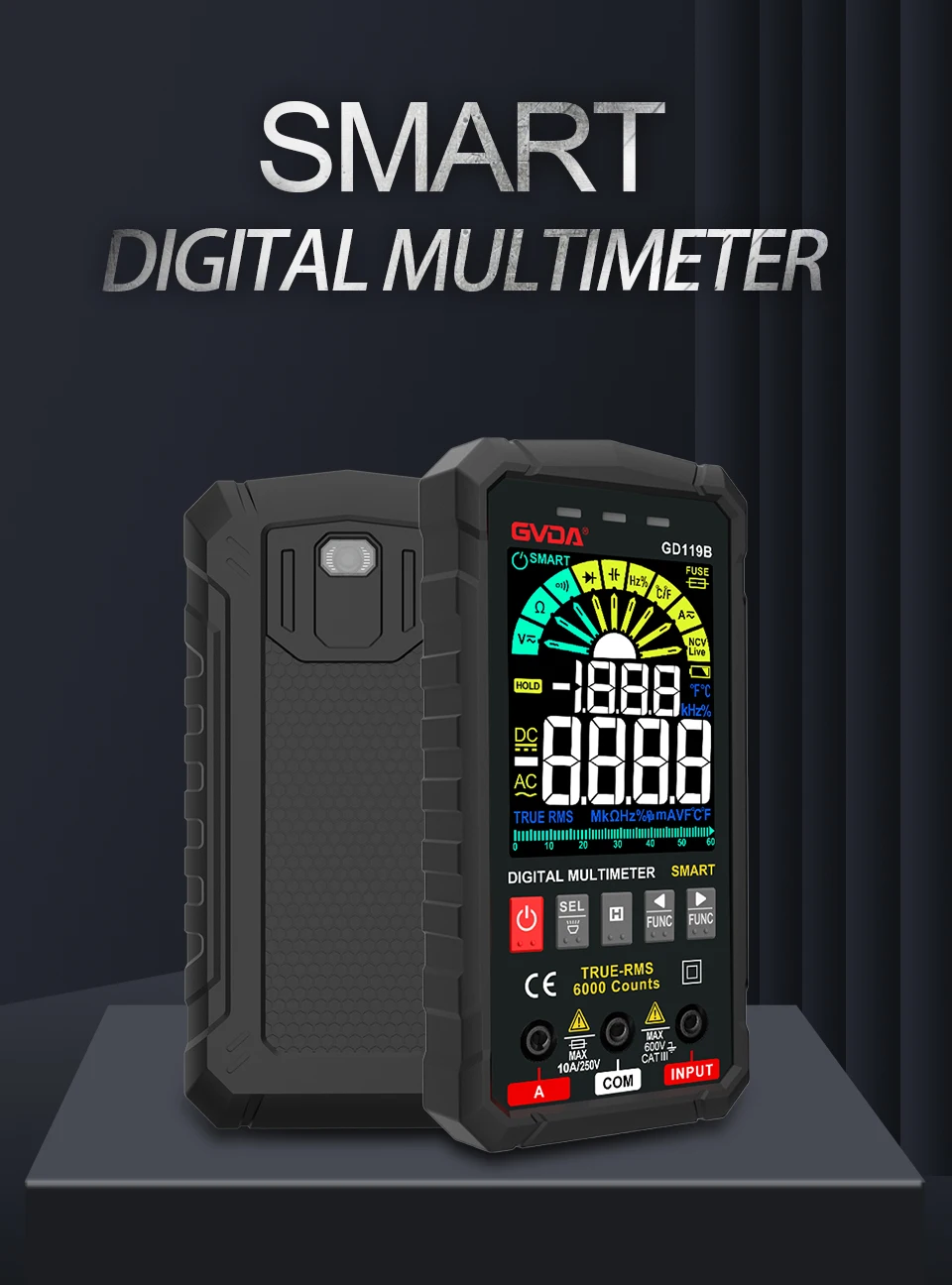

GVDA GVDA GD119 New 6000 Counts Smart Multimeter Digital True RMS Auto Range 600V 10A Tester Ohm Hz Capacitance REL AC DC DMM Multitester

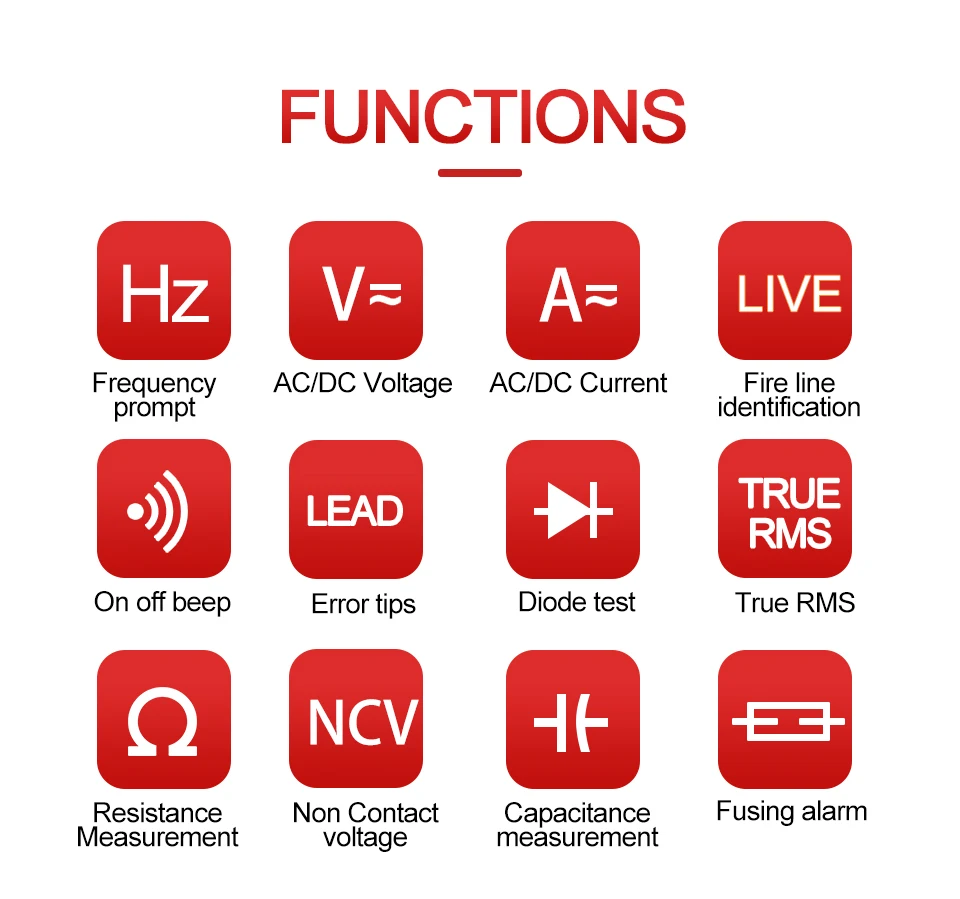

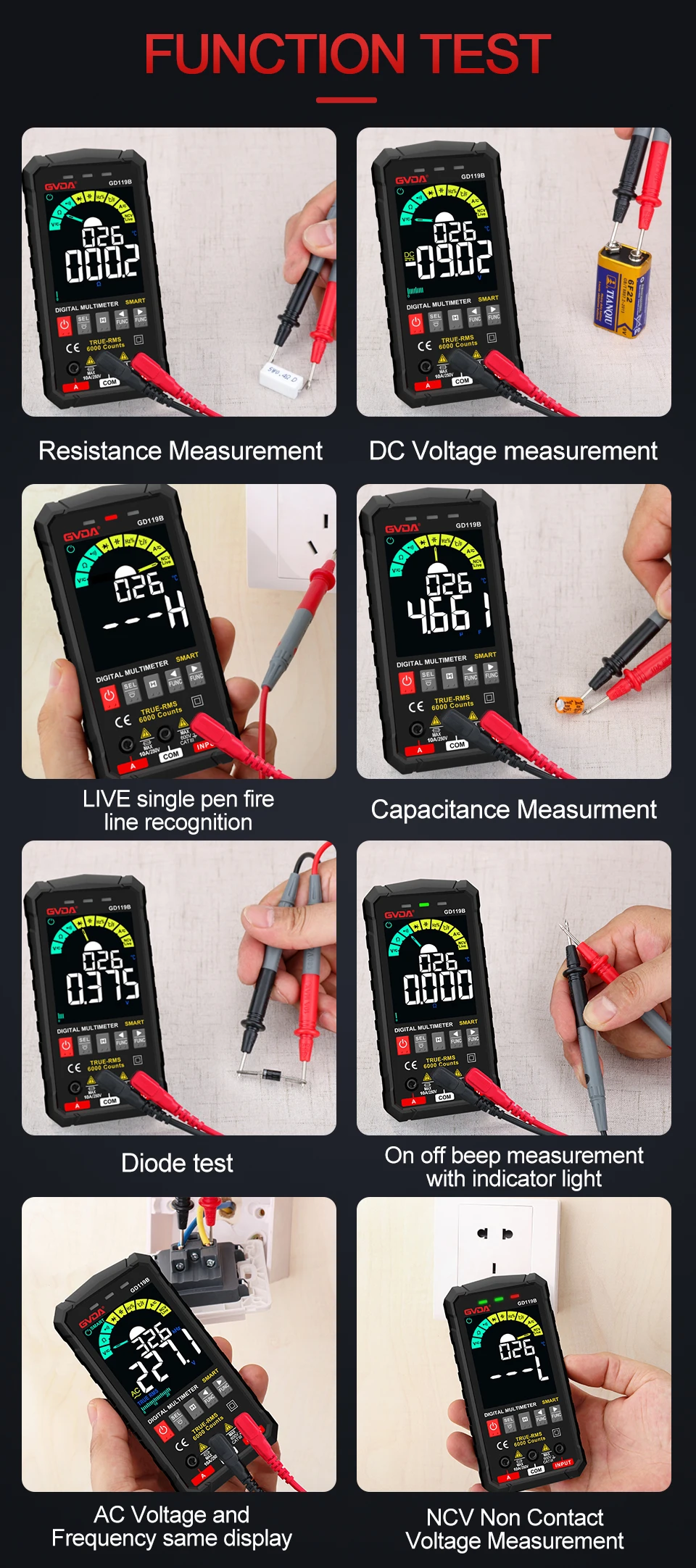

GVDA Multimeter is an intelligent true effective value multimeter, intelligent identification and manual function are integrated, which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV,etc.; It is the best choice for professional electrician, engineer, electronic enthusiast or family use.
Product Features GD119B

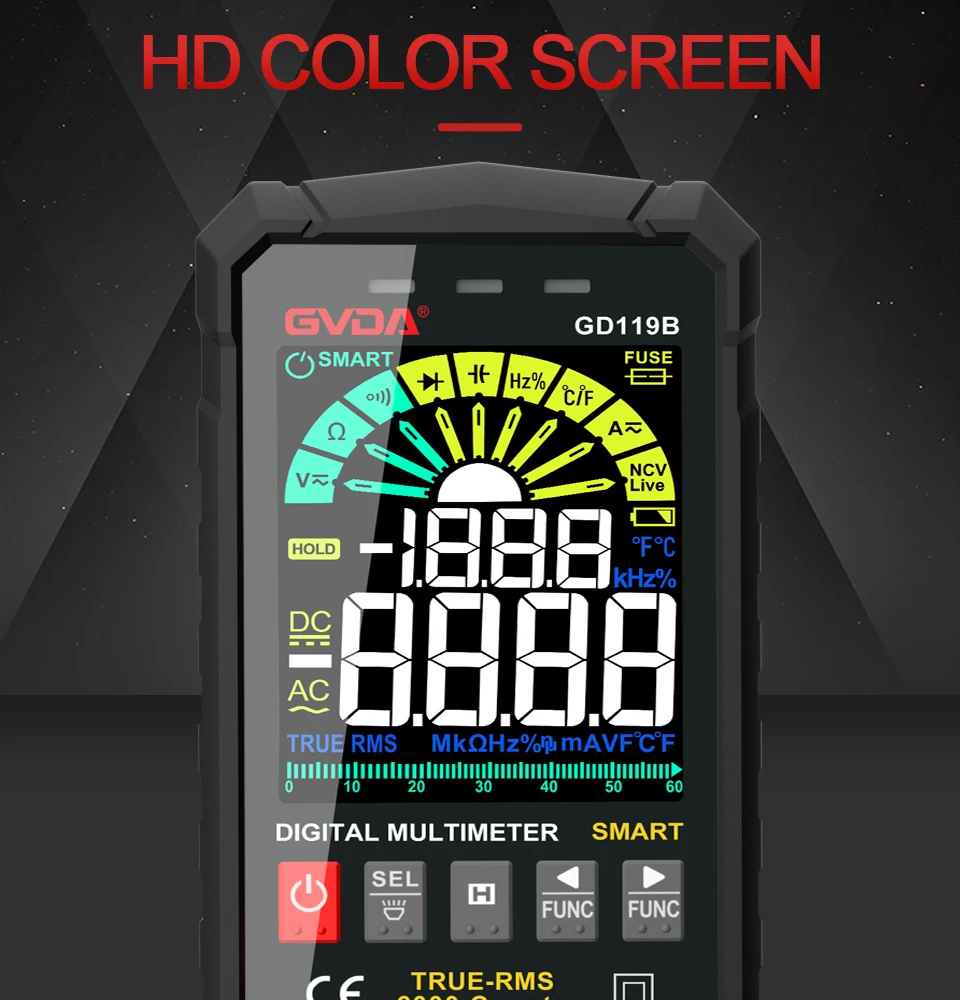

1) Colour Larger HD LCD Display

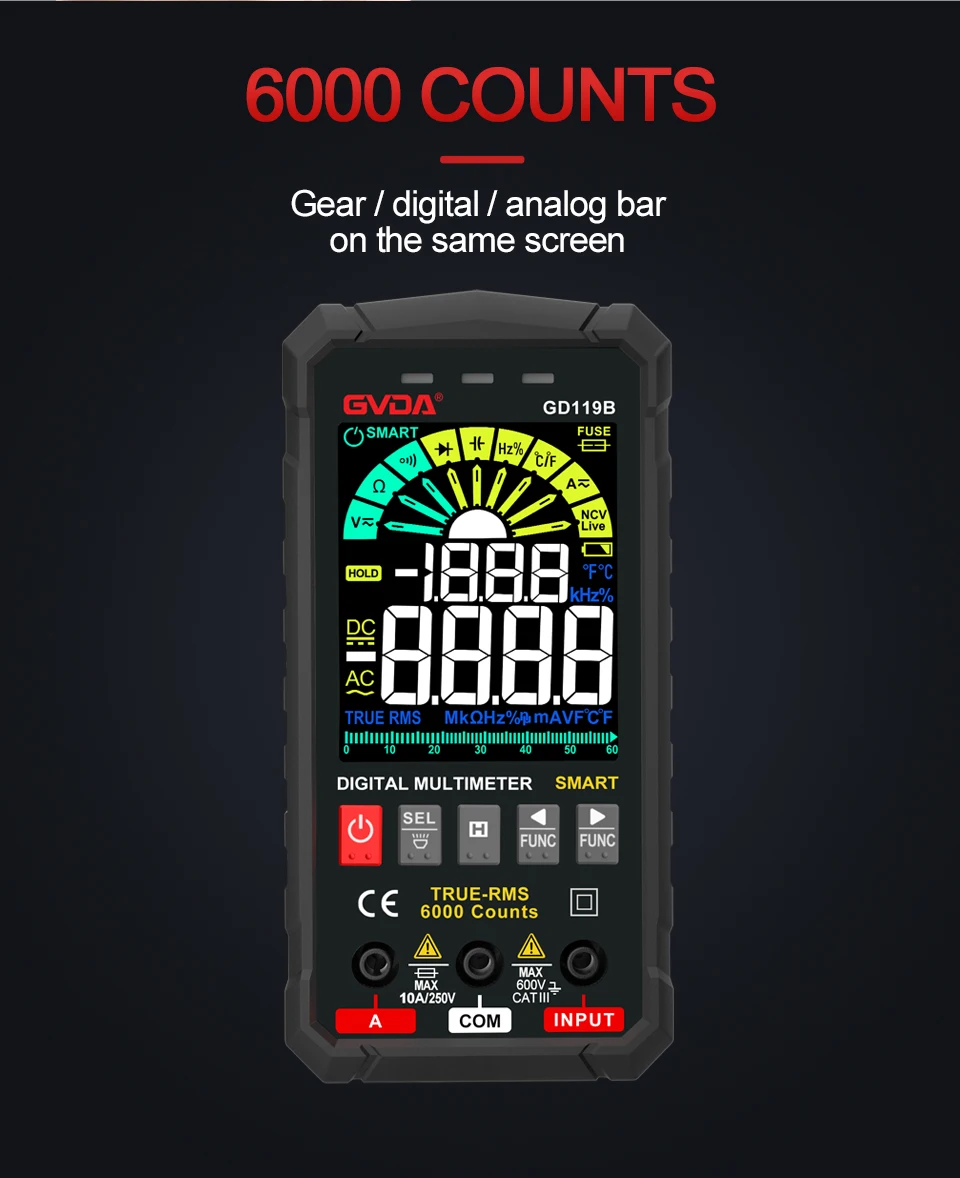

2) Maximum display: Maxium 6000 Counts display
3) Auto range and Manual Range
4) Sampling Rate: About 3 times per second
5) Over range display: the highest position shows “OL”
6) Low voltage display: low battery indication
7) Working environment: (0-40)°C,relative humidity ＜80%
8) Power Supply: 4 x1.5V Batteries ( NOT include)

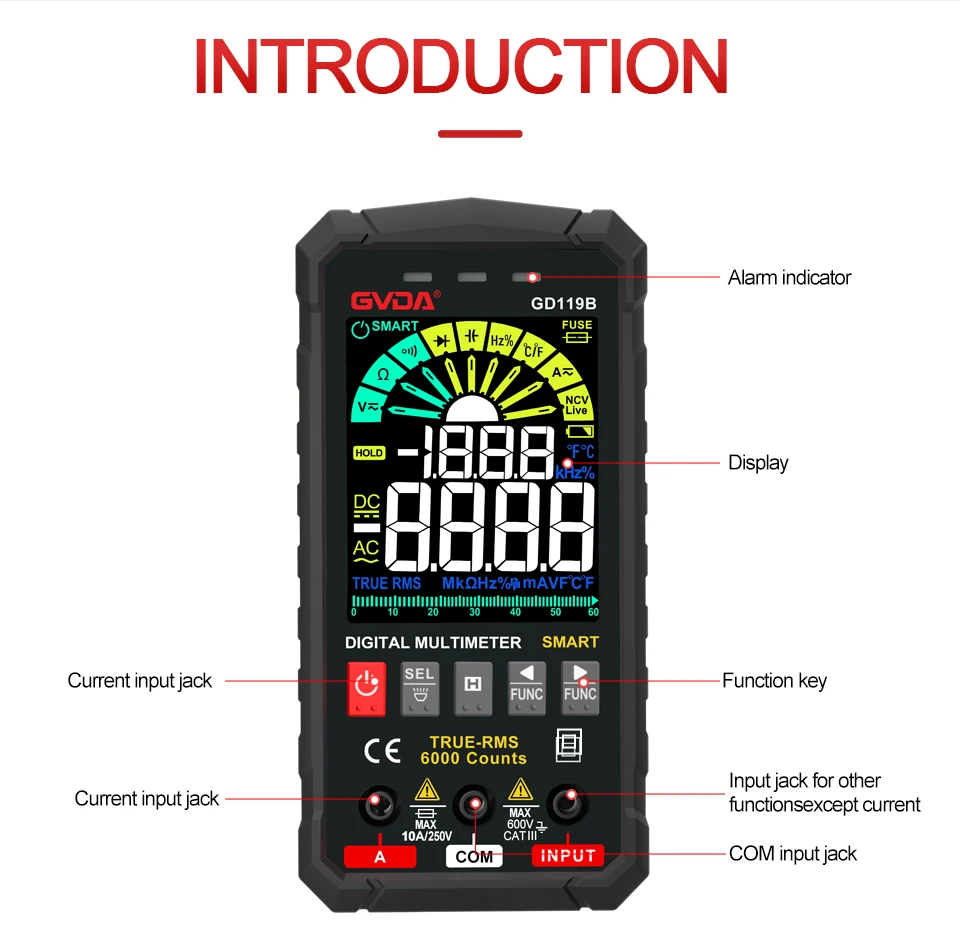

9) Input Jack Led Indication
10) It is a stable performance, high precision, high reliability clear readings, and overload protection.
Technical Details GD119B Series
- Brand: GVDA
- Model name: GD119B
- DC Voltage:600mV/6V/60V/600V ±(0.5%+3)
- AC Voltage:6V/60V/600V ±(0.8%+3)
- DC Current:600mA/6A/10A ±(1.2%+3);
- AC Current:600mA/6A/10A ±(1.2%+3);
- Resistance:600/6k/60k/600kOHM ±(1.0%+5);
- 6m/60mOHM ±(1.5%+10)
- Capacitance:6nF/60nF/600nF/6uF/60uF/600uF ±(4.0%+5); 6mF/60mF ±(5.0%+5)
- Frequency:6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0%+3)
- Duty:1.0%-99.0% ±(1.0%+3)

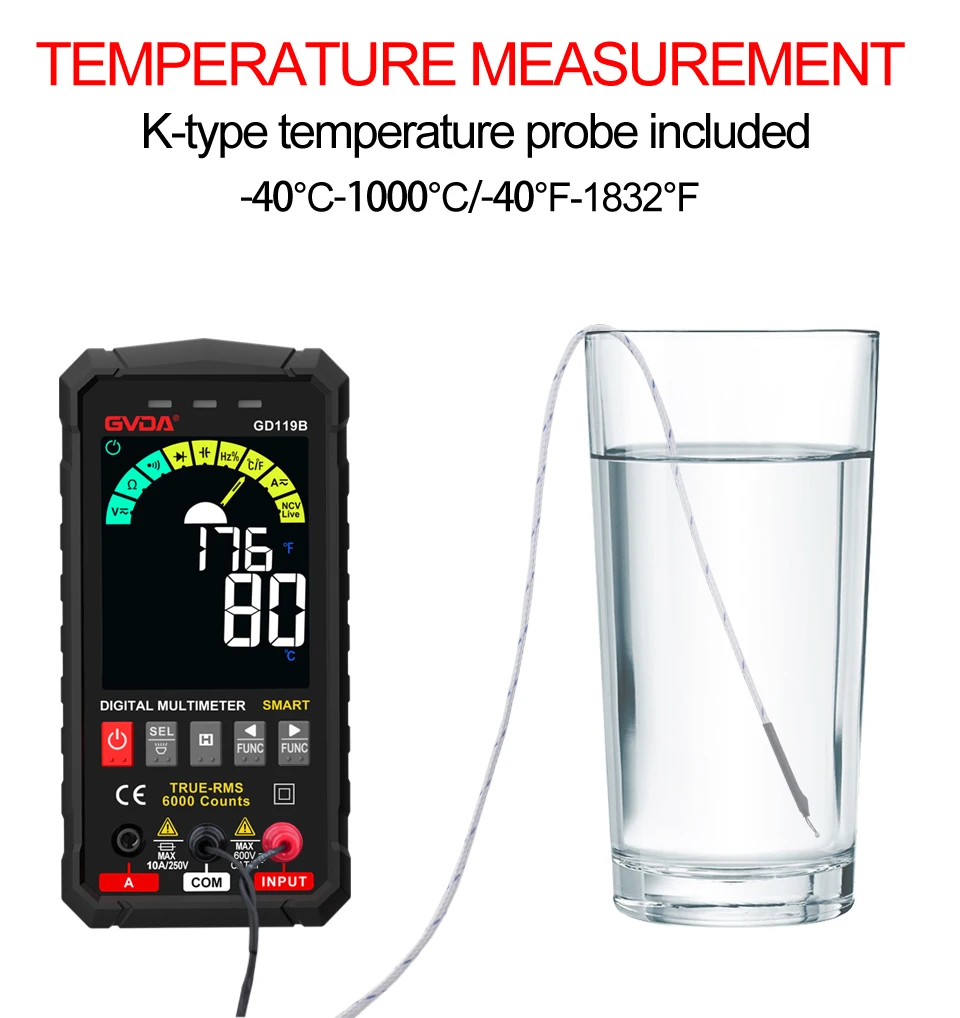

- Temperature :-40~1000°C; -40-1832°F 2°C
- Counts:6000counts
- Display:HD Colour Display
- Analog Bar/ Gear Display: Yes

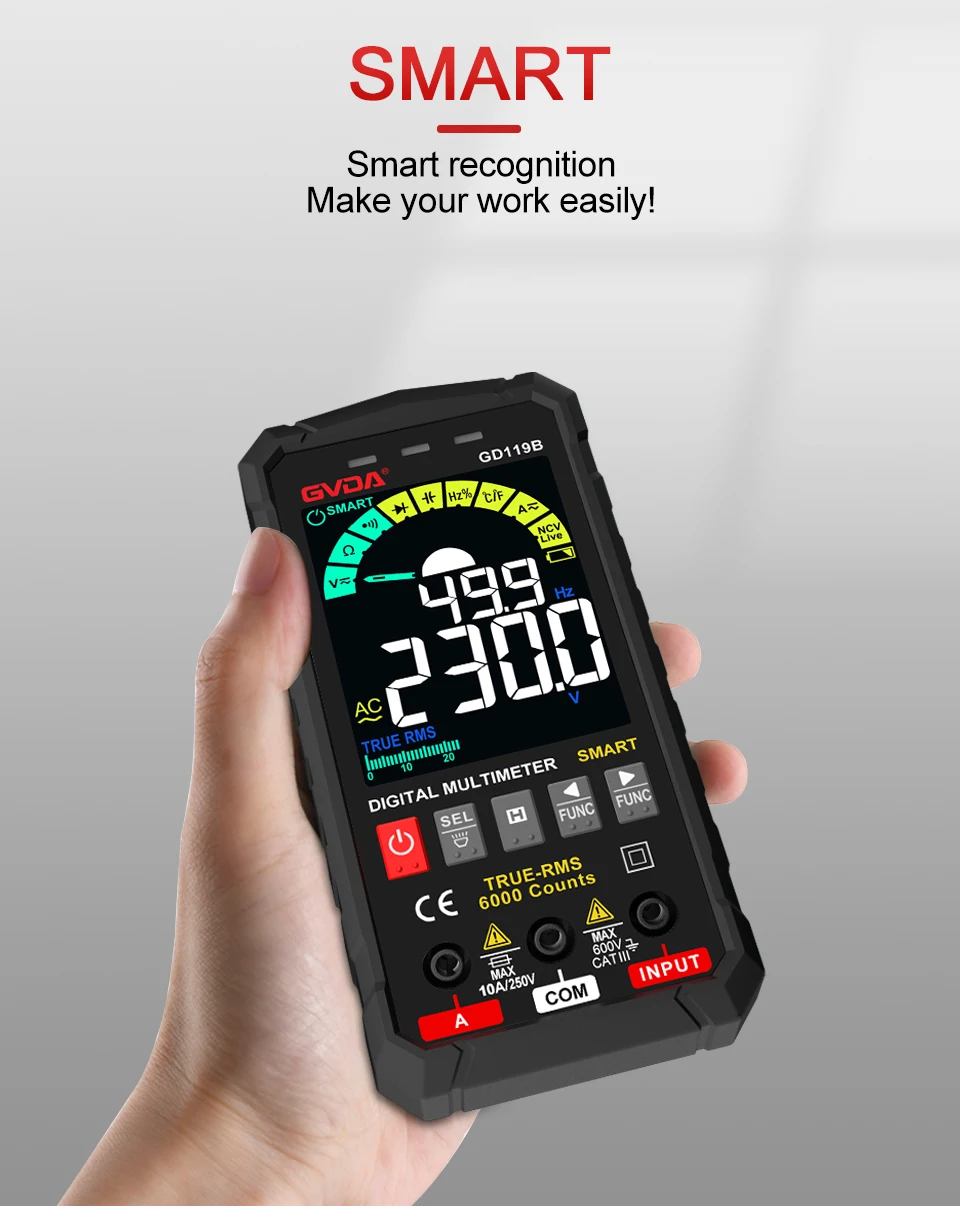

- Smart Function(AC/DC Voltage,resistance and continuity):yes
- Auto Identification of current input:yes

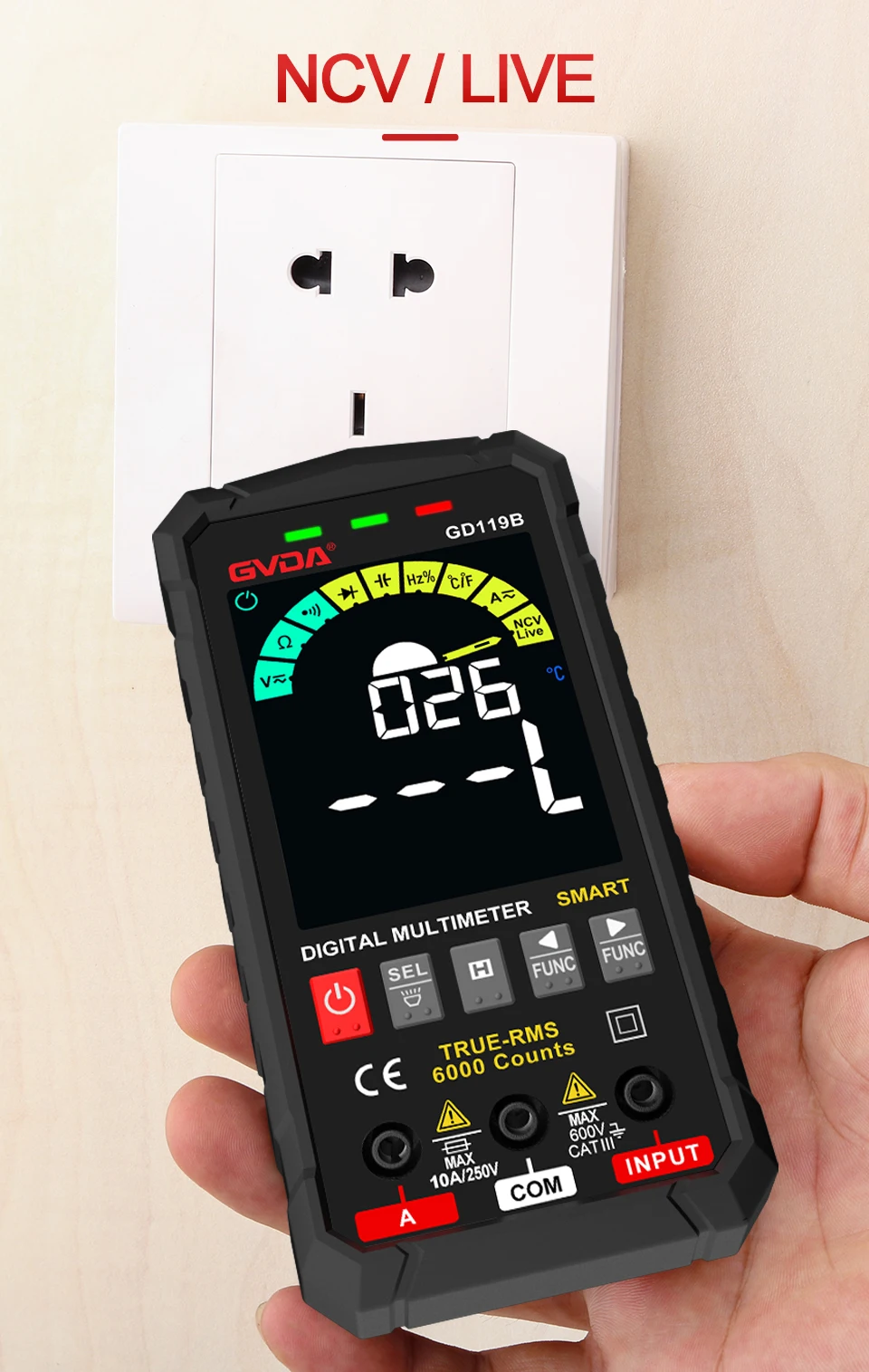

- NCV/Live/Continuity test:yes(sound and light alarm)
- Continuity: yes <50ohm
- Diode test:yes(sound alarm) (0-3V)
- Bargraph/Data hold /True RMS:yes
- Fuse Burning Prompt:yes
- Input Jack LED indication:yes
- Low battery indication:yes
- Auto power off：yes

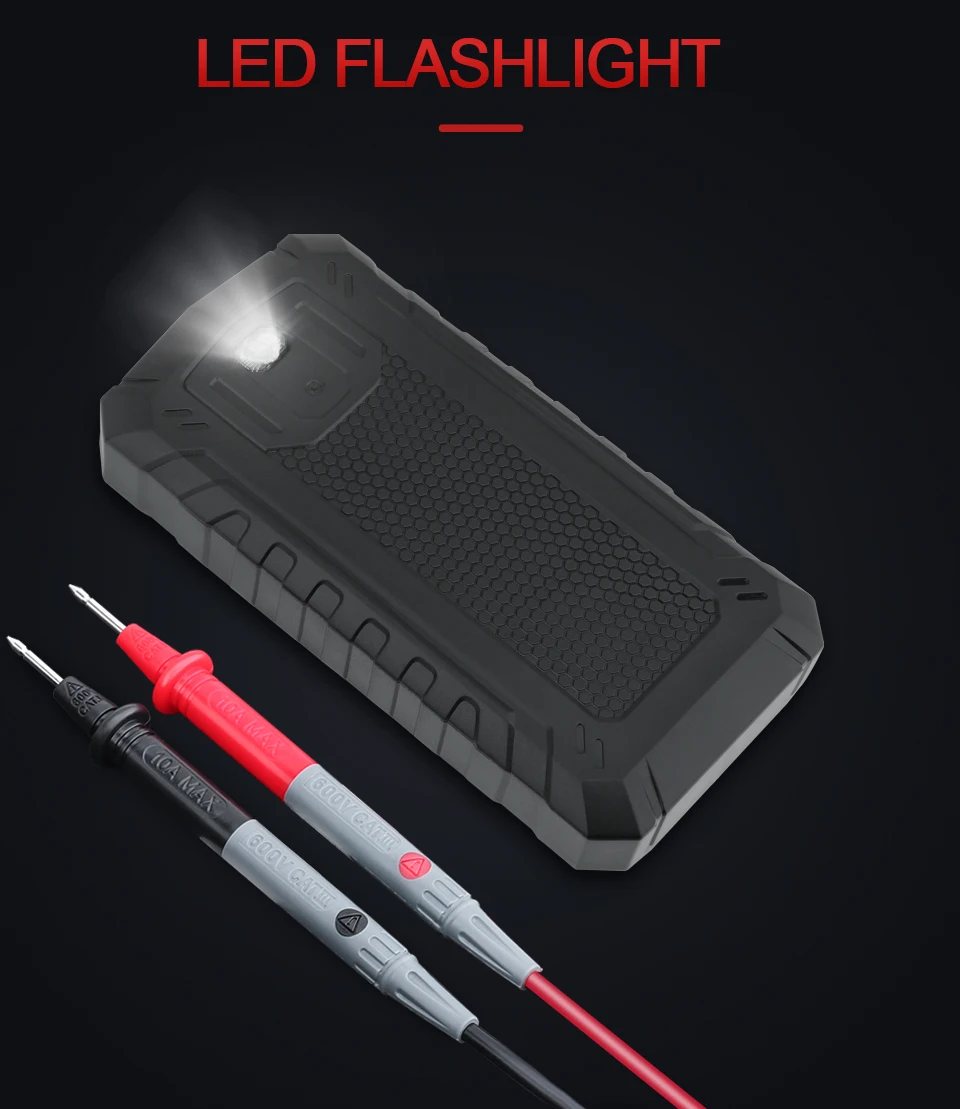

- Flashlights:yes

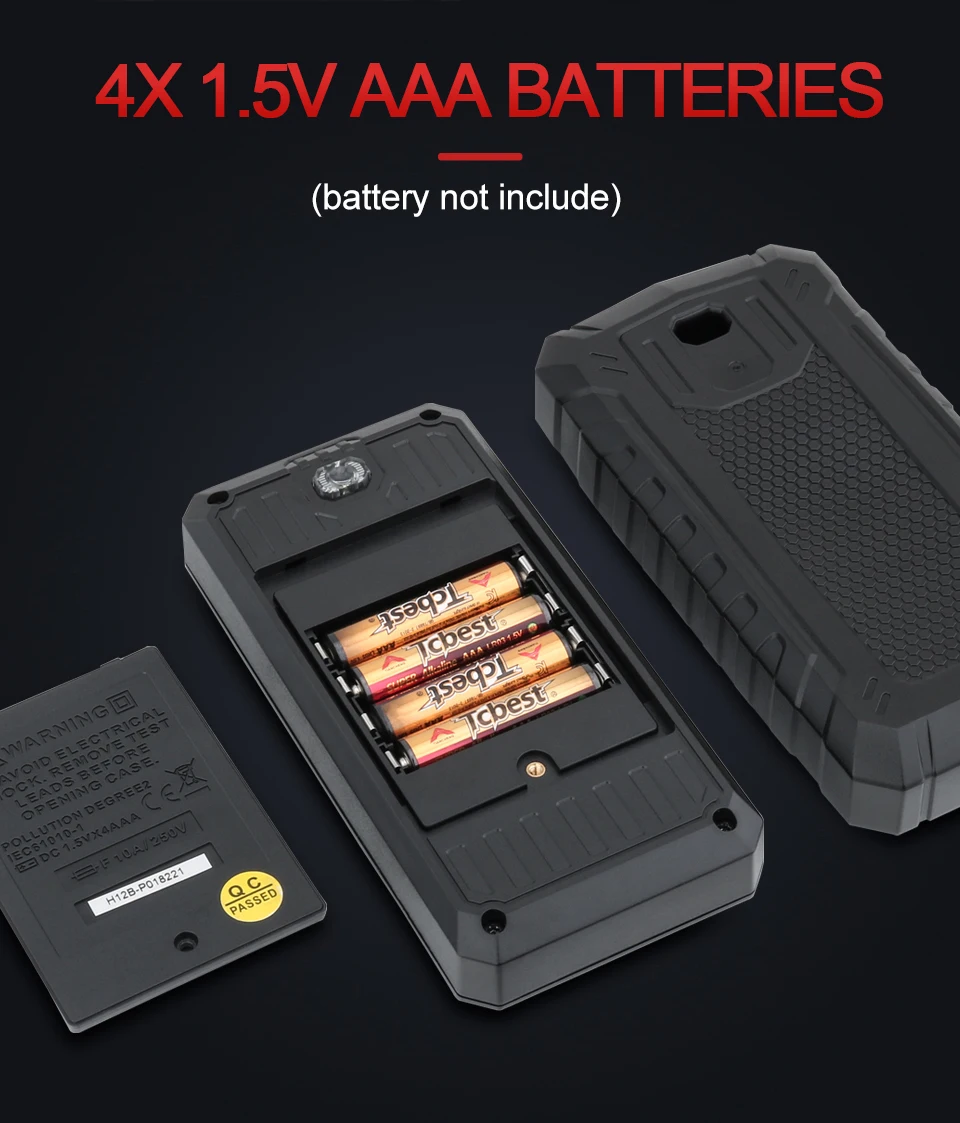

- Power supply:4pcs AAA Batteries (not include)
- Product Size:113x68x19mm
- Package Size:170x95x50mm
- Package Weight:about 400g

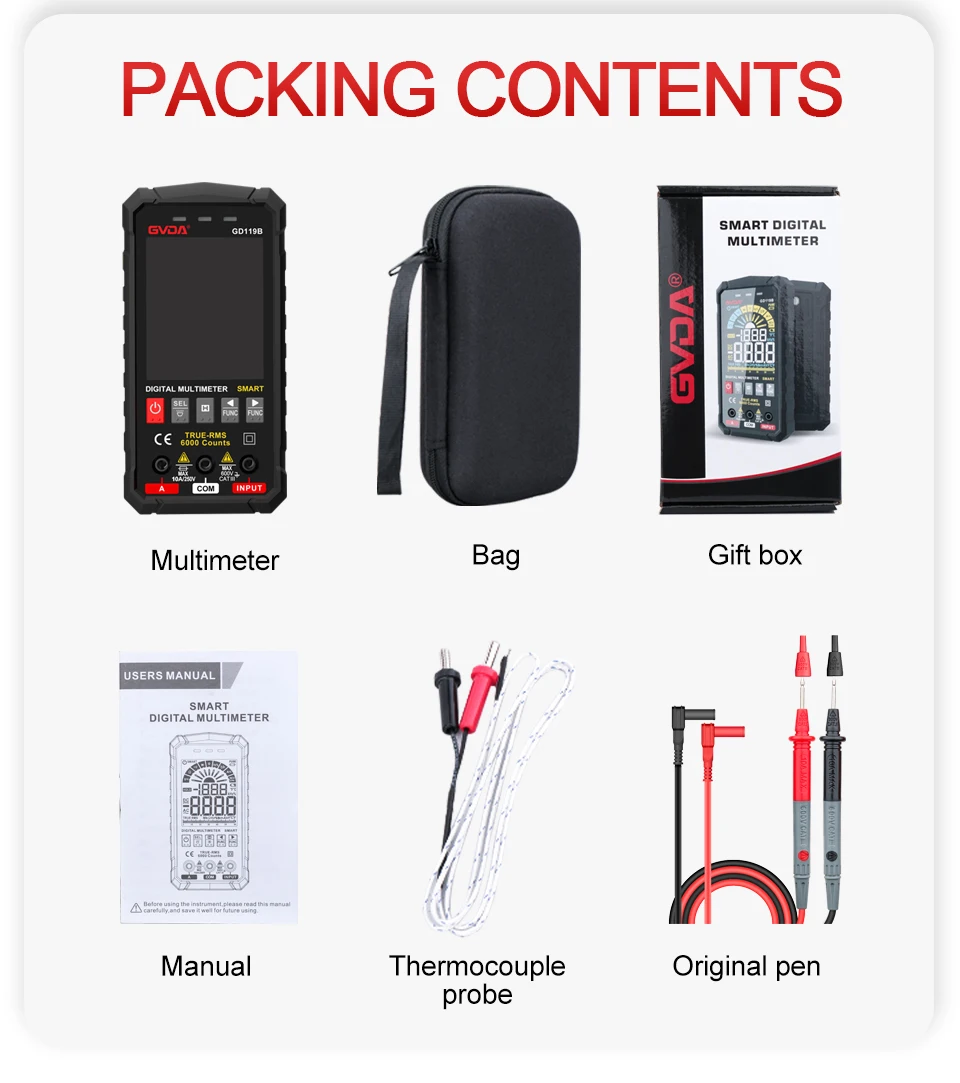

- Packing Contents
- 1pc Multimeter
- 1pc pen cable

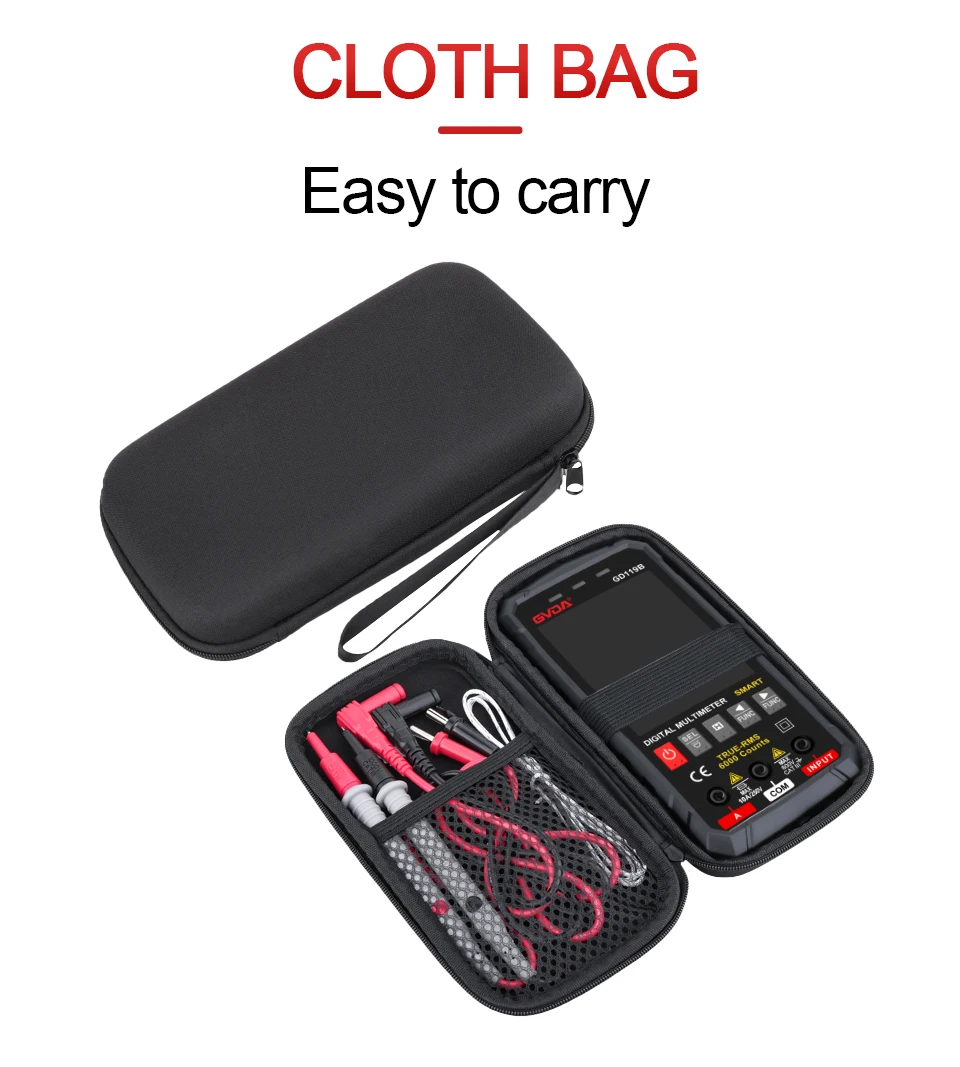

- 1pc cloth bag
- 1pc Thermocouple probe
Below is Product Details for GD119B Series ( Color LCD Display)
