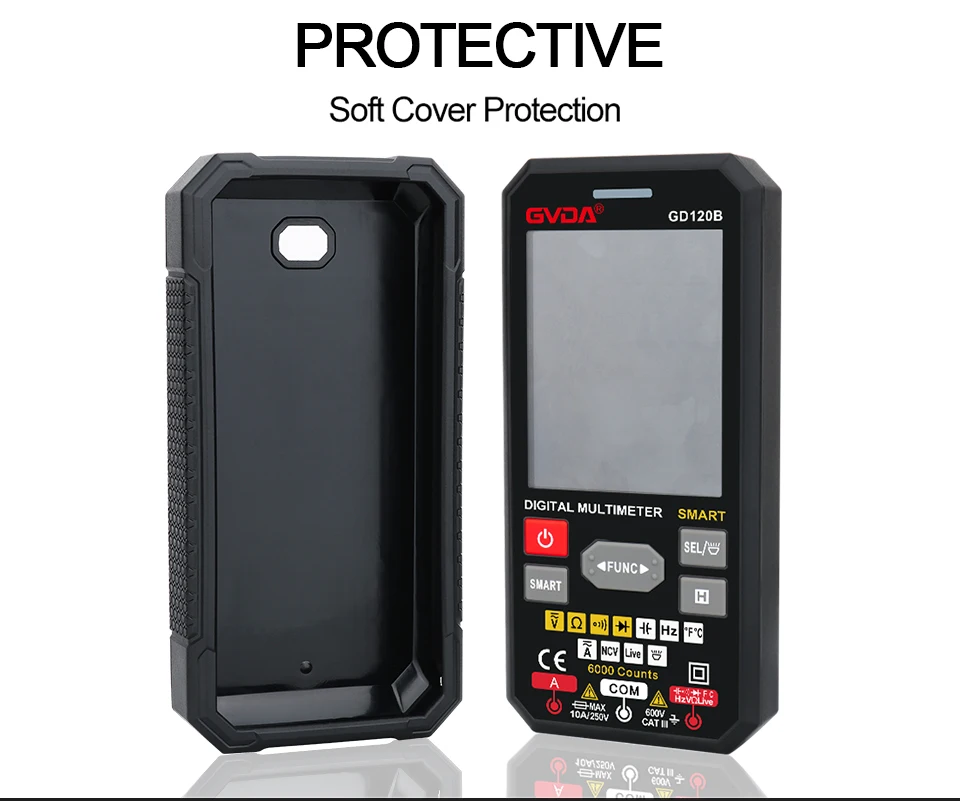

GVDA GD120B Multimeter

GVDA GD120B Multimeter T-RMS Auto Range AC DC NCV Color LCD Smart Multimetro Tester Ohm Capacitance Hz Temp Voltage Meter

Is Smart Device: no
DC Current: 600mA/ 10A/ 6A
AC Current: 600mA/ 10A/ 6A
DC Voltage: 600mV/ 60V/ 60V/ 600V
AC Voltage: 60V/ 60V/ 600V
Operating Mode: Smart
Measuring Capacitance Range: 6nF/ 60nF/ 600nF/ 6uF/ 60uF/ 600uF ±(4.0% 5); 6mF/60mF ±(5.0% 5)
Measuring Resistance Range: 600/6k/60k/600kOHM ±(1.0% 5)
Model Number: GD120B GD118B
Dimensions: 146x72x26mm
Operating Temperature: 0 – 40 ℃
Measuring Inductance Range: Smart Multimeter
Display Type: Digital display

GVDA GD120B Multimeter T-RMS Auto Range AC DC NCV Color LCD Smart Multimetro Tester Ohm Capacitance Hz Temp Voltage Meter

Is Smart Device: no
DC Current: 600mA/ 10A/ 6A
AC Current: 600mA/ 10A/ 6A
DC Voltage: 600mV/ 60V/ 60V/ 600V
AC Voltage: 60V/ 60V/ 600V
Operating Mode: Smart
Measuring Capacitance Range: 6nF/ 60nF/ 600nF/ 6uF/ 60uF/ 600uF ±(4.0% 5); 6mF/60mF ±(5.0% 5)
Measuring Resistance Range: 600/6k/60k/600kOHM ±(1.0% 5)
Model Number: GD120B GD118B
Dimensions: 146x72x26mm
Operating Temperature: 0 – 40 ℃
Measuring Inductance Range: Smart Multimeter
Display Type: Digital display
DIY Supplies: ELECTRICAL
Brand Name: GVDA
Origin: Mainland China
Certification: CE,FCC
Display:: 6000 counts,HD Colour Display
Over range indication:: OL
Frequency:: 6Hz,60Hz,600Hz,6KHz,60KHz,600KHz,6MHz,10MHz, ±(1.0% 3);1.0~99.0%,±(1.0% 3)
Temperature:: -40℃~ 0℃,±3℃; 0℃ ~ 1000℃, 2.0% or ±2℃
Temperature unit:: C/F
Duty:: 1.0%-99.0% ±(1.0% 3)
Fuse protection:: F10A/250V fuse
Analog Bar/ Gear Display: Smart Function(AC/DC Voltage,resistance and continuity)
Auto Identification of current input: NCV/Live/Continuity test
Continuity: Diode test
Bargraph/Data hold /True RMS: Fuse Burning Prompt
Input Jack LED indication: Low battery indication
Auto power off: Flashlights
Power supply:: 4pcs AAA Batteries (not include)

GVDA New 6000 Counts Smart Multimeter Digital True RMS Auto Range 600V 10A Tester Ohm Hz Capacitance REL AC DC DMM Multitester

GVDA Multimeter is an intelligent true effective value multimeter, intelligent identification and manual function are integrated, which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV,etc.; It is the best choice for professional electrician, engineer, electronic enthusiast or family use.

Product Features for GD120B

1) HD Colour LCD Display

2) Maximum display: Maximum 6000 Counts display

3) Non-contact AC voltage detection

4) Sampling Rate: About 3 times per second

5) Over range display: the highest position shows “OL”

6) Low voltage display: low battery indication

7) Working environment: (0-40)°C,relative humidity ＜80%

8) Power Supply: 4×1.5V Batteries ( NOT include)

9) It is stable performance, high precision, high reliability clear readings, and overload protection.

Technical Details GD120B Series

1, DC voltage: 600mV,6V,60V,600V,±(0.5% +3)

2, AC voltage: 6V,60V,600V,±(0.8% +3)

3, Resistance:600Ω,6KΩ,60KΩ,600KΩ,6MΩ,±(1.0%+5);60 MΩ, ±(1.5%+10)

4, AC/DC current: 600mA,6A,10A,±(1.2%+3)

5, Capacitance: 6nF,60nF,600nF,6uF,60uF,600uF,±(4.0%+5);6mF,60mF,±(5.0%+5)

6, Frequency: 6Hz,60Hz,600Hz,6KHz,60KHz,600KHz,6MHz,10MHz, ±(1.0%+3);1.0~99.0%,±(1.0%+3)

7, Temperature:-40℃~ 0℃,±3℃; 0℃ ~ 1000℃, 2.0% or ±2℃

8, Temperature unit:C/F

9, MAX. Voltage between terminals and earth ground：DC/AC 600V

10,Fuse protection: F10A/250V fuse

11,Sampling rate:approx. 3 times/second.

12,Display: 6000 counts

13,Over range indication: “OL”

14,Low battery indication: yes

15,Input polarity indication: display “-”

16,Smart (AUTO) measurement: yes

17,True RMS: yes

18,Diode measurement: yes

19,Capacitance measurement: yes

20,Live wire detecting: yes

21,Frequency measurement: yes

22,Non-contact AC voltage detection: yes

23,Power requirement: 4 x 1.5V AAA batteries(not include)

24,Package weight:400g

25,Package size:100*180*61mm

26,Product size:71*145*26mm

Packing Contents
