GVDA GD166A/ GD166B/ GD168B Clamp Meter Multimeter

GVDA GD166A/ GD166B/ GD168B Clamp Meter Multimeter Auto Range True RMS NCV DC AC Voltage Inrush Current Temperature Tester Automatic Voltmeter

Weight: 0.45KG
Dimensions: 199*81*32mm
Operating Temperature: 0℃~40℃
Measuring Capacitance Range: 6nF, 60nF, 600uF, 6uF, 60uF, 600uF; 6mF, 60mF
Measuring Resistance Range: 600Ω, 6KΩ, 60KΩ, 600KΩ, 6MΩ, 60MΩ
Measuring Voltage Range: 600mV, 6V, 60V, 600V
Measuring Current Range: 60A, 600A
Display Type: Digital Only
Model Number: GD166A GD166B GD168B
DIY Supplies: ELECTRICAL
Brand Name: GVDA
Origin: Mainland China

Mô tả
Đánh giá (0)

GVDA GD166A/ GD166B/ GD168B Clamp Meter Multimeter Auto Range True RMS NCV DC AC Voltage Inrush Current Temperature Tester Automatic Voltmeter

Weight: 0.45KG
Dimensions: 199*81*32mm
Operating Temperature: 0℃~40℃
Measuring Capacitance Range: 6nF, 60nF, 600uF, 6uF, 60uF, 600uF; 6mF, 60mF
Measuring Resistance Range: 600Ω, 6KΩ, 60KΩ, 600KΩ, 6MΩ, 60MΩ
Measuring Voltage Range: 600mV, 6V, 60V, 600V
Measuring Current Range: 60A, 600A
Display Type: Digital Only
Model Number: GD166A GD166B GD168B
DIY Supplies: ELECTRICAL
Brand Name: GVDA
Origin: Mainland China
Certification: CE,FCC

GVDA Digital Clamp Meter Multimeter Auto Range True RMS NCV DC AC Voltage Inrush Current Temperature Tester Automatic Voltmeter Smart Multitester

A new generation of true RMS high performance intelligent digital clamp meters that combine a wide range of functions to make your work easier, more efficient and sager. It is capable of measuring AC/DC voltage, AC/DC current, frequency, duty, resistance, capacitance, temperature, diode, continuity, NCV, live wire detection and more.

Product Features

1) HD Colour LCD Display

2) Display: Maximum 6000 Counts display

3) Non-contact AC voltage measurement(NCV)

4) AC Inrush current measurement

5) MAX/MIN value measurement

6) Live wire detection

7) Auto power off

8) Low voltage display: low battery indication

9) Over range indication

10) DCA zero (only GD166B GD168B)

Product Details

1,DC voltage:600mV,6V,60V,600V

2,AC voltage:600mV,6V,60V,600V

3,AC current:60A,600A

4,DC current:60A,600A (only GD166B GD168B)

5,Resistance:600Ω,6KΩ,60KΩ,600KΩ,6MΩ,60MΩ

6,AC Inrush current: 60A,600A

7,Capacitance:6nF,60nF,600uF,6uF,60uF,600uF;6mF,60mF

8,Frequency:100Hz,1000Hz,10KHz,100KHz,1000KHz,10MHz

9,Duty:1-99%

10,Temperature:-40℃~1000℃ ,-40F~1832F

11,Temperature unit:℃/F

12,MAX.Voltage between terminals and earth ground: 600V

13,Display: 6000 counts

14,Over range indication: “OL”

15,Low battery indication: yes

16,Input polarity indication: display “-”

17,AC Inrush current measurement: yes

18,AC/DC mV measurement: yes

19,Continuity test: yes

20,Max/min measurement: yes

21,Smart (AUTO) measurement: yes

22,True RMS: yes

23,Diode measurement: yes

24,DCA zero: yes (only GD166B GD168B)

25,Live wire detection: yes

26,Non-contact AC voltage detection: yes

27,Backlight: yes

28,Flashlight: yes

29,Data hold:yes

30,Clamp opening size: 36mm

31,Power requirement: 3×1.5V AAA batteries(not include)

32,Package weight:440g

33,Product size:199*81*32mm

Package contents:

1pc Multimeter

1pair Pen cables

1pc Cloth bag

1pc Thermocouple probe

1pc Box

1pc Manual

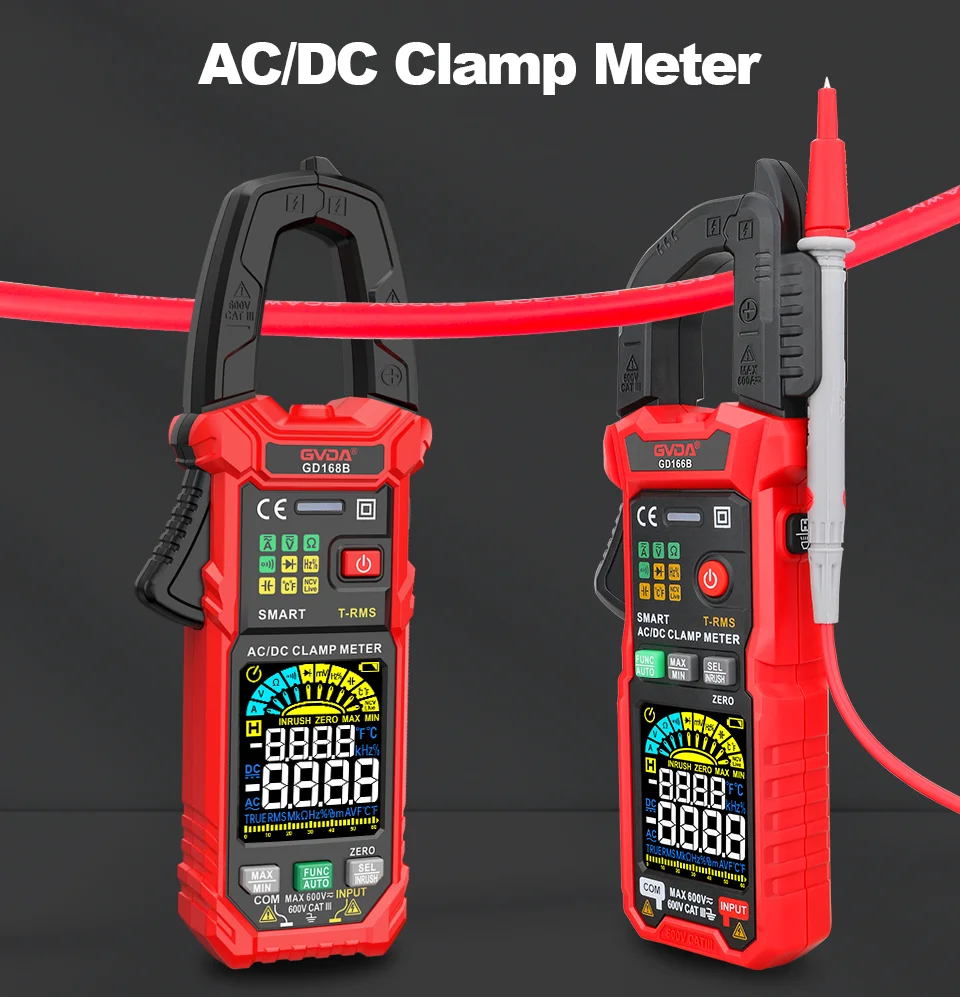

GVDA New Professional AC/DC Clamp Meter

Se2c6f2d4b0a04b29a85363d5e7da4cd1V Sfecf1f5efa444fbda54788fc5cf403c9w

Three models for your choice

GD166A is AC Clamp Meter, there is no DC current function.

GD166B GD168B are AC/DC Clamp Meters, both models can measure AC DC current.

Sf5f485ebc3804a1ea1729e588ace429ec

Inrush current measurement

Select the inrush current measurement function, then press the trigger to open the clamp,clamp the conductor to be tested, slowly release the trigger until the clamp are completely closed,and determine whether the conductor is clamped in the center of the pliers.If the conductor is not in the center, additional errors will occur.

Sa77386e38cdf4961b7b3badbe13de52dK

NCV measurement

When the weak electric field signal is induced, the “–L” symbol will be displayed, the beep will emit a slow beep sound, and the green LED indicator will light up.When the strong electric field signal is induced, the “–H” symbol will be displayed, the beep will emit a fast beep sound, and the red LED indicator will light up.

Sef3af6159c7f4153b050c4c4e1ac5c0dB

Smart measurement

The meter enters smart mode by default. It can measure voltage, current,resistance,continuity,and automatically identify the measurement signal. The current is measured with the clamp, and the other measurements are taken from the pen input.

Saec374d087ca48a78b85dfd26eff5f5cK

Current measurement

When measuring AC current, you should only clamp the live line or the zero line, NOT 2 lines combined together.

Live wire detecting

When a low voltage is detected, “–L” is displayed, the beeper emits a low beeping tone and the green LED lights up.When a high voltage is detected, “–H” is displayed, the beeper emits a fast beeping tone and the red LED lights up.

S2c5970ba1d2a46f98bb2498111ac6aab1

Clamp opening size 36mm

Sc62dc21b80204e7daf1cb23fb9262bd7q

Flashlight

Press the flashlight button and hold for more than 2 seconds to turn the flashlight on or off. It is convenient to be used in dark conditions

S72b6c19449d4435b9ac51963a82eb812G

Place the test lead design

There is a pen rack in the clamp, if can place the other probe when you only use one probe when measuring.

S1b1e6500013a41fa942a1e38de5bd830G

HD backlight color display

6000 counts, automatically display the unit symbols according to the shift of the measurement function.

S2d76046d380b4225bc525a0ec24e09b8o

Temperature measurement

Measurement range is -40℃~1000℃ ,-40F~1832F. When measuring temperature,put the temperature probe into the object to be measured.

S3cc234cd60204c41b7b8c4dc7cab9ac0I S145c8c18d0c348898221cf1dbaf3a8faE S698a5050b11146eba3cc6aeeb2b770d26 S0ac049a4ab3c4ee4bc89884d23d965d5h Se890bb6e215c4f7cada2c23b0a14d2bd4
Sfc30a1fdfc7f4d37868a5049851c23f5z
