GVDA Metal Detector Wall Detector Laser Distance Meter AC Wood Finder Cable Wires Depth Tracker Wall Scanner Copper Wiring Detector

This device can detect metals (Steel bar, copper pipe) and cables hidden in walls, ceiling and floors; Metal, Cable, wood, etc under plasterboard. And it can measure the length, area, volume of the house by laser ranging, add and subtract measurement, Pythagorean measurement, etc.





1. Multifunction measuring measurement: Laser distance meter, Metal/Wire Pipe/Copper pipe/AC Detection

2. Wooden batten detection,only for GD210D  GD210DR GD210DG

3. Laser cross line, only for GD210DR GD210DG

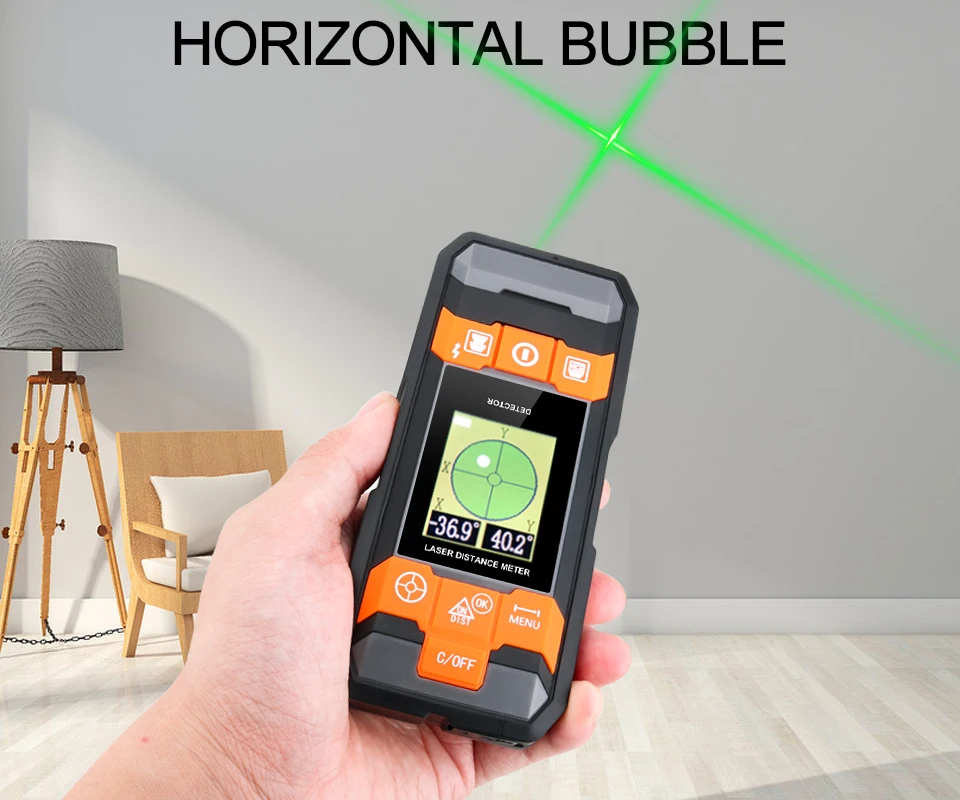

4. Electric bubble level, only for GD210DR GD210DG

5. 1.8inch color LCD display with backlight

6. Single function buzzer alarm without data

7. Real life voice, Real-time broadcast

8. Store 30 sets of measuring data

9. Large capacity lithium battery, USB charging





Detection function parameter

Maximum detection depth:

    Ferrous metals  100mm

    Non-ferrous (Copper)   80mm

    Copper wires (≥mm2)  40mm

    Foreign body (Wooden batten) 20mm/38mm

Operating humidity range:

    Metal mode      0-85%RH

    Foreign body    0-60%RH





Laser ranging parameter

Accuracy of measurement: ±5mm

Unit:m/in/ft

Measuring range (no reflector):0.05-40m***

Measuring time:0.3-4 seconds

Laser type:620~670nm,<1mw

Self-closing laser:20 seconds

Store the data:30 sets

Automatic shutdown time:About 5 minutes

Screen:1.8 inch color screen

Product size:135*60*25mm

Operating temperature range:0 C°～40 C°

Storage temperature range:-20 C°～60 C°

Power supply: Built in 300mAh Lithium battery





Packing information

1x Multifunction Instruments

1x USB Cable

1x User manual

1x Lanyard





Professional wall detector, laser distance meter, metal detector

Multifunctional measuring instrument

It have multi-functions, metal detection, wire detection, wooden batten detection, laser ranging function, laser cross line.

High precision sensor

Metal detection,Ferrous metals depth 100mm,Non-ferrous(Copper) depth 80mm

Wooden batten detection 20mm/38mm

Wire detection,Copper wires（≥4mm2 ）depth 40mm

Laser ranging function

max range 40 meters, unit option m/in/ft, 2 benchmarks

Addition measurement, subtraction measurement, area measurement,

volume measurement, Pythagorean measurement

Laser cross line

GD210DR with red laser cross lines, GD210DG with green laser cross lines

1/4 adapter thread, only for GD210DR GD210DG

One-click conversion from metal detection to laser ranging function

Data storage function,it can store 30 sets of data

Rechargeable battery

Large Capacity Lithium battery, USB charging

Voice broadcast

Real life voice, Real-time broadcast

1.8 inch color display
