HWAUT BM500A Diesel Common Rail Piezo Injectors Tester LCD Digital Insulation
- Hign-concerned Chemical: None
- Electronic: Yes
- Material Type: ABS
- Item Weight: 0.3kg

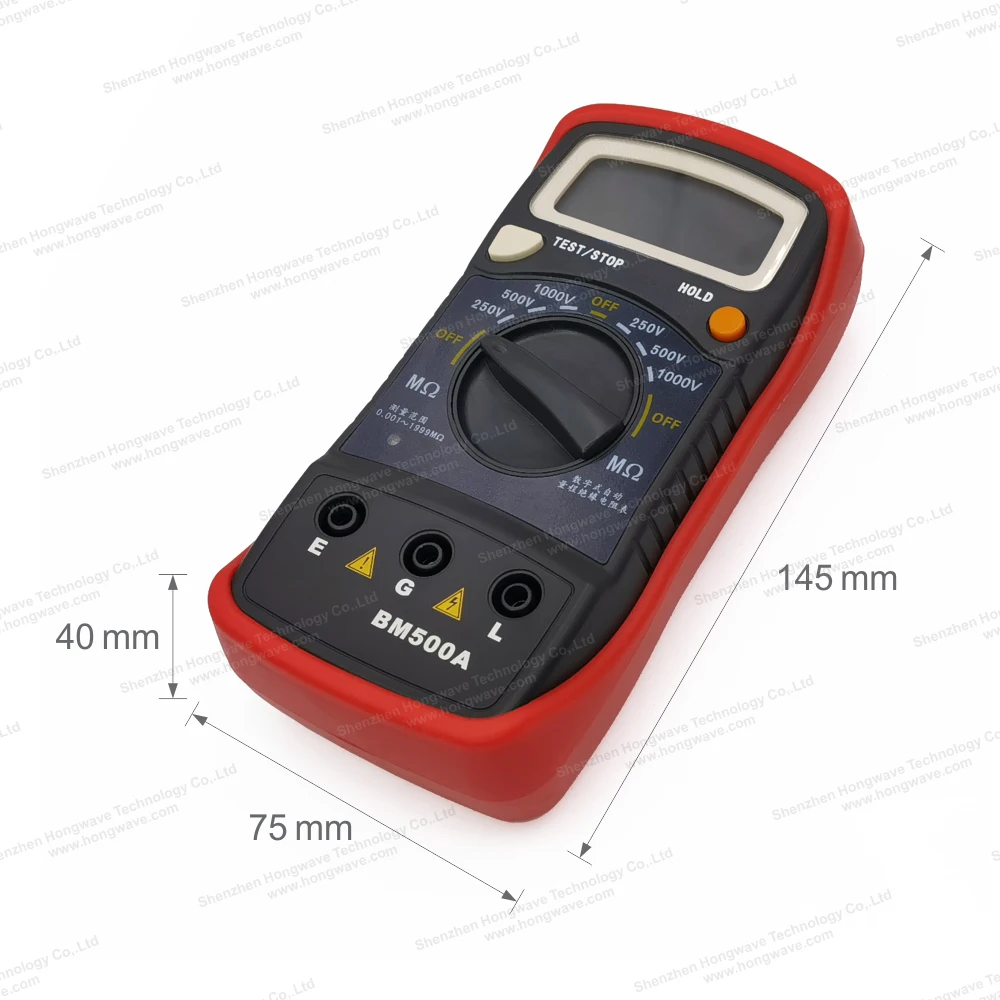

- Item Height: 3.1cm
- Item Width: 6.9cm
- Item Length: 13.8cm
- External Testing Certification: ce
- Voltage: 250V, 500V, 1000V
- Model Name: BM500A
- Item Type: Multimeters & Analyzers
- Brand Name: HWAUT
- Origin: Mainland China
- Certification: CE
- Material Type: ABS
- Model Name: BM500A
- feature 1: 1000V LCD Resistance Tester
- feature 2: Electronic Megohmmeter
- feature 3: Digital Insulation Resistance Meter

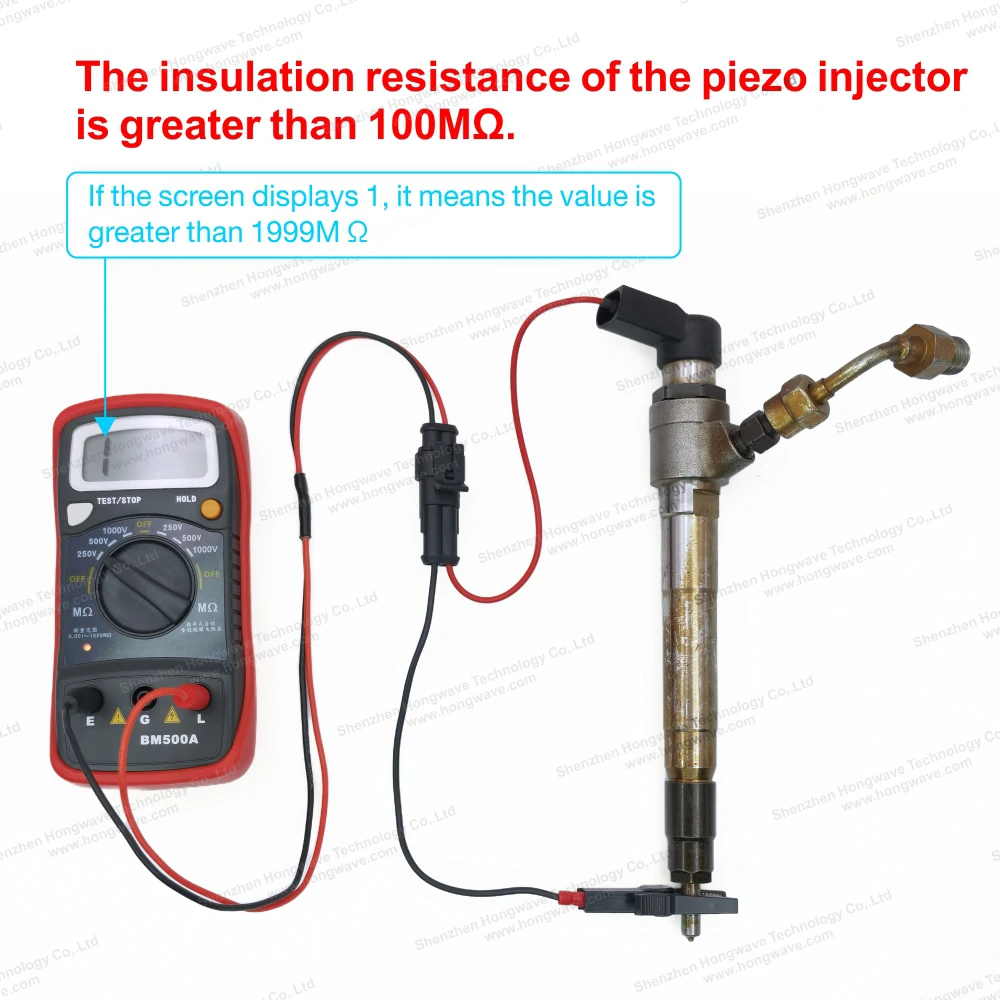

- feature 4: Diesel common rail piezoelectric injector tester
- feature 5: Megohm Meter
LCD Digital Insulation Resistance Tester Meter Pocket Multi Meter 250V-1000V
Note: this tester can Not detect the capacitance,inductance and resistance of injectors.

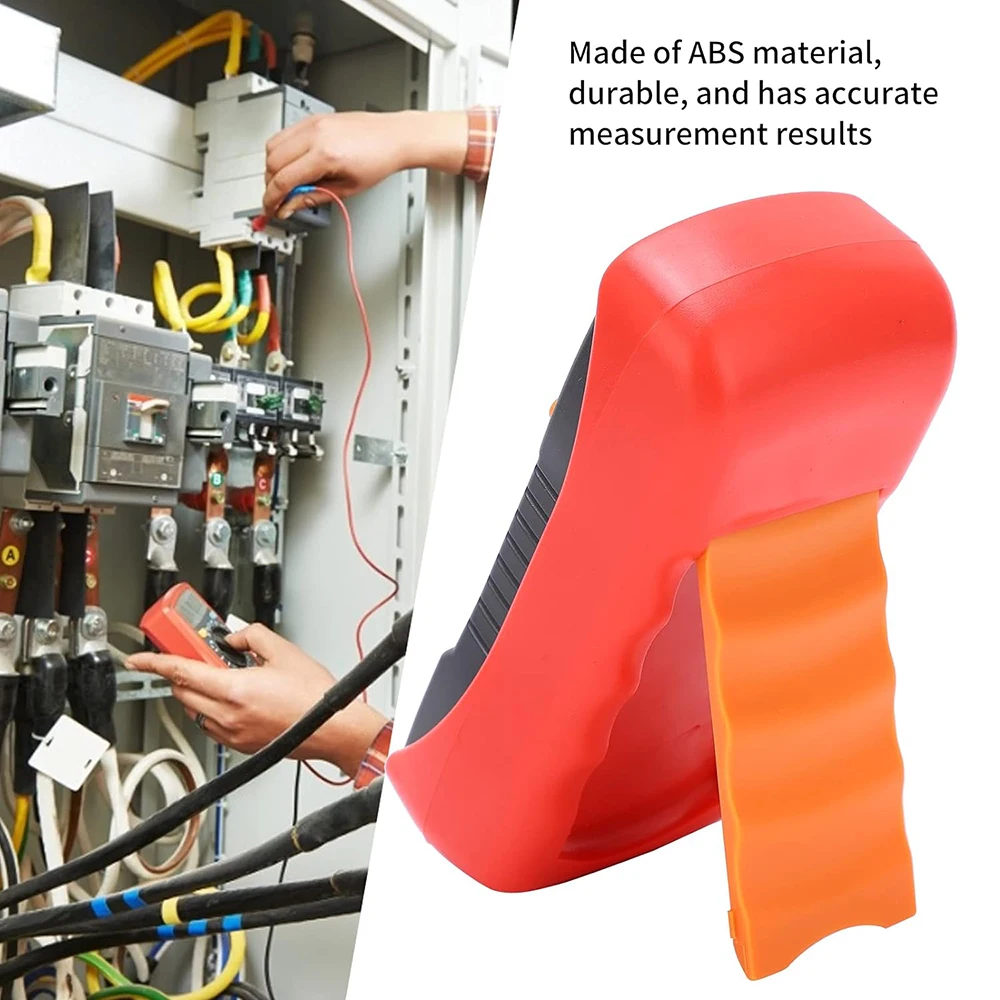

【Wider test voltage】 Output test voltage can be selected 250V/500V/1000V. This insulation resistance tester is equipped with anti-slip and anti-drop protective case with insulation.
【Accurate measurement】Digital megohm meter sampling rate can reach 2.3 times/sec.

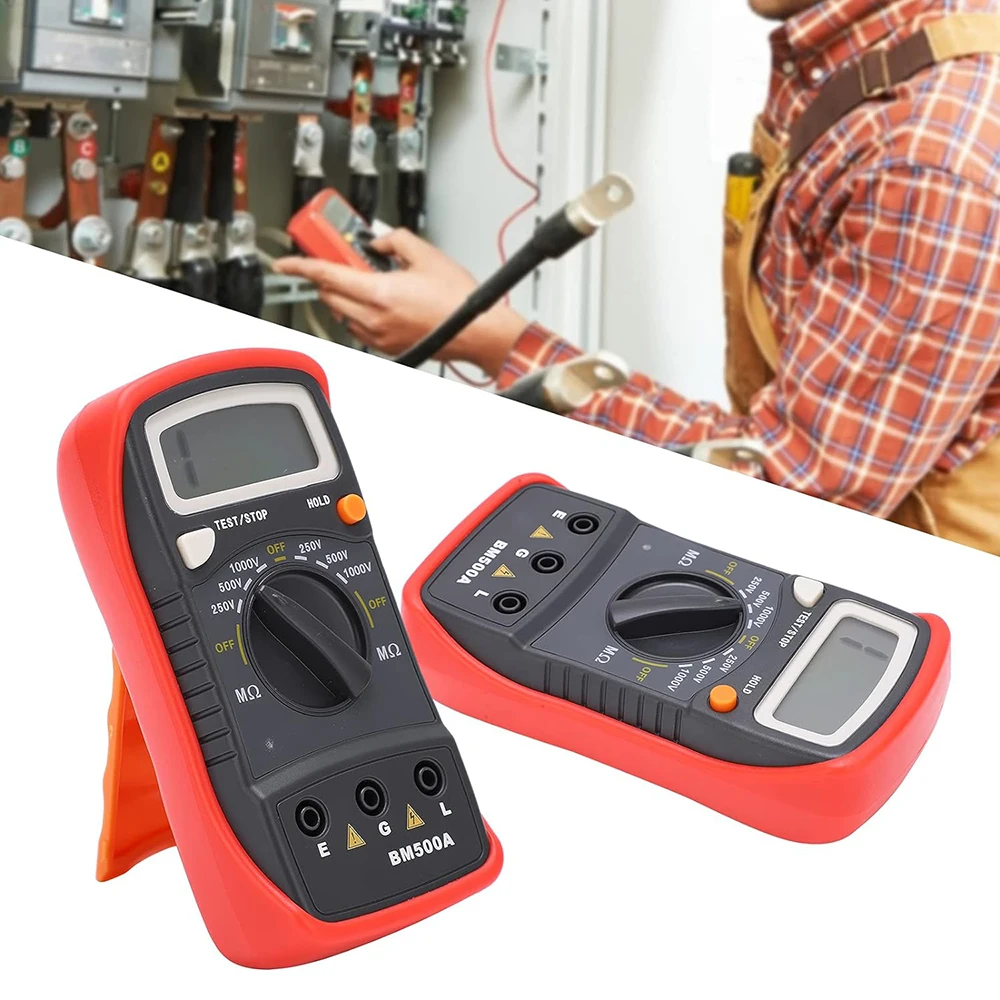

【Wide Application】The insulation tester is widely used to measure the insulation resistance of electrical equipment and insulation materials, such as transformers, motors, cables, switches, appliances, etc. It can also be used for the maintenance, testing and verification of various electrical equipment.

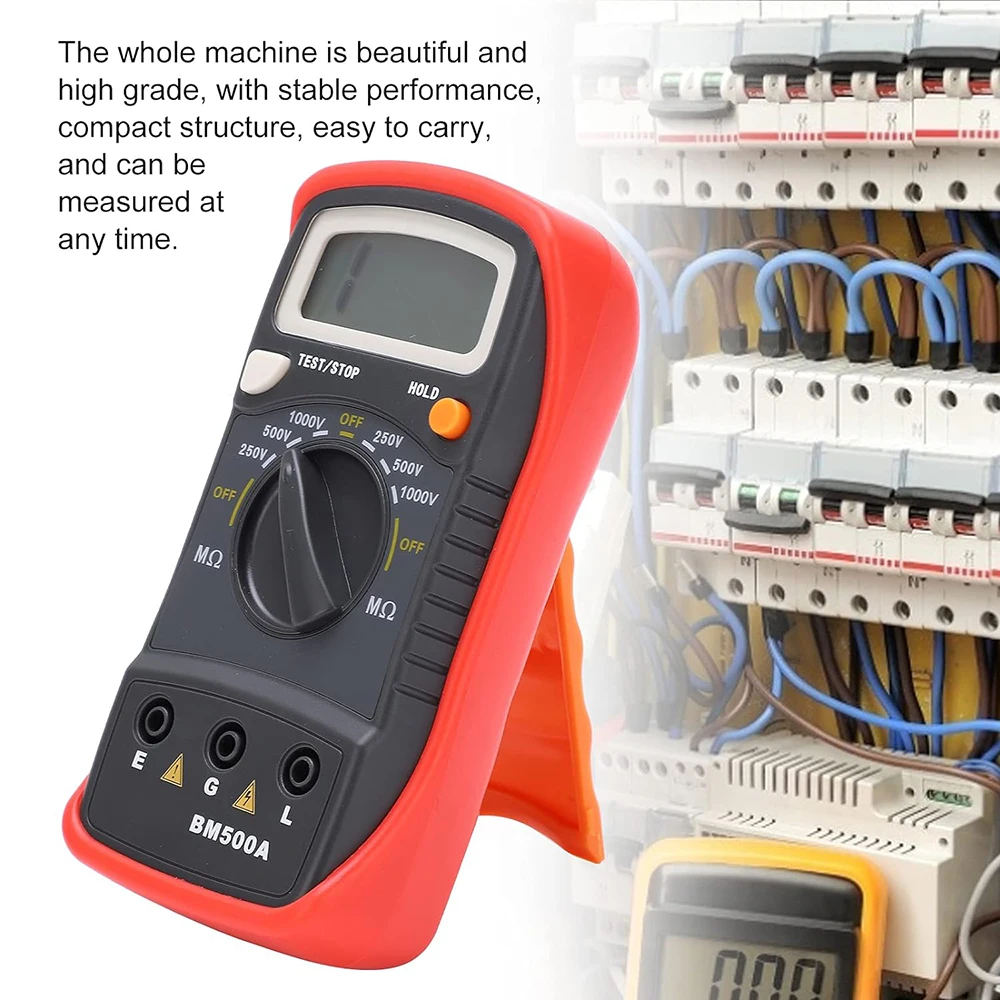

【With stand】Digital insulation resistance tester comes with a stand on the back, it can easily stand on the table for you to observe the data
【High insulation resistance tester】Digital megohmmeter, measuring high insulation resistance,measuring range is 0.001~1999MΩ, the maximum display is 1999.
Specification:
- Item Type: Resistance Tester
- Model: BM500A
- Material: ABS

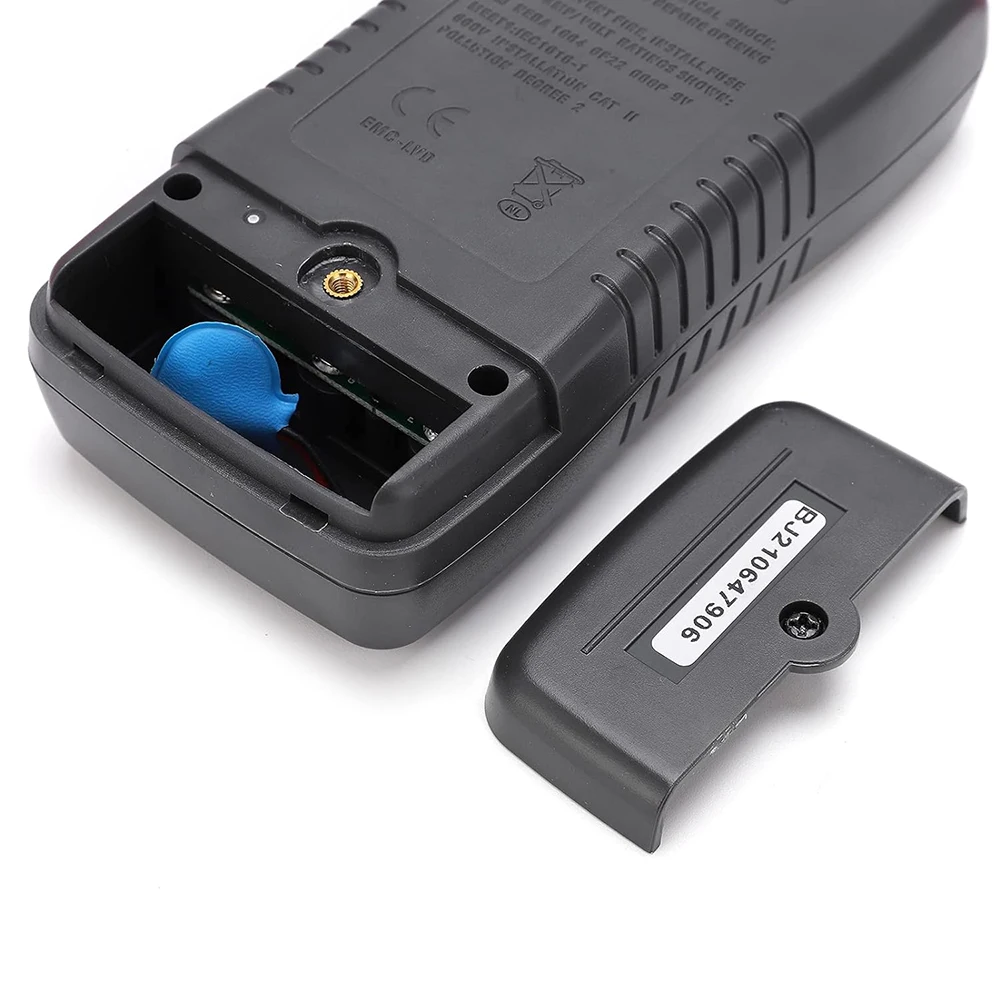

- Power Supply: 1 x 6F22 9V (Battery Not Included)
- Application: Electricity numerical test
- Automatic Range: Overload display 1
- Display Mode: LCD display
- Maximum Display: 1999
- Sampling Rate: 2.5 times/sec
- Working Environment: 0°C-40°C, less than 75%RH
- Storage Environment: -10°C-60°C, less than 80%RH
- Rated Voltage 250V/500V/1000V
- Open Circuit Voltage 90%~110% of rated voltage
- Measuring Range 0.001~1999MΩ
- Minimum Resolution 0.001MΩ
- Accuracy 250V: About 500kΩ
- 500V: About 1.5MΩ
- 1000V: About 5MΩ
Measure the achievable resistance value to maintain the lower limit of the rated voltage Not less than 1.5mA
How to Use:
1. Turn the knob to the corresponding function according to the measurement needs2. Connect the electrode of the measured object to the corresponding socket of this instrument3. When testing the cable, connect the jack G to the protective ring

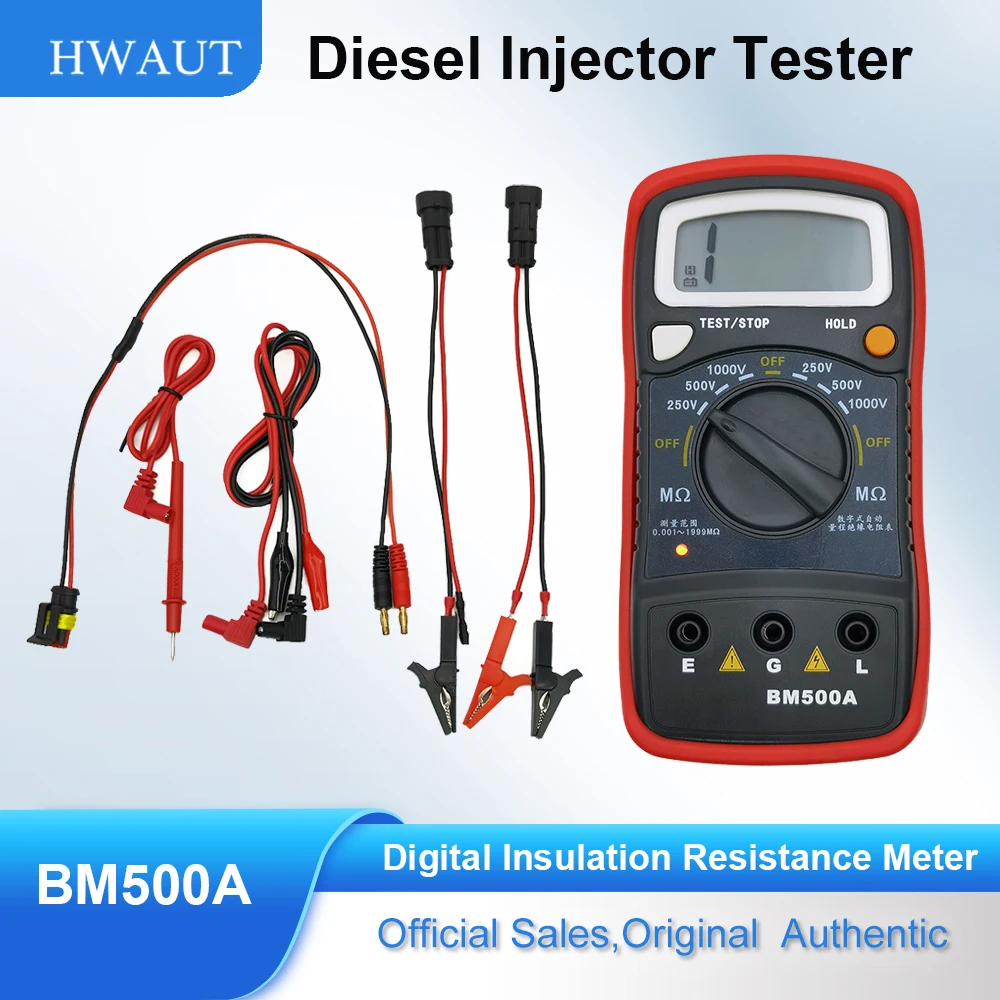

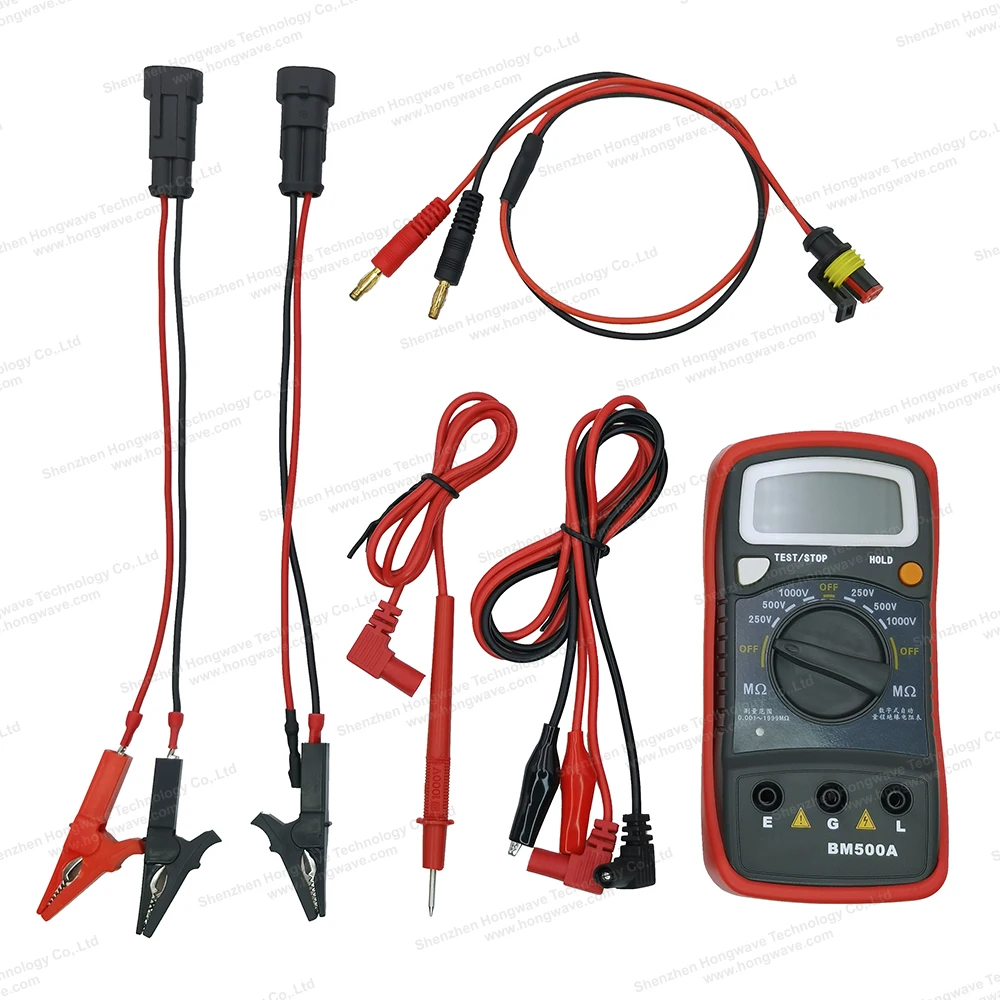

Package List:
1 x Tester (Battery Not Included)

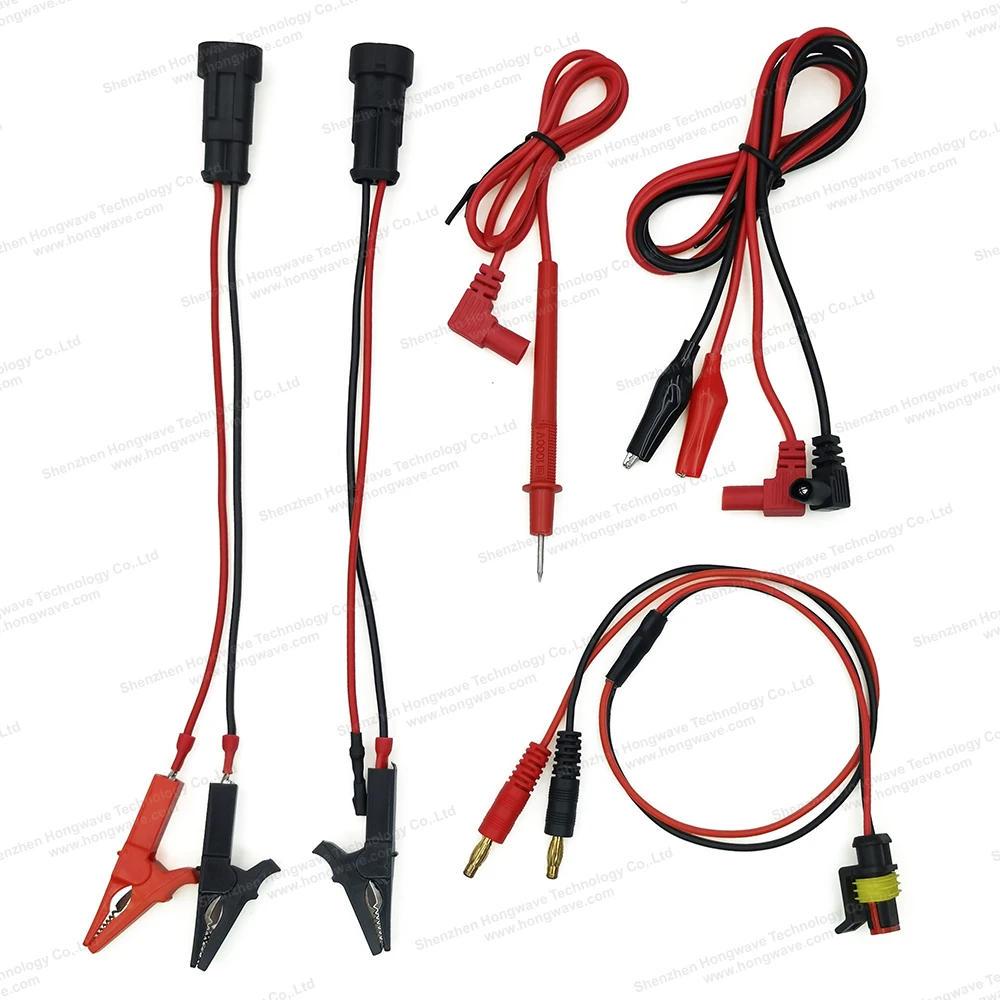

5 x Test Wires
1 x Manual
Notice:
If the back cover of the meter is not in place, it is strictly forbidden to use it. Otherwise, it may cause electric shock.
If you need the tester to detect the capacitance,inductance and resistance of injectors.
Click the LCR02 tester to purchase.
