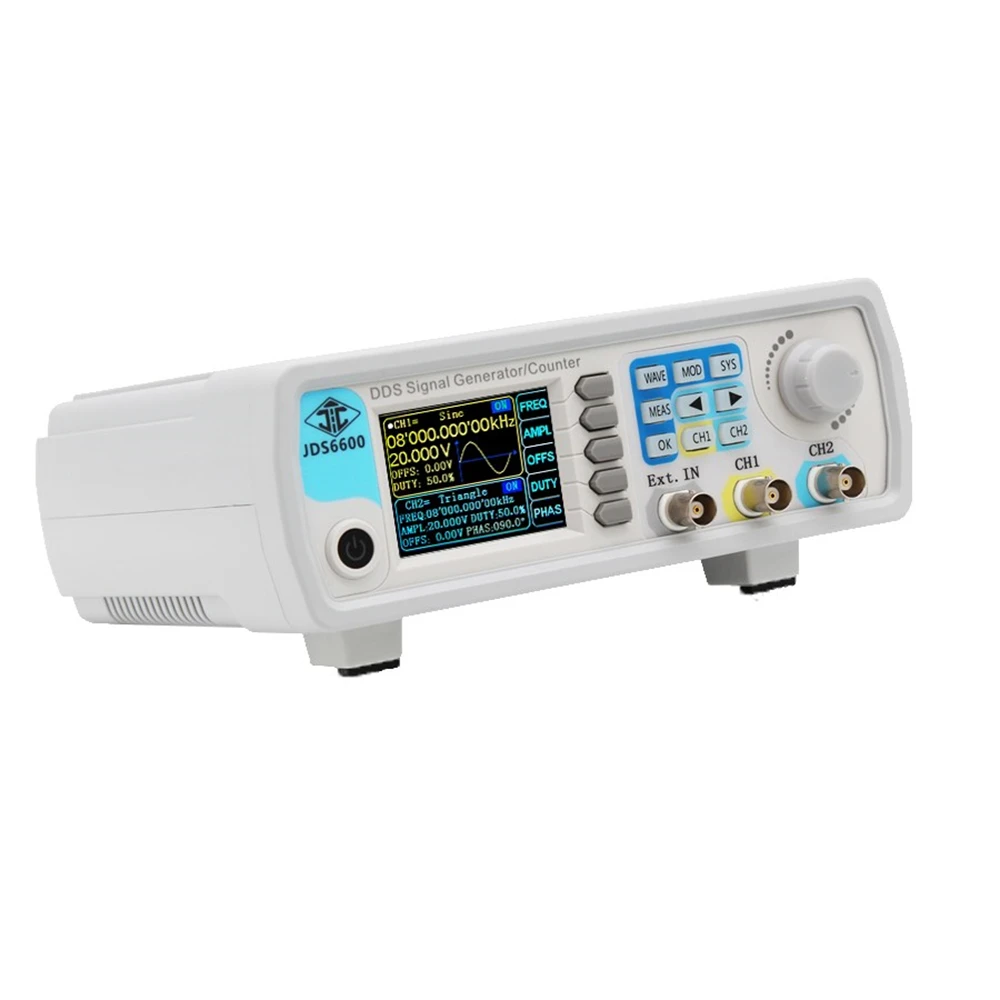

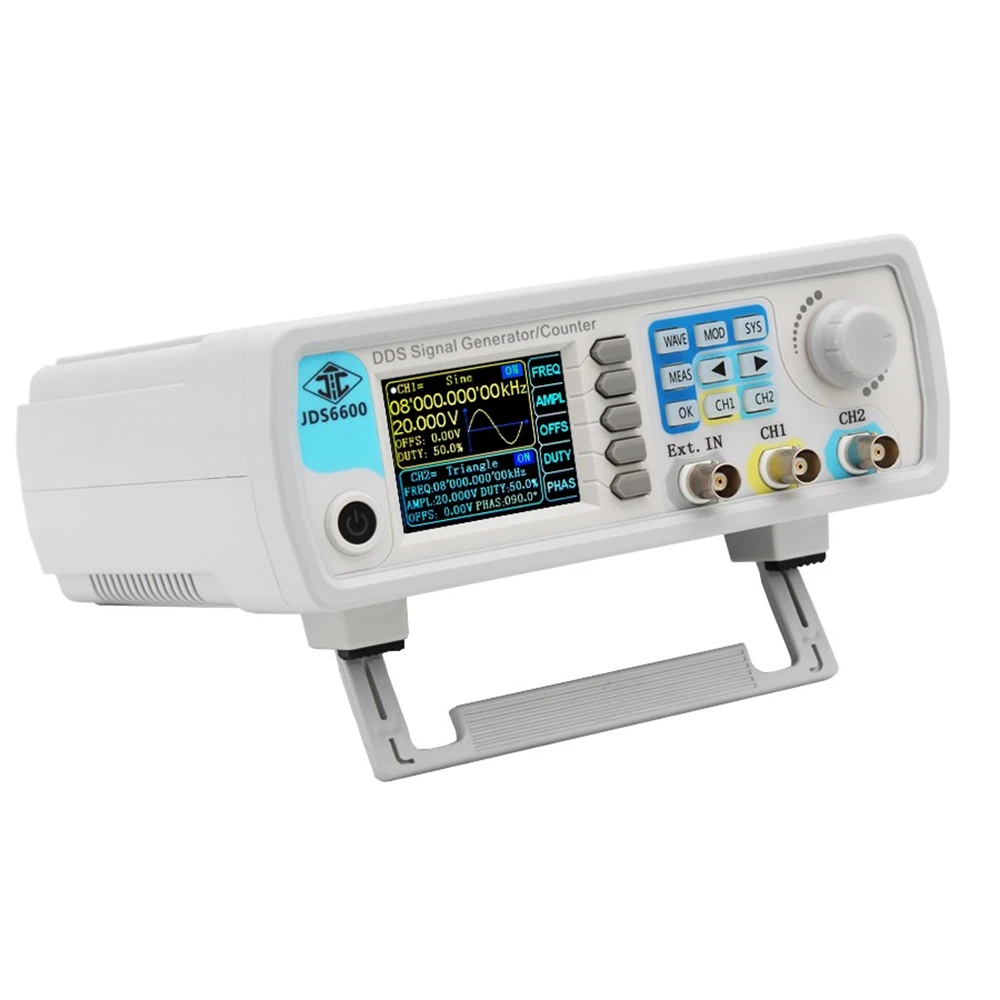

JDS6600 15/30/40/50/60MHz DDS Function Signal Generator/Source Dual/2-CH Frequency Meter Arbitrary Waveform Pulse Generator
- JDS6600 15/30/40/50/60MHz DDS Function Signal Generator/Source Dual/2-CH Frequency Meter Arbitrary Waveform Pulse Generator
- Hign-concerned Chemical: None
- Ruibozhi Model: JDS6600
- Model Number: JDS6600
- Display Size: 3.0 – 4.9 Inches
- DIY Supplies: ELECTRICAL
- Brand Name: RUIBOZHI
- Origin: Mainland China
JDS6600 15/30/40/50/60MHz DDS Function Signal Generator/Source Dual/2-CH Frequency Meter Arbitrary Waveform Pulse Generator
- Hign-concerned Chemical: None
- Ruibozhi Model: JDS6600
- Model Number: JDS6600
- Display Size: 3.0 – 4.9 Inches
- DIY Supplies: ELECTRICAL
- Brand Name: RUIBOZHI
- Origin: Mainland China
- Certification: CE,FCC
- Display Type: Analog and Digital
- Accuracy Class: 0.1%

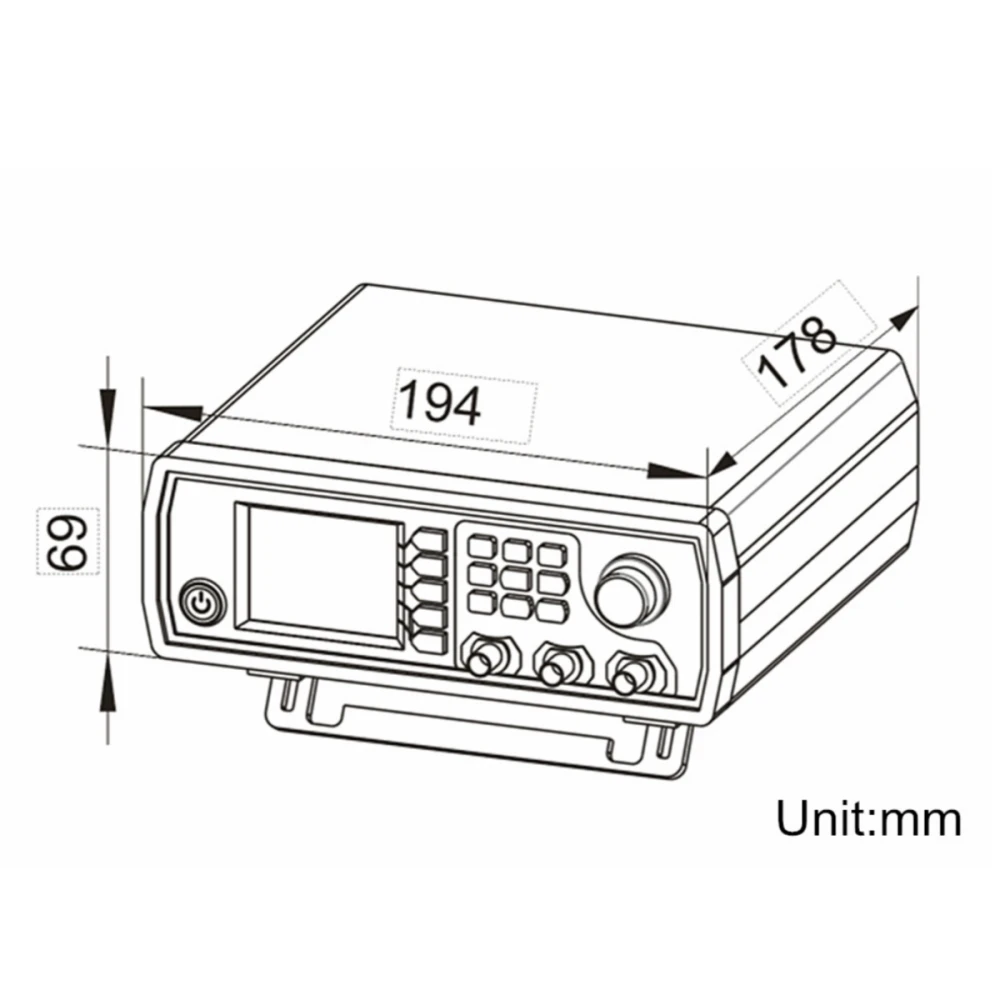

- Dimensions: 19.5*17.5*7CM
- signal generator: pulse generator
- function generator: frequency generator
- dds: waveform generator
- dds signal generator: rf generator
- generator frequency: high frequency generator
- rf signal generator: pwm generator
- generator pulse: generator signal
- function: pulse generator
- generator sine: digital synthesizer
- rf explorer: dds function generator
-
User Manual : http://68.168.132.244/JDS6600_EN_manual.pdf
-
Computer Software : http://68.168.132.244/DDS_Setup.rar
-
Operation teaching video : https://youtu.be/v12H5toRpxo
|
|
|
|

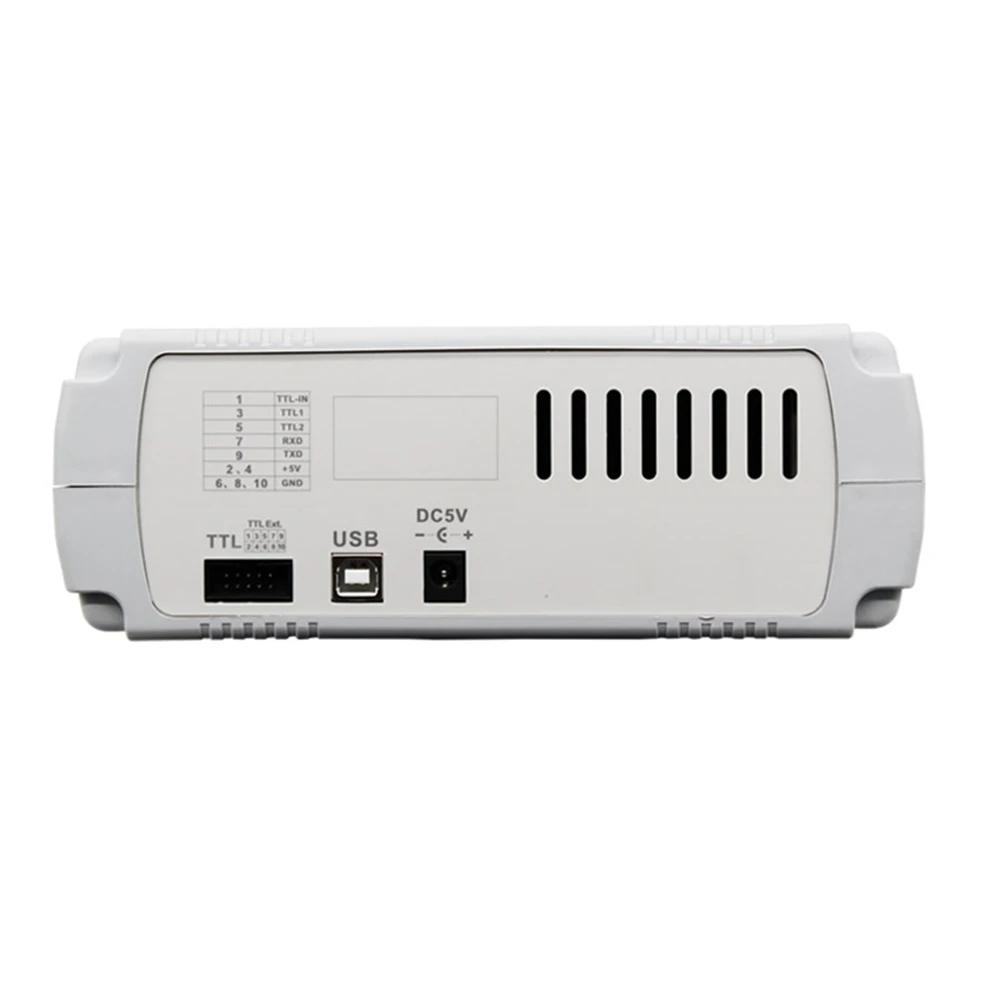

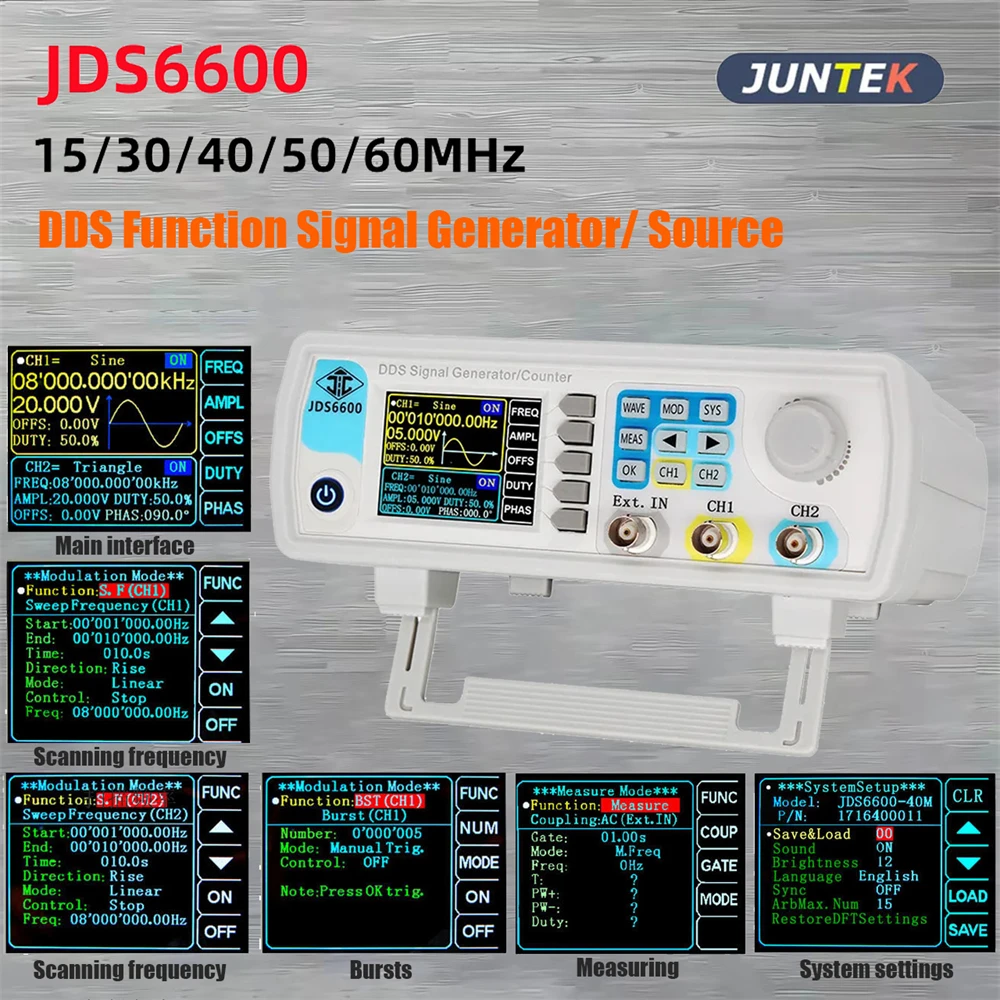

JDS6600 series Dual-channel Function Signal generator combines multiple functions in one, such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep, Counter and Frequency Meter, etc. The instrument adopts the Direct Digital Synthesizer(DDS) technology and provides stable, precise, pure and low distortion signals. It’s a great testing or measuring instrument for electronics engineers, electronic laboratory, teaching and researching. |

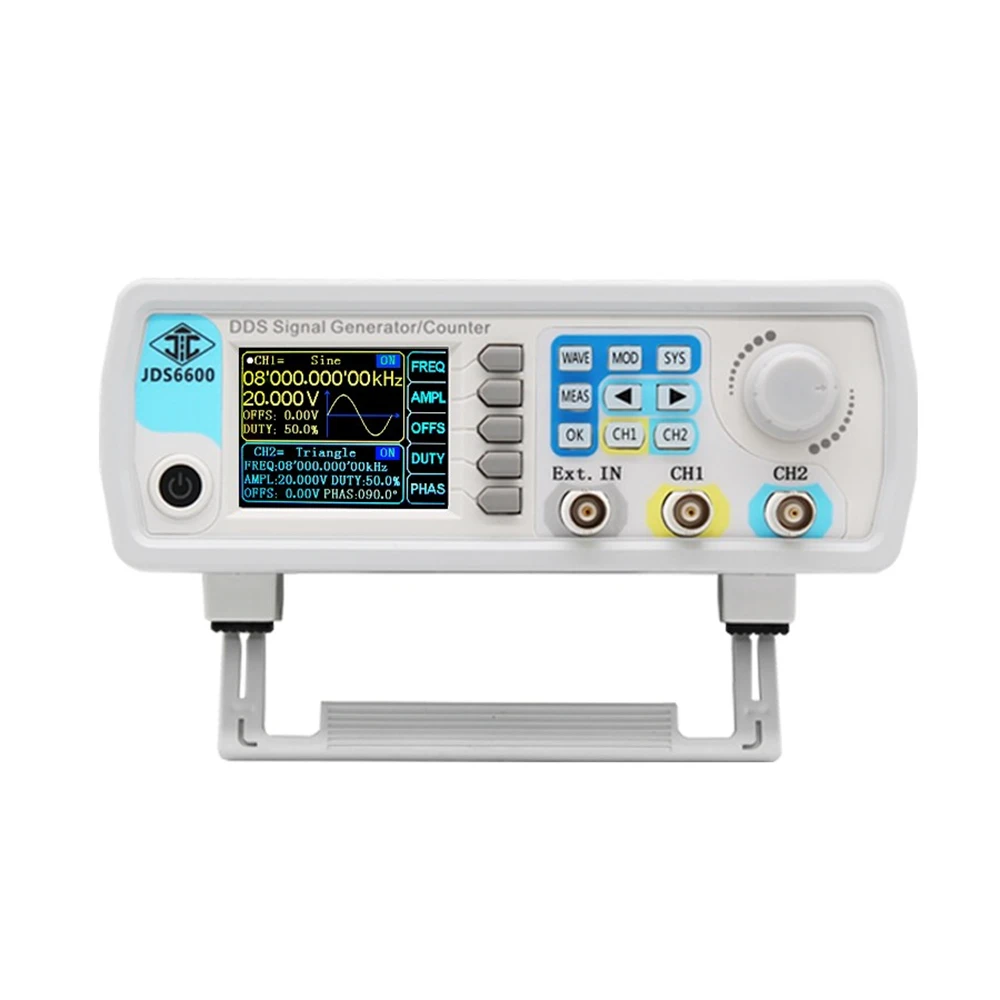

►320*240 2.4″ TFT color LCD display, simultaneously display parameters of CH1 and CH2.
►Ability to reproduce patterns of custom waveform.
►Use soft silicone keys instead of traditional patch keys, high sensitivity and convenient for operation.
►60 groups of arbitrary wave storage function, memory depth of each group is 2048*14bits.
►Duty-cycle of each channel can be adjusted independently, the adjusting resolution is 0.1%.
►With digital signal output function, CMOS output range 0~10V.
► 266MSa/s sampling rate and 14bits vertical resolution.
►Equivalent performance-phase difference 360°continuously adjustable.Equivalent performance dual channels can simultaneously output the same or different function signals or arbitrary waveform signals, all parameters can be adjusted independently, and the phase difference between the two channels is continuously adjustable from 0-359.9 °.
►Trigger functions-Four trigger modes.You can use sine wave, square wave, saw-tooth wave or arbitrary wave to generate pulse train. The number of pulse periods is continuously adjustable between 0-1048575.
►Pulse width-precisely adjustable.With independent operation interface, the function is clear; with independent control switch, it is convenient to control. Adjustment range: 25ns-4000s; pulse offset continuously adjustable between 0% -120%; pulse amplitude can continuously adjust between 0-10V, and be accurate to 0.01V.
►Arbitrary waveform can be draw. Provide free host computer software and communication protocol, use the host computer software to draw arbitrary waveforms; use the communication protocol to secondary development programming; all functions of the instrument can be controlled by the host computer software.
|
Model |
JDS6600-15M |
JDS6600-30M |
JDS6600-40M |
JDS6600-50M |
JDS6600-60M |
|
Sine wave frequency |
0-15MHz |
0-30MHz |
0-40MHz |
0-50MHz |
0-60MHz |
|
Square wavefrequency |
0~15MHz |
0-25MHz |
0-25MHz |
0-25MHz |
0-25MHz |
|
Triangle wavefrequency |
0~15MHz |
0-25MHz |
0-25MHz |
0-25MHz |
0-25MHz |
|
Pulse width adjustment |
100nS~4000S |
50nS~4000S |
40nS~4000S |
30nS~4000S |
25nS~4000S |
|
Rise/Fall Time |
≤25ns |
≤15ns |
≤10ns |
≤10ns |
≤10ns |
|
Frequency resolution |
0.01uHz（0.00000001Hz） |
||||
|
Sampling Rate |
266MSa/s |
||||
|
Wave length |
2048points/channel |
||||
|
Waveform vertical resolution |
14 bits |
||||
|
Wave type |
Sine、Square、pulse (adjustable duty cycle, precise adjustment of pulse width and period), Triangular wave, Partial sine wave, CMOS wave, DC level (set DC amplitude by adjusting offset), Half wave, Full Wave, Positive staircase wave, Anti-ladder wave, Noise wave, Exponential rise, Exponential drop, multisonic wave, Symplectic pulse and Lorenz pulseand 60 arbitrarywave forms. |
||||
|
Frequency accuracy |
±20ppm |
||||
|
Frequency stability |
±1ppm/3hours |
||||
|
Amplitude range |
Frequency＜11MHz,2mVpp~20Vpp 11MHz≤Frequency＜31MHz,2mVpp~10Vpp 31MHz≤Frequency,2mVpp~5Vpp |
||||
|
Amplitude resolution |
1mVpp |
||||
|
Amplitude stability |
±0.5%/5 hours |
||||
|
Amplitude flatness |
Frequency≤10MHz：±5% 10MHz＜Frequency：±10% |
||||
|
Offset range |
-9.99V~+9.99V |
||||
|
Offset resolution |
0.01V |
||||
|
Phase adjustment range |
0°-359.9° |
||||
|
Resolution |
0.1° |
||||
|
Duty cycle adjustment range |
0.1%~99.9% |
||||
|
Output impedance |
50Ω (typical) |
||||
|
Frequency measurement |
1Hz~100MHz |
||||
|
Counting range |
0-4294967295 |
||||
|
Sweep type |
Linear sweep, logarithmic sweep |
||||
|
Sweep time |
0.1s~999.9s |
||||
|
BurstingNumber |
1-1048575 |
||||
1. DDS Signal Generator*1
2. Power Adapter(In:100~240V~50/60Hz,Out:5.0V-0.2A)*1 3. BNC-BNC Cable*1
4. USB Data Cable*1 5. BNC-Clip Cable*2
