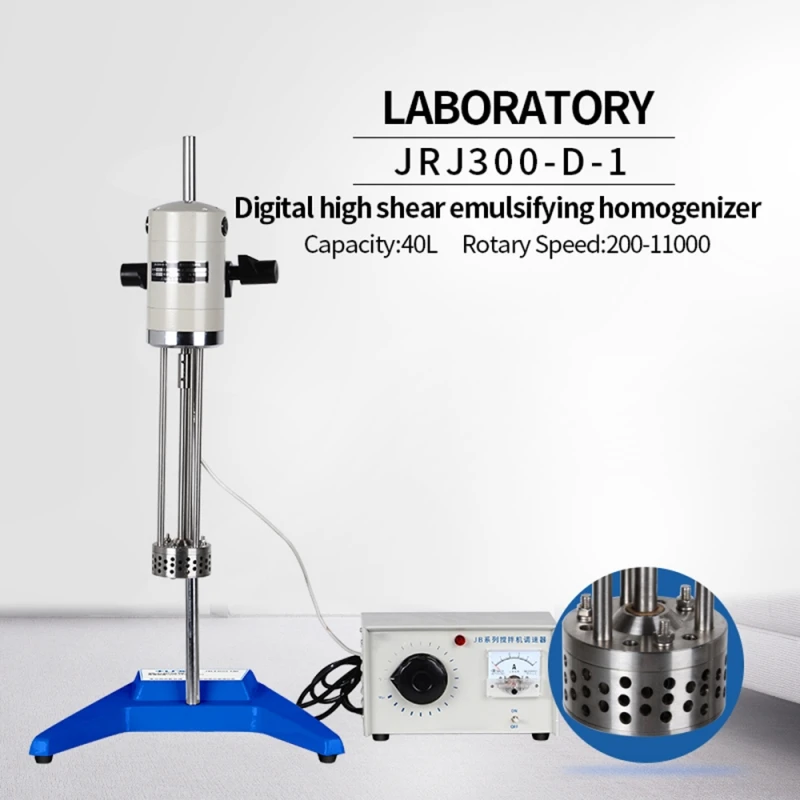

JRJ300-D-1/ JRJ300-SH High Speed Shear Homogenizer

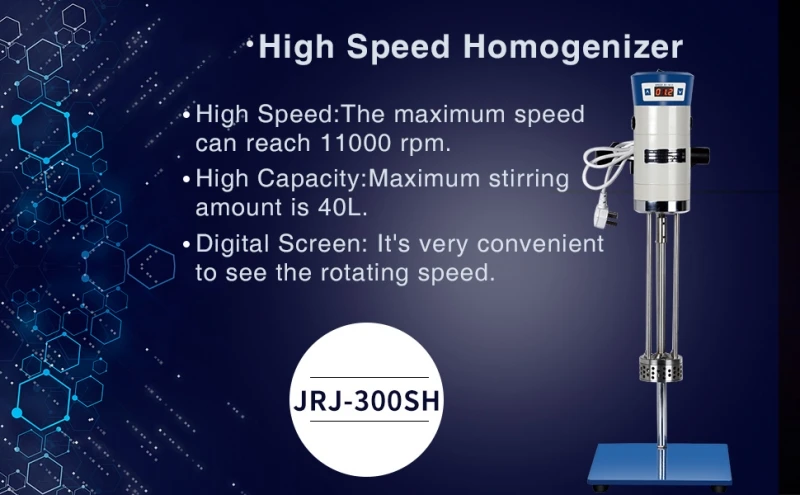

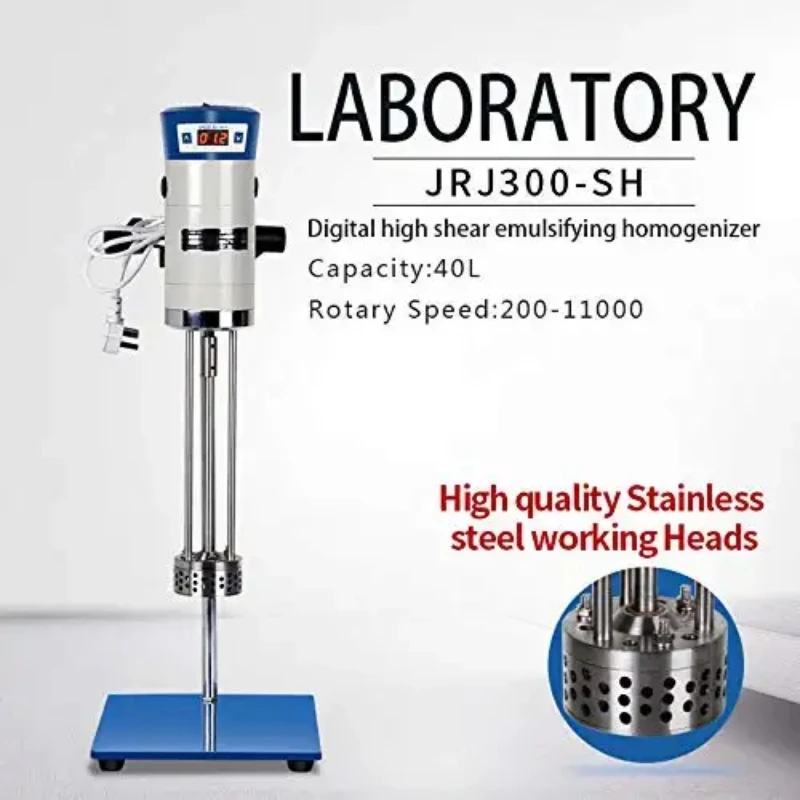

JRJ300-SH high shear homogenizer：

The JRJ series shear dispersion emulsification machine is driven by a compact series excitation micro high-speed motor, suitable for mixing and crushing low to medium to high viscosity liquids in laboratory or pilot workshops, as well as cutting and emulsifying granular materials in liquid media. This machine is composed of a high-density die-casting aluminum alloy driven motor, a high-quality stainless steel refined shear emulsification working head, and a speed control controller. It can make the experimental medium squeeze, strong impact, and pressure loss in the material liquid, refine the experimental medium under the triple action of extrusion, strong impact, and pressure loss expansion in the material liquid, and mix them more evenly to prevent or reduce stratification with the material liquid. For example, the homogenization and emulsification processes in the production process of dairy products, beverages, cosmetics, pharmaceuticals, and other products. Different specifications of working head stator configurations are designed to meet different experimental needs. Covering a wider range of applications including crushing, emulsification, homogenization, polymerization, suspension, dissolution, and stirring

Peoduct Feature:

1. Stepless governor is adopted in the operation state controller, and touchstructure is adopted in the digital display type, which makes the speed regulation convenient and the data correct;

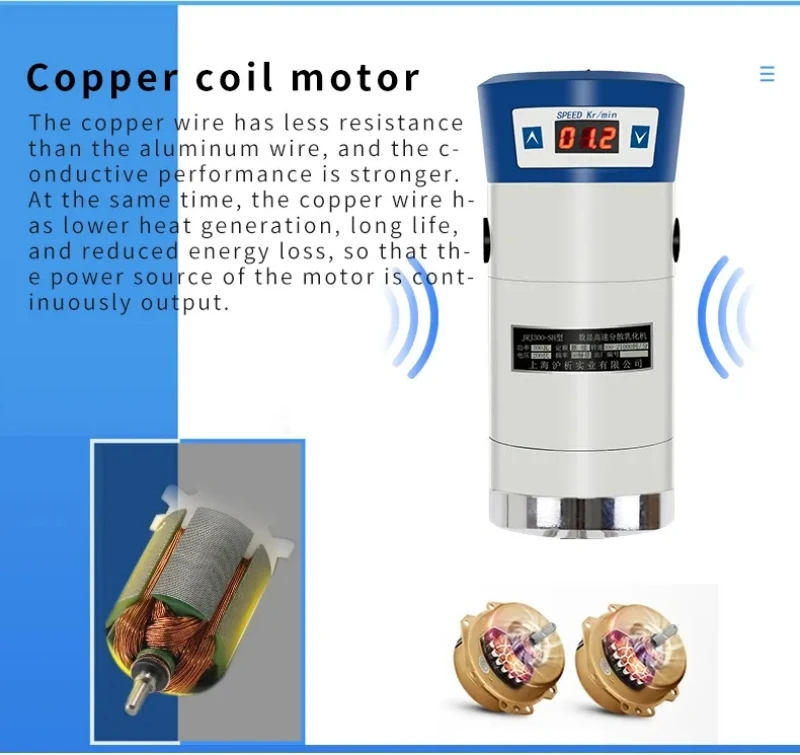

2. The driving motor with ality large output power and compact structure,which is safe and reliable in design;

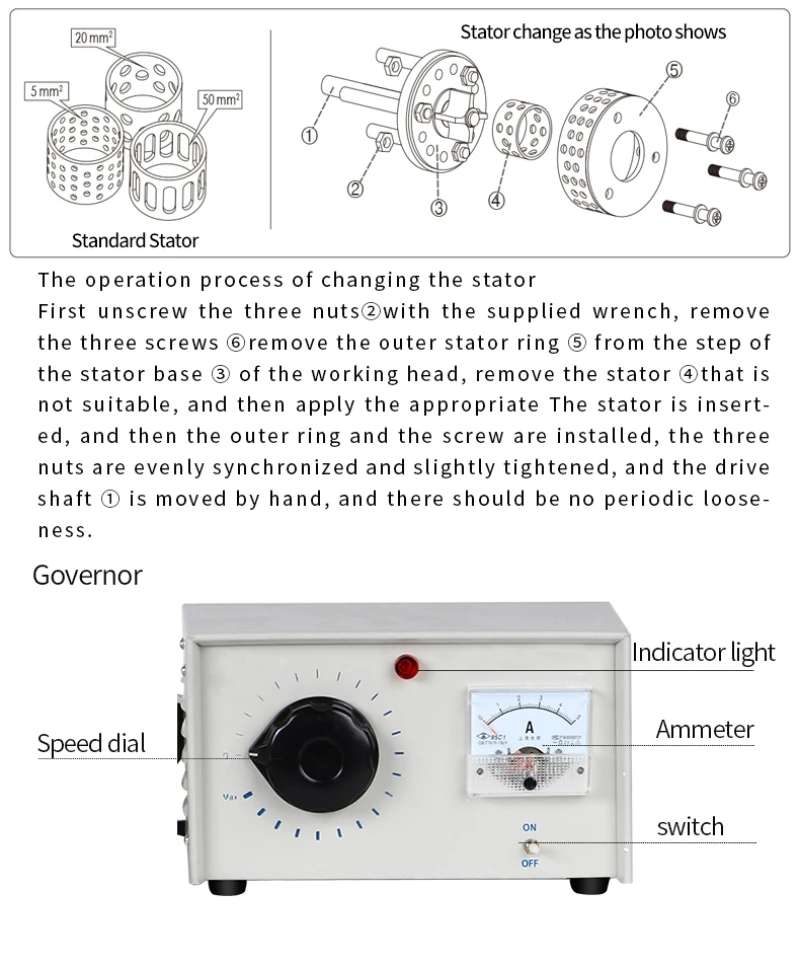

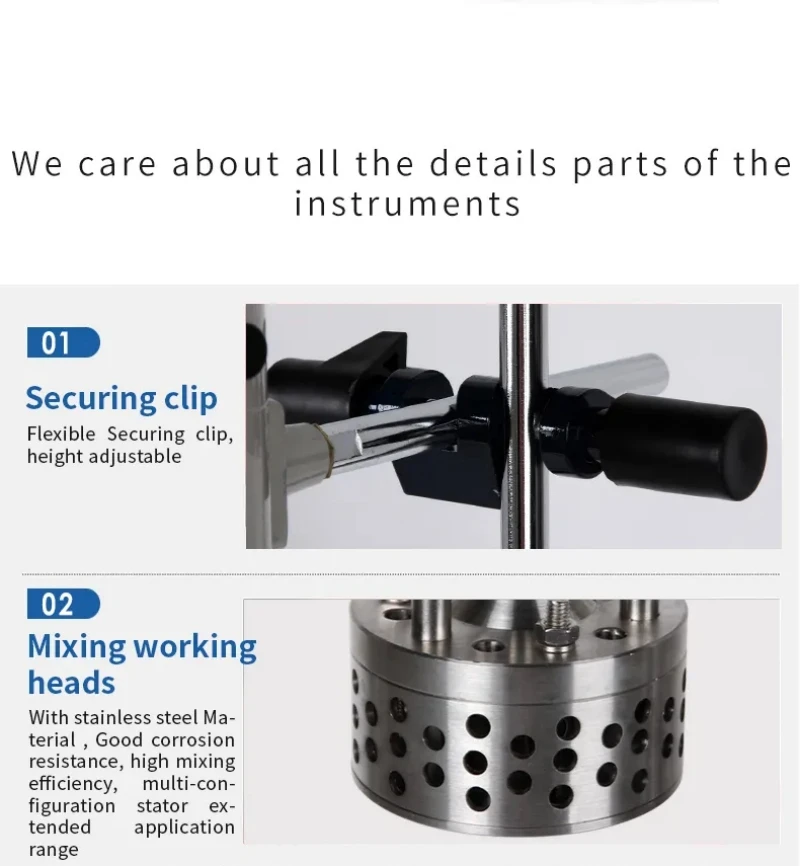

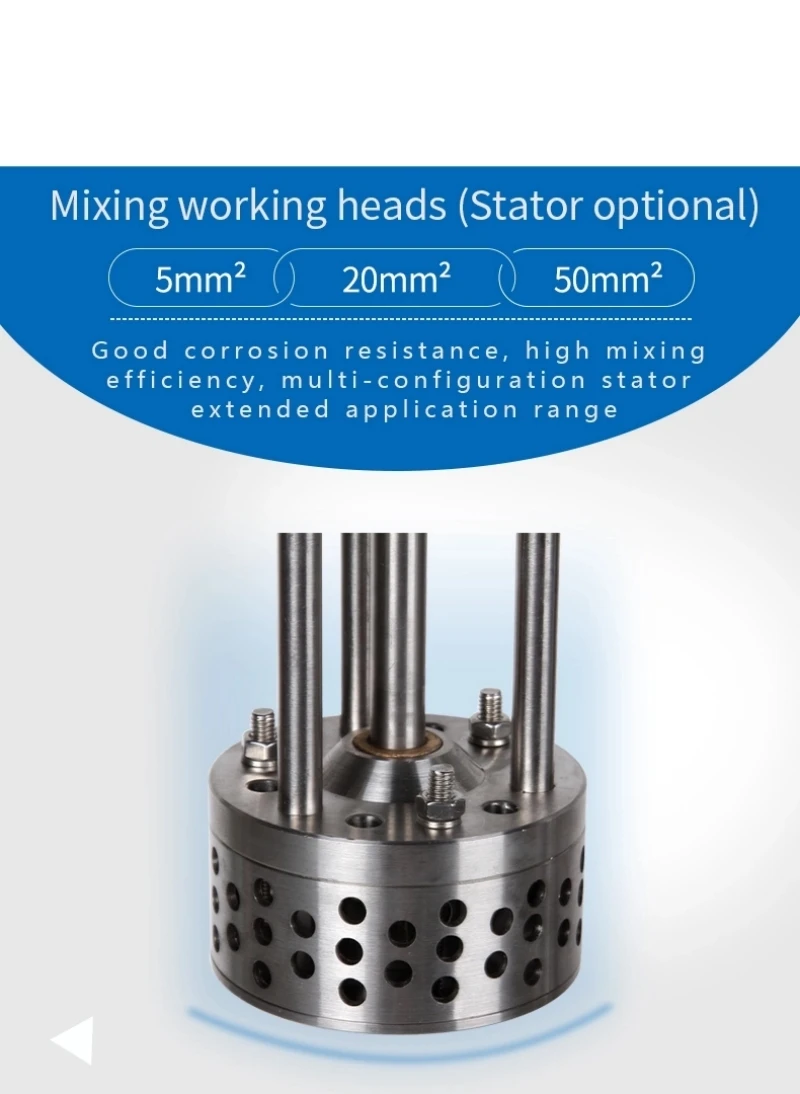

3. Shear emulsification mixing head is made of high quality stainless steel with good corrosion resistance and easy dismantling of interchangeable stator;
4. The working head is connected with the driving motor with shaft joint,running stably
at high speed.
