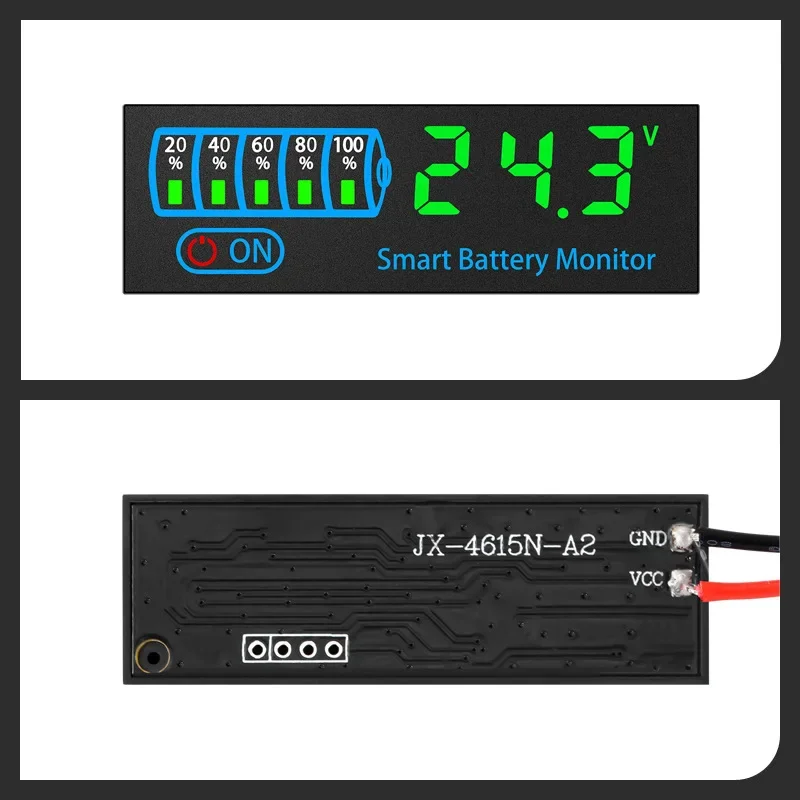

JX-4615N-A2 Battery Capacity & Voltage Display Board (3S–14S, DC 7–55V)

• Hign-concerned Chemical: None
• Model Number: 4615N
• DIY Supplies: ELECTRICAL
• Origin: Mainland China

JX-4615N-A2 3S-14S DC7-55V Battery Level Indicator 12V 24V 36V 48V 18650 Lipo Lithium Battery Capacity Board Voltage Battery Charging Tester

Feature:
 The default voltage for the first power on of the product is the L03 series voltage of the ternary lithium battery (L03)
 Measurement of ternary lithium battery L: from L03 string to L12 string
 Measurement of lithium iron battery F: from F03 string to F14 string
 Lead acid battery measurement: P12V/P24V/36V/48V
 Custom mode: high and low voltage settings, set the voltage values for fully charged and fully discharged.
 Low voltage alarm function: When the battery level is equal to or lower than 10%, the red battery grid flashes.
 There is a power-off memory storage function.

Specification:
Voltage measurement range: DC7-55V(Red DC7-40V)
Working current: ≤ 20mA
Display mode: LED screen
Equipped with power-off memory function

Packing List:
1 * Battery Level Indicator

Note:
Please read the instruction manual carefully before use, and set the instrument according to the actual battery specifications and voltage parameters used by the user. After confirming that the settings are correct, use the instrument again.
