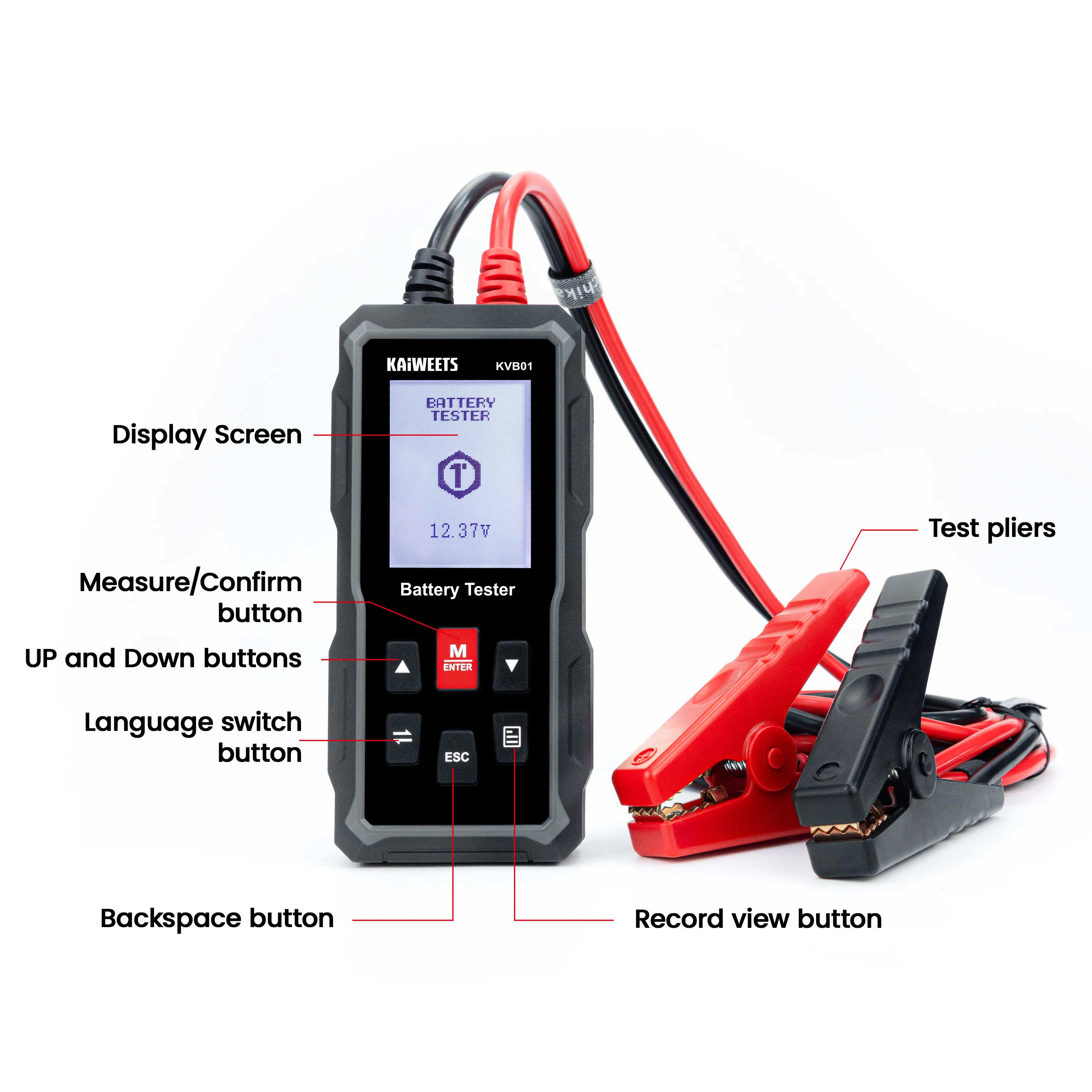

KAIWEETS KVB01 Car Battery Tester/ Automotive Cranking Test Diagnostic Tools

• Model Number: KVB01
• Type: Vehicle Battery Tester
• DIY Supplies: ELECTRICAL
• Brand Name: KAIWEETS
• Origin: Mainland China
• Certification: CE
• Language: 7 language types (Russian/French/German/Japanese/Spanish/Italian/English)
• screen: 2.4 inches black and white dot matrix screen
• features: all in 1 comprehensive car battery maintenance tool
• Battery: No built-in battery, powered by accumulator
• Test lead length: 2 meters
• Dimensions: 140x66x29mm(not including cable length)
• Can measure 12V/24V battery: YES
• Battery life percentage display: YES
• Test voltage/CCA/internal resistance: YES
• Cranking test: YES
• Loading test: YES

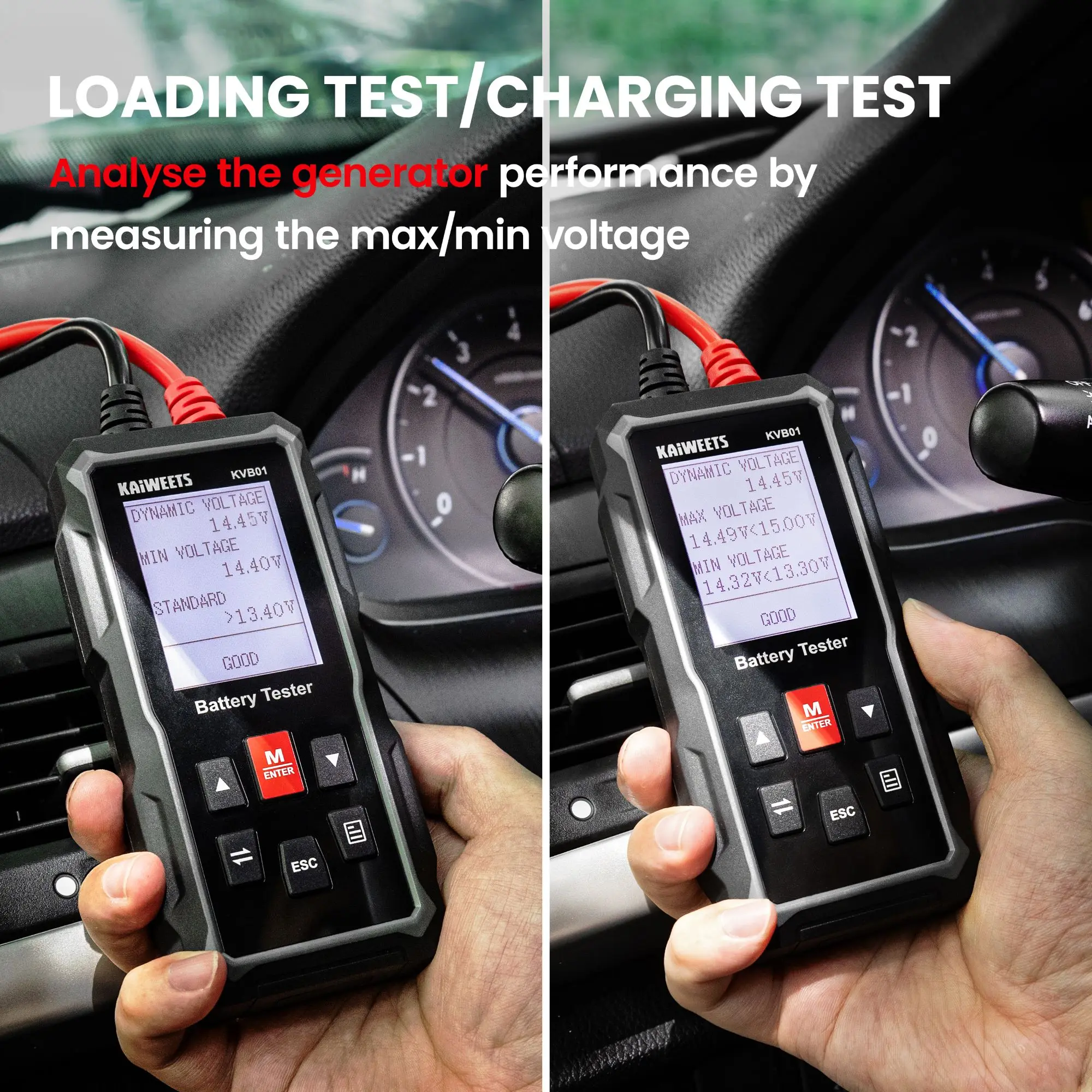

• Charging test: YES
• Input Protection Anti-Reverse Polarity/ Anti-Overvoltage: YES

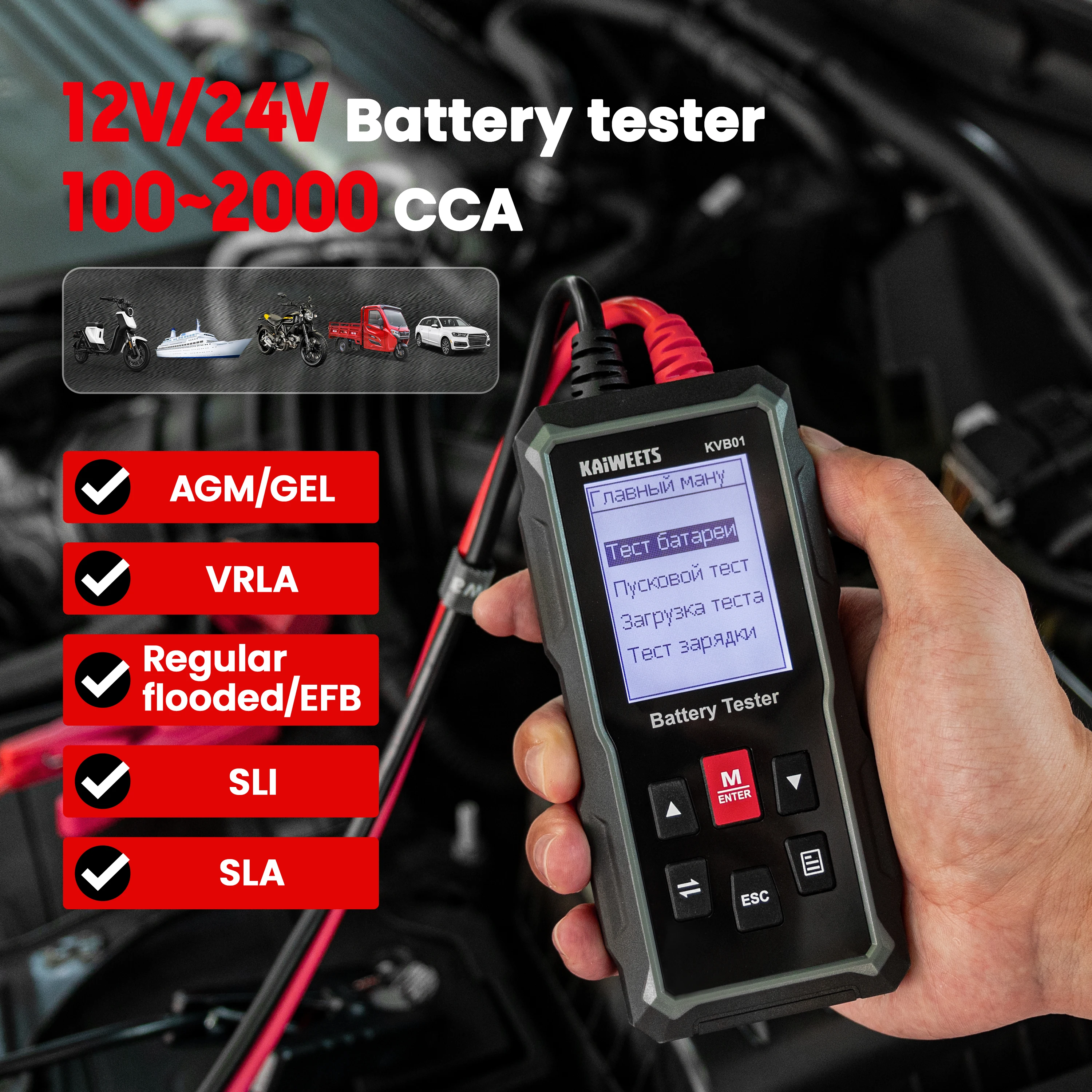

KAIWEETS KVB01 12V/24V BATTERY TESTER100-2000 CCA

Provide testing for 12V/24V lead-acid batteries including regular flooded, VRLA, GEL, AGM, SLA, and SLI batteries, accurately displaying battery condition. And, it is widely used in motorcycles, trucks, boats, golf carts, and so on.

2M Long Test Lines

This battery tester is equipped with two-metre test lines for greater flexibility. Even one person can easily and efficiently test automotive batteries inside and outside the vehicle, evaluating battery performance more autonomously.

Questions & Answers

1) Q: Do I have to use batteries to run this battery tester?
A: It is not necessary to use a battery, as long as the instrument can provide a voltage above 10V, it can also run this instrument. However, the internal resistance measurement cannot be performed, which will cause damage to the power supply equipment.

2) Q: How to judge whether the battery tester is suitable for my battery?
A: This instrument is suitable for most DC 9V~35V batteries. UPS batteries/motorcycle batteries can only measure internal resistance/power/voltage, but cannot measure battery life.

3) Q: Can KVB01 be used to test deep cycle batteries?
A: A battery tester can be used to test deep cycle batteries. A deep cycle battery is a special type of storage battery. It can help to detect the state of charge, voltage and other parameters of the deep cycle battery to ensure its normal operation and performance, monitor the state of the deep cycle battery, and the results displayed by the instrument are for reference only.

4)Q: Can KVB01 be used to test marine batteries?
A: The battery tester can be used to test marine batteries. Marine batteries are usually also a type of storage battery and are used to power the electronic equipment and systems of the ship. The battery tester can help to detect parameters such as charge, life state, voltage and other parameters of the marine battery. The results displayed by the instrument are for reference only.

5) Q: Can KVB01 test vehicle alternators?
A: No, the battery tester is usually used to detect and evaluate parameters such as state of charge, voltage, internal resistance of the battery. The alternator belongs to power generation equipment, and it produces alternating current, which is different from the direct current of the battery. Therefore, the battery tester is not suitable for testing the alternator.

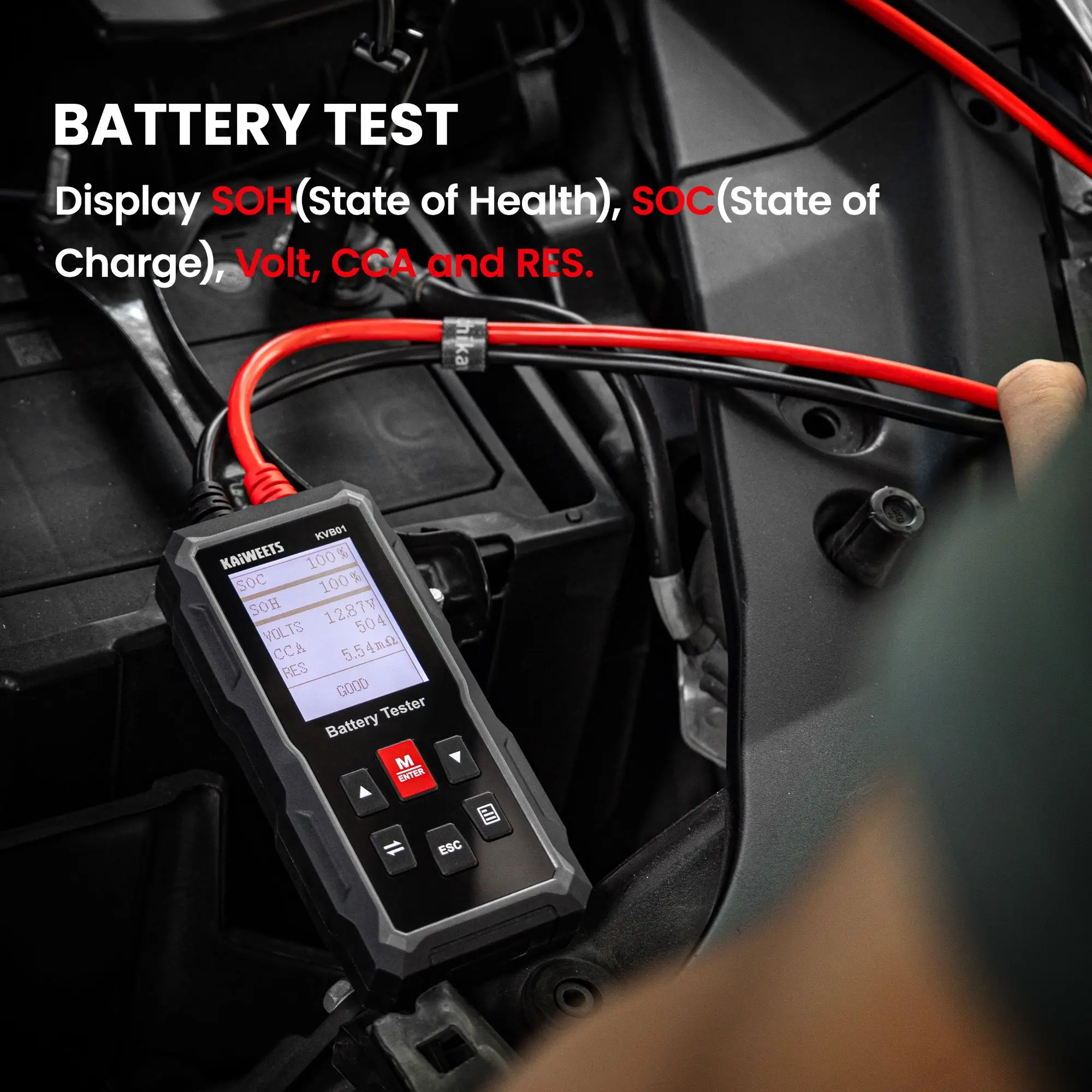

6) Q: What does SOH, SOC and RES mean?
A: The SOH refers to the “State of health”. The SOC is the “State of charge” and the RES is the “resistance value” of the battery.
