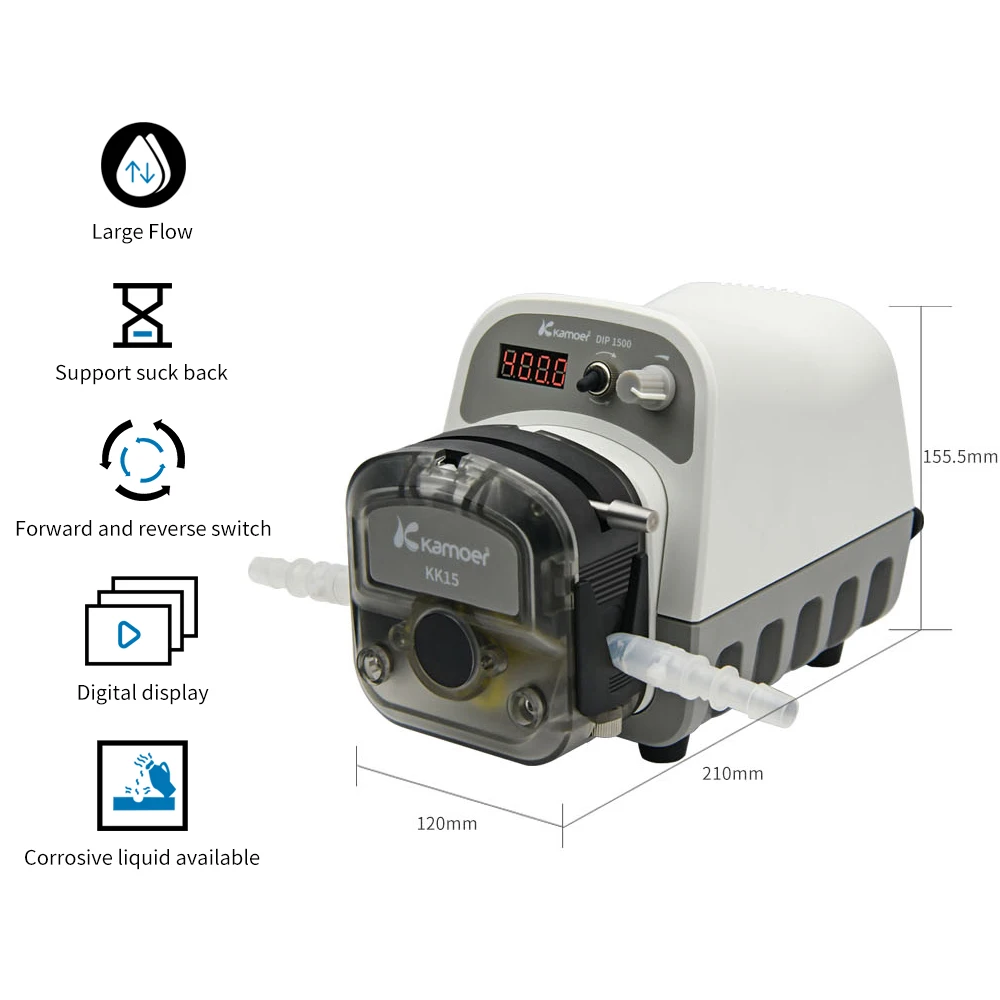

Kamoer DIP1500 Intelligent High Flow Peristaltic Pump
- Application: Metering
- Theory: Rotary Pump
- Structure: Gear Pump
- Model Number: DIP1500 V2/V3 Peristaltic Pump
- Power: Electric
- Standard or Nonstandard: Standard
- Pressure: Low Pressure
- Brand Name: kamoer
- Usage: Water
- Fuel: Electric
- Origin: CHINA
- Certification: CE,RoHS
- Name: DIP Intelligent Peristaltic Pump
- Peristaltic Pump Voltage: 24V
- Peristaltic Pump Power: Less than 50W
- Peristaltic Pump Current: 2A max
- Peristaltic Pump Flow range: Less than 1500ml/min;400RPM
- Pump tube: Siiicone
- Power supply: External power adapter
- Working temperature: -20~60℃
- Tubing thickness: 1.6mm
- Pump head: KK15, 304 stainless steel
- Control methods: Rotary encoder,foot switch,External analog (0-5V, 0-10V or 4-20mA),485 communication (Modbus) control
- Features: Power-off memory
- Rotor: Engineering plastics
- Peristaltic pump Diaplay: digital display peristaltic pump
Kamoer DIP1500 V2 Intelligent 24V Lab Peristaltic Pump
Selection Guide
1. Know what liquid do you want to transfer?
(Imported BPT Tubing Chemical stable; Silicone tubing is suitable for Neutral liquid.)
2. What’s your bottle volume and how many bottles you want to fill 1 minute?
3. Select the tubing size based on the following chart.
|
Pump Head-KK15 |
Tube ID: inner diameter OD: outer diameter |
Speed range (RPM) |
Flow rate (ml/min) |
Tubing lifetime |
Tubing working temperature |
|

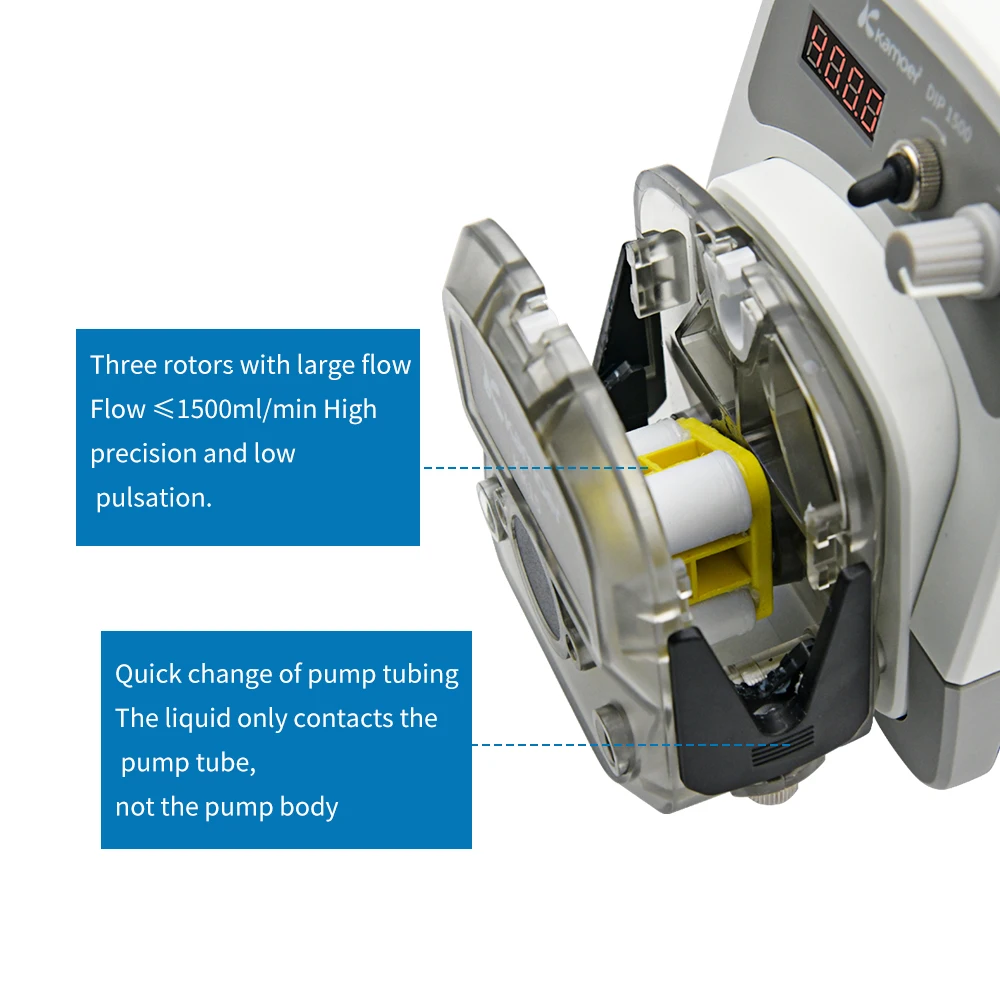

3-rotor Pump head |
S18 ID7.9 x OD11.1mm |
0.1-400 |
1500 |
200H |
-60℃~120℃ |
Basic Parameters
- Voltage: 24V
- Power: Less than 50W
- Current: 2A max
- Flow range: ≤1500ml/min
- Pump tube: Siiicone
- Power supply: External power adapter
- Working temperature: -20~60℃
- Range of rotation: 0.1rpm-400rpm
- Speed adjustment resolution: 0.1rpm
- Control method: Encoder, toggle switch, external analog signal control, RS485 communication control, foot switch control
- External analog signal control: 4-20mA, 0-5V, 0-10V(V2 has 0-10V)
- Display mode: LED 4-digit digital tube, Speed display, duration display

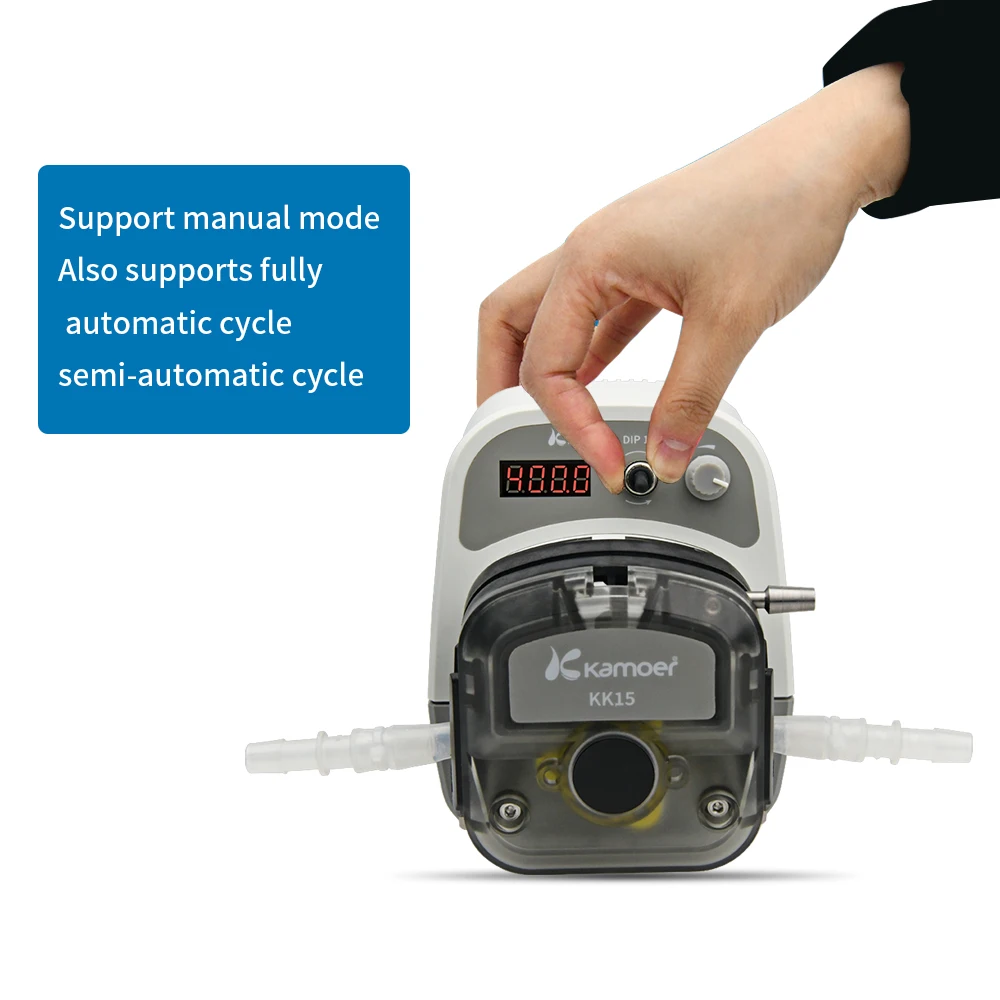

- Working mode: Fully automatic cycle, semi-automatic cycle, manual
- Support function: Start and stop, forward and reverse, speed adjustment, etc.
Buy-this-product-on-Aliexpress

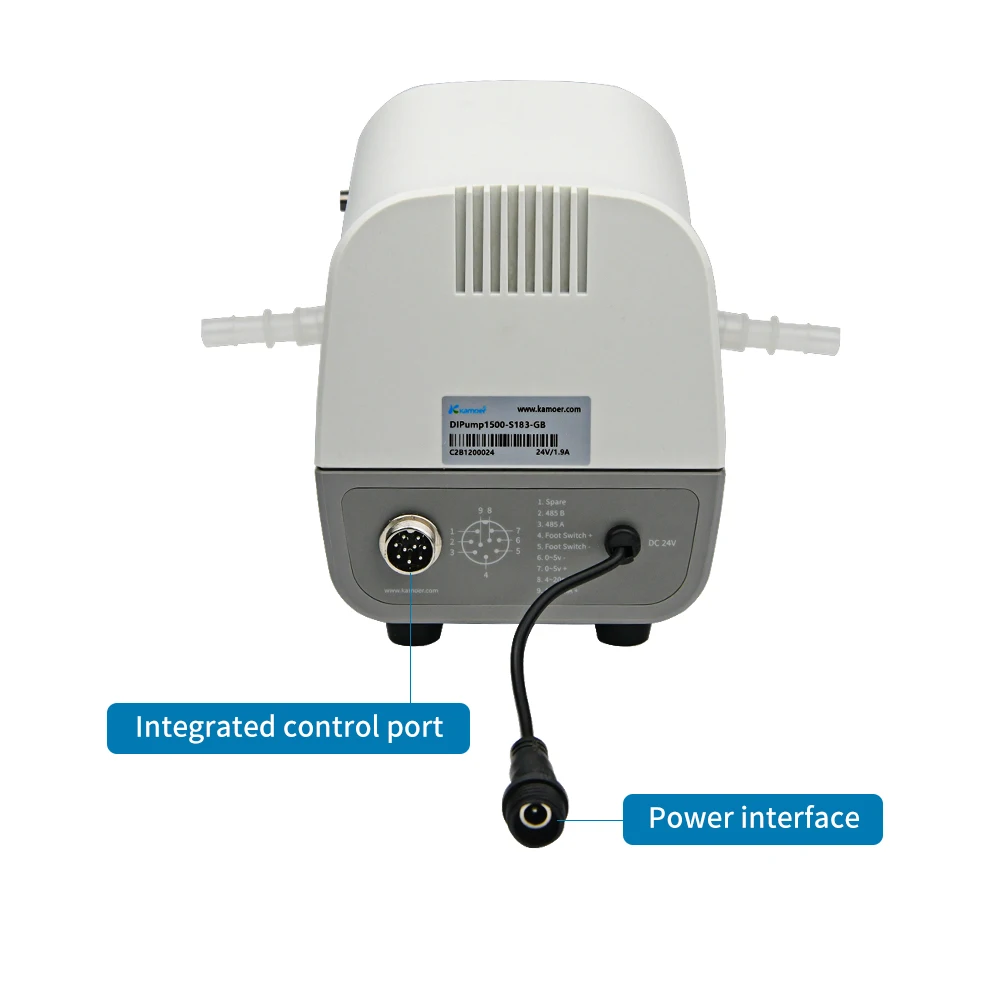

The back of the pump(picture is GB type)
Left is Combination control power
Right is Power socket
More Details
No 1: reservedNo 2: 485 B
No 3: 485 A
No 4: Foot switch +
No 5: Foot switch –
No 6: Analog signal 5V-/10V-
No 7: Analog signal 5V+/10V+
No 8: Analog signal mA-
No 9: Analog signal mA+
▲ Combination control port
1. 485 communication (2, 3 feet)
2. External start and stop control (4, 5 feet)
3. Analog signal control 0~5V / 0~10V (6, 7 feet)
4. Analog signal control 4~20mA (8, 9 feet)
