Kamoer KCM-ODMA Mini High Flow Peristaltic Pump
- Application: Metering
- Theory: peristaltic pump
- Structure: peristaltic pump
- Model Number: KCM-ODMA Peristaltic Pump
- Power: Electric
- Standard or Nonstandard: Standard
- Pressure: Low Pressure
- Brand Name: kamoer
- Usage: Water
- Fuel: electric
- Origin: Mainland China
- Certification: CE,RoHS
- Peristaltic Pump Motor: Stepper motor
- Peristaltic Pump Voltage: 12V/24V
- Peristaltic Pump Flow: 450ml/min MAX
- Tube: Silicon tube/PharMed BPT
- Mounting Plate: ODMA
- Peristaltic Pump Rotor: 3/6 rotors
- Peristaltic Pump Pump head: Engineering plastics
- Customize: Yes
- Temperature: 0~40℃
- Humidity: Less than 80%
- Weight: About 800g

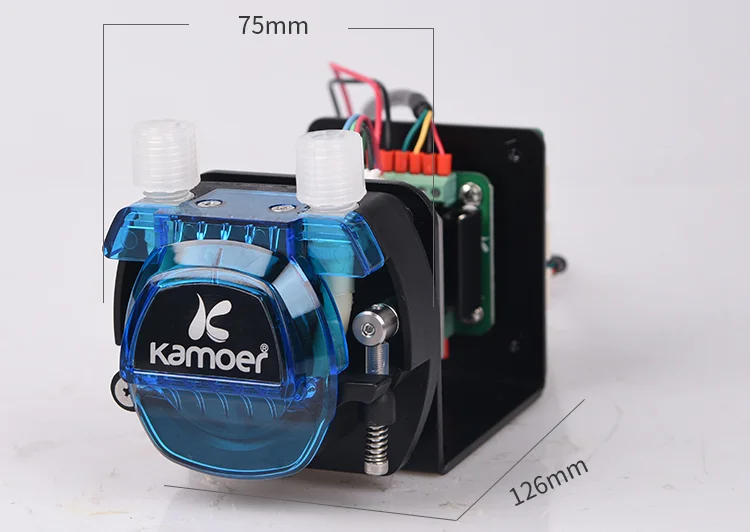

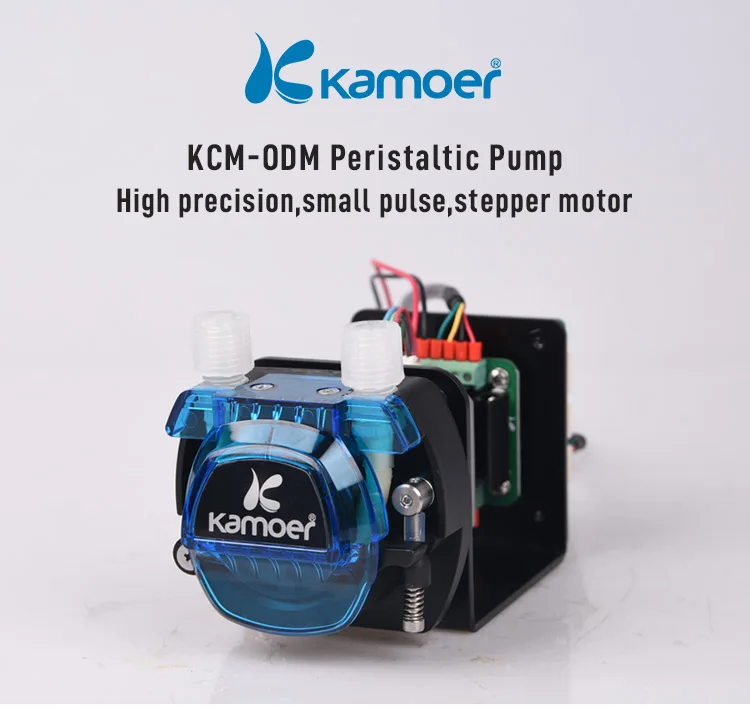

450ml/min KCM-ODMA Mini High Flow Peristaltic Pump 12V 24V with Stepper Motor Dosing Pump

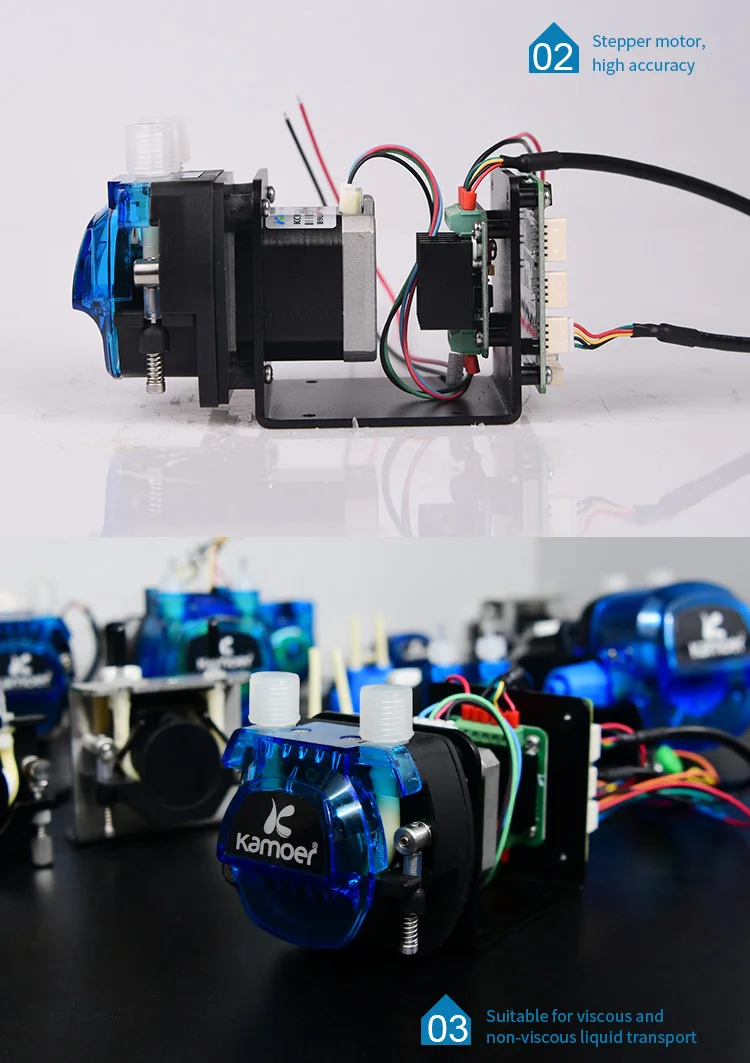

★ Suitable for viscous and non-viscous liquid transfer
★ High precision, small pulsation
★ It can be placed outside the instrument panel to pass ground detection.
★ Simple structure, high reliability
★ Pump tube can be quickly replaced
★ Imported motor has excellent performance
Basic Parameters
- Motor: Stepper motor
- Voltage: 12V/24Vwith Driver Board KMD-M42S and 2802 controller
- Flow: 13.5~320ml/min
- Tube material: Silicon tube/PharMed BPT
- Installation method: ODMA/ODMB
- Rotor: 3/6rotors
- Pump head: Engineering plastics
- Customize: Yes
- Temperature: 0~40℃
- Humidity: Less than 80%
If your liquid is viscous or corrosive, please choose BPT tubing.
| Pump Head | Tube
ID: inner diameter OD: outer diameter |
Speed
range (RPM) |
Flow rate
(ml/min) |
Tubing lifetime | Tubing working temperature |
| 3-rotor Pump head | B16
ID3.2 x OD6.4mm |
0.1-400 | 252 | 1000H | -51℃~132℃ |
| 3-rotor Pump head | B40
ID4.0 x OD7.2mm |
0.1-400 | 336 | 1000H | -51℃~132℃ |
| 3-rotor Pump head | B25
ID4.8 x OD8.0mm |
0.1-400 | 452 | 1000H | -51℃~132℃ |
If you need other tube size, please contact us or leave a message.
Various Applications
# Experiment
# Filling packaging
# Laboratory; research institutes
# Food and beverage
More Details

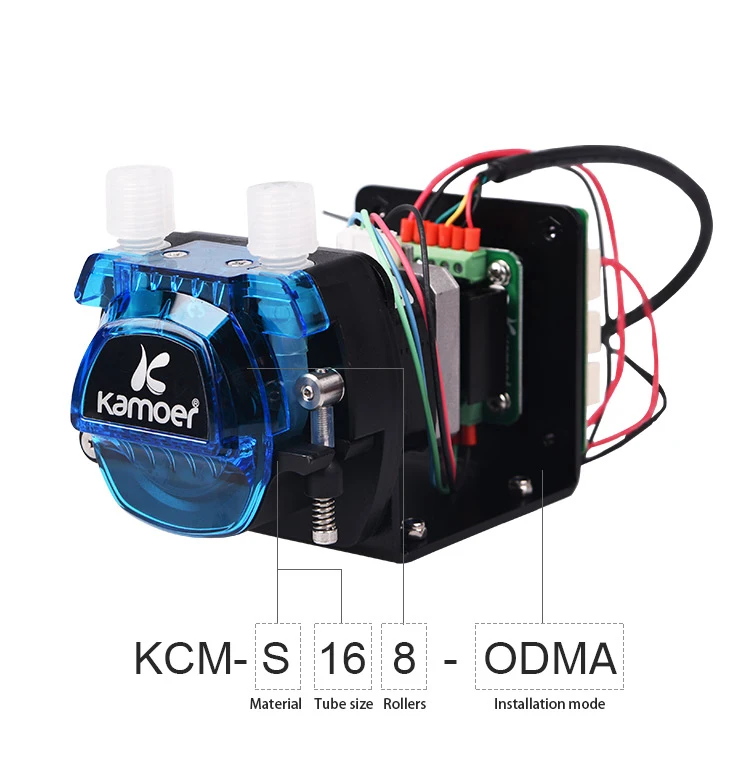

S: Material 16: Tube size 8: Rollers ODMA: Installation mode
Tube Connector
|
Code |
Tube connector code |
ID |
Recommended diameter(ID) |
|
1 |
25.20.0006 |
0.6≤Φ≤2.0 |
Φ1.8~Φ2.4 |
|
2 |
25.20.0008 |
2.0＜Φ≤3.2 |
Φ2.5~Φ3.2 |
|
3 |
25.20.0010 |
3.2＜Φ≤4.0 |
Φ3.3~Φ4.0 |
Driver board and Controller
▲ Driver board: KMD-M42S
▲ Controller: 2802

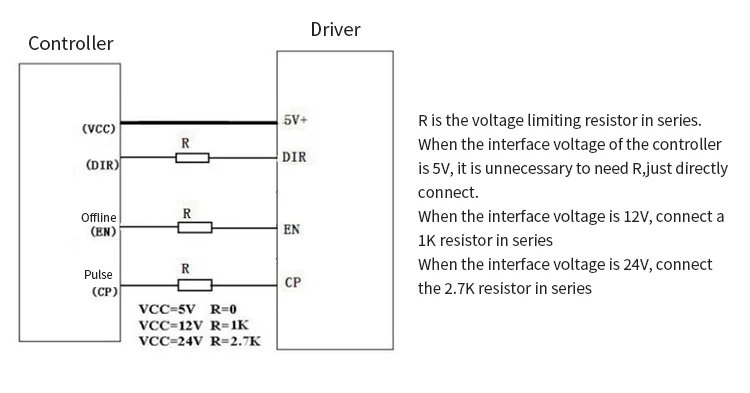

Wires Description
With the 2802 Controller: Support LED Digital Display + Flow Speed Button(Black) + Stat and Stop Button(Green) + Flow Direction Button(Red)
Installation Method

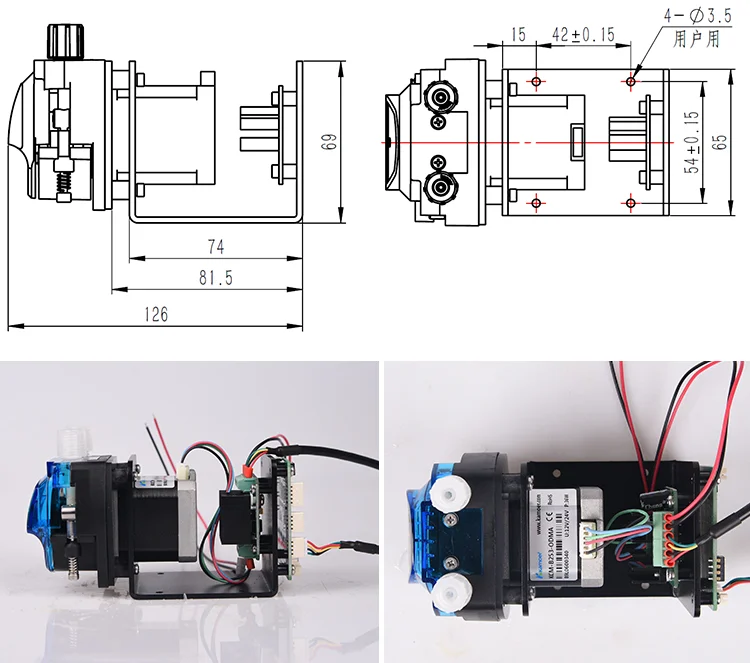

KCM-ODM—ODMA

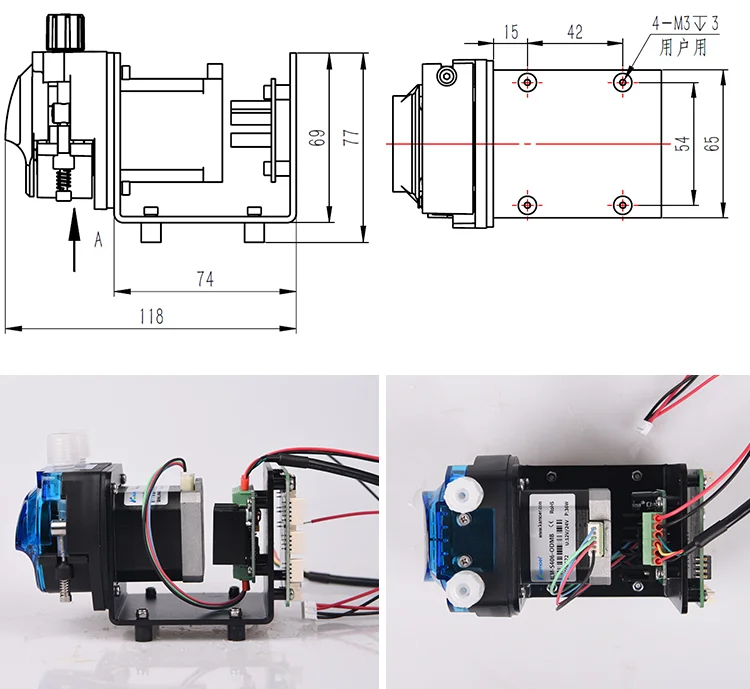

KCM-ODM—ODMB
▲ Wall Installation
