Kamoer KCPA600 Peristaltic Pump
- Hign-concerned Chemical: None
- Theory: Rotary Pump
- Structure: Peristaltic Pump
- Model Number: KCPA600 Peristaltic Pump
- Power: Electric
- Standard or Nonstandard: Standard
- Pressure: Low Pressure
- Brand Name: kamoer
- Usage: Peristaltic Pump
- Fuel: Electric
- Origin: CHINA
- Certification: CE,RoHS
- Peristaltic Pump Voltage: 24V 1A
- Peristaltic Pump Flow rate: 180-520ml/min
- Peristaltic Pump Rotors: 3
- Warranty: 1 Year
- Function: Adjustable flowrate
- Weight: 490g
- Working temperature: Environment:0~40℃,Humidity: less than 80%
- Pump head: KHM
KCPA600 Mini Peristaltic Pump Adjustable Flow 180ml/min~520ml/min
Basic Parameters |
KCPA600 |
|
Flow ml/min |
180ml/min~520ml/min |
|
Power adapter |
DC 24V 1A |
|
Power |
＜24W |
|
Motor |
Brush motor |
|
Noise |
≤68dB (test environment noise ≤35dB, the horizontal distance between the test product and the noise meter is 0.5m) |
|
Working environment |
Temperature 0℃～40℃, relative humidity RH＜80% |
|
Weight |
≈490g |
|
Rotating speed |
＜400rpm |
|
Control method |
Potentiometer |
|
Operating mode |
Speed mode |
|
Support function |
Start-stop, speed regulation, does not support forward and reverse |
|
Tubing |
Norprene 40# ID4mmx OD7.2mm(Lifetime 1000H) |
|
Optional accessories |
Silicone tubing:40# ID4mmxOD7.2mm 5/35 Threaded joint(External can be connected to 3.2mm×6.4mm/4mm×7.2mm hose) |
|
Supplementary instructions |
The above maximum flow rate is obtained by testing water at 400 rpm using a new pump tube aged for 30 minutes at room temperature (about 25°C), for reference only. The ambient temperature, the material and elasticity of the pump tube, the viscosity of the test liquid and other factors will affect the actual flow rate. The thickness of the pump tube will affect the maximum speed of the actual stable operation. |

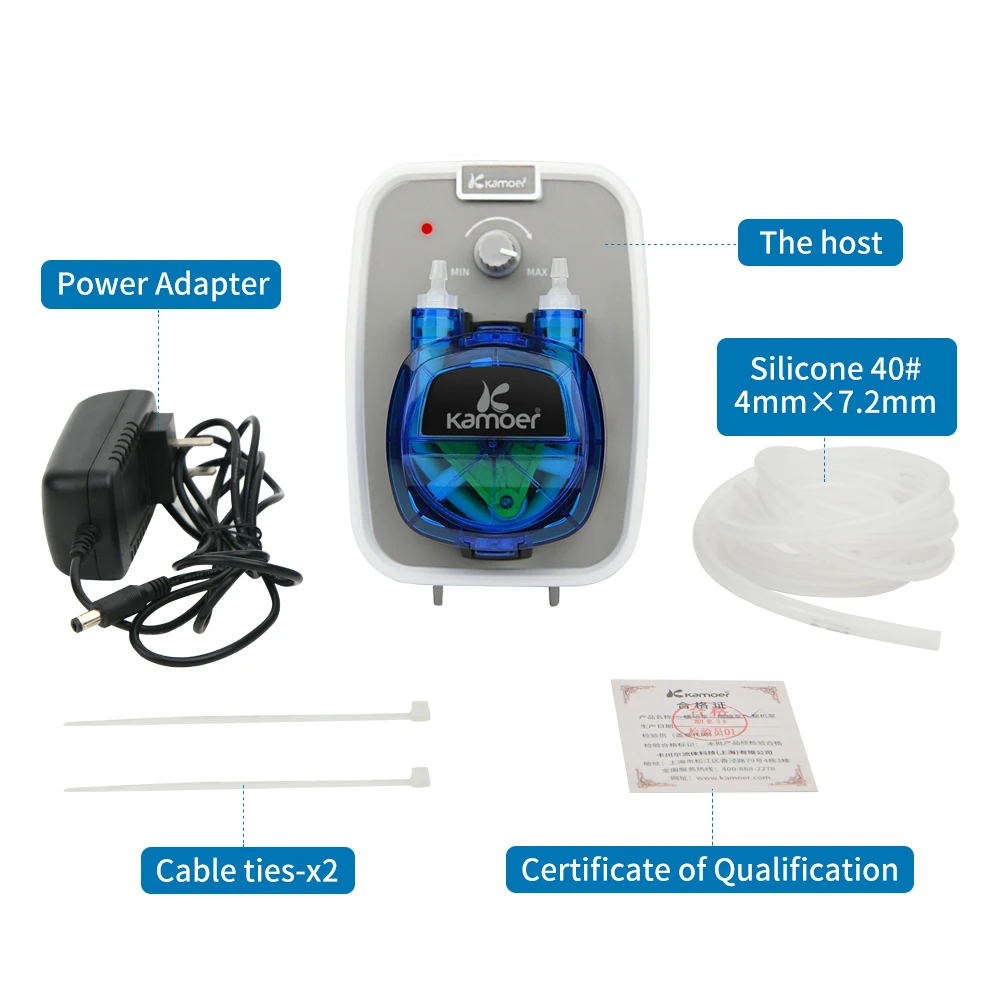

Packing list
- The host
- Cables tiesx2
-
US/EU/AU/UK plug x1
- Certification of Qulification
-
Silicone tube 1meter-40# ID4mmx OD7.2mm
Tube Description
Norprene 1000H lifetimeVery good resistance to general chemicals, as well as excellent resistance to acids, alkalis and oxides. The product is transparent and resistant to ultraviolet radiation, so it helps protect sensitive liquids.
▲ Working temperature: -60℃~135℃

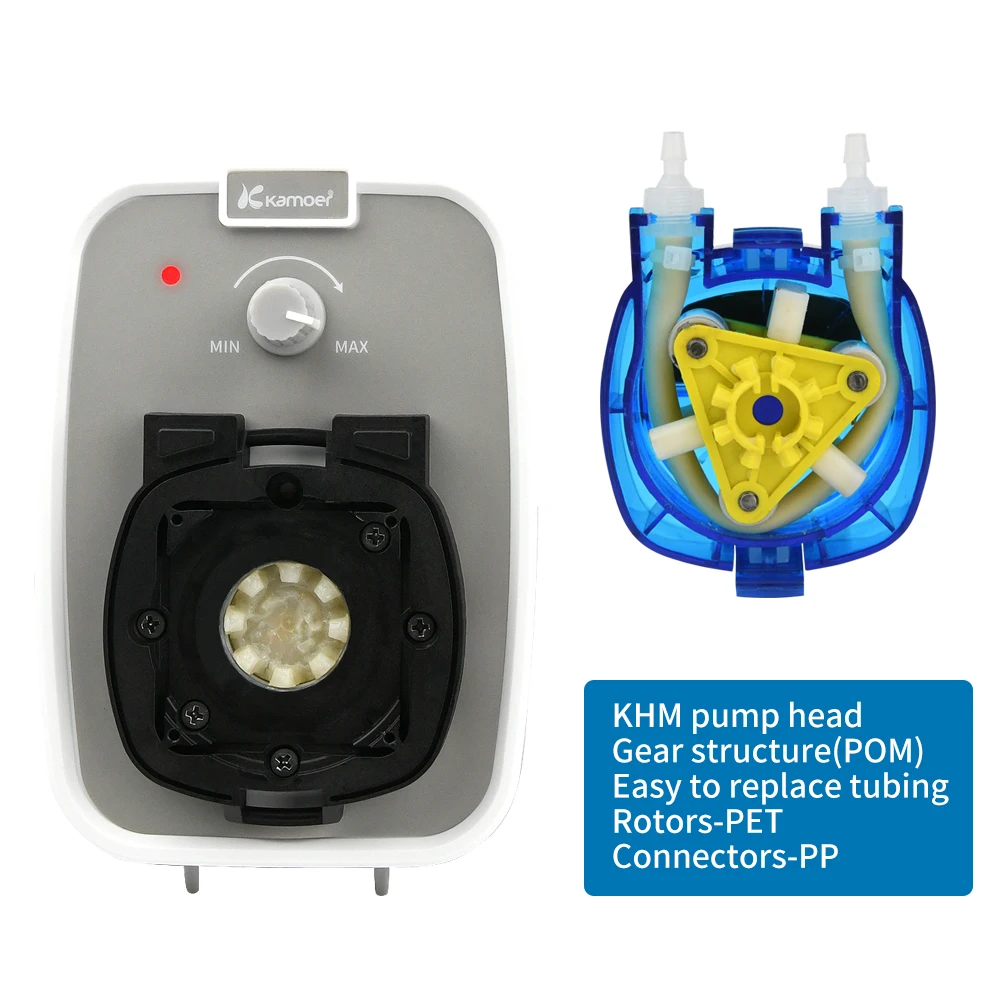

Pump head-KHS, Tubing assembly-N40: ID4mm x OD7.2mm
3 rotors-
Gear Structure
Connectors-PP
Easy to replace tubing assembly
The liquid only though the pump tube, not the pump body.

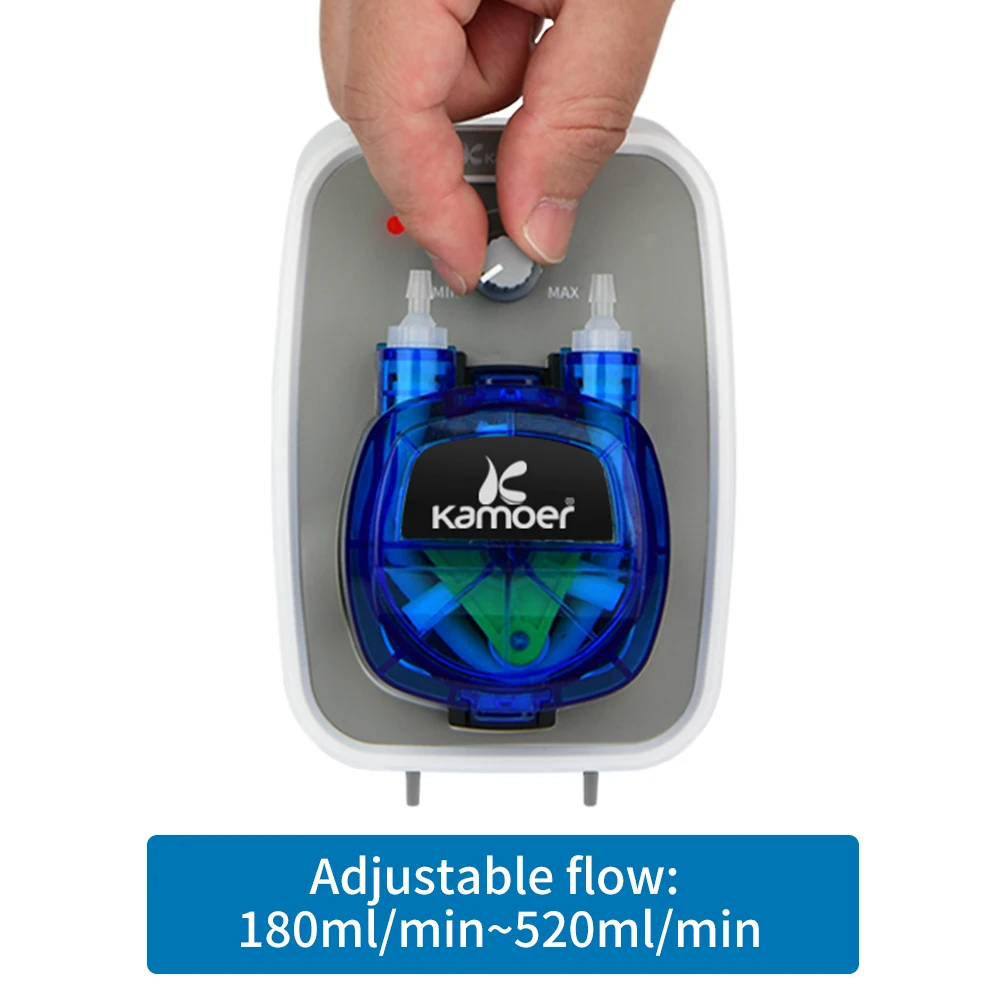

Adjustable Flow rate: 180ml/min~520ml/min
Small space occupation

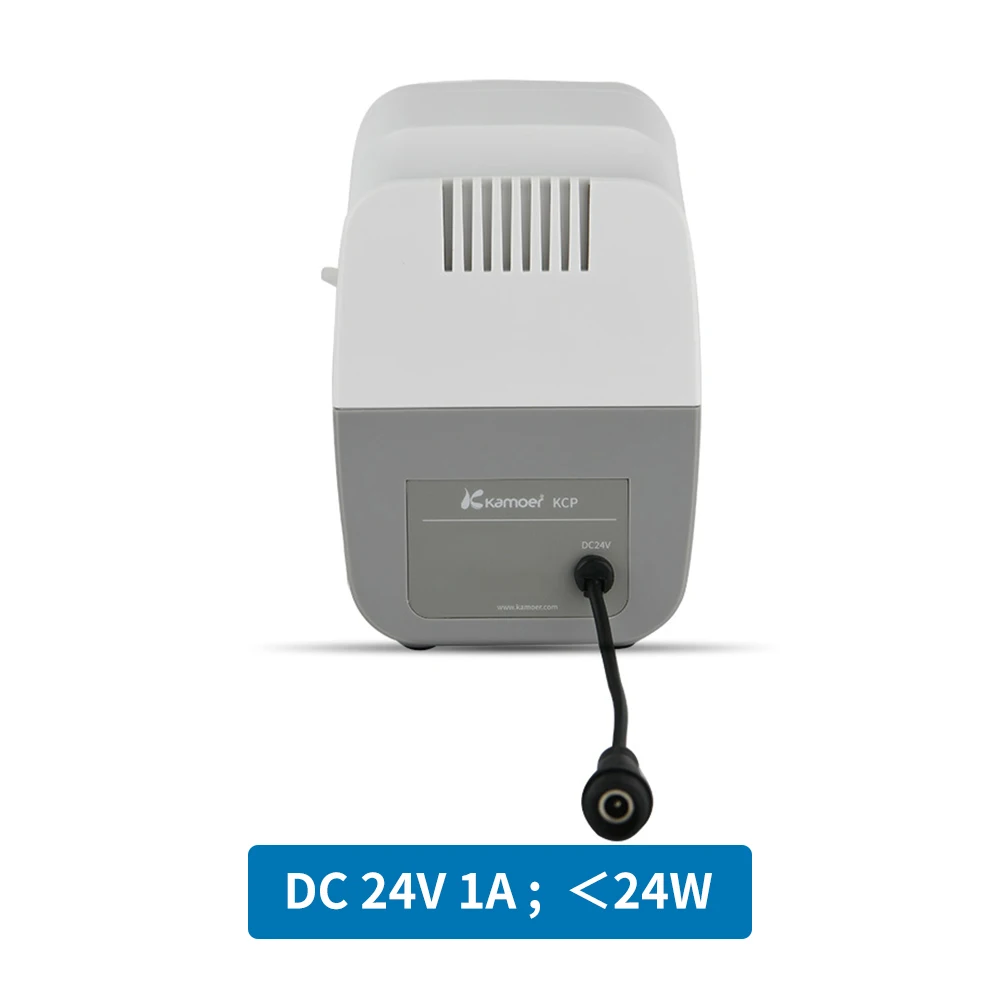

24V DC 1A (24W)
Various Applications
# Laboratory
# Scientific Research Institutes
# Automatic car washing machine
# Biological companies, etc.

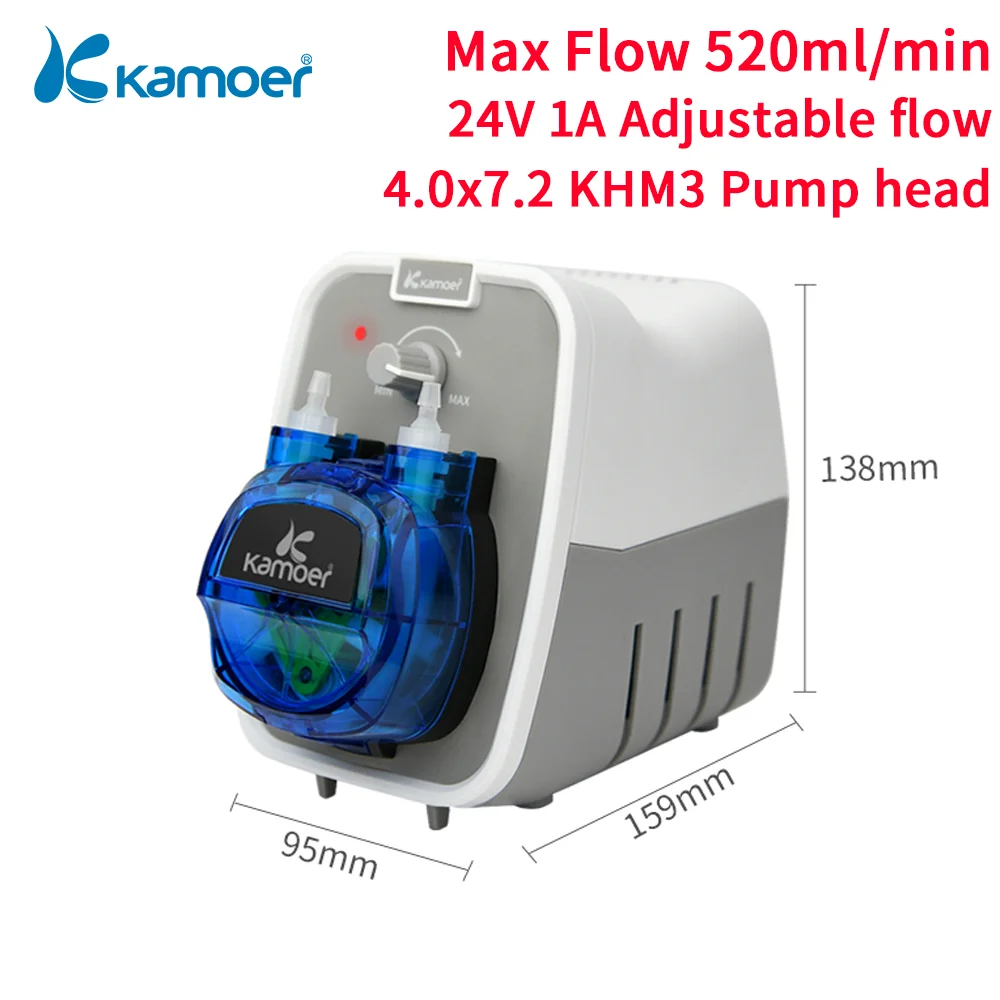

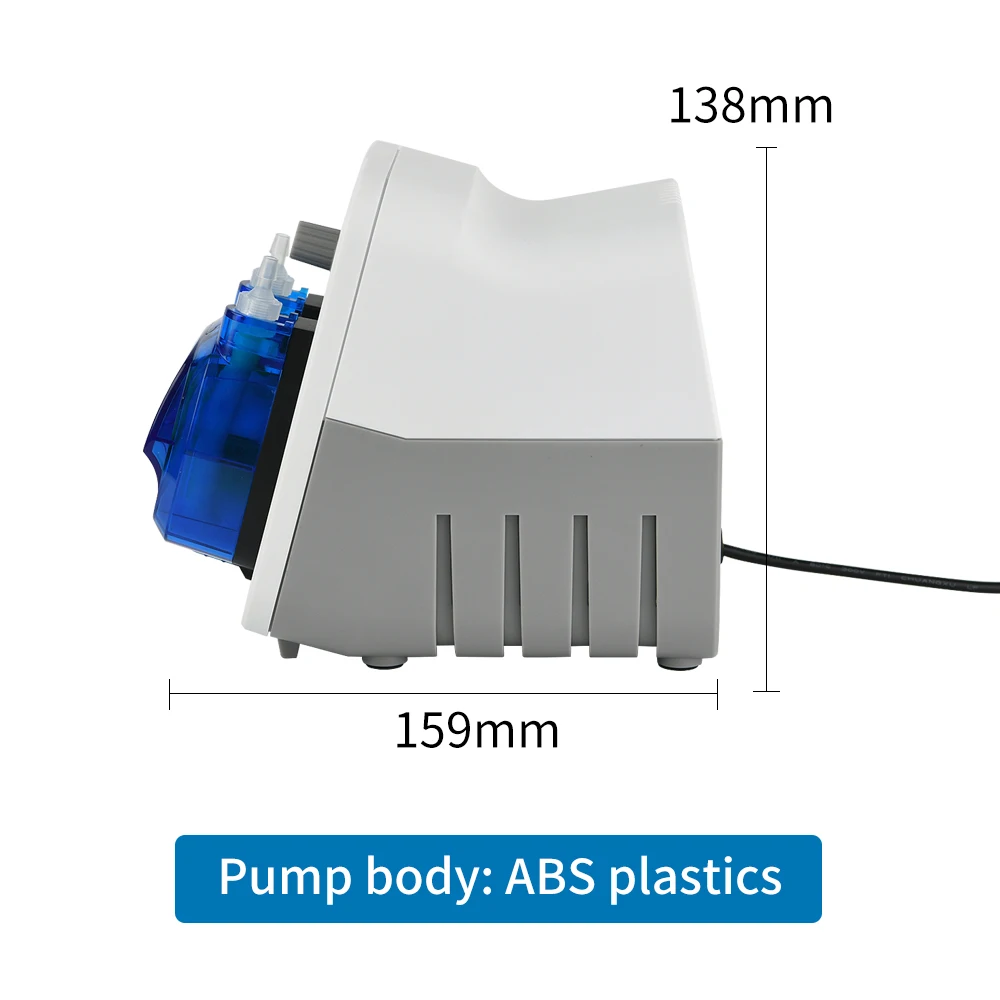

Dimensions
