Kamoer NKCP Micro Peristaltic Pump 12V
- Theory: Rotary Pump
- Structure: Peristaltic Pump
- Model Number: NKCP
- Power: Electric
- Standard or Nonstandard: Standard
- Pressure: Low Pressure
- Brand Name: kamoer
- Usage: Peristaltic Pump
- Fuel: Electric
- Origin: CHINA
- Certification: CE,RoHS
- Voltage: 12V
- Flow rate: 4-65ml/min
- Feature: Intelligent
- Rotors: 3
- Pulse: Moderate
- Warranty: 1 Year
Kamoer NKCP 12V Small Intelligent Peristaltic Pump
1. Low cost, adjustable flowrate

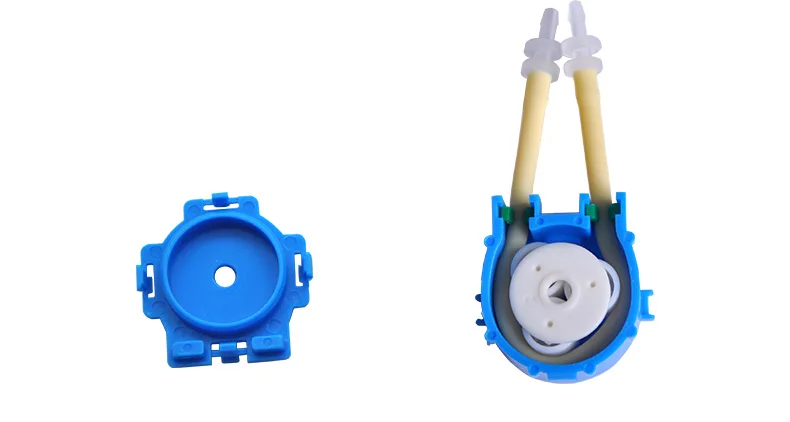

2. Easy to operate and replace the pump head
3. 24V power adapter
4. The direction of liquild transport is changable.
5. Power plug: American-standard, European-standard, British-standard, Australian-standard
Basic Parameters
- DC motor: 12V
- Flow rate range: 2.6-65ml/min
- Working condition: 0-40℃
- Relative temperature: <80%
- Tube choice: Silicon, Pharmed BPT tube
- Pulse: three roller, low pulse
- Pump head: Engineering Plastics
- Weight: About 185g(without power), 300g(with power)
Various Applications
# Printing: transferring printing ink
# Transportation: pumping the oil and other liquid
# Aquarium: drawing water from tank, calcium response reaction
# Scientific facility: laboratory experiment
# Animal disease experiment: blood transfer
Selection Guide
|
Material |
Silicone |
Silicone |
Silicone |
Silicone |
Silicone |
BPT |
BPT |
|
|
Code |
S02 |
S04 |
S06 |
S08 |
S10 |
B06 |
B08 |
|
|
ID*OD |
0.6×3.0 |
1.0×3.0 |
2.0×4.0 |
2.5×4.5 |
3.0×5.0 |
2.0×4.0 |
2.5×4.5 |
|
|
Flow Rate |
NKCP 12V |
2.6 ~ 4 |
4 ~ 14 |
11 ~ 34 |
17 ~ 50 |
19 ~ 65 |
9.3 ~ 32 |
14.6 ~ 41.5 |
|
Tubes |
Materials |
Features |
Tubing Life |
Size |
|
S |
Silicone |
Low adsorption, good temperature resistance, not easy to aging, low precipitation, etc., chemical resistance. Corrosion performance decreases with increasing temperature. Suitable for transmission of various low corrosion(30%) Liquid. ▲ Working temperature:-60℃~200℃ |
≥200H |
175mm (49.5mm exposed) |
|
B |
PharMed BPT |
Very good resistance to general chemicals, as well as excellent resistance to acids, alkalis and oxides. The product is transparent and resistant to ultraviolet radiation, so it helps protect sensitive liquids. ▲ Working temperature:-51℃~132℃ |
≥1000H |
135mm (29.5mm exposed) |
Tube Joint
|
Connector |
Straight |
L type |
Y type |
T type |
Cross type |
ID of tube |
|
1/16 |
32050004 |
32050027 |
32050006 |
/ |
32050039 |
0.6≤φ ≤1.6 |
|
3/32 |
32050038 |
32050028 |
32050029 |
32050053 |
/ |
1.6≤φ ≤2.4 |
|
1/8 |
25010021 |
32050037 |
32050015 |
32050020 |
32050019 |
2.4≤φ ≤3.2 |
What’ included?
1 Host with NKP Pump head
1 Power plug
2 connectors

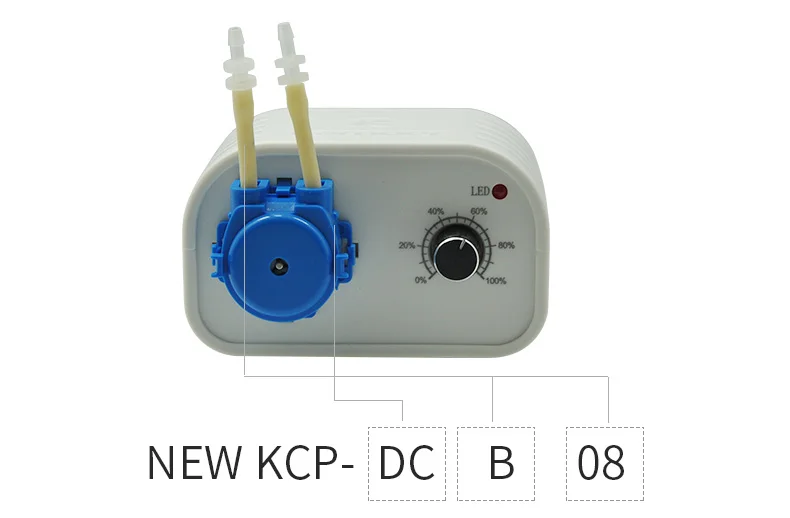

More Details
DC-Motor
B-Tube material
08-Tubing model

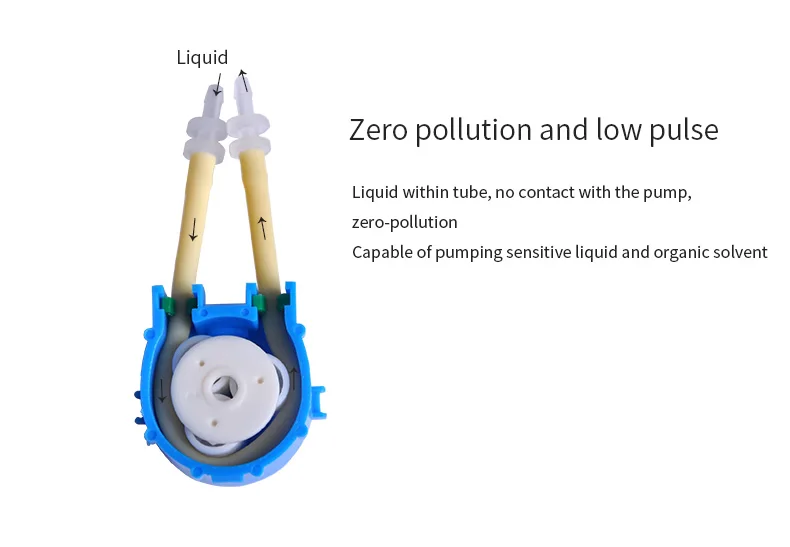

▲ Zero pollution and low pulse

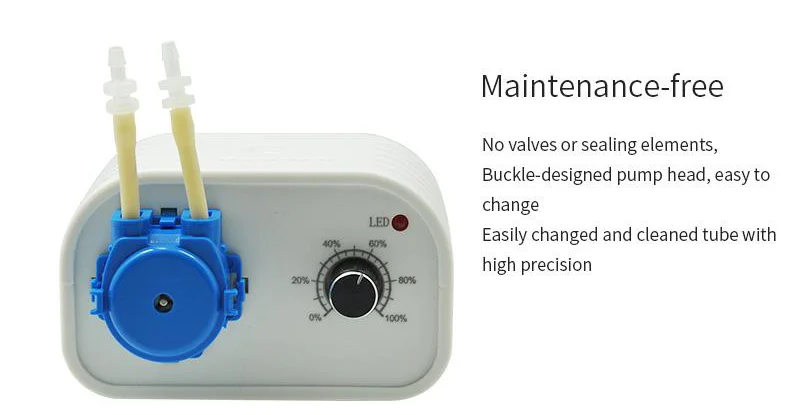

▲ Maintenance-free

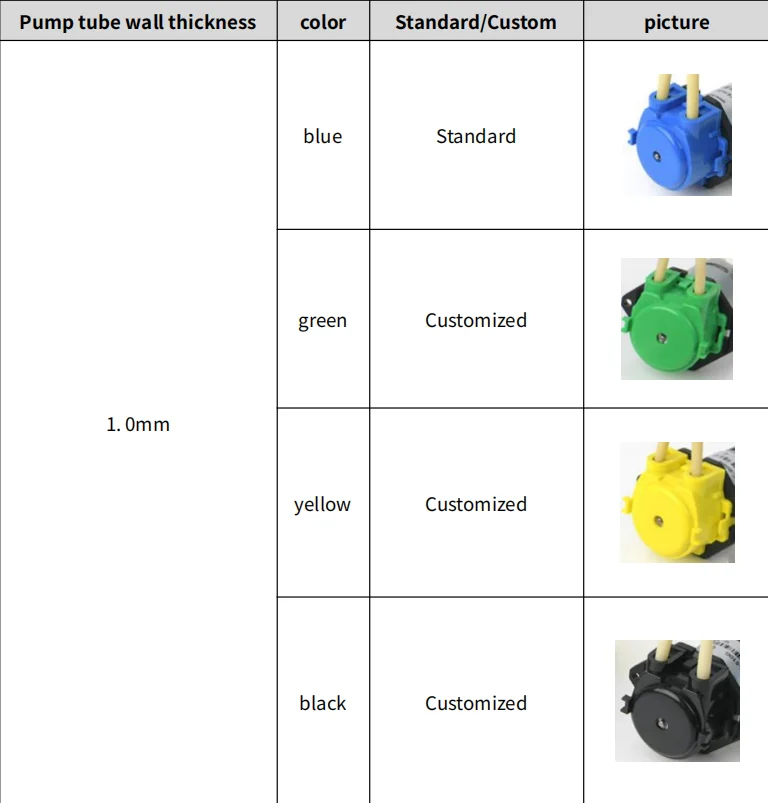

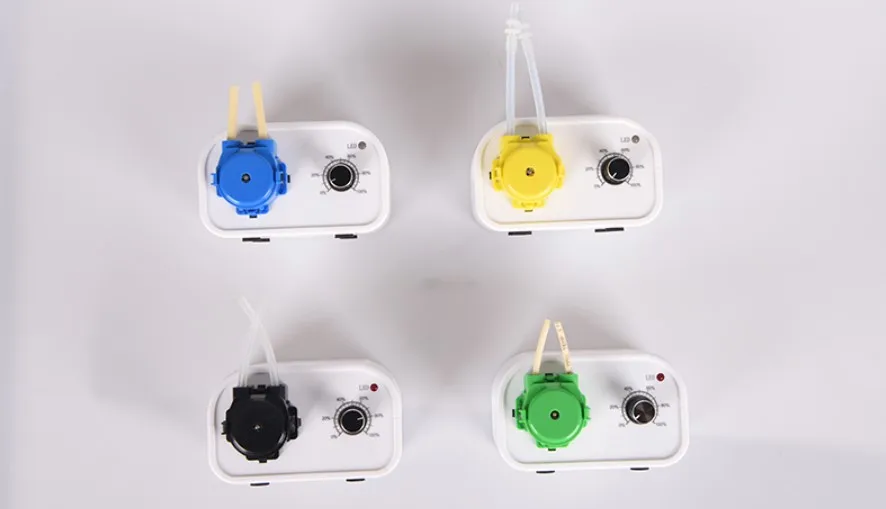

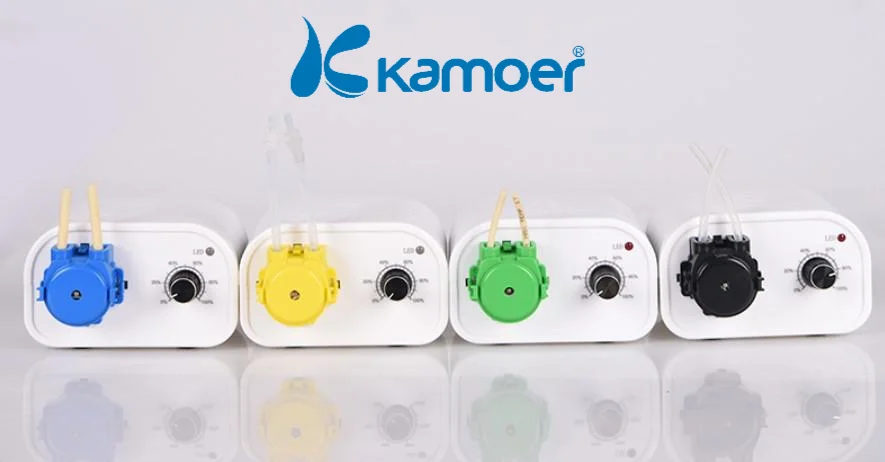

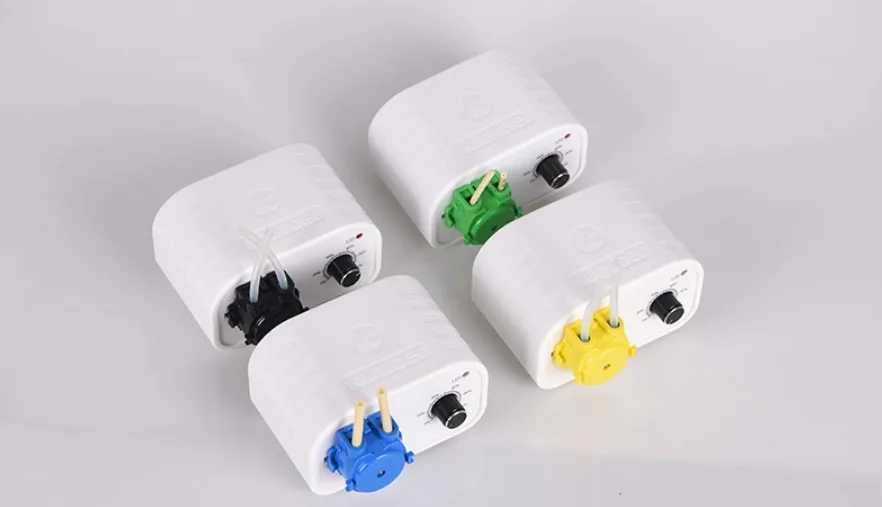

Four color of Pump Head

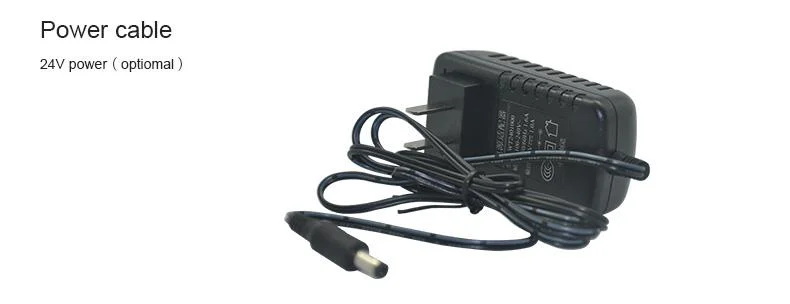

Power Adapter
▲ US Plug ▲ UK Plug ▲ EU Plug ▲ AU Plug
