Kocevlo SL Carbon Handlebar – 150g, Internal Routing, 31.8mm

Kocevlo SL Carbon Handlebar – 150g, Internal Routing, 31.8mm

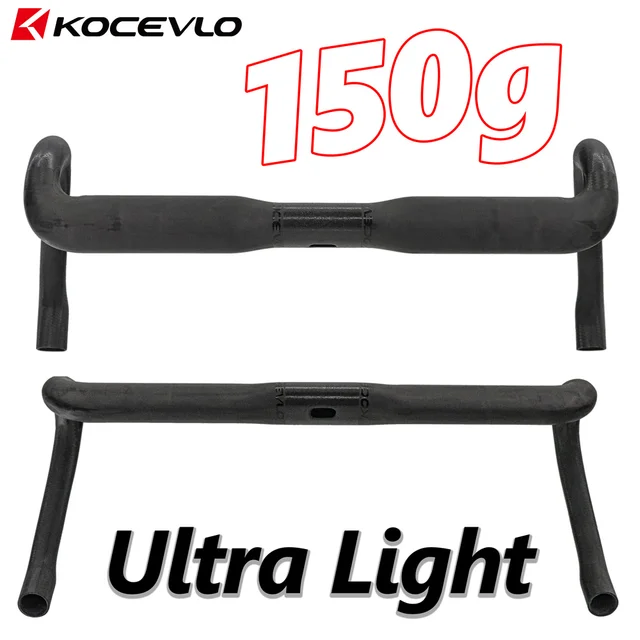

kocevlo SL Carbon Fiber Road Handlebar

Handmade item NOT 100% Prefect Finishing,The handle is finished in carbon fiber primary color, not 100% black. Different monitors have different colors!!!

Description:

The kocevlo SL lightweight handlebars for your road bike, a weight of just 150 grams in 400mm width.

The handlebar is entirely manufactured with TORAY carbon fiber, with an exclusive combination of bidirectional and unidirectional fabrics with the right orientation to achieve the best weight-resistance-stiffness ratio, always keeping in mind your safety. The proper arrangement of fiber layers has been achieved after finite element calculations and destructive tests.

This type of laminate can only be achieved with a completely handmade construction with a location of the carbon layers made by hand on each handlebar, with a number and arrangement of different layers at each point.

The center diameter is 31.8 mm, Compatible with ACR internal cabling system

The upper part has a flattened shape to increase comfort during hours of riding.

In the lower part it has internal hole for brake and shifters cables.

Measures: Currently manufactured in widths of 400-420-440mm measured from center to center (W1). With a “Compact” shape it has 75mm reach and 135mm drop.

Finishing: 3K+UD matte, no paint coverage. The middle part is UD effect (unidirectional) with an additional layer of 3K carbon cloth on the side of the handle.

Weight limit: The kocevlo SL handlebar is safe , so it is valid for an overall system weight (bicycle, cyclist, luggage) of maximum 110 kg. It is recommended that the rider should not weigh more than 90kg

We recommend to use stems with four screws up to 50 mm wide.

Specifications
intended use : Road bike, CX, Gravel
Material: Carbon
Handlebar clamp: 31.8 mm (Oversized)
Handlebar width: 400 mm, 420 mm, 440 mm (center – center)
Reach: 75 mm
Drop: 135 mm
Rise: 0 mm
Backsweep: 0 °
Upsweep: 0 °
System weight: max. 110 kg (driver incl. Bike and luggage)
Color / Finish: UD matt
