KUAIQU ET5410A/ KDL8410 Programmable DC Electronic Load

• Model Number: ET5410A/ KDL8410
• Type: Household Battery Tester
• DIY Supplies: ELECTRICAL
• Brand Name: KUAIQU
• Origin: Mainland China
• Certification: CE

KUAIQU Brand KDL8410 single channel programmable dc electronic load, USES the high performance chip, high speed, high precision design, provide 1mV,1mA resolution, superior performance, can be widely applied to the charger, switching power supply, linear power supply, production test of all kinds of batteries and other industries, scientific research institutions such asthe test research and development.

Product features:
humanized design.

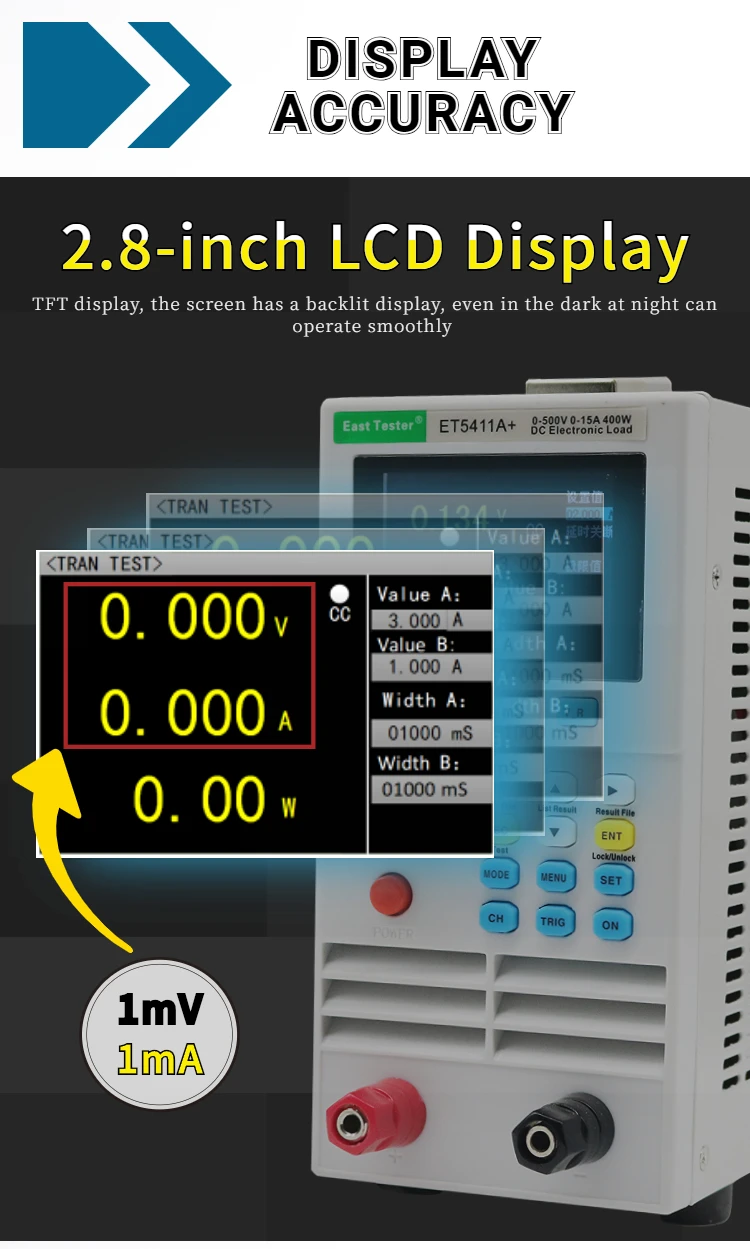

2.8-inch TFT LCD display, rich display content, support Chinese and English display;
Simple and convenient operation process, with intuitive interface display system, easy to use;
It has the function of key lock to prevent misoperation.

high-performance load

• The basic measurement modes of CC, CV, CR, CP, CC+CV, CR+CV are provided.
• Provide professional battery test and LED test;
• Dynamic test mode, can test the dynamic power output performance;
• Scanning test mode can test the continuity of power output within a certain range.
• List mode, which can simulate various loaded state changes;
• Short circuit test for simulating load short circuit;
• The measurement model of the far end can improve the measurement accuracy when the current is high.
• Support external trigger input.

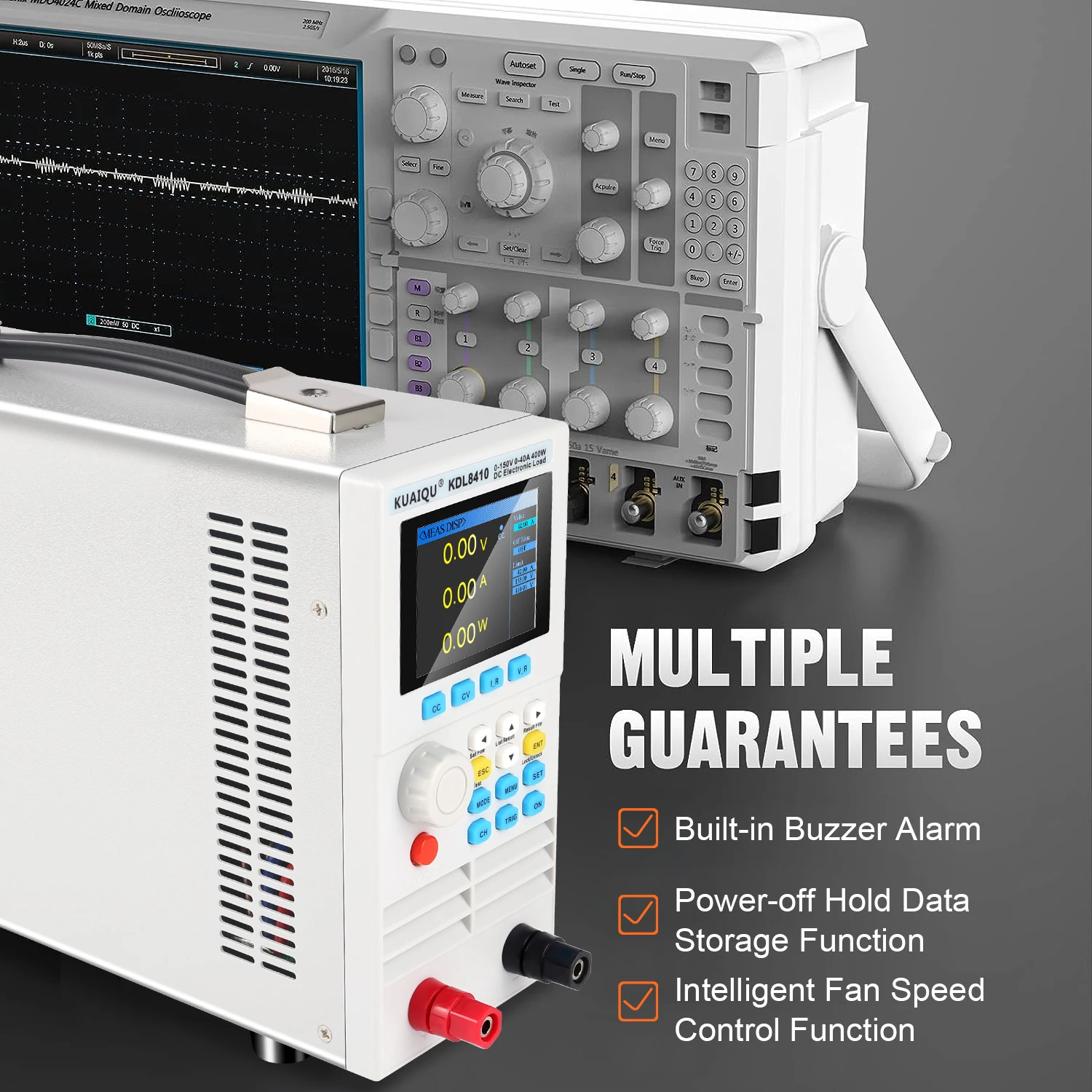

Built-in buzzer alarm.

• Power off to maintain data storage function;

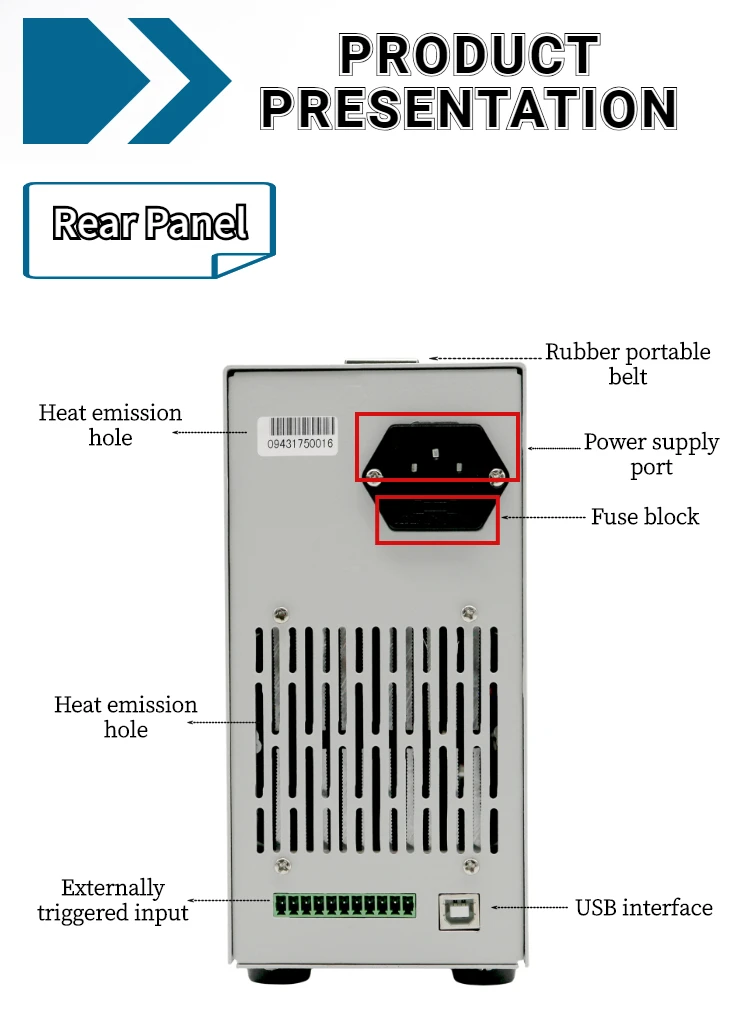

• Remote operation can be carried out through RS-232 interface and USB Device interface.
• With PS2 interface, support external keypad to set data values;

safety protection

• With overvoltage, overcurrent and overpower protection functions, overvoltage and overcurrent parameters can be set flexibly to effectively protect the load.
• It has the function of secondary over-temperature protection to realize the double over-temperature protection of software and hardware.
• It has the function of intelligent fan speed control, which can effectively reduce the working fan noise.

With output polarity reverse protection;

Main technical indicators:
Eight professional measurement function modes：
l It provides professional Battery test mode：Can be used for all kinds of battery capacity test；
2 It provides professional LED test mode：Can be used to simulate the performance of LED power supply test;
3 It provides professional Tran test mode：Can test the dynamic output performance of the power supply;
4 It provides professional scan test mode：Can test the continuity of power output within a certain range;
5 It provides professional list test mode： Can simulate a variety of loading status changes;
6 It provides professional short circuit test mode：Can be used to simulate load short circuit;
7 Itprovide battery/power internal resistance test function;
8 Itprovide conformity testing function;
9 Provide one key to enter and one key to exit operation keys, the operation is more simple;
10 Built-in buzzer alarm;
l1 Maintain data storage in case of power failure;

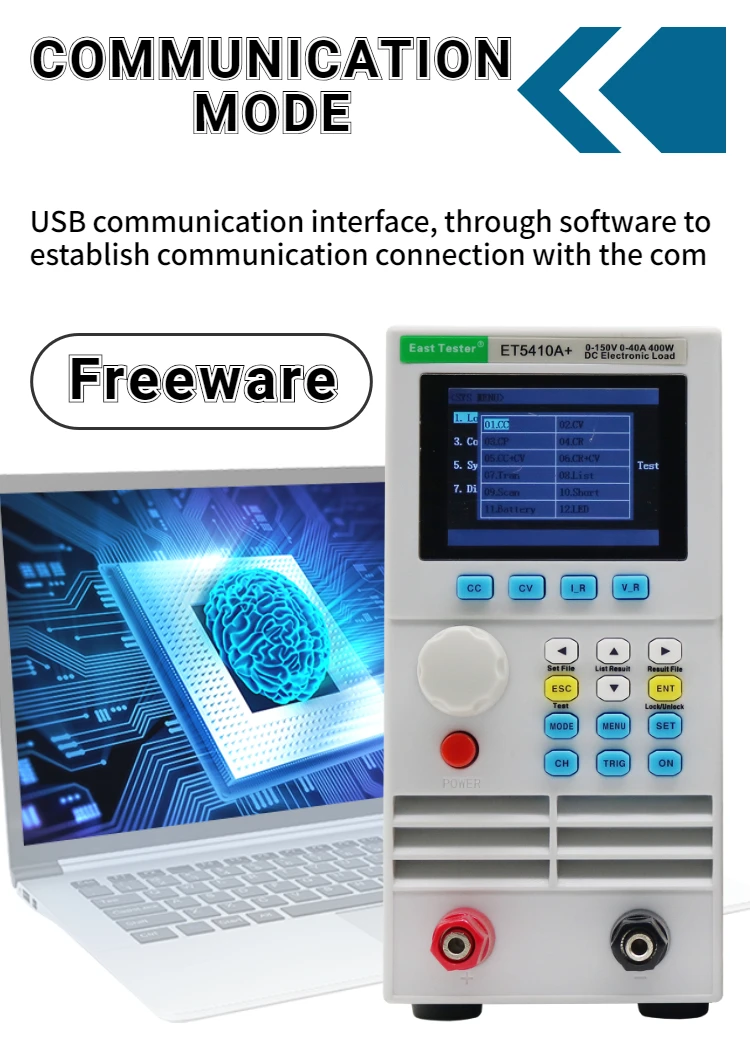

l2 Remote operation via USB;
l3 Equipped with software remote compensation

General technical specifications:
l Power supply voltage: 100Vac~240Vac，50/60Hz
l Display: 2.8-inch TFT LCD screen with resolution of 320×240
l Operating temperature: 0℃ to 40℃
l Storage temperature: -10℃ to 70℃
l Relative humidity: < 80%
l Interface: standard USB

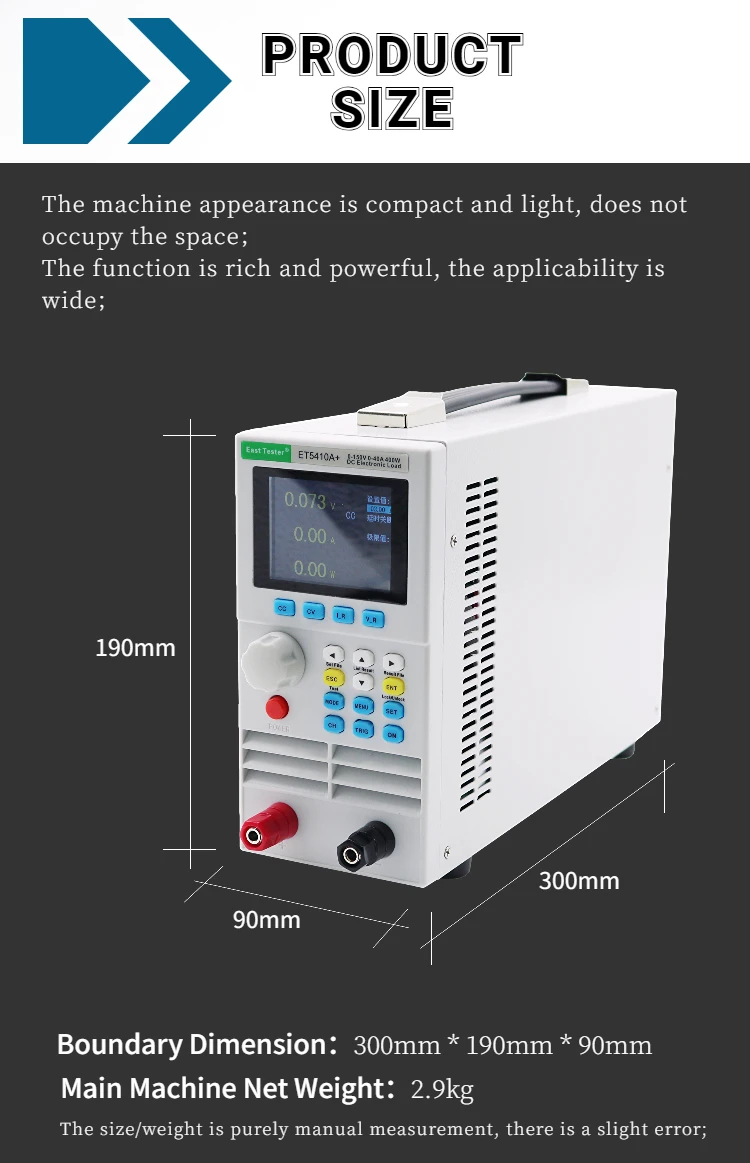

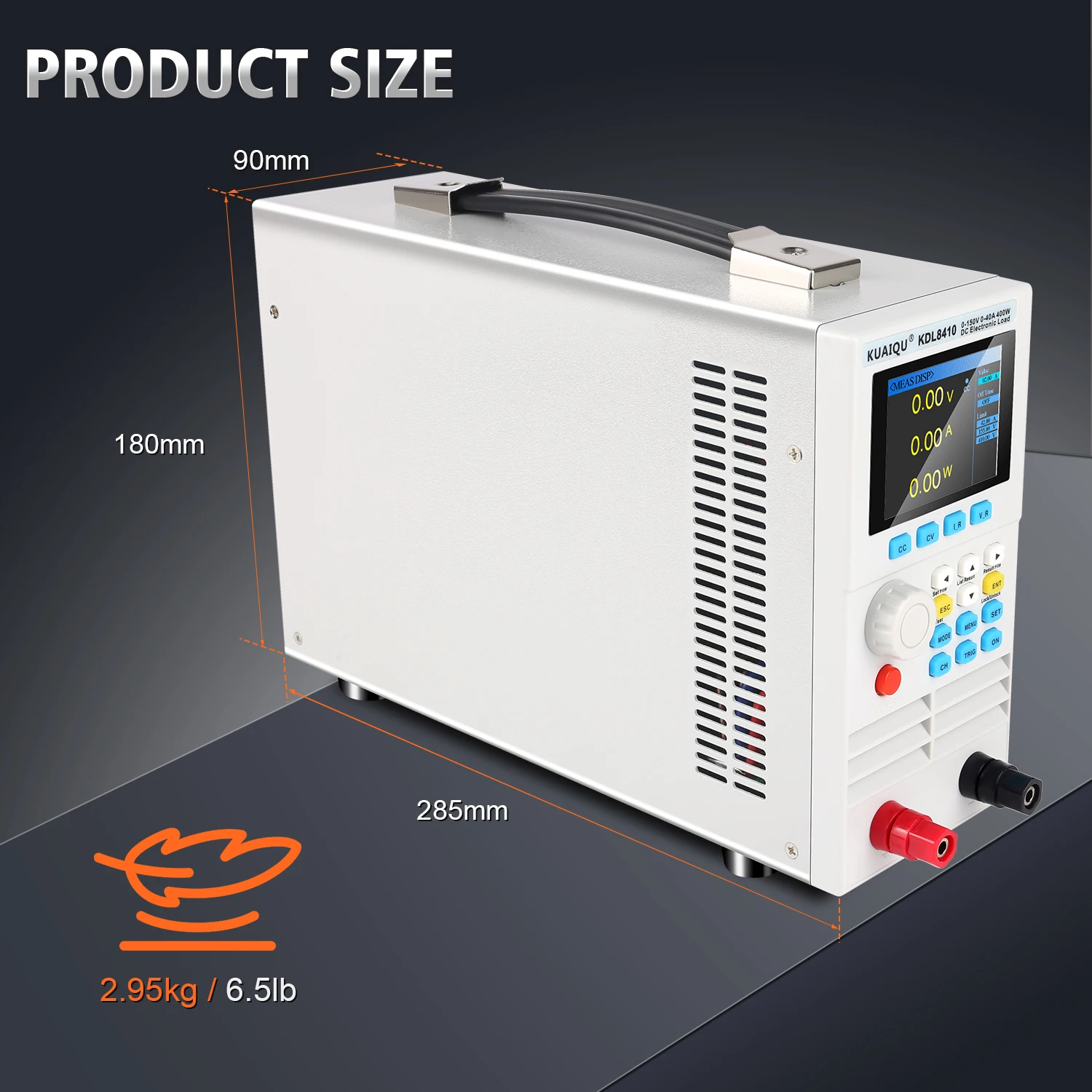

l Size: 90mm×190mm×300mm (width × height × depth)
l weight：2.9kg；

More Pictures

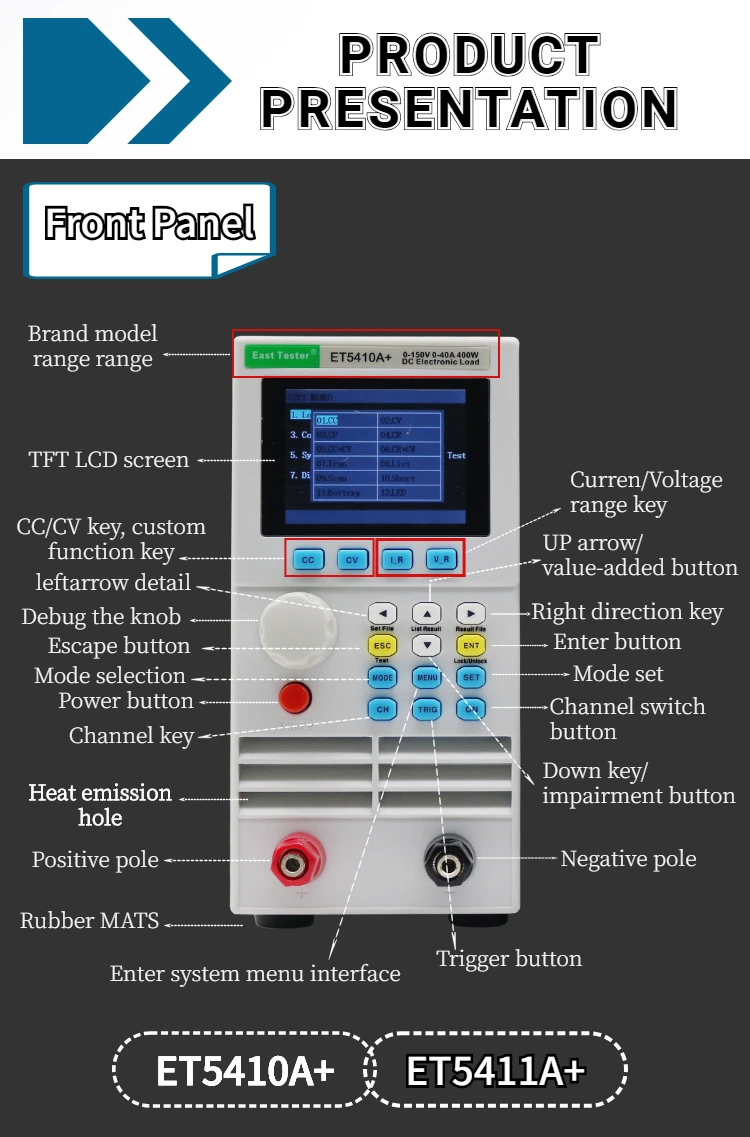

ET5410A+ As Below
