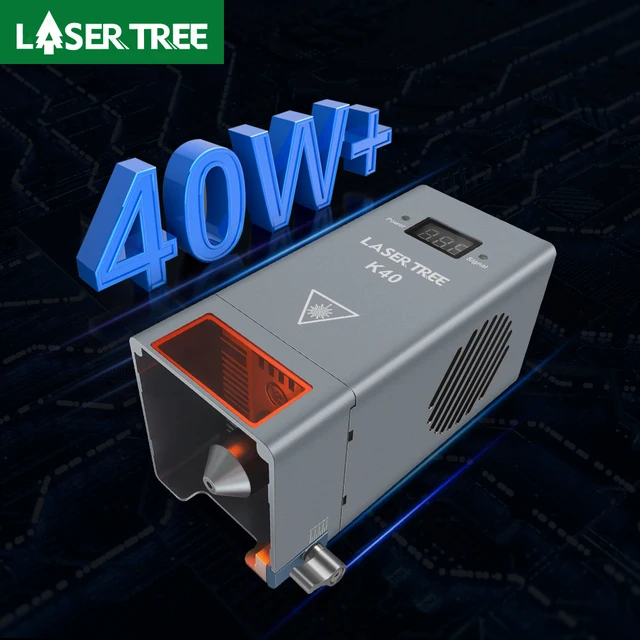

LASER TREE K40 Laser Module 40W Optical Power

LASER TREE K40 Laser Module 40W Optical Power

LASER TREE K40 is a true 40W+ output laser engraving and cutting module designed for powerful cutting. It uses beam compression technology to combine 8*5.5W laser diodes into a single powerful laser beam with 40W+ laser power.

LT-K40 Features:

1. Optical Power 40W+ Laser Module

Built-in 8pcs 5.5W+ beam compressed laser diodes, which can provide up to 40W+ optical power to achieve fast and efficient cutting.

2. Powerful Cutting Ability.

20mm bass plywood：100mm/min ；1pass

30mm pine plywood : 55mm/min; 1pass

30mm black acrylic : 15mm/min; 1pass

9mm MDF: 150mm/min; 1pass

3. Built-in Air Assist Airway & Dual Fan Cooling Design

①Built-in air assist airway to get clean-cut edges, improve cutting performance.

②Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

4. Red Cross Line Locating

The bottom is equipped with a red cross positioning cursor (offset X: 0mm, Y: -21mm), which can quickly locate the starting point and ensure the accuracy of the secondary cutting operatio

5. Temperature Display & Alarm Function

① Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.

②When the working temperature of laser module over 55°C, it will sound an alarm through the buzzer.

6. Easy to installation

① Integrated dovetail guide rail design, the guide rail length is 115mm, ensuring that the laser head can move smoothly, making it easy to adjust the height and focus position.

②In order to improve the compatibility to different laser engraver machine, K40 provide a solution by sliding plate with multi holes for installation compatibility.

7. Copper Core Protection Lens.

Easy to clean and replace when the lens is contaminated or dusty.

8. Laser View Window

Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

9. Widely Compatible Design

In order to improve the compatibility to different laser engraver machine, K40 provide a solution by adapter board for electric compatibiliy.

Buy-this-product-on-Aliexpress

Powerful Cutting Ability.

20mm bass plywood：100mm/min ；1pass

30mm pine plywood : 55mm/min; 1pass

30mm black acrylic : 15mm/min; 1pass

9mm MDF: 150mm/min; 1passWith Air Assist VS No Air Assist

Built-in air assist airway to get clean-cut edges, improve cutting performance.Built-in Air Assist Airway & Dual Fan Cooling Design

①Built-in air assist airway to get clean-cut edges, improve cutting performance.

②Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

Temperature Display & Alarm Function

① Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.

②When the working temperature of laser module over 55°C, it will sound an alarm through the buzzer.Red Cross Line Locating

Help you to place the material to the position correctly.

Buy-this-product-on-AliexpressThe bottom is equipped with a red cross positioning cursor (offset X: 0mm, Y: -21mm)Super Fast Engraving SpeedEasy to installation

① Integrated dovetail guide rail design, the guide rail length is 115mm, ensuring that the laser head can move smoothly, making it easy to adjust the height and focus position.

②In order to improve the compatibility to different laser engraver machine, K40 provide a solution by sliding plate with multi holes for installation compatibility.

Copper Core Protection Lens.

Easy to clean and replace when the lens is contaminated or dusty.

Laser View Window

Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.LASER TREE K40 Laser Module DetailEquipped with fixed focus lever, easy to set the focus

Focus bar design makes it easy to set the focus of the module.
